Soco Machinery Co. Ltd

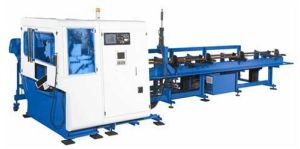

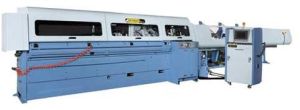

We offer tube Cutting Machines. The new SOCO Solid Bar Cutting Line incorporates the newest technology with unparalleled functions.This revolutionary innovation brings you the shortest crop length available in the global market: 25mm + a (SOCO Global Patent). With capacity up to 110mm in tube sawing and 105mm in solid bar sawing, it is guaranteed to bring you continuous savings and production. Performance Superior Speed : SA-70NC OD40mm Copper Bar, L = 56.5 mm, Cycle time = 3.7 secsSA-105NC OD100mm Mild Steel Bar, L = 20mm, Cycle time = 13 secs Long Blade Life : Superior Designed GearboxElectromagnetic Brake System“0” Backlash Accuracy and Precision : Electric Servo Cutting (SA-105NC)Electric Servo FeedingFloating Feeding CarriageCutting length precision : +/- 0.05 mm ~ +/- 0.1 mmClick Here For More Information

We offer pipe bending machines. CNC Tube and Wire Production Cell Uncoiling + Straightening + End Forming + Bending + Cutting The new SOCO ATM-19, 5 axis CNC Tube and Wire manufacturing line can combine different working processes for a complete Production Cell. The processes include : UncoilingStraighteningBendingEnd FormingCutting This Production Cell can work with tubes up to O.D.19mm in copper and O.D.8mm in wire; Min. O.D. capacity is 4mm both tube and wire. Equipped with SOCO’s unique DGT technology (Direct Gear Transmission) is the worldwide patented bending system that offering the highest accuracy and repeatability in bending. It includes built-in the SOCO proprietary software and operation interface, with an Industrial PC (IPC) + Touch Screen, Bending interference and Collision simulator and many other control and software features This Production Cell is especially designed for the production of small and medium diameter tubing and wire, and is widely used in industries such as Automotive Air-Conditioning, Heating, Refrigeration Systems and Home Air-Conditioning.

We offer pipe bending machines. Booster Tube Benders SOCO introduces the most advanced and complete line of Booster Benders for the automotive industry. With machines ranging from O.D.50mm ~ 130mm, this line of booster benders fulfills all needs for the manufacturing of exhaust systems for cars, motorcycles, trucks and buses. Click Here For More Information

We offer Chamfering Machines (Short Tube Ends) With DEF series that short length type focus on short working lengths (25mm ~ 300mm). With an optional BTM (Bundle Magazine), the machines may offer a completely automatic loading, feeding and chamfering process. This range is suitable for cleanly and evenly chamfering both ends of the tube, as well as chamfering the inside, outside and face of the material. DEF-FA/60SS (Rack Type) Double tube ends chamfering for short working lengths from 25mm ~ 300mm. Capacity up to Ø60mm. Fully automatic loading, feeding and chamfering.Click Here For More Information

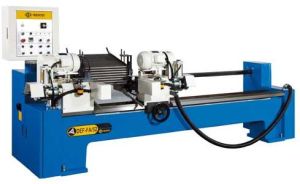

The DEF Series Line (Long Lengths Type) With the SOCO DEF series for long lengths, it is possible to simultaneously chamfer both ends of a tube, with up to 2000 mm in working length. With an optional BTM (Bundle Magazine), the machines may offer a completely automatic loading, feeding and chamfering process. This range is suitable for cleanly and evenly chamfering both ends of the tube, as well as chamfering the inside, outside and face of the material. DEF-FA/52 + BTM Double tube end chamfering with long working lengths up to 2000mmCapacity up to Ø52mm. Fully automatic loading, feeding and chamfering DEF-FA/90 + BTM Double tube end chamfering with long working lengths up to 2000mmCapacity up to Ø90mm.Fully automatic loading, feeding and chamfering Click Here For More Information

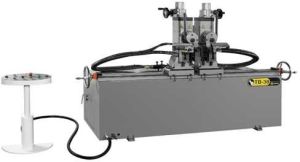

We offer pipe bending machines. Extreme Speed Double Head Tube Bender Cost effective and high speed tube bending The TB Series Tube Benders Chosen for its unparalleled productivity, the TB series of compression tube benders is able to make 2 bends X Multiple tubes simultaneously. Here are some of the advantages of this Globally Patented design : Standard with 90o head rotation for 3D tube bendingStationary clamps to maintain the tube in position before pipe bendingArc movement of bending heads results in the highest production rates available for any tube bending machineLowest setup times with quick change tooling design and readout for length and angle settingsProduction speed: 3.8 seconds – 25.4 mm X 2t X 90o, 2 tubes at one time TB-38 2 X 90o Rotation bending heads, with bending angles up to 110o.Capacity up to Ø 38.1mm Click Here For More Information

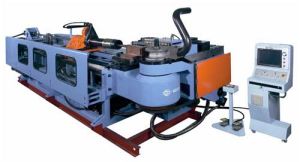

We offer pipe bending machines. With models that extend up to Ø168 mm capacity, the SOCO CNC tube bender 5 axes line brings the optimal tube bending solutions for the automotive, trucking, buses, healthcare, boiler, ship building and other industries 5 servo electric / proportional servo controlled axes :- FeedingRotationBendingHorizontal MovementPressure Die Assist SB - 76 x 5B - 2S CNC tube bender with capacity up to Ø 76.2 mm and equipped with 5 individually programmable axes and 2 stacks of tooling SB - 110 x 5B - 2S CNC tube bender with capacity up to Ø 110 mm and equipped with 5 individually programmable axes and 2 stacks of tooling Click Here For More Information

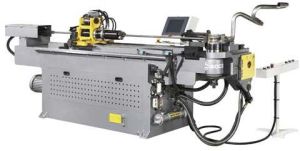

We offer pipe bending machines. NC Bending with Rotation Control 8 Pre-set Rotations and Length Positions cost Effective and Easy to Use The NCMP Series Tube Benders The NCMP series tube benders combine CNC type accuracy with the costs of a NC type bender. The NCMP line offers maximum bending flexibility with high quality production. SB-50NCMP NC controlled tube bender with capacity up to Ø 50.8mm. Hydraulic rotary bending with Touch Screen SB-80NCMP NC controlled tube bender with capacity up to Ø 88.9mm. Hydraulic rotary bending with Touch Screen Click Here For More Information

We offer tube Cutting Machines. The new SOCO Solid Bar Cutting Line incorporates the newest technology with unparalleled functions.This revolutionary innovation brings you the shortest crop length available in the global market: 25mm + a (SOCO Global Patent). With capacity up to 110mm in tube sawing and 105mm in solid bar sawing, it is guaranteed to bring you continuous savings and production. Click Here For More Information

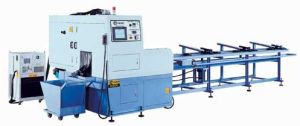

We offer tube Cutting Machines. Machine Features : Automation Automatic loading magazine for tubing and solid bars up to 6.5 meters in lengthAutomatic single or double tube loading, feeding and cuttingAutomatic first and crop cuts separationAutomatic speed variation during cuttingLowest RPM during blade entryHigh RPM after cutting through the tube’s wallLower RPM at re-entry into tube’s lower wallClick Here for More Information

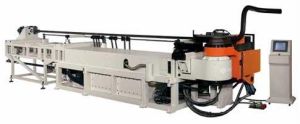

We offer pipe bending machines. NC Control Pipe Bender with Hydraulic Rotary Bending The NC Series Tube Benders The NC series tube benders equipped with NC control unit with Touch Screen Interface. Capacity up to OD168mm. It combines easy-to-use operation with high bending accuracy and cost effectiveness. It is the practical semi-automatic solution for small to medium productions. SB-38NC NC controlled tube bender, with Touch Screen and capacity up to Ø 38.1mm. Hydraulic Draw bending SB-50NC NC controlled tube bender, with Touch Screen and capacity up to Ø 50.8mm. Hydraulic Draw bending SB-80NC NC controlled tube bender, with Touch Screen and capacity up to Ø 88.9mm. Hydraulic Draw bending Click Here For More Information

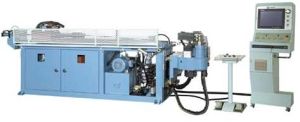

We offer pipe bending machines. Combined with 3 ~ 4 electric servo controlled axes, multiple bending stacks and the unique DGT technology, the A series tube benders can offer the highest performance solutions, bringing accuracy, flexibility and high production. What Is DGT Unique DGT technology (Direct Gear Transmission) is the worldwide patented tube bending system with straight gear to gear transmission. This technology brings you the most efficient and stable pipe bending process, offering higher accuracy and repeatability in draw and roll bending. At present, the SOCO A series & V series tube benders are equipped with DGT technology. SB-20X4A-2S + AF20 CNC tube bender with capacity up to 20mm, 4 electric axes and 2 stacks of tooling Equipped with optional Automatic Loading System – AF20 SB-38X3A-1S CNC tube bender with capacity up to 38.1mm, 3 electric axes and 1~2 stack of tooling SB-51X3A-2S CNC tube bender with capacity up to 50.8mm, 3 electric axes and 2 stacks of tooling Click Here For More Information

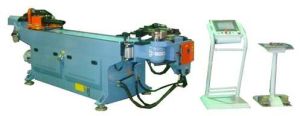

We offer pipe bending machines. 2 Axis with NC Hydraulic Bending Capacity up to 38.1mm CNC Tube Bender Features :- CNC bending machine with capacity up to 38.1mmFully Automatic and Cost EffectiveEquipped with 3 programmable axisFeeding – Electric ServoRotation – Electric ServoBending – Hydraulic (NC)Hydraulic pressure die assist for every bending stackEquipped with Wiper, clamping and pressure die seatsProgrammable early mandrel extraction systemTouch screen systemElectric servo controlled feeding & rotation axis to ensure high precision (+/- 0.2mm and +/- 0.2° ) and reliabilityNC programmable hydraulic bending precision up to +/- 0.2oAutomatic springback compensationData input by XYZ or YBC coordinatesData storage and editing for multiple filesAutomatic mandrel lubricating system (Optional)

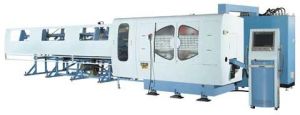

We offer tube cutting machines. Combination of 4 processes in 1 machine for Tubes and Solid Bars : CuttingMachining (Chamfering / Facing / Centering)WashingLength Measuring (AM System - Optional)Additional Machining Units may be added for : ThreadingTurningTappingDrilling Click Here For More Information

We offer pipe bending machines. 1D Booster Benders + Wall Thinning Control + Cutoff This line of Booster Benders is specially used in the production of manifolds and converter inlet pipes within the automotive exhaust system, where the wall thinning ratio must be controlled to ensure that the tube can withstand the high system pressure. Click Here For More Information

We offer tube Cutting Machines. High Tensile Steel The High Tensile Steel Tube is now widely applied in the global automotive market. In order to achieve higher fuel efficiency and lowering materials costs, thicker tubes and solid bars have been replaced by thin wall High Tensile tubes, which offer lower weight without compromising in strength and safety. With a much higher tensile strength (80~120 Kg/cm²) than conventional steels (40~50 Kg/cm²), this material is highly employed in key areas of cars in for structural (chassis) applications and impact protection. The new SOCO SA-78NCE brings you the latest technology in High Tensile Steel Tube Sawing. Its unique design and cutting system brings the highest saw blade life in such applications, as well as unparalleled performance and speed.Click Here For More Information

The EF Series Chamfering Machine The SOCO EF Chamfering series extends up to Ø115 mm in capacity. These semi-automatic machine models offer different functions such as universal clamping jaws for various tube sizes (EF-AC/115-U Type). The process is suitable for single tube end chamfering and available for solid bars. The Chamfering may be done on the tube’s inside, outside and face with a clean and accurate process. EF-AC/60 Single tube end chamfering with Ø60mm capacity. EF-AC/80 Single tube end chamfering with Ø80mm capacity. EF-AC/115-U Single tube end chamfering with Ø115mm capacity and equipped with a universal clamping. Click Here For More Information

We offer pipe bending machines. The Brake Line Bender The SOCO SB-Oil Tube master is a dedicated CNC Brake Line bender, designed for small tubing, especially Bundy Tubes and hydraulic lines. With multiple electric axes and a unique design to allow bending the most complex shapes and parts, it offers the most advanced solution and performance in its range. Automation 3 Electric Axis controlling bending, tube rotation and carriage movementAutomatic bending head reversal (left-to-right) when reaching central clamping area, providing a fully automatic cycle for the entire bending processOptional Automatic Loading and Unloading Interface Click Here For More Information

We offer tube cutting machines. Machine Features : Servo controlled material feeding, to ensure the cutting length tolerance to be within + - 0.1mmTouch screen for easy operation and setting.Rigid structure with heavy-duty steel-fabricating base, to decrease vibration and improve precision in cutting.Specially designed changeable clamping jaws make replacement easy and fast.Automatic cooling system for the work piece. Automatic oil-mist system for the saw blade surface.Use of PLC to provide highest quality performance, convenient operation, and easy maintenance.Built-in protective sensor prolongs saw blade shelf life and ensures safety operation.Specially designed for cutting non-ferrous material : Aluminum, Brass, Cooper, PVC, Carbon Fiber...etc.With MU4 loading magazine, a fully automatic production line, saving man power & increase the production rate (HMC-600NFA-NC+ MU4) With discharge convey unit WDC05, the working piece after cutting will be sent out automatically. The first crop & end crop will be also sent out and separated automatically (HMC-600NFA-NC+ MU4)

We offer pipe bending machines. Multi-Radius & Complex Tube Bending 6 Electric Servo Controlled Axes Tube Bender The MR series tube bender equipped with multi-tooling can up to 6 tooling levels. Designed for bending tight radiuses (1 X OD or Less) and controlling tube wall thinning, the MR series line serves the most complex and demanding applications for the automotive, hydraulic and boiler industries. The MR series CNC tube benders are equipped with 6 fully electric servos. SB-38X6A-MR CNC tube bender with capacity up to Ø 38.1mm, equipped with 6 electric servos and 1 hydraulic proportional servo. Up to 6 stacks of tooling with material booster. Click Here For More Information
