#JRC motor of #JRC 9132 series radar

jrc tipe approval s band radar 9230

ready for sale availability used condition new brand working 100% exlilen condition

The FELCOM18 is FURUNO's new Inmarsat-C Mobile Earth Station. It provides a high quality two-way telex and data link between ships and other parties at sea or on land. All functions and services of the Inmarsat-C system are provided: EGC (Safety NET/FleetNET), distress message handling, two-way digital store-and-forward messaging including polling, data reporting, E-mail, etc. Distress alert are initiated by the remote distress alert unit. The distress message including own ship's position is easily edited. A PC can be used for editing the message via Ethernet when it is supplied with dedicated software.

Fully meets GMDSS requirementsfor SOLAS vessels

The Furuno FM8900S is a Semi-duplex 25-Watt VHF Radiotelephone with a built-in Class-A DSC and CH70 watch Receiver. It features an easy-to-read, high-contrast 4.3" bright color LCD, enhanced noise reduction and speaker for superb voice quality, and quick-access CH16 key. Channel selection is simplified with the inclusion of both a rotary control and direct keypad input. Automatic entry of own ship position and time is accomplished through interfaced GPS receiver. The FM8900S can also connect to an office or home via an existing PSTN (Public Switched Telephone Network).

The FM8900S scans all channels in the selected region as well as watches CH16 in alternate shifts.In the menu, all tasks are assigned numbers, and the operator can access each of the menu items either by turning and pressing PUSH TO ENTER knob or simply pressing the corresponding numbers on the numeric keypad for simplified operation. It features a Replay function that records the latest 120 seconds of incoming communication on the currently set channel. By simply pressing the REPLAY button on the numeric keypad, the last-received message will be played back on the spot.

The FM8900S fully meets GMDSS carriage requirements for SOLAS ships, as well as new ITU recommendation on digital selective calling system for use in the Maritime Mobile Service, ITU-R M.493-13. ATIS signal transmission is available for inland waterways.

MAGNETIC COMPASS BOWL

JAPAN MLIT APPROVAL TYPE

TYPE. KN-RI 651726

SER .NO 9093

DATE 2002

MA SS 11.5 kg

OSAKA NUNOTANISEIKICO.T

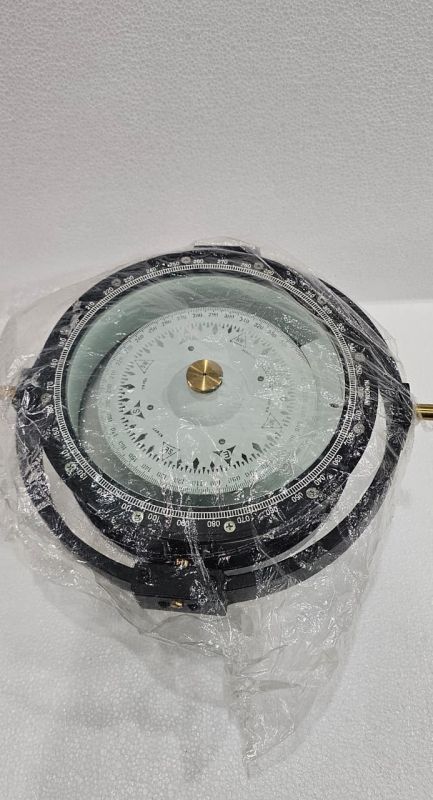

Osaka Nunotani Seiki KN R165 and R165-A Magnetic Compass

The magnetic compass has its root in zhi nan yu (literally south-pointing fish), a fish-shaped magnet that was invented in the Song era in China. Zhi nan yu was brought into Europe, and was evolved into magnetic compass, which was later called one of the three most important inventions in the Renaissance. Magnetic compass came into full bloom during the Great Navigation Age, and made great contribution to civilization. It is no exaggeration to say that magnetic compass changed the subsequent world history.

Nunotani tackled the production of nautical magnetic compasses for the first time in Japan in 1892, and has been promoting studies and improvements over the 120 years since then, in order to meet requests from customers.

Osaka Nunotani Seiki Magnetic Compass Products (KN R165 and R165-A) Our products conform with the following standards.

IMO (International Maritime Organization) A.382(x)

Type approval by the Ministry of Land, Infrastructure and Transport

ISO (International Organization for Standardization) 449

ISO (International Organization for Standardization) 2269

Reflection & Projection Magnetic Compass Binnacle Assemblies also available.

YDK (Yokogawa) CMZ900 Gyro Compass Series

YDK (Yokogawa)

YDKs (previously Yokogawa) CMZ900 Series of Gyro Compasses offers several models to provide the right features set to the needs of the vessel. All models have been type-approved to comply with IMO standards resolution & JIS-F9602 Class A standards.

A gyro compass detects the true north by means of a fast-spinning rotor, which is suspended with no friction and is influenced by gravity and rotation of the Earth. A gyro compass consequently indicates a ships heading. CMZ900 series has been type approved in accordance with International Maritime Organization (IMO) standards, resolution A.424(XI) as well as JIS-F9602, class A standards.

CMZ900-B2 Gyro Compass for small vessels (smooth gyro changes without lag when small vessel changes course)

CMZ900-S Gyro Compass (+ Control Box with built-in monitor)- suitable for all merchant vessels, with various types of signal outputs

CMZ900 -D Dual Gyro Compass (+ Control Box + Dual AC Adaptor) Highly reliable dual system, switch-over controls, multiple signal outputs, & enhanced integration

Viewing enhancement of the system capability, optional instruments are available in order to increase the signal outputs of the gyro compass. Other navigation equipment such as repeater compasses, course recorder are available as a part of the system. MASTER COMPASS (MKM 026) runs on 24 VDC power supply. It is easily adopted to the power supply requirements, and all signal outputs can then be maintained during AC power interruption if 24 VDC is provided. Serial data output IEC 61162-1 or -2 (high-speed transmission) is selective, and contains the ships heading and rate of turn (ROT) information.

Features

Modular design saves space

Master Compass can include in autopilot steering unit

Serial data output for heading and ROT output

Manual and auto speed correction (900S & 900D)

Unique anti-vibration system

Small, lightweight container enhances follow-up speed

JRC JLN-550 Doppler Sonar Dual Axis Speed Log provides ship speed information with higher stability in dual frequency mode. The lower ultrasonic frequency measures ground speed & the higher ultrasonic frequency calculates the ships speed against water with a minimized effect of aeration. Compact transducer enables bow installation.

Features

Reduced error with ultrasonic beam fore & aft directions

Doppler measurement ensures accurate & stable speed data in rough conditions.

Downsized transducer (though dual frequency) smaller than conventional

High visibility display with multiple modes

Easy to interface (2nd display, smaller remote displays, send data to Radar & ECDIS)

GPS connectivity enhances speed data & accurate positioning

Optional unique online maintenance for remote trouble-shooting & monitoring

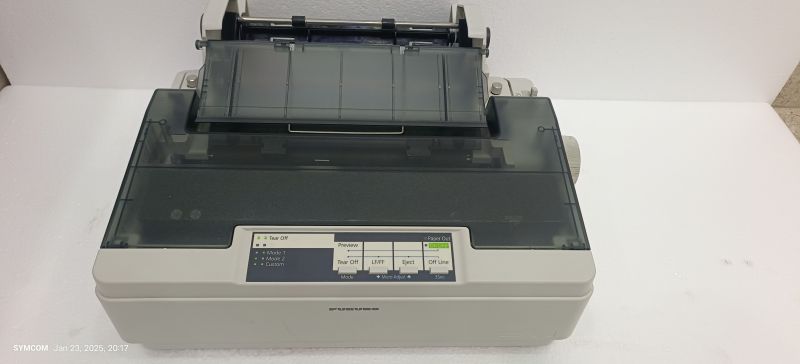

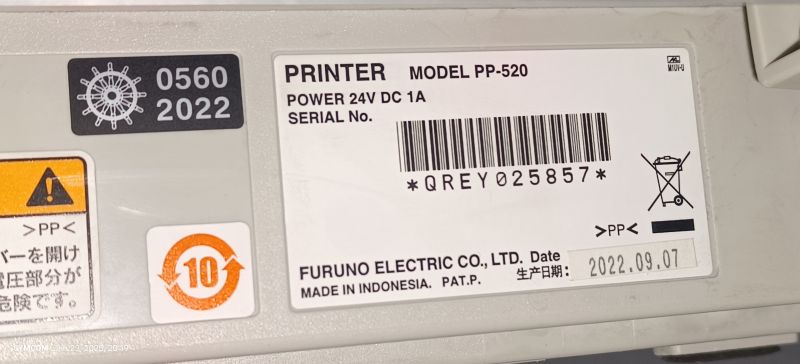

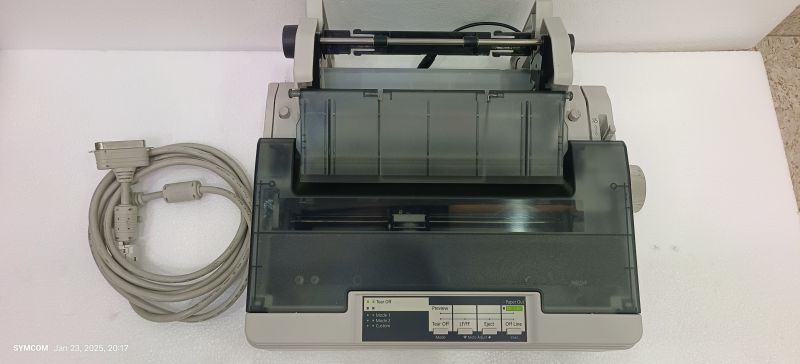

FURUNO PP520 Marine Printer

FURUNO PP520 Marine Printer is designed for marine industry, ideal for GMDSS equipment and ECR.

FURUNO PP520 printer can be replaced by GMDSS PP550 printer.

Description

FURUNO PP520 Marine Printer is a GMDSS compliant dot matrix printer. It prints navigation information fed from the ship's radio communications system.

100% compatible with All brand printer for GMDSS equipment, GMDSS PP550 printer can replace FURUNO PP510/PP520 printer.

Features

Printhead 9 needles

Print speed: 200 characters / second

Ribbon life: 3 million characters

Type of paper: width 208-216 mm, maximum diameter -128 mm

Power supply: 24 V DC, 1 A
