SYSTEMS AUTOMATION

• MOQ 1 piece

LCM - 01 Horizontal Cake Slicing Machine   Cutting Receipe  :  CAKES, HAMBURGERS, BUNS,   Capacity : 1. 300 PCS / Hour ( Base on Dia 300mm ) 2. Speed 3000 Hamburgers/Hour 3. Number of Slice : 6 Slices Max 4. Increment of cutting Step 5 mm x 24 pitch 5. Effective Cake Size in Round – 400 mm Dia x 100 H mm 6. Effective Cake Size in Rectangle – 600L x 400W x100H mm Specification : 1. Power Supply: 3 Phase - 430 V, 50 Hz ( Single Phase with extra cost ) 2. Power Consumption: 0.6 Kw 3. Machine Size: 1050 L*800 W*1200 Hmm 4. Weight: 180 Kg Technical Specifications: Cutting Speed :   3000 HumBurger/Hr 300Pcs/Hr (400mm Dia) Cake Size :  400mmx150mm (W idth x   H eight ) Power Supply :  Three Phase Voltage :  220-380V AC 50Hz Power:  0 .6kw Features: ·  European Standards ·  All SS304 Body Parts ·  Food Grade PU Conveyors ·  Non-Corrosive Coated Blades ·  Adjustable Cutting Dimensions ·  Cuts Upto 6 Pieces ·  Adjustable Cake Height ·  Synchronized  Top & Bottom Conveyors ·  Easy Maintenance ·  Variable Speed Options

• MOQ 1 piece
• Brand Namesystems and automation
• Colorlight blue
• Country of OriginIndia

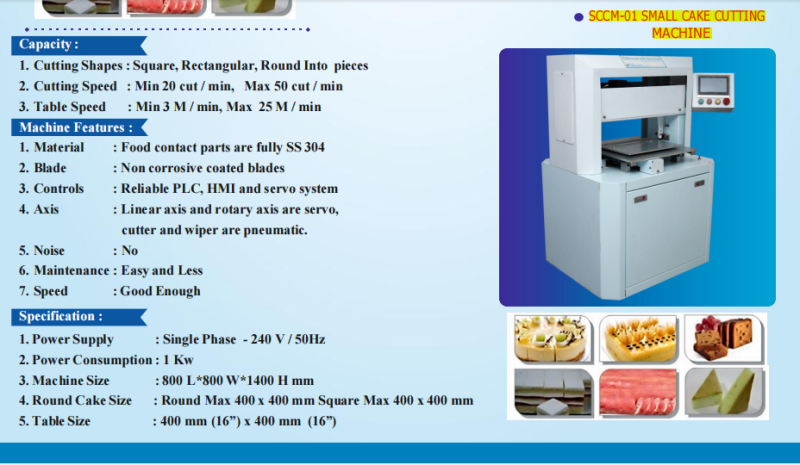

SCCM-01 SMALL CAKE CUTTING MACHINE   Capacity : 1. Cutting Shapes : Square, Rectangular, Round Into pieces 2. Cutting Speed : Min 20 cut / min, Max 50 cut / min 3. Table Speed : Min 3 M / min, Max 25 M / min Machine Features : 1. Material  : Food contact parts are fully SS 304 2. Blade  : Non corrosive coated blades 3. Controls : Reliable PLC, HMI and servo system 4. Axis : Linear axis and rotary axis are servo,  cutter and wiper are pneumatic. 5. Noise : No 6. Maintenance : Easy and Less 7. Speed : Good Enough Specification : 1. Power Supply : Single Phase - 240 V / 50Hz 2. Power Consumption : 1 Kw 3. Machine Size : 800 L*800 W*1400 H mm 4. Round Cake Size : Round Max 400 x 400 mm Square Max 400 x 400 mm 5. Table Size : 400 mm (16”) x 400 mm (16”)   *Systems and Automation* (Manufacturer of Bakery Machineries)   *Contact-*  + *91 , +91 *

• MOQ 1 piece

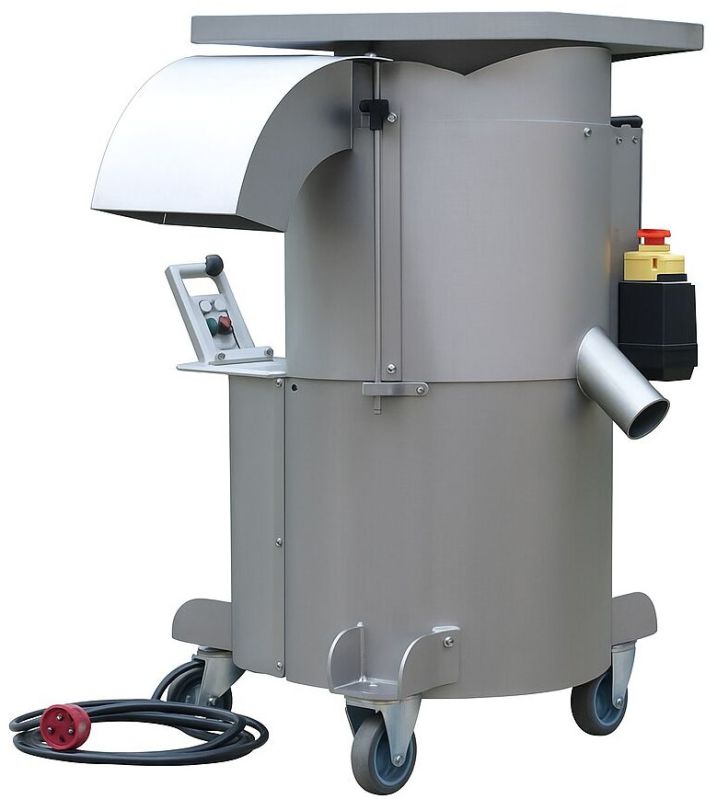

  EGG BREAKING MACHINE Technical Features ·  It separates egg shell and liquid from the egg. ·  The machine can run on continuous basis , shells are automatically separated from the liquid. ·  Capacity of machine is 4000 eggs/hour.ct. ·  The machine operates on 3 phase 400 V ac power supply.

• MOQ 1 piece
• TypeCake Cutting Machine
• Country of OriginIndia
• MaterialS S

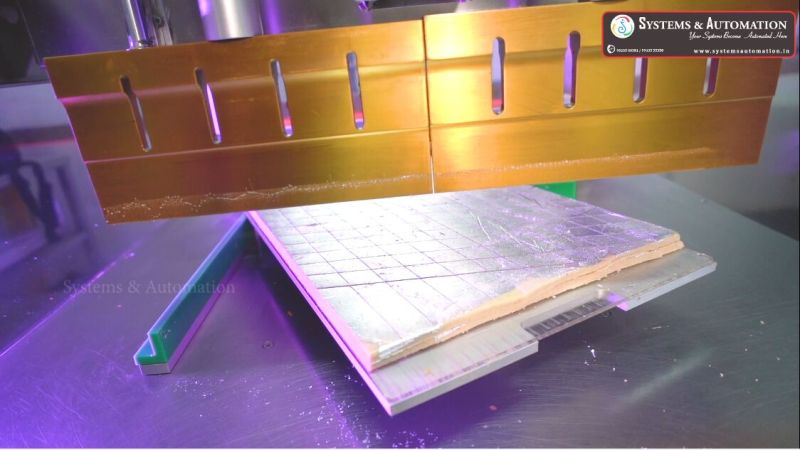

CCM-01 CAKE CUTT ING MACHINE (Hig h Productivity)   Cutting Shapes :   Square , Rectangular , Triangle , Diamond, half Diamond , Round Into pieces and Polygon Capacity: · Cutting Speed : Min 20cut / min, Max 50 cut/ Min · Table Speed :  Min 3 M/ min, Max 25 M/min   Specification : ·Power Supply :  Single Phase -240v/50Hz · Power Consumption : 1 kw · Machine Size :  1200L*1110W*1500H mm · Round Cake Size :  Maximum 400 mm Dia · Table Size :  600 mm (23.6”) x 400 mm (15.8”)   Machine F ea tures : · Material :  All Food contact parts are fully SS304 · Blade :  Non corrosive coated Blades ·Maintenance – Easy and Less   Safety Features : 1.     Protected with hand safety Sensor, 2.    Air Pressure Switch Safety and alarm 3.    Closed tray  Safety and alarm 4.    Metal Tray Safety and alarm 5.    Open tray  Safety and alarm 6.    Ultrasonic Over temperate Safety alarm  7.    Ultrasonic Error Safety and alarm   Systems and Automation (Manufacturer of Bakery Machineries)   Contact-  + 91 , +91 Email :   sales1systemsautomation@ Website: > Indiamart: > Instagram: > Whatsapp Channel:   Catalogue:
