The slow cooling of confined spaces like columns / vessels / reactors leads to wastage of time and money during maintenance and shutdowns. Also toxic gases/fumes and lack of oxygen, high temperature and high RH is hazadrous for the workers. This is why Pressure Vessel Temperature Reducing service is required across various industries. General Recommendation Steaming should be done at the initial stage for lowering down the temperature from higher level (eg:1500ºC) Above 200ºC faster cooling is not recommended which may lead to stress in the structure thereby leading to cracking of various parts and reduction in life of an equipment. Desired Parameters RH : less than 60%, Temperature : 30º-35ºC Technical Drying Services (Asia) Pvt. Ltd. provides Pressure Vessel Temperature Reducing Service using desiccant based dehumidifiers, condensing units, blowers and ducts. The experts allow the moisture laden air to enter through the process inlet of the dehumidifier and passes through the desiccant media wherein the water vapour is adsorbed and the dehumidified air is then dispersed into the controlled space. The colossal clientele is an acknowledgment of unmatched and competent services that we provide. Importance Of The Pressure Vessel Temperature Reducing Service Increases productivity of worker Removes toxic gases and fumes Control over ambient conditions

In heavy-duty industries expensive equipment begin to rust and corrode while in storage / during shutdown / even when in operation due to excess moisture presence in the air. The accumulation of moisture accelerates the rate of corrosion leading to deterioration, malfunctioning & decrease in life of parts and components. General Recommendation At the time of shutdown Relative Humidity should be maintained at 15%-30% ar 24°C(75°F). During operation Relative Humidity should be maintained at less than 35% Dehumidification process is used for Industrial Equipment Preservation. The undesired moisture is removed by drying the air. The removal of moisture from the storage area reduces the relative humidity of the area, effectively arresting corrosion and microbial growth. The Industrial Equipment Preservation Service offered by Technical Drying Services (Asia) Pvt. Ltd finds great usage in hydel power plants. We employ the services of the techically experienced specialits for carriyng out the entire process, accurately. Why Our Service? In-depth industrial knowledge Adroit professionals at work Time bound / swift completion of projects Steadfast solutions Competitive rates As our services are on rent it is ideal to fulfill any short term, immediate and seasonal requirement.

Tanks in Petro Chemical units are used to store corrosive materials, and in many situations coating failures occur due to improper surface preparation and high humidity causing condensation on the metal. As a result toxic gases are produced, which are hazardous for the workers. General Recommendation Relative humidity inside the tank should be maintained at Temperature between 30ºC-35ºC. We at Technical Drying Services (Asia) Pvt. Ltd offer Tank Dehumidification services . Experts dehumidify the tanks with desiccant based dehumidifiers coupled with condensing units and blowers. Air Engineers maintain the recommended temperature and moisture level inside the tank reducing the occurrence of corrosion. Benefits Of The Tank Dehumidification Enhanced coating & painting durability Increases productivity of worker Lesser downtimes Control over ambient conditions Quicker project completion Maintain 3º Celsius temperature difference between surface temperature and air dew point

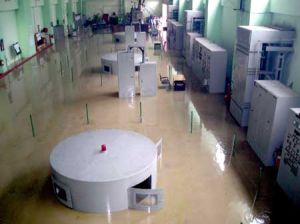

Water Damage Restoration is required when damage is caused to machineries, equipment, properties, etc by natural calamities, sprinklers, negligence, vandalism, seepage, faulty construction & post fire fighting. General Recommendation The affected area should be dried and dehumidified Water extraction / mold and mildew treatment is advisable Technical Drying Services (Asia) Pvt. Ltd offers solution for restoration (cleaning & drying) of as many of the affected items as possible, there by warranting the replacement of only those items that have been permanently damaged. The significant advantage of Water Damage Restoration is that, it can be implemented within a shorter period of time at significantly lowered cost when compared to replacement. We offer our services to the insurance sector and individual clients. Experts at work make use of desiccant based dehumidifiers other ancillary̢۪s for drying, cleaning and restoring furniture, electronic equipment, computers, data storage devices, etc. Advantages Of Water Damage Restoration Minimizes loss Saves on reconstruction cost and time Reduces interruption to business / production process Lowers the damage reimbursement expenses incurred by the insurer Guarantees sufficient funds for proper relief and rehabilitation measures which would otherwise have been spent on reconstruction Prevents mold, mildew and bacteria growth

In the recent times, the need for Column Dehumidification is felt more and more in Refineries and Petro Chemical units. The columns are filled with unhealthy toxic gases/ fumes, etc. during welding, fabrication, riveting job, strip lining in the columns. Such toxic gases are injurious for the health of the workers thus affecting their productivity. General Recommendation Humidity inside the column should be maintained at below 60% RH Temperature between 25º – 26º Technical Drying Services (Asia) Pvt. Ltd. holds the key to offer services for Column Dehumidification, which is an absolute must. We offer customized package solution, which includes dehumidifiers, condensing units, blowers & ducts. The whole process of Column Dehumidification is carried out by technical experts. We use Desiccant based dehumidifiers which absorbs the surplus moisture and creates the recommended atmosphere in the columns. Advantages Of Our Column Dehumidification Service Indoor air quality maintained Enhance productivity & quality Timely completion of work Corrosion problem checked Maintain the health of the worker

The need for Ship Dehumidification is increasingly becoming a pre-requisite in the Ship building industry. Excessive rise in humidity during Blasting and coating in ballast tank, hull area of ships & in battery pits of submarines, protection of susceptible electrical / weapon systems, engines & navigation rooms, Ship dry dock period and Jobs inside ship compartments is the major concern. The rise in humidity lowers the overall productivity of workers and has affects their health. General Recommendation Relative humidity should be below 40% in areas where expensive equipments are stored and during blasting / coating Technical Drying Services (Asia) Pvt. Ltd provides the Ship Dehumidification services using desiccant based dehumidifiers coupled with other sophisticated accessories like condensing units and blowers. Experts carry put the Dehumidification process which involves drying the air by essentially removing the moisture from the area which lowers the relative humidity of the area. Significance Of Ship Dehumidification Service Reduced rust & corrosion problems Temperature control Create comfortable working conditions

Product drying is fundamentaly a dehumidification process required during the packaging & storage of various edible products. Special care is to be taken for maintaing the humidity level of the hygroscopic products like chillies, onion, cardamom, garlic, grapes, etc. We offer our Product Drying Services to clients of the Pharmaceutical , Confectionery, Fertilizer, Sugar & Spices Industries. It is also used for faster and better drying/seasoning of woods. Advantages Of Product Drying Service Retains the smoothness & crispness of product Preserves the flavour of spices Prevents the Caking & Lumping of products Maintains the recommend RH level General Recommendation : For every industry specific relative humidity level needs to be maintained For fertilizer bagging RH- 40% Spices Industry Spice RH (%) Temperature o C Cardamom 30 - 35% 28 o C Dry Garlic 65 - 70% 0 o C Dry Onion 50 - 55% 10 - 20 o C Cinnamon 40% 15 o C Chillies 18 - 20% 45 - 50 o C

Presence of excessive moisture on a concrete floor deters the process of epoxy layering during construction. If epoxy is layered in the presence of high moisture levels then the durability and quality of the coating reduces as the coating adheres to the water in the concrete. General Recommendation Moisture level should be maintained at 3-5% Concrete Drying is done using dehumidifiers which lowers the dew point of the air adjoining the concrete. This process enables the water to travel from concrete to the dry surrounding air. The Dehumidification process enables to maintain the moisture level, thus, preventing the coating failure in the concrete. Technical Drying Services (Asia) Pvt. Ltd offers the Concrete Drying Service, using technologically advanced dehumidifiers, condensing units, blowers & ducts. Through the duct dehumidified air is supplied for concrete coating in interiors. For exterior coating a vapour barrier is created around the concrete and dehumidified air is supplied inside the barrier. Benefits Of The Concrete Drying We Offer - Better coating performance Minimum maintenance Project time and cost lowered by approx 35% Coating possible at any time of the year Precisely program the downtime No downtime for bad weather No adhesion problems Less expensive repairs

The need for Turbine Preservation arises in industries where turbines and other expensive electrical equipments corrodes duirng the shutdown process after coming in contact with moisture present in the surrounding air. it is advisable to maintain the RH at ambient temperature to minimise the loss due to corrosion. General Recommendation At the time of shutdown Relative Humidity should be maintained at 15%-30% ar 24°C(75°F). During operation Relative Humidity should be maintained at less than 35% We at Technical Drying Services (Asia) Pvt. Ltd offer Turbine Preservation Services for both Condensing type and Extraction type turbines. Turbine Preservation is carried out by practiced experts utilizing desiccant based dehumidifier for maintaing the desired level of humidity. During the Turbine Preservation process the Dehumidifier is positioned near the turbine. From the process inlet of the dehumidifier ambient air is taken and dry dehumid moisture free air is supplied into the turbine from the process outlet of the dehumidifier. The Dry air gurantees that the turbine is under best preservation by controlling moisture / humidity during idle stage or during shutdown in a plant. Dehumidifier is easy to install and de-install and the technical team present at site, facilitates quick start up of preservation of the equipment. Benefits Of Turbine Preservation Condensate left over ambient air ingress & moisture condensation are prevented and removed Prevents rust & corrosion development

The presence of moisture after hydro testing in pipelines / vessels leads to internal corrosion. Also, stress corrosion is created in gas transporting pipelines due to the presence of water. The presence of any form of corrosion leads to total failure / cracking of extensive stretches of the pipeline. General Recommendation Pipelines should be dried completely without any trace of moisture. Pipeline drying is done by Dry air through dehumidifier, Nitrogen purge drying, Vacuum drying and Hot air drying by compressed air dryer Using desiccant based dehumidifiers along with other auxiliary air handling equipments Technical Drying Services (Asia) Pvt. Ltd. offers the Pipeline Drying Services. In the Pipeline Drying process Dehumidifiers along with heaters & blowers are positioned at the suction end of pipeline and dry air at positive pressure of 100 changes per/hr is supplied through the dehumidifier. The dry air adsorbs all the moisture present in the pipeline. Proper drying of pipeline tales place when the grain level of the air at the inlet and outlet becomes equal. Significance Of Pipeline Drying Services Free water is removed from pipeline completely Very low air dew point achieved Drying time is accurate Drying time is programmed as per period available Installation & reinstallation of dehumidifiers handled by technical experts

Consider our name, if you want the top of the line dehumidification and temperature control equipments for your industrial operations. Having a vast experience of tackling the high humidity and temperature problems in the industry, we are now regarded as the renowned entity for providing the Industrial Project Solutions in Haryana, India. We comply with all the stipulated industry standards while working on the project. Moreover, our main focus is on the quality-driven service, cost effectiveness and time-bound accomplishment of project.   More About Industrial Project Solutions : Industrial Project Solutions (IPS) includes dehumidification, temperature Control & drying.   Industrial Project Solutions finds application during : Storage & preservation of critical equipments like generator, turbine, boiler, condensers & diesel generator (DG) sets from corrosion by maintaining relative humidity at prescribed levels. Turbine preservation during off-season in Sugar Industry. Shutdown : working conditions inside columns, tanks, boilers & other pressure vessels deteriorate during shutdown, due to high temperature, presence of toxic gases & fumes. Our services enable to overcome these conditions, thus increasing worker productivity & decreasing shutdown period. Shipyard application : Preservation of sensitive components in engine, navigation rooms & weapon systems, for mothballing of ships and submarines. Providing comfortable working environment during ship building and dry dock period. Drying of pipelines after hydrotesting : Presence of moisture after hydro testing in pipelines or vessels can lead to corrosion. Pipelines can be dried completely without any trace of moisture with our dehumidification services. Product drying : We help in drying of products like seeds, wood, spices, grapes, candies etc by supplying hot & dehumidified air. Our services are also used during packaging and storage cycle. Concrete/POP drying : During epoxy coating/POP applications we provide dry-air to achieve the desired moisture content level of < 5%(appr.). Industrial Project Solutions provides the following benefits : To fulfill any short-term and immediate requirement. Tackle seasonal requirement. Postpone capital outlay. Try and Test the suitability of the equipment before purchase. Enhance productivity and quality during adverse conditions.

Reckon with us, if you want to avail the best in class Surface Preparation and Coating service at the astoundingly affordable prices. We are referred as the significant entity for rendering the Surface Preparation and Coating services from Haryana, India. Our competent professionals make painstaking efforts to meet the industry stated standards as well as the aspirations of the clients. Besides that, our team coordinates with the contractor and the client to accomplish the job in the best manner.   More About Surface Preparation and Coating : Surface Preparation and Coating (SPC) includes dehumidification during coating, painting and fabrication TDS provides Surface Preparation and Coating services in Refineries/Petrochemical units/Power plants and Fertilizer units. SPC is an engineered solution for temporary control of humidity and temperature. Any surface after blasting and preparation for any coating is subjected to environmental factors. Presence of high humidity, during blasting, cleaning and coating cycles leads to flash rust and condensation, resulting in coating failures like blistering, de lamination, rust bloom formation etc.   SPC prevents rust bloom formation between blasting and coating, with "Hold the Blast" concept.   TDS dehumidification technology provides the following benefits : Coating is possible at any time of the year. Assured quality coatings, adhering to paint manufacture's specifications. Downtime can be accurately programmed. Project time is reduced by approximately 35%. The life of the coat is increased.
