1 Products availableOur product range contains a wide range of Antique Stainless Steel Roofing Cladding, Stainless Steel Roofing Cladding, Structural Framing Systems, Commercial Sheds and Lipped Channels

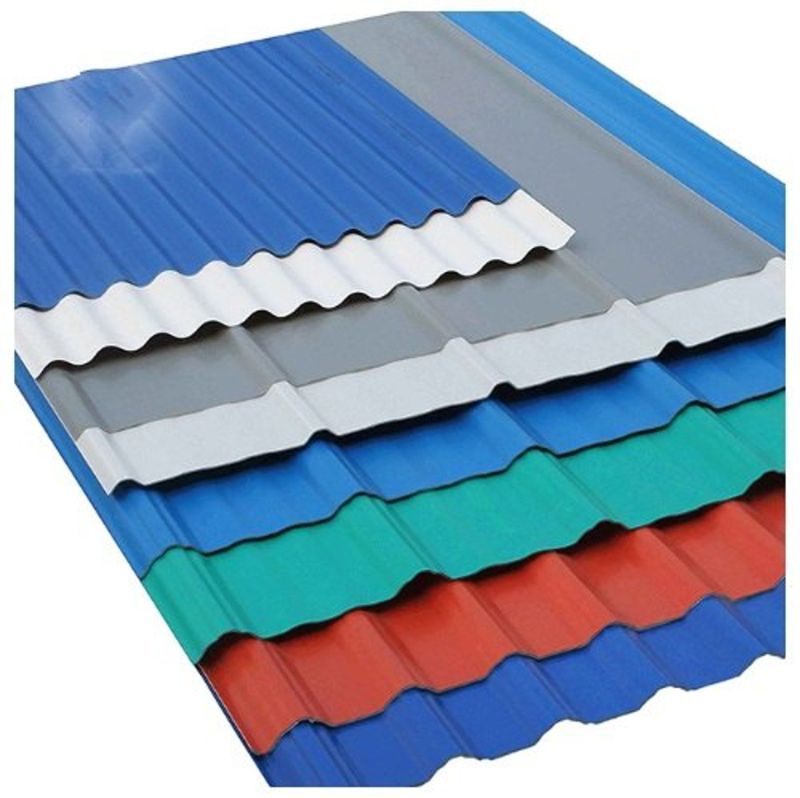

Roofing Cladding-01
| SECTIONAL PROPERTIES OF ROOFING PANEL 834 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Sr.No. | Thickness | Weight | Area | Iyy | Ixx | Zyy | Zxx | Ryy | Rxx |
| MM | Kg/ meter | Cm**2 | Cm**4 | Cm**4 | Cm**3 | Cm**3 | Cm | Cm | |
| 1 | 0.45 | 3.63 | 4.32 | 6.10 | 3296 | 2.64 | 71.64 | 1.15 | 26.70 |
| 2 | 0.50 | 4.03 | 5.14 | 6.78 | 3663 | 3.07 | 79.59 | 1.15 | 26.70 |
| 3 | 0.55 | 4.40 | 5.60 | 7.46 | 4039 | 3.22 | 87.55 | 1.15 | 26.70 |
| 4 | 0.60 | 4.84 | 6.17 | 8.14 | 4395 | 3.51 | 95.50 | 1.15 | 26.70 |
| 5 | 0.65 | 5.24 | 6.68 | 8.81 | 4761 | 3.80 | 103.46 | 1.15 | 26.70 |
| 6 | 0.80 | 6.25 | 8.22 | 10.85 | 5860 | 4.67 | 127.32 | 1.15 | 26.70 |
| SECTIONAL PROPERTIES OF ROOFING PANEL 1050 | |||||||||
| Sr.No. | Thickness | Weight | Area | Iyy | Ixx | Zyy | Zxx | Ryy | Rxx |
| MM | Kg/ meter | Cm**2 | Cm**4 | Cm**4 | Cm**3 | Cm**3 | Cm | Cm | |
| 1 | 0.45 | 4.37 | 5.57 | 6.77 | 6000 | 2.77 | 106.27 | 1.10 | 32.83 |
| 2 | 0.50 | 0.50 | 6.19 | 7.53 | 6668 | 3.07 | 118.07 | 1.10 | 32.83 |
| 3 | 0.55 | 5.34 | 6.81 | 8.26 | 7334 | 3.38 | 129.88 | 1.10 | 32.83 |
| 4 | 0.60 | 5.83 | 7.43 | 9.03 | 8001 | 3.68 | 141.68 | 1.10 | 32.83 |
| 5 | 0.65 | 6.32 | 8.04 | 9.79 | 8668 | 3.98 | 153.48 | 1.10 | 32.83 |
| 6 | 0.80 | 8.26 | 10.52 | 12.80 | 11336 | 5.19 | 200.68 | 1.10 | 32.83 |
| SECTIONAL PROPERTIES OF ROOFING PANEL 1000 | |||||||||
| Sr.No. | Thickness | Weight | Area | Iyy | Ixx | Zyy | Zxx | Ryy | Rxx |
| MM | Kg/ meter | Cm**2 | Cm**4 | Cm**4 | Cm**3 | Cm**3 | Cm | Cm | |
| 1 | 0.45 | 4.32 | 5.56 | 7.67 | 5553 | 3.34 | 101.70 | 1.18 | 31.75 |
| 2 | 0.50 | 4.80 | 6.12 | 8.52 | 6171 | 3.71 | 112.98 | 1.18 | 31.75 |
| 3 | 0.55 | 5.28 | 6.12 | 9.33 | 6779 | 4.04 | 124.15 | 1.17 | 31.75 |
| 4 | 0.60 | 5.76 | 7.33 | 10.17 | 7393 | 4.40 | 135.39 | 1.17 | 31.75 |
| 5 | 0.65 | 6.23 | 7.94 | 11.01 | 8007 | 4.76 | 146.63 | 1.17 | 31.75 |
| 6 | 0.80 | 7.67 | 9.77 | 13.53 | 9844 | 5.83 | 180.63 | 1.17 | 31.75 |
Roofing Cladding-02

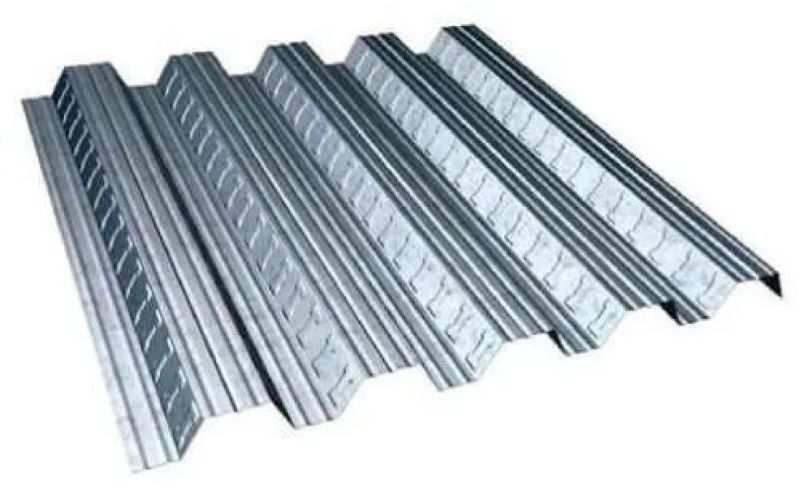

Trapezoidal Decking Panel 910
| Sr.No. | Thickness | Weight | Weight | Area | Iyy | Ixx | Zyy | Zxx | Ryy | Rxx |
|---|---|---|---|---|---|---|---|---|---|---|
| MM | Sq/ m | Kg/ m | Cm**2 | Cm**4 | Cm**4 | Cm**3 | Cm**3 | Cm | Cm | |
| 1 | 0.60 | 6.37 | 5.80 | 7.39 | 19.29 | 5567 | 8.34 | 119.71 | 1.62 | 27.44 |
| 2 | 0.80 | 8.50 | 7.74 | 9.86 | 25.73 | 7723 | 11.08 | 115.59 | 1.62 | 27.44 |
| 3 | 1.00 | 12.29 | 10.20 | 12.32 | 33.38 | 9278 | 15.17 | 194.48 | 1.61 | 27.44 |
| 4 | 1.20 | 12.43 | 11.56 | 14.73 | 38.32 | 11099 | 16.32 | 232.49 | 1.61 | 27.44 |
| 5 | 1.60 | 16.57 | 15.37 | 19.58 | 50.81 | 14766 | 21.41 | 309.12 | 1.61 | 27.44 |
| 6 | 2.00 | 20.71 | 19.14 | 24.39 | 63.02 | 19398 | 26.24 | 384.89 | 1.60 | 27.46 |
| 7 | 2.50 | 25.89 | 23.94 | 30.49 | 78.81 | 19936 | 32.46 | 481.06 | 1.60 | 27.46 |

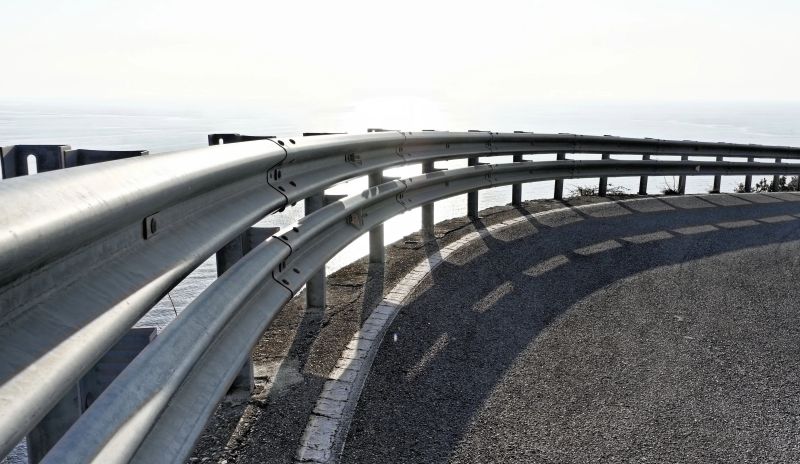

Guard Rails-01
| Thickness | Effective Length | Overall Length | Section Area | Moment of Inertia | Moment of Inertia | Section Modulus | Section Modulus |
|---|---|---|---|---|---|---|---|
| I-xx | I-yy | Z-xx | Z-yy | ||||
| 3.00 mm | 4000 mm | 4318 mm | (cm2) | (cm4) | (cm4) | (cm3) | (cm3) |
| 14.35 | 1328.8 | 106.15 | 88.8 | 24.57 |
