Our Products

We offer a complete product range of Autoclave Steam Sterilizer, Automatic Liquid Filling Machine, Auto Coater, Tray Dryer and Colloid Mill

Autoclave Steam Sterilizer

Autoclave Steam Sterilizer
  • USES Sterilizers are ideal for Hospitals, Research Laboratory, and other Pharmaceutical Industry
  • CONSTRUCTION stainless steel 316
  • AVAILABLE CAPACITIES 50 Ltrs to 5000 Ltrs.
  • Working temperature 121°C (up graded up to 135°C)
  • Sterilization Period 20 to 25 Minutes
  • SAFETY FEATURES Vacuum Breaker, Heavy-duty safety valves, When the Chamber is under pressure
  • Design Rectangular & Cylindrical Type
  • Working Pressure Variable 5 to 30 PSI
  • Internal Chamber Corrosion Resistant Stainless Steel
  • External Chamber Corrosion Resistant 304 Grade Stainless Steel, Painted
  • Door Single or Double Doors w/ automatic pressure locking
  • Insulation Glass wool Fiber
  • Steam Exhaust 5 to 7 Minutes
  • Power Supply 220 Volts / 440 Volts

Model HA – 78L HA – 135L HA – 152L HA – 162L HA – 240L
Internal Tank Capacity 78 Liters 135 Liters 152 Liters 162 Liters 240 Liters
Design Rectangular & Cylindrical Type
Working Pressure Variable 5 to 30 PSI
Working Temperature 121°C (up graded up to 135°C)
Internal Chamber Corrosion Resistant Stainless Steel
External Chamber Corrosion Resistant 304 Grade Stainless Steel, Painted
Door Single or Double Doors w/ automatic pressure locking
Insulation Glass wool Fiber
Sterilization Period 20 to 25 Minutes
Steam Exhaust 5 to 7 Minutes
Boiler With ISI marked water immersion type industrial heating elements
Pressure stat,
Safety Valve For excess pressure inside jacket and steam generator
Mechanical Time w/ Alarm Regulates sterilization time and activates buzzer when sterilization cycle completes
Standard Accessories – SS304 Sterilizing tray x 1pc
– Water level glass tube x 2pcs
– Heating element x 1pc
– Silicone door seal x 1pc
Optional Accessories – PLC operation
– Vacuum drying
– Printer
– Auto add water
– Door interlock
– Automatic Pressure control switch
– water cut-off
– Temperature indicator
– Caster wheels
Power Supply 220 Volts / 440 Volts












View Complete Details
Ask Latest Price & Details
Automatic Liquid Filling Machine

Automatic Liquid Filling Machine
  • Power 1 HP / 415 Volts / 50 Hz.
  • Model GEB/FL-4H
  • Direction of Movement Left to Right
  • Number of head/Syringe Available in 2 head, 4 head, 6 head, 8 head, 10 head & 12 head.
  • Fill Size 5 ml to 1000 ml
  • Height of Conveyor 860 mm to 910 mm Adjustable
  • Salient Features Rigid vibration free construction for trouble free performance, SS Elegantly matt finished body
View Complete Details
Ask Latest Price & Details
Auto Coater

Auto Coater
  • Uses Auto coaters is used to coat tablets, pills, candies, granules, and sweets with sugar film, an organic film, and aqueous coating in the Pharmaceutical and food industry.
  • CAPACITIES AVAILABLE 12 “, 15″, 18”, 24”, 36”, 48”, 60“, 66″, 72″, and 96″ dia.
  • FEATURES Automated process, Conforms to cGMP, Flexible batch operations, Advanced CIP system

MODEL BEW 24” BEW 36” BEW 48” BEW 60”
Approximate working capacities





(depending upon tablet shape and powder density)

 10 Kgs 75 Kgs 150 Kgs 350 Kgs­
Pan Diameter 610 mm 915 mm 1220 mm 1575 mm
Drive Motor (Flame proof) 1 HP 2 HP 3 HP 7.5 HP
Exhaust Fan Capacity 350 cfm at 150 mm KW 1350 cfm at 200 mm KW 2750 cfm at 200 mm KW 6000 cfm at 200 mm KW
Hot Air Fan Capacity 300 cfm 1200 cfm 2550 cfm 5500 cfm
Hot Air Fan Motor (Flame proof) 1 HP 3HP 5HP 10 HP
Steam Consumption (Steam pressure 3 to 5 Kg / cm²) 25 Kgs / hr or





9 KW

 50 Kgs / hr or





36 KW

 100 Kgs / hr







 200 Kgs / hr






Compressed Air requirement at 7 Kgs / cm² pressure 15 cfm





(25 NM³ / hr)

 30 cfm





(51 NM³ / hr)

 40 cfm





(68 NM³ / hr)

 50 cfm





(85 NM³ / hr)
View Complete Details
Ask Latest Price & Details
Ointment Manufacturing Plant

Ointment Manufacturing Plant
  • Application processing lotions, creams, ointments, hair gels, and toothpaste etc.
  • features The high-speed homogenizer at the bottom arrangement with a mechanical seal, The jacket has heating & cooling with a temperature controller
  • AVAILABLE CAPACITIES 5 ltrs to 10, 000 ltrs.
  • Material Grade SS 316 L, and SS 304
View Complete Details
Ask Latest Price & Details
Tray Dryer

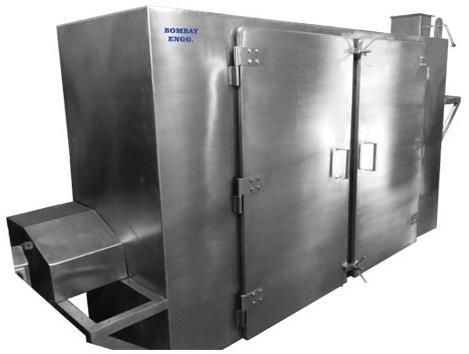

Tray Dryer
  • SURFACE FINISH matt finish, mirror finish
  • TRAYS Trays are available in S.S. 304 / 316

MODELS TD-12 TD-24 TD-48 TD-96 TD-192
Loading capacity 12 Trays 24 Trays 48 Trays 96 Trays 192 trays
External Dimension in mm





( W X D X H )

 1370 X 530 X 940 1370 X 940 X 940 1980X1020X1880 3320X1900X1880 3320X1900X1880
Internal Dimension in mm 840 X 430 X 840 840 X 860 X 840 1020 X930 X1830 1960 X930 X1830 1960 X930 X1830
No of Doors One One One Two Two
No of Blowers One Two One Two Four
No of motors/H.P.3 PHASE 415 VOLTS. 1/0.5 H.P.3 phase





415 volts.

 1/0.5 H.P.3 phase 415 volts 1/1 H.P.3 phase 415 volts 2/1 H.P.3 phase 415 volts Four/1 H.P. each 3 phase 415 volts
Electrical Heating Load for 100°C / 200°C / 300°C 3kw/6kw/9kw 6kw/9kw/12kw 9kw/15kw/18kw 15kw/21kw/27kw 36kw/42kw/48kw
Steam Heater No. of coils. 2 2 2 2 2
Steam Pressure 3.3 kg/cm2 3.3 kg/cm2 3.3 kg/cm2 3.3 kg/cm2 3.3 kg/cm2
Steam consumption 25 LBS/hr 45 LBS/hr 60 LBS/hr 80 LBS/hr 120 LBS/hr
Insulation in mm





100°C / 200°C / 300°C

 50/75/75 50/75/75 50/75/75 50/75/75 50/75/75
No of Trolleys Rack System Rack System One Two Four
Tray Size 812 X 406 X 31 812 X 406 X 31 812 X 406 X 31 812 X 406 X 31 812 X 406 X 31
Trolley Dimension Fixed Racks Fixed Racks 840 X 960 X 1780 840 X 960 X 1780 840 X 960 X 1780
View Complete Details
Ask Latest Price & Details
Colloid Mill

Colloid Mill
  • uses Colloid mill is a machine used in the disintegration of solid particles or droplet size of a liquid present in suspension or emulsion.
  • Power Supply 415 volts Ac 3 ph 50 Hz
  • AVAILABLE CAPACITIES 1 Hp / 3 Hp / 5 Hp
  • Features The product is fed to the rotor’s functional area, having a speed of 2800 rpm

MODEL BEW – 250 BEW – 500
Output – Liter / Hour 150 to 1500 150 to 2500
Drive type Option Vertical OR Horizontal Vertical OR Horizontal
Rotor Speed- RPM 2800 2800
Hopper Capacity- Liter 15 15
Seal Type Rubber Silicon Rubber Silicon
Partial Size Reduction- Micron 5 to 10 5 to 10
Electric Motor HP / KW 3 / 2.25 5 / 3.
Technical Specifications
General Details Machine will be made as per the GMP Norms. All contact parts Made of S.S. 316. Non contact parts made of S.S. 304 Machine will be made of strong supporting base.

Output 120-10,000 Kgs/ Shift

Particle size reduction 8 – 10 microns. Out put of the machine is depending upon the product & required reduction in the out put particle size

Hopper Capacity 15 ltrs (3 Hp) & 25 ltrs (5 Hp)

Power Supply 415 volts Ac 3 ph 50 Hz

Motor 3 Hp & 5 Hp respectively Motor 1440 rpm

View Complete Details
Ask Latest Price & Details
Rapid Mixer Granulator

Rapid Mixer Granulator
  • Material Stainless Steel
  • Material Grade SS 316 & SS 304
  • Features Short batch time & reduce cleaning time, Maximize WIP effectiveness, Pneumatic lid lifting system

Model RMG 10 RMG 25 RMG 50 RMG 100 RMG 150 RMG 250 RMG 400 RMG 600 RMG 1000
Gross Volume in litres­ 10 25 50 100 150 250 400 600 1000
Working Volume in litres 8 20 40 80 120 200 320 480 800
Main Motor in HP 2 / 3 3 / 5 3 / 5 7.5 / 10 10 / 15 20 / 30 30 / 40 40 / 50 63 / 85
RPM Dual speed 750 / 1500 750 / 1500 750 / 1500 750 / 1500 750 / 1500 750 / 1500 750 / 1500 750 / 1500 750 / 1500
Mixing speed RPM 75 / 150 75 / 150 75 / 150 75 / 150 75 / 150 75 / 150 75 / 150 75 / 150 75 / 150
Chopper motor HP 1 / 1.5 1 / 2 2 / 3 2 / 3 3 / 5 3 / 5 5 / 7.5 5 / 7.5 10 / 15
RPM Dual speed 1440 / 2880 1440 / 2880 1440 / 2880 1440 / 2880 1440 / 2880 1440 / 2880 1440 / 2880 1440 / 2880 1440 / 2880
Output speed RPM 1440 / 2880 1440 / 2880 1440 / 2880 1440 / 2880 1440 / 2880 1440 / 2880 1440 / 2880 1440 / 2880 1440 / 2880
Weight in Kgs. 200 900 1000 1400 1500 1800 2000 2500 3500
Length 1450 1440 1700 2350 2400 2550 2880 3100 3300
Width 600 700 750 1100 1430 2350 2450 2690 3150
Height 950 1310 1400 1750 2185 2050 2275 2510 3035
H-1 1060 1345 1600 1900 2280 2585 2960 3250 3765
View Complete Details
Ask Latest Price & Details
agitated nutsche filter

Agitated Nutsche Filter
  • Material Stainless Steel, Carbon Steel, Hastelloy, Rubber, or Plastic-coated Steel
  • FEATURES It enables easy non-manual and automatic cake, solid discharge
  • Range of filtration 2 Ltrs up to 15000 Ltrs. (4.5 mt. dia.)

FILTERING AREA WORKING VOLUME CAKE VOLUME DIAMETER OVERALL HT.
m² m³ m³ mm mm
0.125 0.075 0.02 400 2500
0.25 0.150 0.08 500 2500
0.5 0.5 0.17 800 3400
1.0 0.9 0.3 1200 4050
1.6 1.45 0.64 1500 4050
2.0 1.8 0.8 1600 4250
2.5 2.25 1.0 1800 4500
3.0 2.8 1.2 2000 4550
4.0 3.8 1.6 2400 5000
5.0 4.8 2.0 2500 5100
6.3 6.0 3.0 2900 5250
8.0 8.0 4.0 3200 5400
12.5 13.0 6.25 4000 5000
View Complete Details
Ask Latest Price & Details
Paste Kettle

Paste Kettle
We offer paste kettle. bombay starch paste kettle will be made out of s.s. 304 rectangular pipes of 3 mm thk and will be an independent resting type frame work where no foundation will be required. The kettle will be a hemispherical type bowl with either steam oil water heating jacket will be provded. The kettle will be manufactured from 2.5 mm thk s.s. 304 sheet and the jacket will be of 2.5 mm mild steel (in case of steam jacket the thickness will be 4 mm) . There will be oil water heated fitted at the back bottom side of the kettle. The kettle will be having a worm type arrangement for tilting . A temperature controller and a temp indicator will be provided for temp control and indication. The kettle will be insulated with 50 mm thk glasswool insulation and claded with 16 swg s.s. 304 sheet. Kettle will be buffed to 150 grit matt finish externally and internally the kettle will be buffed to 220 grit mirror finish
View Complete Details
Ask Latest Price & Details
Vibro Sifter

Vibro Sifter
  • Uses Vibro Sifter Machine is used for screening, sieving, grading for solid-liquid separation
  • Material stainless steel (304 / 316 )

Model 20” 30” 48”
Screens SS 304 SS 304 SS 304
Screen Dia. in mm 508 762 1200
Capacity / Hour * in kgs 20 to 140 30 to 200 200 to 400
Charging height in mm 1110 1250 1340
Discharging height in mm 690 790 850
Electric Motor in HP





(special vibratory motor)

 0.25 0.5 1.5
Net weight (Approx.) in kgs 150 200 350
Gross weight (Approx.) in kgs 200 260 420
Machine Dimension (in mm) 700 x 700 x 1000 900 x 900 x 1250 1350 x 1350 x 1350
Case Dimensions (in mm) 900 x 900 x 1300 1000 x 1000 x 1350 1550 x 1550 x 1550
View Complete Details
Ask Latest Price & Details
Planetary Mixer

Planetary Mixer
  • Number Of Flower VJHSE
  • Material Stainless Steel
  • Material Grade SS 316
  • AVAILABLE CAPACITIES 50 Ltrs. To 500 Ltrs.
  • Features Effective beater design speeding up the process of starch preparation, Quick Release coupling



MODEL

PLM  20

VJHSE

PLM 50

VJHSE

PLM 100

VJHSE

PLM 200

VJHSE

PLM 350

VJHSE
Gross Capacity 25 ltrs 65ltrs 110ltrs 220ltrs 380ltrs
Main Motor HP 1 HP 2 HP 5 HP 5 HP 10HP
Emulsifier  HP 0.5 HP 1 HP 2 HP 3 HP 5 HP
Lifting Motor HP MANUAL/ HYDRAULIC MANUAL/ HYDRAULIC 1HP 1.5 HP 2 HP

View Complete Details
Ask Latest Price & Details
Aluminum Water Storage Tank

Aluminum Water Storage Tank
₹ 1.50 Lakh / Piece Get Latest Price
  • Material Aluminum
  • Packaging Type White
  • Shape Cylindrical
  • Storage Material Chemicals/Oils
  • Min Storage Capacity 100 ltrs
  • Max Storage Capacity 20000 ltrs
  • Features Level sensor,  The temperate control system, loop system
View Complete Details
Ask Latest Price & Details
fluidized bed dryer

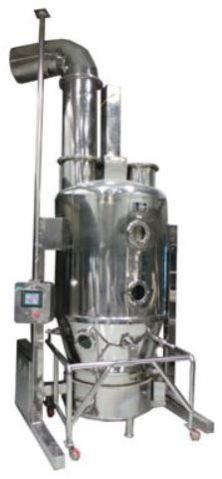

Fluidized Bed Dryer
  • Specialities Thermal efficiency is 2-8 times than tray drier, Free-flowing granules/particles are made
  • Capacity 2.5 kgs. To 300 kgs.
  • Construction vertical and horizontal, made up of stainless steel or plastic

Description BF – 30 BF – 60 BF – 120 BF – 200 BF – 250 BF – 300
Capacity of Dryer in Kgs at 0.6 Kg / Ltrs bulk density 30 -50 50 – 70 120 – 150 200 – 220 250 – 270 300 – 320
Working capacity of Product Container in Ltrs 50 100 200 335 420 500
Total Volume of Product Container in Ltrs 100 200 420 650 800 1000
Blower Motor HP 5 10 15 20 25 30
Heater Load K.W. 18 36 54 – – –
Steam Consumption in Kgs / hr 25 55 110 180 240 330
Width 1000 1300 1710 2000 2000 2000
Length 2040 2300 2480 3970 3200 3200
Height 2585 2950 3650 3800 4100 4100
View Complete Details
Ask Latest Price & Details
Double Cone Blender

Double Cone Blender
We offer double cone blender.the double cone blender is an efficient and versatile machine for mixing dry powder and granules homogeneously. All the contact parts made out of stainless steel of required grade by customer. Two third of the volume of the cone blender is filled to ensure proper mixing. It can be used for pharmaceutical, food, chemical and cosmetic products etc.
View Complete Details
Ask Latest Price & Details
Filter Press

Filter Press
we offer Filter Press.The Bombay Engineering Works has been actively involved in the manufacturing of various types of filter press for filteration systems for more than eight years viz. sparkler, spiral, bag, leaf, neutsche, etc. It now adds one more to its range by introducing a new generation of Zero Hold-up Horizontal Plate closed pressure filter, made first time in India for clarification and separation of solids from liquid. Our normal practice, the filter press is thoroughly tested in our factory & proved before releasing for marketing.
View Complete Details
Ask Latest Price & Details
Semi Automatic Spray Coating Machine

Semi Automatic Spray Coating Machine
  • Country of Origin India
  • Total Carbohydrate 1 yrs
  • Material Mild Steel
  • Operating Mode Semi Automatic
  • Country of Origin 220V

We offer minicota (semi automatic spray coating machine ) is mainly designed to replace the conventional method of manual coating of tablets and granules. mini cota is comprised of pressure vessel whish can be provided with s.s. Jacket (for sugar coating) with controlled heaters, sagety valve, pneumatic stirrer (oscillating type) , spraying nozzles and compact control panel with pneumatic cylinder for intermittent spray with timer.

View Complete Details
Ask Latest Price & Details
Mechanical Sifter

Mechanical Sifter
We offer mechanical sifter.vibro separators are circular unitary gyratory screens used to separate mass composition of solids from solids, liquid from solid and for gradation of materials as per particle size, having a very wide range applications. This is accomplished by vibrating the screens in three different planes along the vertical axis by means of a specially designed vibratory motor having off centered weights at the top and bottom end of the motor shaft.
View Complete Details
Ask Latest Price & Details
Inline Homogeniser

Inline Homogeniser
We offer inline homogeniser. In inline agitation system, the possibility of materials liquid or solid passing through it, without subjected to intense hydraulic and mechanical shear actions is zero. Here suction pipe (inlet pipe) is centrally mounted & outlet is radially mounted , therefore it is physically impossible for any material to pass from inlet to outlet without exposed to agitation. the stator which surrounds rotor is available with various type of opening i.e. Round, square, rectangular & with perforation also so that all the critical demand of mixing, emulsifying, disintegration & dispersion of solids, suspension can be met out by same equipment.
View Complete Details
Ask Latest Price & Details
Vessels

Vessels
We are offering vessels and tanks are manufactured as per clients requirements and space available for installations. Tanks and vessels are available in various designs and options such as
View Complete Details
Ask Latest Price & Details
Fluid Bed Dryer

Fluid Bed Dryer
We offer fluid bed dryer.the the bombay engineering works fluid bed dryer has adopted new concept of gmp regulation with improved performance (drying time is much less than the conventional model) minimum involvement of manual labour simplified maintainance and utilise modular construction techniques to provide flexible installation options.The process unit is two piece made of ss-304316 stainless steel. Through mixing of dry powders, agglomeration and drying are carried out in one unit of the bombay engineering works fluid bed dryer.
View Complete Details
Ask Latest Price & Details
Tell Us What are you looking for? Will call you back

Contact Us
