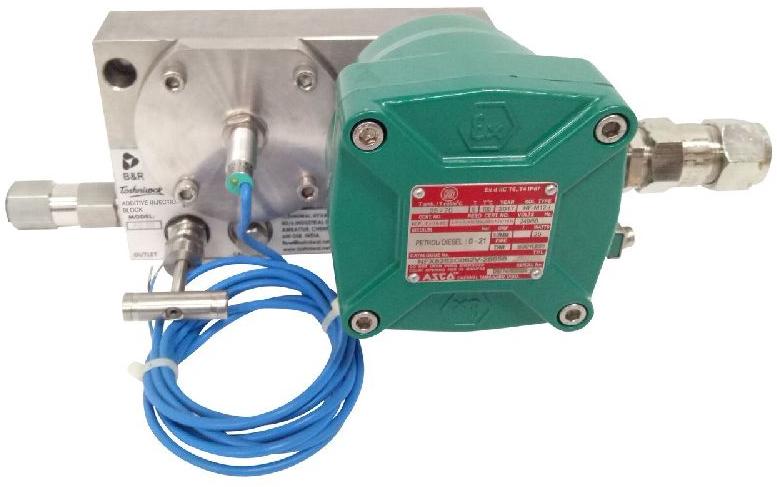

FEATURES

• Compact Stainless steel block
• High quality, Great accuracy and reliability
• Economical and easily installed
• Approved by Weights and Measures Authority (India)
• ATEX/ PESO approved Explosion proof electrical instruments
• Detachable components for servicing



Applications

Injection of liquid additives like

• Anti-freeze agents
• De-carbonization agents
• Lubricants
• Combustion enhancers
• Dosing and packaging

FEATURES

• No Dust formation
• Gentle handling of transfer material
• Reliable, robust Vacuum pumps from Toshniwal
• Low Energy Consumption
• Easy maintenance
• Designed for sanitary applications



Applications

The Powder Transfer System has many advantages over conventional conveying systems like screw conveyor or bucket elevators. We have supplied this system to a number of clients in the following industries:

• Food Industry
• Pharmaceutical Industry
• Animal Feed Industry
• Fertilizer Industry

FEATURES

The following features are available in the advanced flow computer models range.

• ratio (A/B) - model F114
• sum (A+B) - model F116
• differential / consumption (A-B) - model F116
• differential / consumption (A-B) with temperature compensation - model F127
• liquid volume calculation with temperature compensation - model F126-EL
• gas volume calculation with temperature and pressure compensation - model F126-EG



Applications

• Calculating fuel consumption
• Gas Flow Calculation in Power plants
• Two component blending
• On board ships for fuel consumption and power plant monitoring

features

• rangeability in digital mode up to 1:150
• high accuracy (standard 0, 5% rd plus 0, 1% fs)
• pressure ratings 64 / 100 bar
• highly resistant to mechanical shocks and pressure fluctuations
• large range of input/output options to choose from
• extremely fast and dynamic response
• user configurable control characteristics



applications

• analytical/environmental equipment
• gas flow monitoring in food, chemical and petrochemical industries
• gas consumption measurement in gas distribution systems for internal accounting purposes
• detection of gas leakage through objects
• semiconductor manufacturing
• surface treatment installations

.

FEATURES

• Booster capacity range: 200 m3/hr to 2880 m3/hr
• Very low clearance between lobes and housing ensures better performance
• Better metallurgy ensures negligible expansion under heat
• Unique design and rugged construction ensures high reliability
• Significantly higher pump life
• Constant performance throughout pump life
• Option of automation with pressure switches and bypass conduit for optimum performance
• High quality materials used for seals and elastomers



Applications

ROOTS can be used in combination with any roughing pump like Oil sealed pump, Oil Lubricated Vacuum pump, Liquid Ring Vacuum pumps or Piston Pump to increase the overall pumping capacity and Ultimate pressure achieved.

FEATURES

• Pumping Capacity Range: 120 l/min to 900 l/min
• Ultimate Pressure: 1x 10^-3 mbar
• Double Stage Vacuum Pumps
• Compact and rugged design
• Advanced lubricating system
• Quiet Operation
• Easy maintenance and usage



Applications

Having low operational noise and advanced lubricating system, the D series vacuum pumps are very well adapted for clean room use. The pumps are widely used in pilot plants, R&D laboratories and Universities for the following applications:

• Vacuum assisted filtration process
• Vacuum Distillation
• Dehydration
• Dehydration in Refrigeration
• Solvent extraction and concentration process

Advantages extremely short mixing timegentle mixinglow shearlow running costlow operating maintenance costprecise mixingreliable repeatable mixing quality guaranteed full load start options - accessories pin mill system for breaking lumps flow distortion bar to create curtains of particles to which liquid is to be sprayed for uniform coatingspray bar with nozzles for liquid additionjacket arrangements for heating or coolingcip system to clean interior quickly and efficiently.

Coriolis Mass Flow Meters are well known for their accuracy and versatility for medium to (very) high flow rates. Bronkhorst, however, specialises on applying the Coriolis flow measuring technique on (very) low flow rates such as 0-5ghr .

features

• they operate flawlessly in tanks with curved walls or other shapes without clear vertical access
• unique capability to monitor liquid interface levels in virtually any tank size or shape (liquids with differing densities)
• floats and magnetically actuated reed switch counterparts are accurate and repeatable
• rugged design of the sensors makes the measuring principle the first choice for the toughest navy applications for surface or submarine vessels
• highly customizable: integrated temperature sensors, explosion protection, slosh tubes, special connections, mounting elements or special materials.

applications

• consistent accuracy and rugged construction makes the measuring principle the first choice for the toughest navy applications for surface or submarine vessels.
• chemical and other process industries
• shipbuilding
• thermal power plants
• hydraulic systems
• railways
• vehicular applications
• petrochemical industries
• refrigeration systems

.

FEATURES

• Proprietary digital sensor drive circuit provides enhanced signal stability and improved temperature compensation
• High contrast photo-emissive display with numerical Flow Rate, Total and Temperature, as well as Graphical Flow Indicator
• Isolated 4-20 mA output / Pulse Output / Modbus® compliant RS485 RTU communications
• Rugged, user-friendly packaging with easy terminal access
• Choice of 115VAC/230VAC or 24VDC operation (12 VDC Optional for solar operation).
• Low Power dissipation, less than 2.5 Watts. Lowest power usage of any Thermal Mass Flowmeter



Applications

• Combustion Control in Boilers
• Sub-metering Natural Gas
• Compressed Air flow measurement
• Natural Gas Flow Measurement
• Pulp-paper industry, Power Industry, Steel Plants, Textiles
• Vent air flow meter (Environmental compliance / Energy efficiency)

FEATURES

• Very wide operating range: Vacuum to 500bar pressured tanks, up to 0.3g/cm3 liquid densities, 77K to 673K operating temperatures
• Available with Level Indicator, Level Switch and Level transmitters for remote monitoring and control
• The operating principle is based on the use of permanent magnet system ensuring safe and reliable activation of visual indication elements or transducers
• Magnetic elements used can withstand high temperatures with negligible degradation of magnetic flux.
• Lightweight and hermetically sealed floats ensure smooth usage for dirty and high viscous liquids over large indication ranges.
• Closed and Open floats are available for various pressure ranges



Applications

We have many years of practical experience in the use of WEKA VLI Level Indicators in:

• Chemical and other process industries
• Shipbuilding
• Thermal Power Plants
• Hydraulic systems
• Railways
• Vehicular applications
• Petrochemical industries
• Refrigeration systems

FEATURES

• Options for 4-20 mA, Type K, J or T thermocouple, 0-50 mV, MODBUS or USB outputs available
• Variants with LCD touchscreen and data-logging available
• Intrinsically Safe variants available for Ex Area



Applications

• Food temperature measurement
• Asphalt- Tarmac road measuring
• Temperature and moisture monitoring and control in corrugated board manufacturing, paper drying and condition monitoring
• Thermoforming temperature control and monitoring in plastics
• Monitoring the temperature of painted surfaces in switchgear
• Microwave dryers
• Sintering systems
• Petrochemical - condition monitoring, liquid storage and processing

FEATURES

• High uniformity and repeatability.
• User-friendly operation.
• Flexibility in terms of substrates used.
• Swiss Manufacture Standards.

FEATURES

• Up to 50 programmes with 24 segments each can be programmed.
• Ouick start function for repeat processes.
• User-friendly process configuration with touch screen panel.
• Process parameters: spray pattern, spray arm speed, spray time, spray beam cone.
• Electrically operated spray arm with selectable speed in the direction of the x-axis and the y-axis.
• Adjustable spray nozzle with constant nozzle pressure and automatic cleaning function.
• Control elements for dispensing compressed air and vacuum.

FEATURES

• Large range: BAK UNI for custom University Applications to BAK 2000, a production giant
• Advanced Process Control offers full automation through Pump-down, Process, Venting and Data-logging stages.
• Platform Geometry options: Standard throw, Lift Off, Split Chamber, Rear Extension
• Choose from a large range of sources- Thermal Evaporation, E Guns, Wire Feeder, Barrel Source, Effusion Cells, Sputter, PIAD, Etch, Heating and Glow Discharge
• Quartz Monitoring: Single, 6 and 12-way quartz with increased sampling rates for termination accuracy in single and co-deposition processes.
• Custom tooling solutions, designed to maximize batch capacity for evaporation processes without compromise on film quality



Applications

• DLC Coating: Evatec brings conventional PVD and PECVD processes together in the BAK evaporator to enable high performance protected AR coatings on Si or Ge.
• Single and multiple bandpass filters for laser, 3D and photonics applications
• Front and Back Metals in Power Devices: Evatec's planetary handling and flip systems offer cost effective deposition of thick front side aluminium or rear side contact stacks in single or double sided processes on the BAK Evaporator.

FEATURES

• Customizable systems available for client specific Vacuum ranges
• Back-up pump for redundancy and ease of maintenance
• Flow controllers enable individual process vacuum regulation and pump safety
• Option of full automation of system to remove the human error factor
• MEDI systems are manufactured in observance of EN 737-3 standards
• Bypass system for ease of maintenance
• MEDI systems are equipped with 2 antibacterial filters to avoid propagation to environment



Applications

• MEDI series are being used for centralized suction in hospitals. In certain cases, the MEDI series is being used to provide suction for more than 120 vacuum points throughout the facility.
• Packaging industry
• Bottle filling machines
• Pick and Place application in Plywood and Glass factories

FEATURES

• Ability to process conductive, non-conductive and composite materials to any density
• Full density and controlled porosity
• Pre-forming and binders NOT necessary
• Retains nanometric particle structure
• Low Cost of Operation
• Fast Cycle time
• Powder-to-part net and near-net shapes.
• Minimal grain growth.
• State-of-the-art clean wave, high efficiency power supply
• Servo Valve controlled hydraulics for ultra-fine force control
• Remote PC based programming station

features

• temperature control with digital target and actual value display.
• automatic temperature limit switch, no overheating.
• hotplate with safety glass, easy cleaning.
• easy leveling of the hotplate, prevents discharge of photo-resist.
• manual substrate fixation via vacuum.
• manual loading and unloading of the substrates.

.

FEATURES

• Pumping Capacity Range: 250 m3/hr to 35000 m3/hr
• Ultimate pressure: Depends on Vacuum pump used in system (Can go down to 1x10-3 mbar)
• Vacuum pump choice: OLVP, Hybrid LRVP, Piston Vacuum Pump and Oil Immersed Vacuum Pumps
• High quality ROOTS Boosters and Primary Vacuum pump with superior metallurgy and manufacturing quality.
• High efficiency Condensers with superior residence time.
• Unique solvent recovery drain system which ensures high solvent recovery
• Increased Vacuum pump life due to optimum piping and efficient condenser
• Every component, including internal piping and flanges are designed and optimized for highest pump performance and pump safety
• Option of complete automation to avoid manpower and human errors
• Excellent returns on investment.



Applications

With a very wide range of Vacuum and Booster pumps to choose from, the Toshniwal ROOTS condenser systems can handle most applications in the most effective and efficient way in the market. Some common applications that the RC systems are presently in commission:

• High-yield Solvent recovery from distillation and similar processes
• Oleoresin Extraction by solvent concentration using Vacuum
• Vacuum drying: Rotary Cone Dryers and Vacuum Tray dryers in Pharmaceutical industries
• Large capacity Desalination plants
• Multiple Effect Evaporators

FEATURES

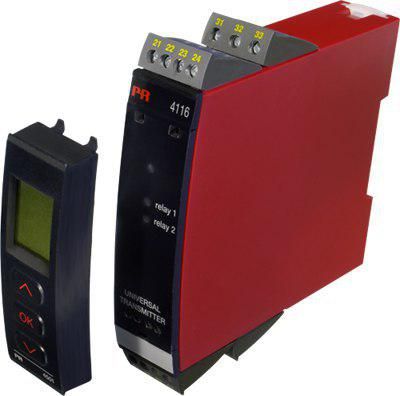

• PR pioneered compliance with IEC 61508 and, with our comprehensive range of power-rail mounted analog and digital I.S. interfaces; you will easily comply with IEC 61511 site standards
• Option to remotely access process values in four different ways while still preserving the analog signal.



Applications

• Linearised, electronic temperature measurement with RTD or TC sensor.
• Conversion of linear resistance variation to a standard analogue current / voltage signal, i.e.from solenoids and butterfly valves or linear movements with attached potentiometer.
• Power supply and signal isolator for 2-wire transmitters.
• Process control with 2 pairs of potential-free relay contacts and analogue output.
• Galvanic separation of analogue signals and measurement of floating signals.
• Designed according to strict safety requirements and is thus suitable for application in SIL 2 installations.

FEATURES

• Analog and Pulse outputs
• Pulse type inputs: Reed-switch, open collector, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. (0)4 – 20mA.
• Displays total and flow rate simultaneously.
• Large digit selection for flow rate or total
• Various accessories are available for this product.



Applications

• The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, salty atmospheres and temperatures between -40°C and +80°C (-40°F up to 176°F).
• Liquid flow measurement where re-transmission of the flow rate and/or totalizer functions or serial communication is required.

FEATURES

• Fast accurate mixing
• Repeat performance
• Low intensity; gentle mixing, hence, no degradation.
• Low operating cost, high production volume
• Quick drop bottom discharge
• Optional shear makers provision with the motors assures for meeting the special processdemand such as dispersion / colouring and de-lumping etc.
• Spray bar with nozzles for liquid addition
• Jacket arrangements for heating or cooling
• CIP System to clean interiors quickly and efficiently.

Applications

• Food Industry: Gulab Jamun Powder, Cereal Mix, Instant Coffee Powder, Food Additives, Dairy Feed Mix, Vending Premix, Hot Beverage Powder, Flavored tea mix, Muesli, Fortified Rice, Yeast Mix, Cake Premix, Electrolyte powder and many more
• Animal Feed Industry: Toshniwal Paddle Mixers are widely used for manufacturing Feed Premix, Poultry Feed, Mineral Feed, Feed Supplements, Aqua feed mix, Feed Additives, Cattle Feed Mix, Vitamin Premix and Trace Elements
• Chemical Industry: Detergent Powder mixing, Fragrance stick powder, Fertilizer mixing, Pesticide Powder mixing, Foundry powder, Glass powder, Iron Ore powder, Micronutrient mixing, Soap powder mixing and many more.
• Refactory/ Building materials Industry: Distemper paint, Gypsum Plaster mix, Fly Ash mix, Abrasive powder, Cement Plaster mix, Ceramic material mix, Mortar mix and many more
