Gevax Flow Control Systems

bursa, Turkey

• Brand NameGevax
• ApplicationFor sterile, aseptic, physiological and food applications
• Power10w

Referans: 1901-khnd010-150-230ac main series: general purpose function: 22 ways position: normally closed operation type: assisted lift (zero differential pressure) seat seal material: nbr diaphragm nbr seal port size: ½” orifis: 15mm kv: 75.00 lmin pmin-pmax (bar): 0-10 bar tmin tmax (°c): -10 °c 80 °c agirlik: 0.595 kg bobin voltaji - tolerans: 24, 220, 230v ac.

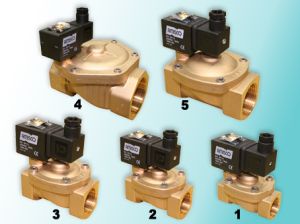

Normally, these valves have a pilot and bleed orifice which enable them to use line pressure for operation. When the solenoid is de-energized, the pilot orifice is closed and full line pressure is applied to the top of the piston or diaphragm through the bleed orifice, providing seating force for tight closure. When the solenoid is energized, the core opens the pilot orifice, relieving pressure from the top of the piston or diaphragm via the outlet side of the valve. The line pressure then opens the valve by lifting the diaphragm or piston off the main orifice

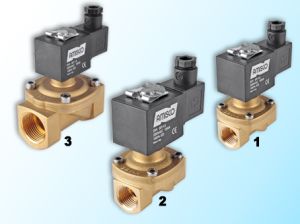

We are offering solenoid valve. Important remarks - fluid type (water, steam, gas, etc.) - valve size (1-8" - 2") - operation type (n.o , n.c) - maximum fluid pressure - minimum control pressure - fluid temp.

We are offering gas solenoid valve. Code 3901-kdnf0p5-250-12dc body: aluminium diaphragm & seal: nbr tube: brass nr.of ways: 22 position: normally closed orifice: 25mm size: 1" kv (ltmin) 20 pmin pmax (bar): 0-500 mbar tmin tmax (°c): -10°c +80°c weight: 0, 550 kg tolerans: coil voltage: 12, 24, 110, 220, 230v acdc application: natural gas-manual reset type

• CODE1901-KBNB016-080-220AC

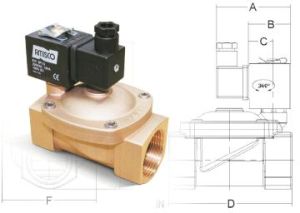

We are offering solenoid valve. Code 1901-kbnb016-080-220ac body: brass diaphragm & seal: nbr tube: brass nr.of ways: 22 position: normally closed orifice: 8mm size: 14" kv (ltmin) 20 pmin pmax (bar): 0, 5-16 bar tmin tmax (°c): -10°c +80°c weight: 0, 605 kg tolerans: coil voltage: 12, 24, 110, 220, 230v acdc application: general purpose
