Expres Group

Ukraine, Ukraine

4-section: Section 1:    1+1, Section 2:    1+1, Section 3:    1+2 Tower 4:   4+2 Cylinder speed 30 000 r.p.h. Cut-off lehgth U= 578 mm Paper width 700….850 mm Reel stand : inbuild unwind Folder :     pin-jaw-folder, system 1:2:2 Reel diameter (max) : 1067 Core diameter:    70…76 mm     Paper grammage:    38….60 gsm/sq. mtr Lateral adjustment: +/- 3 mm Circumferential adjustment: +/- 3 mm Maximum no of webs: 3 in tabloid and 2 in Magazine   fold Non printing gap : 15 mm Plate thickness: 0.30+/- 0.02 mm

• MOQ 1 Set

4 - colorful machine without drying (CoolSet): roll width - 70 cm, 84 cm, 126 cm, 168 cm: paper density (weight) (min - 39 g / m2, max - 45 g / m2); cutting width - 57.8 cm;print speed - up to 35, 000 prints per hour;format of editions A2, A3, B3, B4;n umber of pages from 4 to 6   https://drive.google.com/drive/folders/1VU__pjQlIEUJ65_wpwOKKEny0mv1vnte?usp=sharing

4-color press with hot drying (HeatSet). Performs double-sided printing (on both sides of a sheet 4 + 4) on roll paper (rolls). Roll width (min - 84 cm, max - 95.5 cm). Paper weight (weight) (min - 39 g / m2, max - 115 g / m2) Cutting width - 63 cm. (Paper cutting along the roll) Print speed - 25, 000 ÷ 35, 000 prints per hour. The main type of product: 16-page notebook A4 or 8-page notebook A3 (based on it you can get 2, 4, 8-page notebooks). At the exit of the machine, the notebook can be: 1) uncut (used later for sewing on VSHRA), 2) cut to the format (cutting is done with special cutters, finished products). When printing 8 and 16 (finished products) page notebooks can be glued with glue on the root

https://drive.google.com/drive/folders/1aQpPuY8-3mE0lDd3ez8vHFpxinvxSK-1?usp=sharing Insert-sewing-cutting unit  - is intended for production of brochures, magazines, newspapers and other polygraphic production in large and average circulations. Allows to sew polygraphic production on 2 brackets and to cut to the necessary format. Maximum number of self-overlays: 6 + cover. (96 pages of indoor unit and 4 pages of cover).

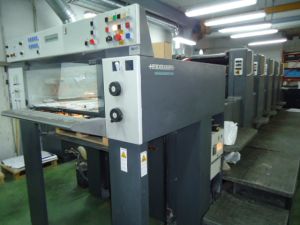

5 - colorful press  without drying (CoolSet). Performs one-sided printing on sheets (sheet paper). Paper dimensions - up to 72 x 102 cm (the most common - 50x70 cm, 45x64 cm, 61x86 cm, 64x90 cm, 70x100 cm). Paper density (weight) (min - 80 g / m2, max - 300 g / m2) Print speed - 5000 prints per hour. The car is equipped with the varnish module (water dispersion varnish) Usage: 1) Covers for magazines 2) Internal blocks of magazines on paper with a density of 80 - 130 g / m2. 3) Posters, leaflets, flyers, etc.

Max workpiece format 760 x1250.
