These are very commonly used Mechanical Seals for clear liquids in most of equipments. Multi-Spring design has many springs put uniform force over the faces hence increase its life. Multi-Spring Seals are unitised, compact, simple & easy to install. These are Bi-directional Pusher type Mechanical Seals suitable to all type of elastomers. Such Mechanical Seals are available in Un-balance design for low pressure and Balance design for high pressure applications. These Seals can be designed in Double configuration for toxic, hazardous, costly & volatile liquids. We can offer Double Seals in Back to Back as well as Tandem arrange-ment as per application. Most of components are interchangeable, hence it proves economical and easy to maintain. We have variety of shapes & designs in this category. Application : Clear, Lubricating & Non Corrosive Liquids. Operating Limits : Pressure : 7 bar for Un-balance & 40 bar for Balance Seals Temperature : -30C to 250C Speed : 20 m/s Sizes : 12 mm to 200 mm Materials : Faces : Carbon, Silicon Carbide, Tungsten Carbide, Ceramic, Cr. Steel. Elastomers :PTFE, Perflouro, Viton, Aflas, EPDM, Nitrile, Silicon, Neoprene. Hardware : SS-316, Hastelloy-C, Alloy-20, Titanium

These Mechanical Seals are having single spring design to take care contaminated liquids. Due to open coil spring, it is used for non-clogging and self-cleaning operations. With sturdy and heavy long spring, it can take care of mis-alignment, vibrations, thermal expansions & axial play of shaft. These Seals can be offered in Un-balance as well as Balance design to take care variety of applications. These Mechanical Seals are economical and easy to install and maintain because of lesser components. Single Spring Mechanical Seals can be made for Uni or Bi-direction motion of shaft. We have great variety in this design to suit any applications.

These Mechanical Seals are most common and low priced used for simple and non-critical applications. It is having single spring for non-clogging, self cleaning operation and bellow for self alignment in case of axial and radial play in shaft. There are lot of designs and shapes available in this series to accommodate in almost all type of stuffing box. This series is available in Metric as well as British standard sizes. It finds great usage in light applications like Water, Milk, Juice, Coolants etc. Elastomaric bellow Seals Can be designed as per dimension of stutting box. Length and Diameter can be adjusted to fit any type cavity therefore it find usage in wide variety of Equipment . We can Develope these seals in various other designs too.

TConical Spring Mechanical Seals are very simple and compact for use in small housings. It has taper Spring of various type and dimension to suit lot of media. These are most common, low rate and widely used Seals made in bulk quantity. TDue to single spring design, it can be used for clear and viscous liquids in Gear, Monoblock & Non Standard Pumps having small stuffing box. Conical Spring Mechanical Seals are offered in Metric as well as British standards. TThese are compact and space oriented Mechanical Seals hence can be modified in lot of shapes suiting to any size of stuffing box. Conical Spring Seal Can be designed as per dimension of stuffing box. TLength and Diameter can be adjusted to fit any type of Cavity therefore it find usage in Wide variety of Equipment . We can develop these seals in various other designs too.

TThese Seals are Pre-assembled and ready to install on any type of liquids. Such Seals do not require adjustment in fitting due to pre-assembly hence avoid installation problem. Cartridge Mechanical Seals are balanced and designed in such a way to avoid liquid contact with spring therefore find usage in almost all type of media. Such Seals can be designed with Multi Spring, Single Spring, Wave Spring or Metal Bellow hence offered in great variety. Cartridge can be designed with Single or Double Seal configuration as per application. It is having Pre-assembled Mechanical Seal with integral Sleeve and Gland Plate, hence easy in installation and maintenance. Cartridge Mechanical Seals are universal in nature and available in lot of shapes & designs to suit all type of housings and media.

These are external mounted Mechanical Seals inherently Balanced in nature. It 's special design avoids contact of metal parts from liquid therefore such Seals are most commonly used in all kind of Acids, Alkalies, Strong Oxidising & Reducing agents. Such Seals can be designed in Multi Spring as well as Single Spring configuration. PTFE Bellow Mechanical Seals can be offered in Composite or Replaceable face design. Usually it is offered in Glass Filled PTFE & Ceramic Faces but Silicon Carbide can be offered for contaminated liquids. UE-TBR Series Application : Acids, Alkalies & Corrosive liquids. Operating Limits : Pressure : 7 bar Temperature : -20C to 150C Speed : 15 m/s Sizes : 16 mm to 125 mm Materials : Faces : Glass Filled PTFE, Silicon Carbide, Ceramic, CFT. Elastomers : PTFE. Hardware : 15 m/s Sizes : SS-316, Hastelloy-C, Alloy-20, Monel, Hastelloy-B

These Mechanical Seals are extremely useful in high temperature and other complicated services. Special welding process is used on rare materials to form highly accurate and precise Bellow hence it is expensive and used in ultimate services. These Mechanical Seals are Non-Pusher and Balanced in nature. Bellow is having self cleaning action and axial movement hence do not have dynamic elastomers which overcome several dis-advantages of Pusher Seals. These are available in double configuration & cartridge assemblies too. It finds great usage in Hydrocarbon, Pulp & Paper, Steel, Mine & Power Industries. We have very long experience in reconditioning of Metal Bellow Seals. UE-MB Series Application : High Temperature, Hydrocarbons & Critical Services. Operating Limits: Pressure : 25 bar Temperature : -40C to 350C Speed : 20 m/s Sizes : 25 mm to 100 mm Materials : Faces : Carbon, Silicon Carbide, Tungsten Carbide. Elastomers : Graphite, Perflouro, FEP. Hardware : SS-316, AM-350, Hastelloy-C, Alloy-20

These are Pusher Type Mechanical Seals having special Wave or Disc Spring which works well on contaminated liquids, hence preferred on Multi spring design . Such Seals are compact, robust & bi-directional to Use in clear as well as contaminated liquids. The Wave Spring Mechanical Seals can be offered in several designs in single or double & Un-balanced or Balance Confugiration. Most Common are. UE-H-Series UE-M Series Mechanical Seals : it is having loosely fitted face with 'O ' Ring, hence easy to assemble . it find great use and very popular in industry. UE-H Series mechanical Seals : it is balanced Seal with lug drive. Wave Spring avoid liquid contact, hence it is very useful in viscous, contaminated liquids on High pressure. Application : Clear, Viscous, contaminated Liquids. Operating Limits : Pressure : 10 bar for Un-balance & 30 bar for Balance Seals Temperature : -20C to 250C Speed : 20 m/s Sizes : 12 mm to 150 mm Materials : Faces : Carbon, Silicon Carbide, Tungsten Carbide, Cr. Steel. Elastomers : Viton, Aflas, Nitrile, Silicon, FEP, Perflouro Hardware : SS-316

These are external mounted multi spring Mechanical Seals. Liquid pressure is used to close the Seal faces therefore very effective in high pressure and vacuum applications. UE-RB series Mechanical Seals are Balanced, Unitised, Compact & Simple to install & maintain. It can be extremely useful for contaminated and light corrosive liquids as metal parts do not come in contact with media. Such Mechanical Seals eliminate movement of elastomer hence reduce fretting effect on shaft greatly. Application : Clear, Contaminated Liquids at High Pressure & Vacuum. Application : Pressure : 25 bar. Temperature : -30C to 250C. Speed : 20 m/s Sizes : 20 mm to 150 mm Materials : Faces : Carbon, Silicon Carbide, Tungsten Carbide, Ceramic. Elastomers : Viton, Aflas, Silicon, FEP. Hardware : SS-316.

These mechanical Seals designed for machineries having Non-standard Pumps With Tailor made stuffing box, mostly for textile industry, Such Seals are Bi-directional, Unitised, Compact and easy to install in small housing too. Capsule Slots are given on outer periphery for reciprocating movement of collar for Seal adjustments. These pusher type Mechanical Seals can be designed with single spring to suit vast applications. cap mechanical Application : Clear, Viscous, Light Slurry, Dying Chemicals. Operating Limits : Pressure : 10 bar Temperature : -20C to 200C Speed : 20 m/s Sizes : 20 mm to 150 mm Mechanical Materials : Faces : Carbon, Silicon Carbide, Tungsten Carbide, Ceramic, Cr. Steel. Elastomers : Viton, Aflas, Silicon Hardware : SS-316

These Mechanical Seals are designed on various systems used for Agitating, Mixings and Blending the products. Agitator Mechanical Seals usually perform on equipments with heavy shafts and low speed. These Seals can be mounted on Top, Bottom, Side or Angular entry shafts in mixer. Unicorn Engineers have lot of designs to suit various applications. Basically these seals are highly tailor-made & designed according to process conditions and Equipment. We normally manufacture Agitator Mechanical Seals in following style : 1. Single Dry Mechanical Seal. 2. Single Mechanical Seal with Cartridge. 3. Double Mechanical Seal with Cartridge. Cartridge Agitator Mechanical Seals are pre-assembled, hence avoid fitment problem and offered with or without jackets. Bearing can also be provided to control run-out of shaft at Seal. System is provided with Double Mechanical Seal which is used for circulation of barrier fluid in cartridge assembly. Various accessories like Pressure Gauge, Temperature Indicator, Level Gauge, Hand Pump etc. can be provided with Thermosyphon system. We are quite expert in reconditioning old Agitator Mechanical Seals at reasonable cost and also manufacture spares as per drawing.

It is vital part of Mechanical Seal remain static in housing. It is non-moving part hence gives good life once fix properly. Stationary faces are available in different shapes like D, L, T, H, Du eTungsten Carbide. Stationary face fits in housing with Elastomer in various shapes to stop leakage. It can be designed in any other shape also suiting to application.

We produce Mechanical Seals for all type of Compressors like Voltas, Sabroe, Kirloskar, Trane, Carrier, York (Johnson Controls), Bitzer, Mycom (Mayekawa), Vilter, Sullair, Frick, Grasso International, J & E Hall International, Carlyle, Thermoking etc

We design and make lot of non-stanard and special type of Mechanical Seals as per applications. Few of them are shown here. Since we have lot of designs can not be covered fully here .

These are made in segments and held together with the help of spring. Segmented Seals are fabricated from Carbon in different shapes and sizes. These are used on rotating shaft in Turbines.

Carbon Rings in various shapes and designs are used in Rotary Joints which holds steam, Oil etc. It is also lubricated by almost any fluid. It is impervious and resistant to most chemicals.

Carbon Seal Rings are manufactured for Mechanical Seals used in Pumps, Reactors, Mixers, and Compressors etc. These Carbon Seal Rings are designed in in various shapes and sizes depending on the model of Mechanical Seals.

We manufacture wide range of rotary carbon vanes in various size & shapes for rotary compressors, vacuum pumps. It has application in Drink vending machines, Printing presses, Packing machinery, Food processing equipment, Fuel tanker meters, Automotive diesel fuel pump, Spray paint equipment etc.

Carbon slide bearings used in various type of Pumps and Machines. It reduce Friction and wear significantly. Due to Dry Running capability and outstanding resistance to chemical. It is used in Magnetic Drive pumps and various application.

These are used in under water pumps and many other type of process pumps. These products are very common in Submersible Pumps.

These Gaskets used for sealing the Lids or doors. It is available in various shapes and sizes. It can be produced in different grades of raw materials depending upon application. Dyeing Machines in Textile Industry has lot of such uses.

It is the flexible element of rubber expansion joint. Rubber Bellows are used to prevent leakage of circulating fluid to outside. Rubber Bellows of different shapes & sizes made from a variety of rubber grades like Nitrile, Silicone, EPDM, FKM are manufactured to suit various Applications.

We manufacture a wide range of extruded rubber cords in various sizes & required length to meet need of our customers. These cords can be manufactured from all types of rubber grades like Silicone, FKM, Nitrile, EPDM, etc.

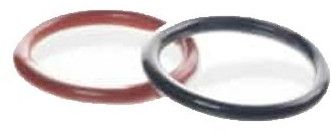

An Encapsulated O Ring consists of an elastomer core (Fluorocarbon FKM / FPM / Silicone) has a seamless shield made from FEP (Fluorinated Ethylene Propylene) or PFA (Perfluoroalkoxy - copolymer). It gives Chemical resistance as well as resilience hence used to prevent leakages of corrosive fluids at high temperature.

We provide FFKM [Perfluoroelastomer ] "O " Rings which are used in very abnormal applications. FFKM 'O ' Rings are very expensive and rarely used in highly specific fluids. FFKM is also knows as Perfluoro-elastomer. Kalrez, Chemraz, Perlast, Simraz etc are famous brands of FFKM.
