Atlee tab-mounted clips are designed for use with printed circuit boards, to provide firm holding of capacitors, resistors, relays, and similar cylindrical components against shock and vibration. Attachment of the clip to the board is be means of integral tabs which pass through the board and clinch against its lower surface. Tabs are annealed to take 5 90° bends without breaking. Designed for manual or automatic assembly. Mounting tabs spaced for 364" diameter holes on 0.1" grids. No visible shifting of component under vibration at 500 CPS with 90 G peak acceleration, and 2000 CPS with 65 G peak acceleration. No visible shifting of component during impact shocks of 200 G at right angles to and also along the axis of the component holder. Holding power increases as shock and vibration increase, measured by force required to remove component. Special contour design acquires closer set to component during shock and vibration, increasing security without localized pressure. Will withstand over 500 insertion-withdrawals of a slug 132" larger than nominal diameter, without metal fatigue.

• SilverQQ-S-365
• Beryllium CopperQQ-C-533
• Series106-312

Atlee Transistor Clips are specified when a transistor must be mounted securely without depending on soldered leads and at the same time must have its heat of operation efficiently dissipated. These devices act as effective heat sinks for rapid transfer of component heat the equipment chassis. Attachment to the mounting surface is by means of rivets, eyelets, screws and nuts, or similar fasteners. Secure mounting, without resonance at any vibration frequency from 20 CPS through 2000 CPS. Effective heat dissipation, permitting operation of transistors at maximum ratings without shortening life. Holding power increases as shock and vibration increase, measured by force required to remove component.

• Dimensions50 million

K S Tooling has a large assembly department which features both hand and automated assembly cells. This department specializes in high volume products which include SFP cages (over 50 million produced) and many other complex assemblies. Partnership K S Tooling considers every customer and every vendor to be a business partner. These successful partnerships make it possible for KST to offer innovative product solutions in today's challenging global market. Partnership advantages include insert molding, over molding, photo chemical etching and plating, amongst others.

• Size5/32" to 1-3/4"

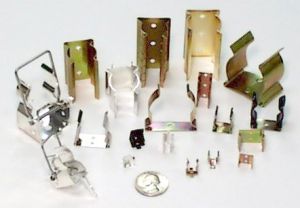

Atlee manufactures standard and custom clips for components with diameters ranging from 532" to 1-34". Atlee metal component holders and spring clips provide maximum holding power under extreme usage. Atlee can meet MIL-SPEC and NAS requirements. Clips are available in a variety of materials and finishes.

Complex, custom and high-precision metal stamping is what we do every day at K S Tooling, Inc. With multiple production lines and daily delivery to 13 countries, we offer all you'll need. Reduce frustration and in-house hassle by working with the K S Tooling, Inc. team to streamline and simplify your precision metal stamping processes and overall parts production. You can further this savings when you use our line of complementary services in design, inspection, packing and shipping.Give yourself peace of mind by picking a partner who meets your industry standards while also adhering to government guidance such as FDA compliance. Whether you need to meet submission standards on prototypes or production standards for your market, our precision metal stamping option is a perfect fit for your needs. Join our many specialized customers in the medical, automotive and other industries, and let our tooling and metal stamping equipment speed up your production and save you money as your orders increase. Whether you need intricate automotive connectors or life-saving medical devices, K S Tooling, Inc. brings full commitment to quality and efficiency to every product we make. Commitment K S Tooling, Inc. specializes in high-volume precision metal stamping in PA. You'll benefit from substantial cost savings through our innovation and Six Sigma approach. Our professional staff can meet your needs whether we're operating as one of your precision metal stamping suppliers, providing toolmaking services or delivering a complete product right to your door. Quality We continually strive to be an industry leader in precision metal stamping. Our dedication to quality and customer service has allowed us to meet the unique needs of customers in several markets.K S Tooling, Inc. can meet the needs of our customers from the dental and medical markets to our automotive, aerospace and defense partners. We deliver high-quality craftsmanship every time, whether you need a low-volume or high-volume precision metal stamping in the U.S.

From life-saving EpiPens and intricate timepieces to Hybrid vehicles and Airbag sensors, K S Tooling, Inc. is dedicated to providing innovative production solutions to some of the world's most advanced products. For over 25 Years, K S Tooling, Inc. has been providing a clear precision metal stamping advantage to small, medium and large scale OEM's. What advantage can K S Tooling, Inc. offer you? Complex, custom and high-precision metal stamping is what we do every day at K S Tooling, Inc. With multiple production lines and daily delivery to 13 countries, we offer all you'll need.

• capacity48"

K S Tooling, Inc. is experienced with Stainless and cold rolled steels, High performance Copper based Alloys, copper, bronze, aluminum and specialty alloys such as Platinum, Inconel, Kovar and many more. Like any production metal stamping company, higher orders will help you see higher savings in raw material costs. K S Tooling, Inc. can support all of your production metal stamping needs whether you're working with stainless steel and copper or exotic materials for a unique development. We offer full support for top-of-the-line production stamping techniques such as progressive dies or single-hit dies.

• SeriesISO 9001:2008

As a customer at K S Tooling, Inc., our progressive die and stamping development allows you to meet specialized needs for your industry and environment. Proper progressive die design will exceed your complex tooling and production volume needs without sacrificing quality. Progressive stamping from K S Tooling, Inc. can address a variety of multifaceted factors including orientation, transportation and adjustment, positioning, progressions and overall tool lifetime. With an eye on maintenance concerns and quality, our progressive die and stamping tools can help you experience savings and an increased bottom line.

EMIRFI SHIELDS SINGULAR COMMITMENT TO THE HIGHEST STANDARDS IN ENGINEERING, QUALITY CONTROL, AND MANUFACTURING

Atlee manufactures standard printed circuit board single layer bus bars and board stiffeners. Our options include plated only or plated and coated with an insulating epoxy. We are a build to print company that has a deep commitment to shipping quality parts on-time.

• SeriesISO 9001:2008

Precision Injection Molding Company That is Committed to Quality K S Tooling, Inc. is a precision injection molding company committed to quality and efficiency. With a focus on high-tolerance, repeat-use parts, you'll never have to compromise on product quality or deliverable speed. Parts created through the precision injection molding process need careful and precise designs to operate properly. With a suite of custom plastic injection molding services, we can walk you through the entire process. From help with CAD designs to full production schedules, we're the only precision molding company you need to partner with on your next job. With more than 25 years of experience in tooling, design, process engineering and parts development, K S Tooling, Inc. can develop the right parts for your specific use and industry. Large or small, your product is in great hands.

• MaterialsMIL-S-5059
• SilverQQ-S-365
• CopperQQ-C-533

High retention of printed circuit board under severe shock and vibration. Easily installed by welding or riveting. Rigidly mounted printed circuit board in racks and other types of assemblies .010 thick material is standard. Dimension L tolerance is ±.02. Dimension M tolerance is ±.005.

• SilverQQ-S-365
• Size1/32"

Atlee Crystal Clips are designed to provide secure mounting for flattened elliptical components under shock and vibration. Sizes are available to meet the needs of standard types of frequency-determining crystals, for which the clip is primarily designed. Attachment to the mounting surface is by means rivets, eyelets, or screws, the number being determined by the length of the clip.Simple attachment to mounting surface with rivets, eyelets, or screws. Firm security for relatively heavy components against vibration and shock while allowing easy removal for replacement. Holding power increases as shock and vibration increase, measured by force required to remove component. Will withstand repeated insertion-withdrawals of a slug 132" larger than nominal diameter, without metal fatigue.

• SilverQQ-S-365
• Size1/32"

Atlee Crystal Clips are designed to provide secure mounting for flattened elliptical components under shock and vibration. Sizes are available to meet the needs of standard types of frequency-determining crystals, for which the clip is primarily designed. Attachment to the mounting surface is by means rivets, eyelets, or screws, the number being determined by the length of the clip.

• SilverQQ-S-365
• Spring SteelMIL-S-46049B,S.A.E. 1074

Quick attachment to mounting surface with one eyelet or rivet. Integral projections on bottom of clip eliminate twisting. Holding power increases as shock and vibration increase, measured by force required to remove component. Special contour design acquires closer set to component during shock and vibration, increasing security without localized pressure. Will withstand over 100 insertion-withdrawals of a slug 132" larger than nominal diameter, without metal fatigue.

• SilverQQ-S-365
• MaterialsMIL-S-5059

Heavy duty .010 thick material is standard. High retention of printed circuit board under severe shock and vibration. Easily installed by welding or riveting. Quick and simple board insertion and withdrawal. Rigidly mounted printed circuit board in racks and other types of assemblies.Materials: Stainless Steel (MIL-S-5059) or Beryllium Copper (QQ-C-533) Plating: Cadmium (QQ-P-416), Silver (QQ-S-365), Zinc (QQ-Z-325), Electroless Nickel (MIL-C-26074) Finishes Available Standard: Beryllium Copper - Cadmium Chromate (Golden) and Stainless Steel - Passivate Optional: Electroless Nickel, Silver (Tarnish Resistant), Zinc

• CopperQQ-C-533
• SilverQQ-S-365
• MaterialsMIL-S-5059

Heavy duty .010 thick material is standard. High retention of printed circuit board under severe shock and vibration. Easily installed by welding or riveting. Quick and simple board insertion and withdrawal. Rigidly mounted printed circuit board in racks and other types of assemblies.

• MaterialsMIL-S-5059
• CopperQQ-C-533
• SilverQQ-S-365

High retention of printed circuit board under severe shock and vibration. Easily installed by welding or riveting. Quick and simple board insertion and withdrawal. Rigidly mounted printed circuit board in racks and other types of assemblies008 thick material is standard. Dimension L tolerance is ±.02. Dimension M tolerance is ±.005.

• CopperQQ-C-533
• SilverQQ-S-365
• MaterialsMIL-S-5059

High retention of printed circuit board under severe shock and vibration. Easily installed by welding or riveting. Quick and simple board insertion and withdrawal. Rigidly mounted printed circuit board in racks and other types of assemblies.008 thick material is standard. Dimension L tolerance is ±.02. Dimension M tolerance is ±.005.

• MaterialsMIL-S-5059
• CopperQQ-C-533
• SilverQQ-S-365

High retention of printed circuit board under severe shock and vibration. Easily installed by welding or riveting. Quick and simple board insertion and withdrawal. Rigidly mounted printed circuit board in racks and other types of assemblies.

• MaterialsMIL-S-5059
• SilverQQ-S-365
• CopperQQ-C-533

Heavy duty .010 thick material is standard. High retention of printed circuit board under severe shock and vibration. Easily installed by welding or riveting. Quick and simple board insertion and withdrawal. Rigidly mounted printed circuit board in racks and other types of assemblies.

• Size1/32",
• Series100-200 ,100-300

• CopperQQ-C-533
• SilverQQ-S-365
• MaterialsMIL-S-5059

Heavy duty .010 thick material is standard. High retention of printed circuit board under sever shock and vibration. Easily installed by welding or riveting. Quick and simply board insertion and withdrawal. Rigidly mounts printed circuit board in racks and other types of assemblies..005 thick material is standard. Dimension L tolerance is ±.02. Dimension M tolerance is ±.005.

• SilverQQ-S-365
• Beryllium CopperQQ-C-533

Provides firm holding against severe shock and vibration.. Withstands 50-hour salt spray test. Provides greater contact pressure to reduce heating.

• MaterialS.A.E. 1074, .020 thick
• series127

Low cost permits wide range of industrial and commercial use. Quick attachment to mounting surface with eyelet, rivet, or screw. Extra strength spring steel assures high retention qualities. Vinyl coating on 127 series permits mounting of capacitors without the insulation sleeve; protects easily-scratched components to be mounted on display boards; allows safer holding of cables where ordinary clips may tear the insulation.
