VELSON INDUSTRIES

Tiruchengode, Namakkal, Tamil Nadu

Capacity : 6 to 24 borehole to a depth of 100 mtr (328 ft)Prime Mover : Track mounted Rig with power from deck EngineDrilling Rod Diameter : 90mmMast : Box type structureHeight 5.7 mtr (18.7 ft)Rod handling capacity 3.04 mtr (10ft)

Hydraulic System : 250 kg cm2 (3550 psi)Hydraulic Oil Cooler : 70 LPM fin type cooler with fan 500 cfmRotary Head : Rotary head powered by onehydraulic orbit motorMax Torque 3KNMax Speed 0 to 160 rpm

Water Injection Pump : Triplex reciprocating pump powered by hydraulic motorOperating Panel Type : WirelessOptional attachment : Available as per customer request.

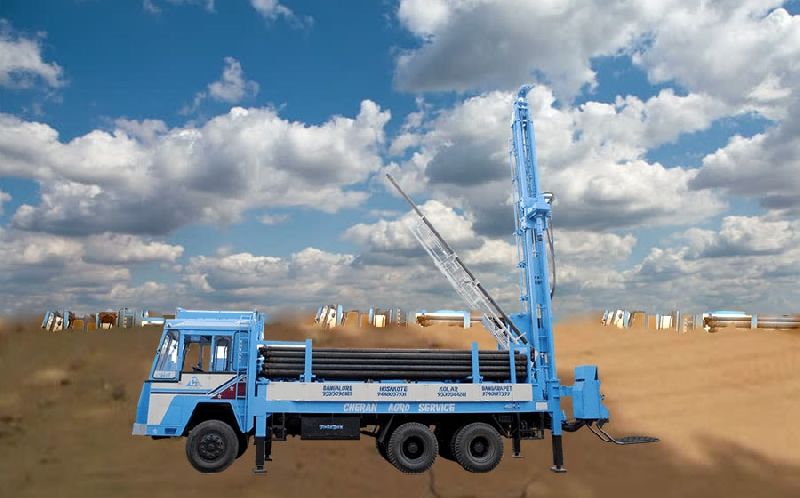

Velson Industries fully automated rod handling drilling machine with tilted master model, the velson industries water well drill is the most powerful product in India. Its design and performance helps to make a drill at any place. Velson Industries mining drilling machine model, the velson industries mining and piling drill is the most powerful smart product in india.

Capacity : 6" to 7.5" borehole to adepth of 450 mtr (1500 ft) Pilling :1000MM UPTO 25mtr Direct Mud Circulation Prime Mover : Track mounted Rig with power from Deck Engine Mast :Box type structure Height 5.7 mtr (18.7 ft) Rod handling capacity 3.04 mtr (10ft) Pull Up and Pull Down : Max Pull up force 11500kgs Max Pull up speed 14 mtrmin (46 ftmin) Max Pull down force 8000 kgs Max Pull down speed 25mtrmin (82ftmin)

Velson Industries fully automated rod handling drilling machine with tilted master model, the velson industries water well drill is the most powerful product in India. Its design and performance helps to make a drill at any place. velson industries mining drilling machine model, the velson industries mining and piling drill is the most powerful smart product in india.
