Our Products
Our product range contains a wide range of Soft Wall Clean Room, Cartridge Filter, PVC Strip Curtain, Clean Air Pressure Module and HEPA Filters
Versatile

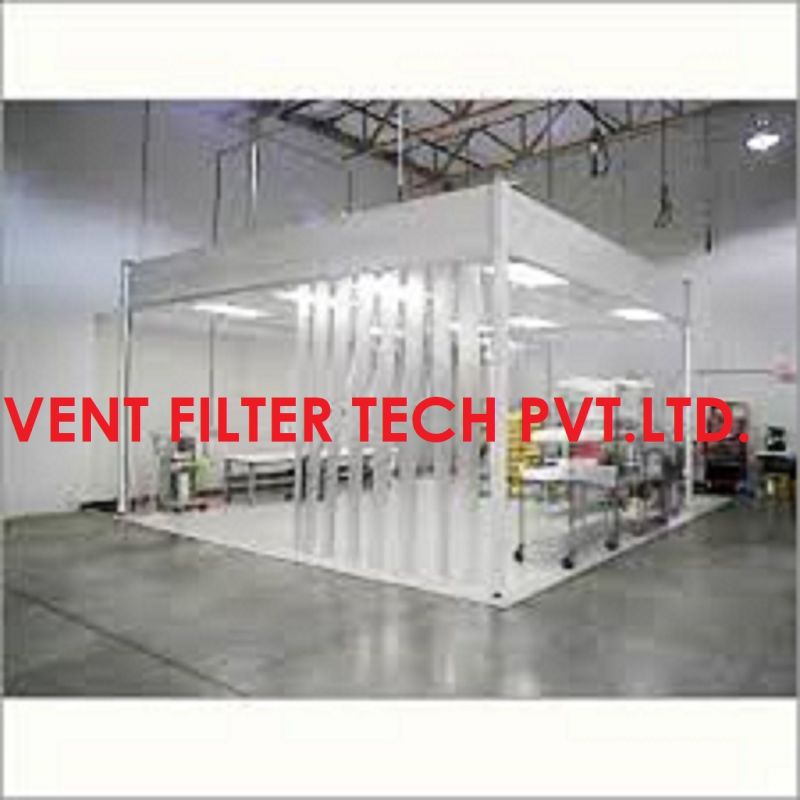

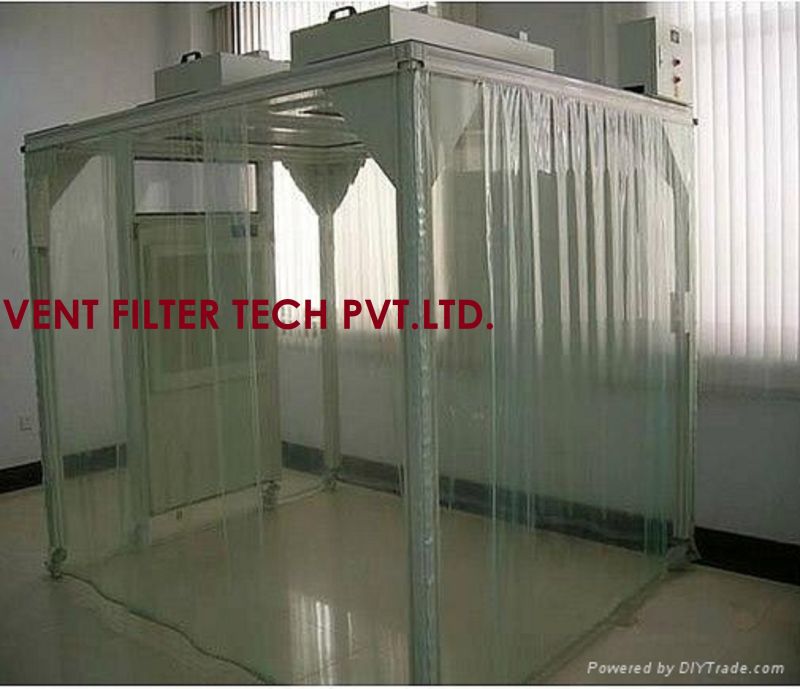

The Vent-Air Tent softwall cleanroom is the most economical approach and design for your cleanroom needs. This design is commonly used in the microelectronics and medical mold injection industry as well as many others. Vent-Air Tent's softwall design allows it to be used as either a totally freestanding room or it can be used in combination with your existing walls and ceiling. Each room comes completely factory prefabricated for minimal on-site erection time and is totally self-contained with all components factory-finished. (Average installation time is 1 1/2 to 2 days from start to certification).
Design
This style of cleanroom can be designed to meet the most critical classification from Class 100, 000 to Class 10. Standard rooms range from as small as 3x4' to 30'x60' and 40'x40' (larger sizes available). Custom designed units have varied from a 20'x20'x20' on casters, a 24'x57' (seismically approved), sectional rooms that can be split apart and rolled back to allow access to large items and structural frames that can be lifted and moved with overhead cranes.
Flexibility
A major advantage to the Vent-Air Tent softwall cleanroom is its ability to be enlarged or reduced. Wall panels and ceiling grids can easily be added or removed as future needs dictate.
The Vent-Air Tent is almost 100% reusable, so if the occasion arises you can take the room (and the investment) with you. Each room can be designed to allow for future expansion so you can purchase the size you need today and increase the room size as your requirements dictate. The Econo-Tent is a truly portable freestanding structure; the support legs can be fitted with welded plates, adjustable leg levelers, and casters which will allow the room to be rolled around. Compare the ease of erecting these rooms to the disruption and contamination generated during installation of sheet rock walls as well as downtime and potential revenue loss.
Additional Features
While the Vent-Air Tent addresses the need to remove particles from the air, it also has options that reduce or eliminate the chance of contamination from being introduced into the room. The addition of a pass-thru in the wall allows products to be passed in and out of the room without the technician having to leave the cleanroom.
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 3 to 4 week
We are manufacturing and supplyingPositive Pressure Module. The offered module is used for conducting experiments in hospitals and laboratories. It is effective in maintaining constant air pressure for avoiding contamination of surroundings with hazardous fumes, microbes and vapors. This module is easy to install and ensures hassle-free operations as well.
Features:
Specifications:
Additional Information:
Packaging Details : As per customer Requirement
Delivery Time : 2 ya 3 week
We are successfully meeting the varied requirements of our clients by providing the best quality range ofLaboratory Clean Room.
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 3 to 4 week
a unique combination of the most aerodynamic design with the highest product protection, operator comfort, versatility and reliability. delivered with a strong table top made of stainless steel or melamine as a standard choice.
technical specifications
air cleanliness : iso class 5 / class 100 / m 3.5 area
air velocities : 0.45 0.05 mps (90 20 fpm)
air flow : horizontal / vertical
noise level : less than 67 db
vibration level : minimum
power supply : 230v ac, 1-, 50hz
moc : gi powder coated / ss-304 / ss-316
side panel with glass / polycarbonate / acrylic
two stage filtration
eu5 - intermediate filter (95% down to 5 micron)
eu14 - hepa filter - supply / exhaust (99.999% down to 0.3 micron)
statically & dynamically balanced motor-blower with isolator to reduce noise level
fluorescent lights with milky white diffuser
differential pressure gauges : 01 no. (hepa filter)
on/off switches (bl / fl / uv)
auxiliary powder socket : 5/15 amp for external equipment
dop port
dq, iq, oq, pq documentation
options and accessories
a wide range of configurations to suit any containment application :
front door (counter weighted / hinged / flexible pvc sheet)
hour meter for uv
air / gas cock
velocity display with high / low alarms
filter chocking alarms
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 3 to 4 week
Being one of the renowned firms in the industry, we are decidedly involved in providing a high-quality array ofPVC Strip Curtain
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 2 ya 3 week
The unit eliminates powder contamination to protect the operator and the surrounding environment. It is designed to handle powder under aseptic conditions for optional G.M.P.
Technical Specifications
Air cleanliness : ISO Class 5 / Class 100 / M 3.5 AREA
Air Velocities : 0.45 0.05 mps (90 20 FPM)
Air Flow : Vertical
Noise Level : Less than 65 dB
Vibration Level : Minimum
POWER SUPPLY : 230V AC, 1-, 50HZ
MOC : GI Powder Coated / SS-304 / SS-316
Inside : Side panel with all three side with coving
Three Stage filtration
EU4 Pre-filters (90% down to 10 micron)
EU7 - Intermediate Filter (95% down to 3 micron)
EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
Statically & Dynamically balanced Motor-blower with isolator to reduce noise level
Fluorescent Lights with Milky White Diffuser
Differential Pressure Gauges :02 Nos. (Intermediate & HEPA Filter)
ON/OFF Switches (BL / FL / UV)
Auxiliary Powder Socket : 5/15 Amp for external equipment
DOP Port
DQ, IQ, OQ, PQ Documentation
Options and Accessories
A wide range of configurations to suit any containment application:
Double skinned PUF Insulated side panels with/without view windows
Stainless steel perforated grille for HEPA Filter
Front Flexible Strip PVC Curtains
SS Perforated Platform for keeping Weighing Scale (Fix /Moveable)
Velocity display with High / Low Alarms
Filter chocking alarms
FLP Electrical Goods for Explosion
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 2 ya 3 week
double skin air handling unit /air handling unit / hvac unit / fdv unit.
selection parameter : -
type floor mount / horizontal / vertical
design blow through / draw through
frame work thermal break / non thermal break
panel moc double skinned / singled skinned
base frame gi skid with corner / c channel
outer sheet pre-coated / powder coated
inner sheet plain gi / pre-coated / ss
panel thick 25mm / 45mm
insulation injected puf @ 405 kg/m3
static pressure 50mm to 200mm wg
types of drive belt driven / plug fan
types of fan backward / forward curved
filtration stage pre-filter / fine filter / bag filter /
hepa filter
filter condition differential pressure port
nos. of damper sa / ra / fa / pa
type of damper aerofoil / gi powder coated
types of zone inlet lower with bird screen
return air plenum with ra / fa damper
pre-filter section / bag filter section
hw / steam / heater section
chw / dx coil section
mist eliminator
fan section
fine filter section
super flow hepa filter section
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 3 to 4 week
Prefabricated modular Air shower enclosure used for removing surface particle from personnel prior to
entering a contamination controlled environment. Air Shower are constructed as per ISO 14644.
Technical Specifications
Air cleanliness : ISO Class 5 / Class 100 / M 3.5 AREA
Air Velocities : 20 5 mps (4000 1000 FPM)
Air Flow : Horizontal + Vertical
Noise Level : Minimum
Vibration Level : Minimum
POWER SUPPLY : 440V AC, 3-, 50HZ
MOC : GI Powder Coated / SS-304 / SS-316 / Combination
Structure : All external panel are Double Skinned duly PUF insulated
Door : Double Skinned with View Panel, Door Closer & D Handle
Two Stage filtration
EU7 - Intermediate Filter (95% down to 3 micron)
EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
Statically & Dynamically balanced Motor-blower with isolator to reduce noise level
Fluorescent Lights
Differential Pressure Gauges : 01 No. (HEPA Filter)
Auto / Manual operation
ON/OFF Switches (BL / FL)
DOP Port
DQ, IQ, OQ, PQ Documentation
Options and Accessories
A wide range of configurations to suit any containment application: -
Once side Entry / Both Side Entry
Top blower / Side Blower arrangement (height consul)
Velocity display with High / Low Alarms
Filter chocking alarms
FLP Electrical Goods for Explosion
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 3 to 4 week
Prefabricated modular Air shower enclosure used for removing surface particle from personnel prior to
entering a contamination controlled environment. Air Shower are constructed as per ISO 14644.
Prefabricated modular Air shower enclosure used for removing surface particle from personnel prior to entering a contamination controlled environment. Air Shower are constructed as per ISO 14644.
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 3 to 4 week
vent" hepafilters are manufactured from continuous length superior quality micro glass fiber paper media available in various efficiency grades. the filter media is moisture resistant and fire retardant. anti-microbial treated papers are also available for special applications. the uniform and closed pleat filter pack grants a high crossing surface to hold the very fine dusts.
the standard frame construction includes fire retardant wood particle board, galvanized steel and anodized aluminum. high temperature versions are constructed with stainless steel frames.
air filtration systems : vent main concept to provide the best solution for air filtration product and service formainly clean room / comfort air / processing air treatment while contributing tosomething essential to everyone clean air.
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 3 to 4 week
vent" filter provides high-efficiency ashrae air filtration performance in a compact, supported media design.
we take the pleasure of introducing ourselves as one of the best quality air filter
manufacturer & complete solution provider of air filtration technology for more than 15
years. we undertake the turn-key job for the air filtration product for design &
product devpolment to meet the customer requirements according to the international
standard.
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 3 to 4 week
We are the leading suppliers of GEL SEAL TYPE HEPA FILTER of great quality.
VENT main concept to provide the best solution for AIR FILTRATION product and service formainly CLEAN ROOM / COMFORT AIR / PROCESSING AIR TREATMENT while contributing tosomething essential to everyone CLEAN AIR.
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 3 to 4 week
"VENT" Sterile Garment Storage Cabinet , which is used for storage of Clean apparel for clean rooms as these are equipped with HEPA filter and UV germicidal tube. There for these are safe and ensure that the garments completely free from bacterial contamination.
CLEAN AIRbenefits human health and well-being safety production and operating reliability.
As the leader in AIR FILTRATION TECHNOLOGY we realize this concept by
We take the pleasure of introducing ourselves as one of the best quality AIR FILTER
manufacturer & complete solution provider of AIR FILTRATION technology for more than 15
Years. We undertake the turn-key job for the AIR FILTRATION PRODUCT for DESIGN &
PRODUCT DEVPOLMENT to meet the customer requirements according to the international
standard.
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 3 to 4 week
VENT" make variety of pleated and extended surface filters incorporating adsorbents for the removal of gaseous pollution, Odors and Particles.
We take the pleasure of introducing ourselves as one of the best quality AIR FILTER
manufacturer & complete solution provider of AIR FILTRATION technology for more than 15
Years. We undertake the turn-key job for the AIR FILTRATION PRODUCT for DESIGN &
PRODUCT DEVPOLMENT to meet the customer requirements according to the international
standard.
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 2 ya 3 week
"VENT" make variety of pleated and extended surface filters incorporating adsorbents for the removal of gaseous pollution, Odors and Particles.
We are in-house manufacturing of AIR FILTER with all range of AIR FILTRATION at Ahmedabad,
Gujarat INDIA. We are manufacturing with brand name of VENT. We are mfg. entire range
of AIR FILTERS right from Pre-Filter, Fine Filter, HEPA, ULPA, Pocket Filter, Disposable Filter
etc.Our entire manufacturing process is conducted with Automatic Machines to maintain
quality & standard of the product.
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 2 ya 3 week
Cartridge Filters
According to the application the best possible filter medium for
the respective case is selected. The pleated filter media consist
of polyester non-wovens or needle felts. They can be equipped
antistatic, oil and water repellent, with special coatings or
membranes.
They are certified in accordance with DIN EN 60335-2-69
appendix AA and are suitable for the filtration of health
hazardous dusts.
Accessories
Filter holder, venturi nozzle, short injector, solenoid valves, valve
controllers, air flow deflectors to support cleaning.
Features
The maximum operating temperature is 80 C. Filter cartridges
for higher temperatures up to 450 C, with material of stainless
steel or materials which are suitable for food contact and other
individual cartridge features are available on request.
Being a leader in the industry, we are engaged in offering a qualitative range ofGlass View Panelto our customers.
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 3 to 4 week
VENT main concept to provide the best solution for AIR FILTRATION product and service formainly CLEAN ROOM / COMFORT AIR / PROCESSING AIR TREATMENT while contributing tosomething essential to everyone CLEAN AIR.
Additional Information:
Packaging Details : As per customer requirement
Delivery Time : 3 to 4 week
Dust Collector -"VENT" Dust Collector are useful in wide variety of process equipment for chemical, dyes, cement, pharmaceutical, pigments, fertilizer, petrochemicals, Thermal Stations and other industries for various dust emitting.Dust collectors unit can handle dust loadings for more than 2kg/m3 of ai
Additional Information:
Packaging Details : AS PER CUSTOMER REQUIREMENT
Delivery Time : 3 to 4 week
Our company deals in man coolers provided in variants of tubular, wall mounting and pedestal fans. The man cooler consist of specially designed aerofoil impeller cast in aluminum alloy. The alloy is coupled directly on motor shaft and the motor with the impeller assembly is mounted on a cradle. To adjust the angle of air stream, the cooler is made with tubular provision. These are portable and can stand on rough surfaces as well. The long casing for the impeller system provides an effective means of canalizing air stream in any desired direction. The wall mounting version can be mounted on the wall or on column to save floor space. It also comes with provision for varying the direction of air stream vertically and horizontally with tilting head arrangement. The pedestal variant is provided as mounted on a steel column and fitted on the heavy base. All these coolers and fans are portable in nature.
Aerodynamically designed impeller of six leaf in one piece for high velocity and large air volume.
TEFC single/three phase motor of reputed brand.
Sturdy close mesh guard for protection.
Cast iron solid base.
Additional Information:
Packaging Details : As per client requirement
Delivery Time : 2 ya 3 week
