Our Products
We are leaders in the market for providing best range of Surface Grinder Cum Milling Machine, CNC Cylindrical Grinding Machine, Smart Bor II CNC Boring Machine, Vertical Fine Boring & Facing Machine and Connecting Rod Boring Machine

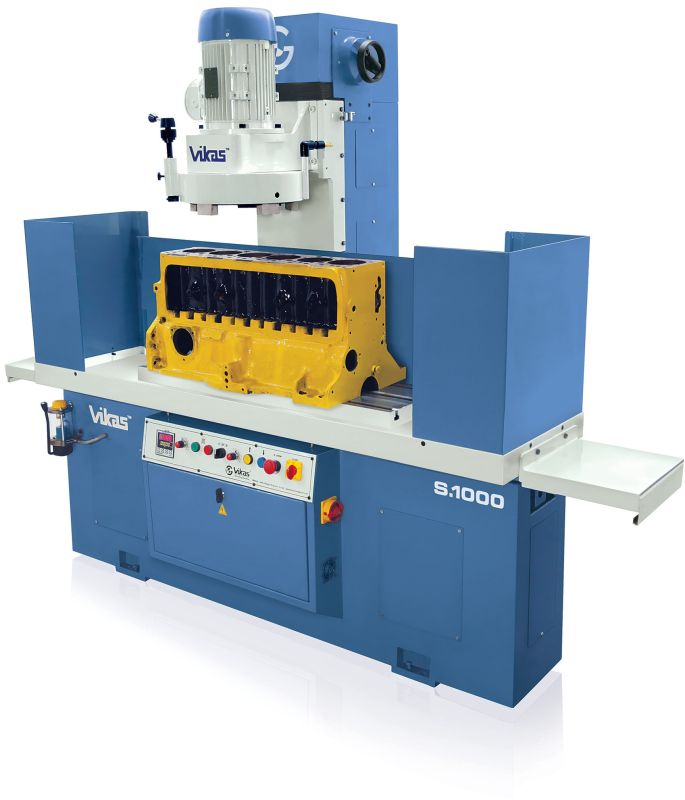

| Model | S-1000 | S-1500 | |
| Max. Length of Job | mm | 850×290 | 1400×330 |
| Segment Wheel Size | mm | 305 | 355 |
| Table Size | mm | 945×285 | 1500 x 305 |
| Table Width | mm | 300 | 300 |
| Max. Distance Grinding | mm | 450 | 635 |
| Wheel to Table Surface | |||
| Grinding Wheel Motor | HP | 3 AC Variable Drive Control | 5 AC Variable Drive Control |
| Table Feed Motor | HP | 0.5 AC Variable Drive Control | AC Variable Drive Control |
| Head Rapid Motor | HP | 0.25 | 0.5 |
| Length | mm | 2200 | 2500 |
| Width | mm | 900 | 1100 |
| Height | mm | 1770 | 1770 |
| Machine Weight (Approx) | kg | 1100 | 1900 |
| Tool Holder | Nos | 1 | 1 |
| Parallel Block | Nos | 2 | 2+2 |

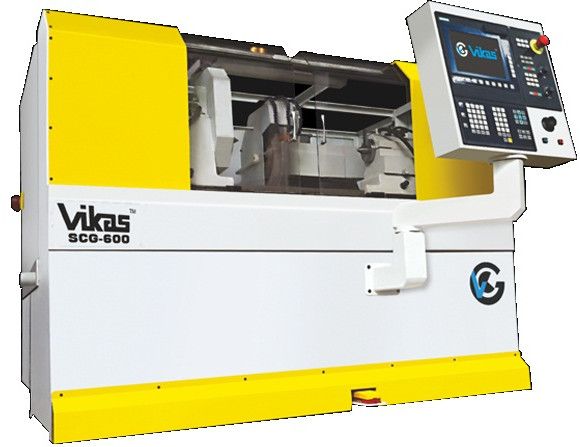

| Model | SCG-600 |
| 24” | |
| Max. Between Center | 600 mm |
| Max. Swing | 225 mm |
| Controller | Sinumebri C 802 dsl |
| Wheel Head | Hydromatic with Internal Cooling System |
| Work Head | Chuck & Dead Center MT4 |
| Motor Rating | |
| Wheel Head | 3 HP |
| Work Head | HP with VFD |
| Hydraulic | HP |
| X Axis | 6.8 Nm |
| Z Axis | 4.7 Nm |

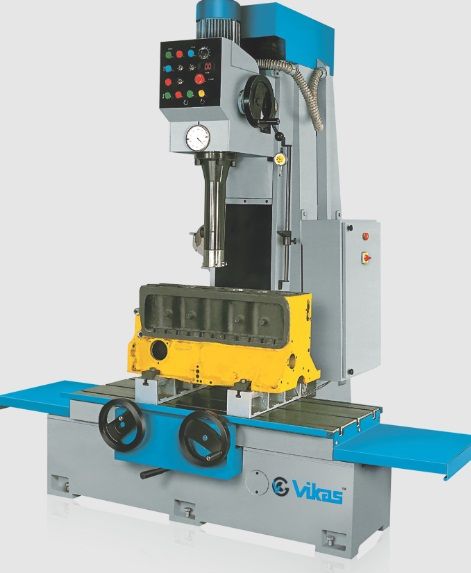

| Model | MB-1200 | MBM-1200 | |
| Boring Capacity | mm | 65 – 150 | 65 – 150 |
| Boring Head Traval | mm | 550 | 550 |
| Spindle Speeds | RPM | 50 to 350 | 50 to 350 |
| Spindle Feed Per Revolution | mm | 0.06, 0.10 & 0.15 | 0.06, 0.10 & 0.15 |
| Max. Distance from Spindle Center Line to Colum | mm | 375 | 375 |
| Max. Distance from Table to Head | mm | 1100 | 1100 |
| Working Table Size (LxW) | mm | 1170 x 450 | 1170 x 450 |
| Table Traverse – Longitudinal | mm | 1100 | 1100 |
| Table Traverse – Crosswise | mm | 50 | 50 |
| Max. Milling (LxW) | mm | – | 1100 x 250 |
| Automatic Table Feed | mm/min | – | 0-250 |
| Spindle Drive Motor | HP | 2 | 2 |
| Table Feed Motor | HP | – | 0.25 |
| Dimensions | |||
| Length x Width x Height | mm | 2000 x 1500 x 2100 | 2700 x 1500 x 2100 |
| Machine Weight (Approx) | kg | 2200 | 2300 |

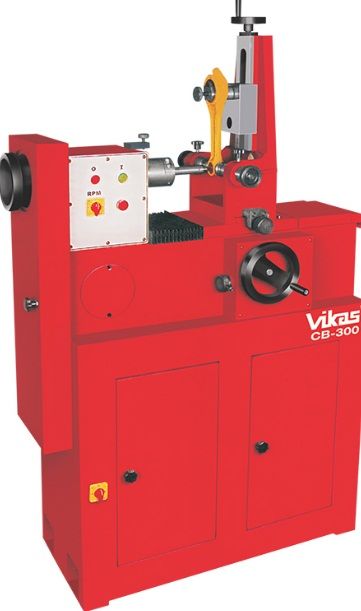

| Model | CB-300 | |
| Min & Max. Bore Centre Distance of the Connecting Rod | mm | 100 – 350 |
| Boring Range | mm | 15 to 100 |
| Feed | mm | 0.6 |
| Bottom Part Traverse Crosswise | mm | 50 |
| Table Movement Longitudinal | mm | 300 |
| Motor Spindle Speed (Dual Speed) | HP | 0.75-1.0 |
| Motor Spindle Speed (Dual Speed) | RPM | 960-1440 |
