VN MECHANICS LLP

MIDC, Satara, Maharashtra

Cartesian Robots are used to automate a wide range of tasks in manufacturing and assembly lines in virtually every industry from cell phone production to candy packaging. These Robots are used in assembly, Pick and place. However depending on the work load, Speed and Accuracy required, the above formats (Design) can be used for that particular application. Cartesian Robots excel in multitude of different applications due to their high speed travel, precise multi - axial guidance, wide working envelope and versatility; including packaging, Dispensing, Pelletizing & large scale assembly. Finally Cartesian Robots can be used as Gantries to accomplish tasks using overhead manipulation, which frees and helps simplify the assembly lines.

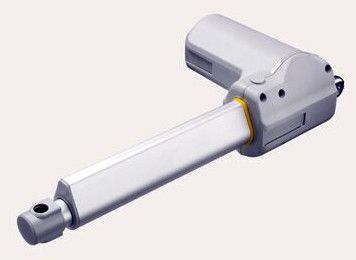

Max. load 10, 000N (push)4, 000N (pull)Max. speed at Max. Load 3.2mm/sMax. speed at no Load 39.0mm/sRetracted Length Stroke + 163mmIP Rating IP66WCertificate IEC60601-1, ES60601-1, EN60601-1-2, EMCStroke 251000mmOptions Safety nut, quick release, Reed, Hall sensors

This machine specially designed to cater human free operation to blow away Water Droplets from the component after water DIP leak testing operation is done. We design and manufacturing as per customer's requirement

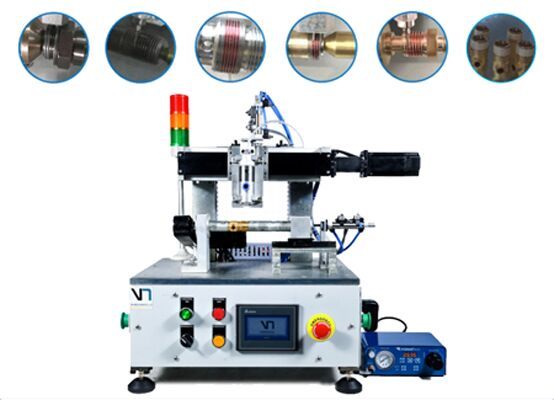

Double-drive design, the product jig and the thimble device are equipped with independent Servo / Stepper motors to rotate synchronously, which ensures better concentricity and avoids uneven coating in during rotation proccess.Professionally designed touch screen PLC gluing control system, visual operation panel, all processing parameters can be set directly through the touch screen, such as the adjustment of gluing start and end positions and gluing length (number of turns).For different Products should be processed only by changing the product jig / Locating Pins and Mandrels.It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing effect.

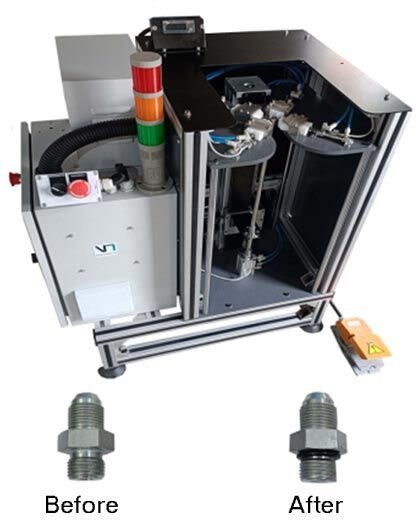

suitable for 3/4 , 3/8, 1/4, 1/2 "bsp fitting.cycle time :- 1.5 sec.2400 o ring assembly / hour.suitable for straight, elbow, tee type fittings.compact foot print .easy to operate (semi skilled operator).hmi with supervisory password.machine with counter feedback.good ergonomics.fatigue less operations.no thread contact during assembly.150 oring in one settingwith extra loading spindle and cone
