4m Automation

Bhosari, Pune, Maharashtra

4m Automation has developed its own Hot staking head, These work on Hot-Cold principle. As a result, we get a perfect Button formation, Material does not stick to the Staking head, The machine is designed with SMED thought process. So the Tool change over takes less than 5 minutes, Heating time 5 Minutes, Light curtain for safety, Part presence Poka-Yoke, Air Pressure Interlock, Temperature Interlock

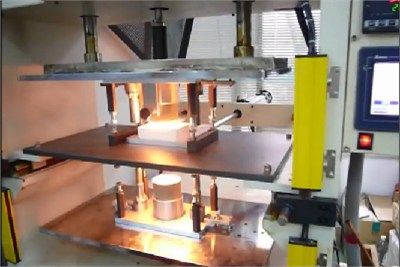

With Infrared plastic welding machine, we can save Electrical Power & Consumables cost. We can achieve hi Pull-load strength and leak resistance of welded parts.

With Infrared plastic welding machine, we can save Electrical Power & Consumables cost.

We can achieve hi Pull-load strength and leak resistance of welded parts.

4m Automation offered Hotplate Welding Machine.

4m Automation offered Hotplate Welding Machine.

• Welding table Size Width 400mm X Length 600mm
• Day Light 400mm
• SSR Heater control
• PLC control
• Part sensors for fool proof production
• Light curtain for safety
• MS pipe structure with powder coating
• Air Pressure interlock
• Quick change fixtures
• Servo option with HMI height adjustment

4m Automation has made insertion machines with Convection heating & Induction heating technologies.

4m Automation has made insertion machines with Convection heating & Induction heating technologies.

The Stud insertion machine, can insert 2 Studs simultaneously.

The CD can be maintained between 0.05mm

4m Automation offered Special Purpose Machines .Punching, Crimping, Pressing, Stamping, Shearing, Drilling, Riveting, Screw Driving, Staking, Marking,

SPMs for Value Addition Activities

Punching, Crimping, Pressing, Stamping, Shearing, Drilling, Riveting, Screw Driving, Staking, Marking, Welding Vending, Dispensing, Spraying, Heating, Curing

Quality Testing

Part Presence, Leakage, Flow, Volume, Pressure, Weight, Counting, Torque, Dimensions, Displacement, Electrical Parameters, Optical Parameters

Validation Testing

Displacement, Environmental, Chemical, Electrical, Physical Parameters, Biological properties

4m Automation offered Vision Inspection Machine or Sorting Machines.

• Vision Based Inspection Machines for following activities

Product sorting

Dimension, Measurement

Absence Presence

Color Identification

• We have made machines with Smart Cameras and PC Based Cameras.
• Inspection machine with up to 4 cameras for one application

4m Automation offered Plastic Punching SPM.

• Plastic Part Hole Punching and shearing machines
• With a bed size of 2000X1600mm
• Punching with Servo, Hydraulic, Pneumatic & Hydro-pneumatic Presses
• Safety interlocks of light curtain, Bi-hand operation
• Alarms for Low Pressure, Part absent, wrong part etc.
• PLC based machine function control
• CNC machined holding fixtures
• Hybrid machine structure with MS Square pipe & Aluminium extrusion profiles to maintain robustness & aesthetics

4m Automation offered UV Curing Oven or Ultraviolet Curing.

• UV Curing systems for Adhesives & Coatings
• Robotic Dispensing of UV Coating
• Safety shrouds, Light curtains and door interlocks
• UV Source Protection facility against physical & electrical Parameters
• Automatic Loading/Unloading facility of product
• Conveyorised or batch ovens
• Fully automatic PLC based control, HMI for parameter settings & Display

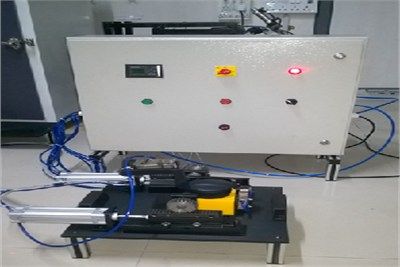

4m Automation offered Performance Test Machines or Endurance Test Machines.

• Testing of Physical, Electrical parameters
• Machines for checking product Life cycle test or 100% on-line checking
• Fully automatic PLC based control, HMI for parameter settings & Display
