Our Products
The SISW-DB Series Forward Curved Centrifugal Air Blowers, which we deliver, are known for their make & long service life. Quality being the prime concern of the company; it keeps a strict check on the production, packaging and delivery processes. Since our strict packaging guidelines, we make sure that the products are suitably packed assuring zero damage during transportation. Furthermore, our packaging professionals thoroughly check the whole batch before making the final transmit.
Specifications
| Model | Supply | Full Open Air Output m3/hr |
Shut Off Static Pressure mmwc |
Power Input Max W |
Current A |
Speed RPM |
Inlet Air Temp. Max oC |
Insulation | Weight kg |
Sound Level dbA |
|---|---|---|---|---|---|---|---|---|---|---|
| DB130S2 | 240V,1∅,50Hz | 350 | 35 | 115 | 0.5 | 2800 | 60 | Class B & F |
3.5 | 71 |
| DB130T2 | 415V,3∅,50Hz | 350 | 35 | 110 | 0.2 | 2800 | 60 | Class B & F |
3.5 | 71 |
| DB130S4 | 240V,1∅,50Hz | 175 | 8 | 40 | 0.2 | 1450 | 60 | Class B & F |
3.5 | 57 |
| DB150S2 | 240V,1∅,50Hz | 460 | 42 | 180 | 0.8 | 2550 | 60 | Class B & F |
4 | 73 |
| DB150T2 | 415V,3∅,50Hz | 460 | 42 | 170 | 0.3 | 2600 | 60 | Class B & F |
4 | 73 |
| DB150S4 | 240V,1∅,50Hz | 235 | 10 | 45 | 0.22 | 1400 | 60 | Class B & F |
4 | 62 |
Graph Image
We supply The DIDW-DB Series Forward Curved Centrifugal Air Blower, which is acclaimed for its durability and has the maximum air pressure of 133-265(pa). We always remain concerned about delivering a flawless range of products and thus we store the entire lot under secured environment till the final dispatch of the orders. Secure, dependable and authentic, Yes! You can trust us for making all the transactions using leading technologies. We keep stern check on the transactions made and we ensure that no third party is involved.
Specifications
| Model | Supply | Full Open Air Output m3/hr |
Shut Off Static Pressure mmwc |
Power Input Max W |
Current A |
Speed RPM |
Inlet Air Temp. Max oC |
Insulation | Weight kg |
Sound Level dbA |
|---|---|---|---|---|---|---|---|---|---|---|
| DB15S2 | 240V,1∅,50Hz | 1200 | 48 | 540 | 2.5 | 2720 | 60 | Class F | 8.5 | 72 |
| DB1512S2 | 240V,1∅,60Hz | 1200 | 60 | 720 | 3.6 | 3200 | 60 | Class F | 8.5 | 80 |
| DB15S4 | 240/220V,1∅,50/60Hz | 620 | 14 | 100/160 | 0.45/0.75 | 1400/1650 | 60 | Class F | 8.5 | 58 |
| DB15T2 | 380/415V,3∅,50/60Hz | 1450/1650 | 48/72 | 640/1000 | 38718 | 2770/3200 | 50 | Class F | 10 | 72/80 |
| DB15T4 | 415/440V,3∅,50Hz | 620 | 14 | 112 | 0.3 | 1400/1725 | 60 | Class F | 8.5 | 58 |
| DB18T2 | 415,3∅,50Hz | 2150 | 70 | 1100 | 1.7 | 2200 | 60 | Class F | 14 | 80 |
| DB20T2 | 415V,3∅,50Hz | 2600 | 85 | 1750 | 2.6 | 2600 | 60 | Class F | 18 | 85 |
| DB20T4 | 415V,3∅,50Hz | 1400 | 22 | 250 | 0.5 | 1375 | 60 | Class F | 16 | 70 |
| DB20S4 | 240V,1∅,50Hz | 1400 | 22 | 360 | 1.8 | 1400 | 60 | Class F | 16 | 70 |
| DB22T2 | 415V,3∅,50Hz | 2800 | 110 | 1800 | 2.8 | 2550 | 60 | Class F | 19 | 87 |
| DB22S4 | 240V,1∅,50Hz | 1800 | 25 | 420 | 2 | 1375 | 60 | Class F | 17 | 68 |
| DB22T4 | 415V,3∅,50Hz | 1800 | 25 | 320 | 0.6 | 1300 | 60 | Class F | 17 | 68 |
| DB24T4 | 415V,3∅,50Hz | 2750 | 40 | 630 | 1.1 | 1320 | 60 | Class F | 20 | 72 |
| DB24S4 | 240V,1∅,50Hz | 2750 | 40 | 760 | 3.55 | 1360 | 60 | Class F | 20 | 72 |
Graph Image
Our SISW-RB Series Backward Curved Centrifugal Air Blower is power-efficient and has the maximum air pressure of 133-265(pa). In order to deliver the orders on time, we have backed ourselves with advanced logistics facilities. Providing customized packaging solutions is our specialty and we can alter packs as per requirements of buyers. Besides this, we make sure the grade of materials is premium to ensure safety of products.
Specifications
| Model | Supply | Full Open Air Output m3/hr | Shut Off Static Pressure mmwc | Power Input Max W | Current A | Speed RPM | Inlet Air Temp. Max oC | Insulation | Weight Kg | Sound Level dbA |
|---|---|---|---|---|---|---|---|---|---|---|
| RB200T2 | 415V,3∅,50Hz | 480 | 50 | 76 | 0.2 | 2865 | 60 | Class B & F |
5.2 | 74 |
| RB200S2 | 240V,1∅,50Hz | 480 | 50 | 92 | 0.4 | 2885 | 60 | Class B & F |
5.2 | 74 |
| RB225T2 | 415V,3∅,50Hz | 730 | 63 | 112 | 0.2 | 2750 | 60 | Class B & F |
6.2 | 79 |
| RB225S2 | 240V,1∅,50Hz | 730 | 63 | 125 | 0.52 | 2750 | 60 | Class B & F |
6.2 | 79 |
| RB250T2 | 415V,3∅,50Hz | 935 | 78 | 196 | 0.26 | 2700 | 60 | Class B & F |
6.5 | 79 |
Graph Image
The DIDW-RB Series Backward Curved Centrifugal Air Blowers, which we provide, are known for their make and long service life. Our packaging professionals ensure that the products enclosed in the package are protected from vibration, shock, compression, temperature and various other external factors. One of the major concerns of the organization is to make available only quality approved products to the buyers and thus we check the entire range at all stages.
Specifications
| Model | Supply | Full Open Air Output m3/hr | Shut Off Static Pressure mmwc | Power Input Max W | Current A |
Speed RPM |
Inlet Air Temp. Max oC | Insulation | Weight Kg | Sound Level dbA |
|---|---|---|---|---|---|---|---|---|---|---|
| RB2010T2 | 415V,3∅,50Hz | 1140 | 49 | 235 | 0.6 | 2850 | 60 | Class F | 12 | 73 |
| RB2010S2 | 240V,1∅,50Hz | 1100 | 48 | 220 | 1.1 | 2850 | 60 | Class F | 12 | 73 |
| RB2210T2 | 415V,3∅,50Hz | 1400 | 64 | 270 | 0.65 | 2750 | 60 | Class F | 12.5 | 75 |
| RB2210S2 | 415V,1∅,50Hz | 1400 | 64 | 270 | 1.2 | 2750 | 60 | Class F | 12.5 | 75 |
| RB2510T2 | 415V,3∅,50Hz | 2100 | 78 | 435 | 0.8 | 2750 | 60 | Class F | 12.6 | 78 |
| RB2510S2 | 240V,1∅,50Hz | 2100 | 72 | 390 | 1.75 | 2650 | 60 | Class F | 12.6 | 78 |
| RB22S2-01 | 240V,1∅,50Hz | 1200 | 70 | 330 | 1.5 | 2800 | 60 | Class F | 13 | 72 |
Graph Image
We make available SISW-CB Series Forward Curved Centrifugal Air Blowers which are acclaimed for their make and long service life. An emerging name in the market, our organization is involved in offering SISW-CB Series Forward Curved within the most lucrative deals. The finest array of products we deliver is manufactured using only exceptional quality inputs (raw material). We make certain that the material (inputs) used are of high grade.
Specifications
| Model | Supply | Full Open Air Output m3/hr | Shut Off Static Pressure mmwc | Power Input Max W | Current A | Speed RPM | Inlet Air Temp. Max oC | Insulation | Weight Kg | Sound Level db A |
|---|---|---|---|---|---|---|---|---|---|---|
| CB130T2 | 415/380,3∅,50/60Hz | 900/1000 | 42/64 | 360/725 | 0.70/1.5 | 2890/3280 | 80 | Class F | 5.2 | 72/80 |
| CB130S2 | 240/220V,1∅,50/60Hz | 900/1000 | 42/64 | 380/670 | 1.6/2.8 | 2890/3250 | 80 | Class F | 5.2 | 72/80 |
| CB160T2 | 415/380V,3∅,50/60Hz | 1850/2140 | 70/110 | 1160/1550 | 2.4/3.2 | 2860/3150 | 80 | Class F | 12.5 | 81/86 |
| CB160S2 | 240V,1∅,50Hz | 1820 | 69 | 1280 | 5.4 | 2830 | 80 | Class F | 12.5 | 81 |
Graph Image

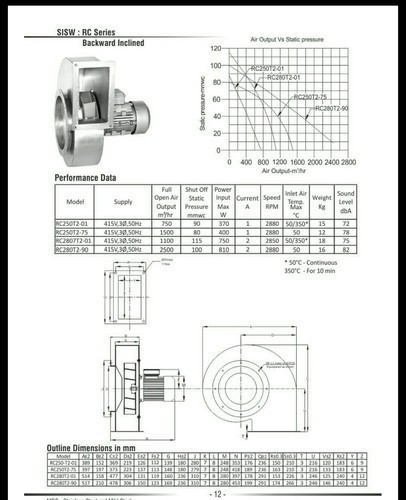

The SISW-RC Series Backward Inclined Centrifugal Air Blowers, which we supply, are known for their sturdy make and long service life. Reckoned for our excellent customer care support, we have become preeminent suppliers of SISW RC Series Backward Inclined in the industry. With excellent storage space and shipping facilities, we effortlessly entertain bulk requirements of our respected patrons. We maintain complete records and transactions of the products delivered.
Specifications 1
| Model | Supply | Full Open Air Output m3/hr | Shut Off Static Pressure mmwc | Power Input Max W | Current A | Speed RPM | Inlet Air Temp. Max oC | Weight Kg | Sound Level dbA |
|---|---|---|---|---|---|---|---|---|---|
| RC250T2-01 | 415V,3∅,50Hz | 750 | 90 | 370 | 1 | 2880 | 50/350* | 15 | 72 |
| RC250T2-75 | 415V,3∅,50Hz | 1500 | 80 | 400 | 1 | 2880 | 50 | 12 | 78 |
| RC280T2-01 | 415V,3∅,50Hz | 1100 | 115 | 750 | 2 | 2850 | 50/350* | 18 | 75 |
| RC280T2-90 | 415V,3∅,50Hz | 2500 | 100 | 810 | 2 | 2880 | 50 | 16 | 82 |
Specifications 2
| Model | Supply | Air Output @ Static Pressure m3/hr @ mmwc | Motor Model | Speed RPM | Inlet Air Temp. Max oC | Weight Kg | MOC |
|---|---|---|---|---|---|---|---|
| RC355T2-01 | 415/380V,3∅,50Hz | 3400 @ 100 | CM1350T2 | 2750 | 350 | 19 | SS-304/316L |
| RC355T2-02 | 415/380V,3∅,50Hz | 2000 @ 100 | CM1350T2 | 2750 | 350 | 19 | SS-304/316L |
| RC400T2-01 | 415/380V,3∅,50Hz | 6800 @ 100 | CM1380T2 | 2850 | 350 | 24 | SS-304/316L |
Graph Image
The RC Series Backward Curved Centrifugal Air Blowers, which we supply, are reckoned for their make and long service life. We have developed several offline as well as online options for the convenience of clients to ensure faster trade. We have installed a large storage facility wherein we keep a large stock of the offerings. This facility helps us in keeping the entire lot away from the damaging factors like moisture, sunlight, dust, rain, etc.
Our reputation in this domain is largely attributable to our precisely designed Double Inlet Air Blower.
Features
We have carved a niche as a well known firm of optimum quality DC Single Inlet Blower.
Features :
Additional Information:
Packaging Details : As per client requirement
We have uniquely positioned ourselves as a reliable firm, occupied in trading the finest quality Axial Air Blower.
Features :
with years of experience and huge knowledge of this industry, we are occupied in providing our clients with the finest quality single inlet blower.
specifications :
features :
Additional Information:
Payment Terms :
Packaging Details : 4 Blowers in single box with thermocoal sheets
Delivery Time : Ready Stock subject to prior sale
