Consideration :The power can be controlled by using thermocouple heaters with TRD temperature controllers, TSE thyristor switching units and other accessories.
IR radiation panels can be assembled using REO reflectors, REF construction sets, EBI and EBF construction elements as well as mounting sheets MBO.
The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations.
Further information and safety instructions are mentioned in the mounting sheet, which is attached to each heater.

Features:

• The material used for the production do not oxidize therefore the surface always remains clean and do not wear out
• As the coil is embedded in ceramic material, it can be installed in any possible position

Applications

• In Thermoforming & Vacuum Forming Machines
• In PVC Pipe Belling / Socketing Machines
• In Hot Stamping Machines
• As Heat Therapy Equipment
• In Shrink Packaging

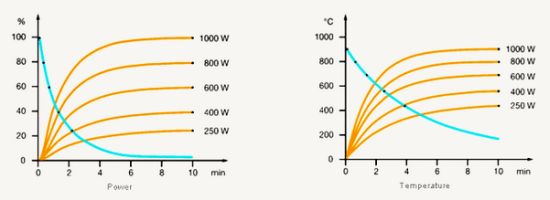

Elstein HTS High Temperature Heaters are ceramic infrared panel heaters, which can be used for operating temperatures up to 900 °C and surface ratings up to 64 kW/ m².
HTS series heaters are produced using a hollow-casting ceramic process and are filled with thermal insulation material. This improves the radiant power output to the material to be heated.
Furthermore, there is a significant reduction in heat dissipated in the wiring space, so that additional insulation of the heating area is usually not required.

Consideration The power can be controlled by using thermocouple heaters with TRD temperature controllers, TSE thyristor switching units and other accessories.
IR radiation panels can be assembled using REO reflectors, REF construction sets, EBI and EBF construction elements, BSI and BSH panels as well as mounting sheets MBO.
The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations.
Further information and safety instructions are mentioned in the mounting sheet, which is attached to each heater.

Elstein SHTS super high temperature heaters were developed to increase the previous maximum possible surface rating of ceramic panel heaters from 64 kW/ m² to 77 kW/ m².
The SHTS heaters, produced using the hollow casting ceramic process, are filled with thermal insulation material and have a special black glaze and a gold-plated back. At an operating temperature of 900 °C, over 75 % of the electrical energy supplied is transferred to the material to be heated as medium to long-wave IR radiation.

Consideration :The power can be controlled by using thermocouple heaters with TRD temperature controllers, TSE thyristor switching units and other accessories.
IR radiation panels can be assembled using REO reflectors, REF construction sets, EBI and EBF construction elements, BSI and BSH panels as well as mounting sheets MBO.
The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations.
Further information and safety instructions are mentioned in the mounting sheet, which is attached to each heater.

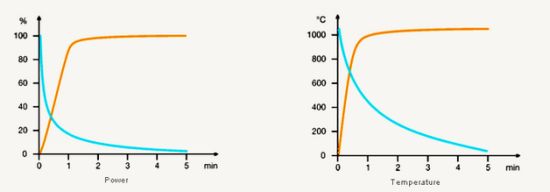

Elstein HLS high performance heaters are ceramic infrared rod heaters, which can be used for operating temperatures up to 1000 °C and surface ratings up to 87 kW/ m².
HLS Series heaters have a gold-plated ceramic parabolic reflector and transfer up to 80% of the energy supplied as infrared radiation to the material to be heated.
In this way, HLS heaters allow material temperatures of up to 700 °C or high throughput speeds. The typical operating temperature of 1000 °C is reached in less than one minute.

Consideration Elstein HLS heaters must be operated with temperature control to avoid damage due to overheating. The power can be controlled by using proprietary sheated thermocouples as well as Elstein platinum-thermocouples (both type S, Pt-PtRh) in conjunction with TRD temperature controllers, TSE thyristor switching units and further accessories.
IR radiation panels can be assembled using mounting profiles MPO.
The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations.
Further information and safety instructions are mentioned in the mounting sheet, which is attached to each heater.

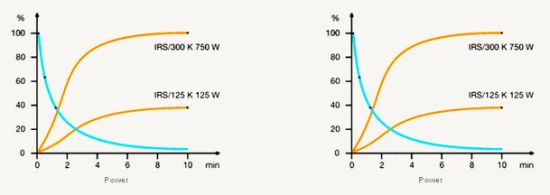

Elstein IRS/K rod heaters are ceramic infrared heaters, which are available in different lengths of up to 300 mm and surface ratings of up to 75 kW/ m²
Unlike the IRS Series heaters, which have the leads running through the mounting sockets on each side, the leads of IRS/K Series lie only on one side.
Thus IRS/K heaters make the heating of the interior of hollow bodies like tubes or bottles possible.
Linear heating tasks that need one-sided leads can be solved, too.

Consideration :The power can be controlled by using thermocouple heaters with TRD temperature controllers, TSE thyristor switching units and other accessories.
The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations.
Further information and safety instructions are mentioned in the mounting sheet, which is attached to each heater.

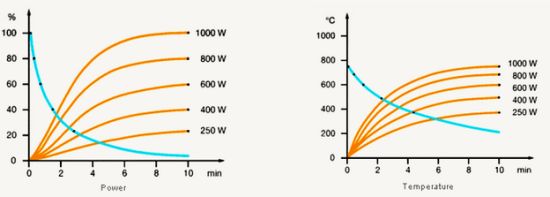

Elstein FSL long panel heaters are ceramic infrared heaters with a low overall height, designed for operating temperatures up to 700 °C and surface ratings up to 45 kW/ m².
They have two sockets with integrated twisted litz fixing wires, so that FSL heaters are easy to install and are space-saving. No special pre-punched holders or reflector plates are required for the assembly.
FSL series heaters are particularly suitable for lamellar heating tasks due to their long narrow design.

Consideration :The power can be controlled by using thermocouple heaters with TRD temperature controllers, TSE thyristor switching units and other accessories.
The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations.
Further information and safety instructions are mentioned in the mounting sheet, which is attached to each heater.

Consideration :The power can be controlled by using thermocouple heaters with TRD temperature controllers, TSE thyristor switching units and other accessories.
IR radiation panels can be assembled using mounting sheets MBO.
The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations.
Further information and safety instructions are mentioned in the mounting sheet, which is attached to each heater.

Applications :

• Thermoforming
• Vacuum Forming
• Shrink Wrapping / Fitting
• Mold Heating
• Drying Applications
• Paint & Powder Industrial
