Our Products

We offer the best product range of Elstein Screw Heater.

infrared oven

Infrared Oven
  • Number Of Flower Infrared
  • Material Mild Steel
  • Shape Round
  • Certification ISI Certified
  • Country of Origin 220V
  • Power 1-3kw
  • Phase Single Phase
  • Total Carbohydrate 1 Year
Infrared ovens are used widely for different applications such as ink drying, paint finishing, plastic and powder coating, besides audio accessories, stationery andother areas. Here, the infrared emitter is selected based on factors like application andwavelength. Rapid heating of product at low energy cost is managed with infrared emitteroptions like ceramic emitters, reflector heat lamp and quartz tube etc. In addition, glasspanel processing oven, control and cooler systems help in implementing heating elements arerecirculation blowers for a combination of convection and infrared heating.
View Complete Details
Ask Latest Price & Details
Power Controller

Power Controller
  • Number Of Flower Digital
  • Material Aluminium, Plastic
  • Certification CE Certified
  • Packaging Type Black
  • Country of Origin 220V
  • Driven Type Battery
  • Phase Single Phase
  • Total Carbohydrate 1 Year
Compact design, suitable for control panel flush mounting with panel, having a cutout size of 90mm x 90mmSupply voltage indication featureInput : 220 +/- 10% volts, 1?, 50 HzOutput : 16Amps, 25 Amps or 40 Amps rated output, with required connected load of equipment arranged in seriesOutput Terminal : for Phase/Neutral and two terminals for Series Load to be connected, which can be heaters & equipmentAdequate capacity heat sink is providedConfigured with imported solid state current control cascade unitPrecise & smooth % of supply voltage adjustmentConfigured with digital read-out indication for % supply of voltage
View Complete Details
Ask Latest Price & Details
Quartz Rod

Quartz Rod
  • Material Quartz Stone
  • Grade Superior
  • Packaging Type Transparent
  • Finishing Polished
  • Application Industrial
  • Shape Round
Quartz Rod consists of fused silica. it has a high purity with high chemical resistance.zero thermal expansiongood UV transparency.
View Complete Details
Ask Latest Price & Details
Transparent Tube

Transparent Tube
  • Density 2.2 x 103 kg/m3
  • Hardness 550KHN100
  • Tensile Strength 4.7 x 101Pa (N/m2)
  • Compression Strength > 1.1 x 109 Pa
  • Coefficient of Thermal Expansion(20C-300C) 5.5 x 10-7 cm/cmC
  • Thermal Conductivity (20C) 1.4 W/Mc
  • Specific Heat (20C) 660J/kgC
  • Softening Point 1630C
  • Annealing Point 1150C
Quartz Tube consists of fused silica. it has a high purity with high chemical resistance.zero thermal expansiongood UV transparency.
View Complete Details
Ask Latest Price & Details
Translucent Tube

Translucent Tube
  • Number Of Flower Translucent
  • Material Glass
  • Packaging Type White
  • Thickness 1-2 mm
  • Pattern Plain
  • Surface Polished
The transparent quartz tube is obtained through different types of raw materials that include natural or synthetic quartz sand. Quartz tube have ultra high purity, good spectral transmission, well controlled dimensions and lower (OH) Hydroxyl.
View Complete Details
Ask Latest Price & Details
Quartz Plate

Quartz Plate
  • Size Standard
  • Material Quartz
  • Shape Round
  • Thickness 5-10mm
  • Packaging Type Transparent
  • Pattern Plain
  • Finishing Polished
We are a manufacturer and supplier of a quality range of Quartz Plates. Which is made up of high-quality raw material, which is quality tested and is completely useful in Quartz Industrial Application. These are extremely robust and are highly durable in nature. AircraftHigh-Temperature Thermal InsulationSatellite & AntennasStructural Material TechnologyThermal Insulation for Semiconductor Industry
View Complete Details
Ask Latest Price & Details
Quartz Milky Crucible

Quartz Milky Crucible
  • Material Quartz
  • Shape Round
  • Packaging Type White
  • Feature Durable, Fine Finishing, Non Breakable
  • Finishing Polished
  • Pattern Plain
Quartz Crucible is a noncrystalline form of silicon dioxide. it is highly cross-linked three dimensional structure give rise to high temperature and low thermal expansion
View Complete Details
Ask Latest Price & Details
Short Wave Infrared Lamp

Short Wave Infrared Lamp
  • Number Of Flower Short Wave
  • Material Copper
  • Certification CE Certified
  • Country of Origin 220 V
  • Frequency 50 Hz
  • Power Source Electric
  • Total Carbohydrate 1 Year
Short Wave Infrared Tubes are the solution for the application of infrared heat systems. they save user design time and cost.Available in Big round Cap, double round ceramic cap, metal rod type holder, Rectangular round cap

Standard Size Available


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
Elstein Screw Heater

Elstein Screw Heater
Elstein IOT/75 and IOT/90 heaters are ceramic infrared dark heaters with E27 screw caps.The standardised E27 thread allows easy and safe installation, as the heaters can be screwed in like bulbs into porcelain or metal sockets with porcelain insert.Due to their simple connection, IOT/75 and IOT/90 infrared heaters are suitable both for individual operation and for configuring groups of heaters. They have diverse applications, in particular they range over terrariums/pets and livestock, breeding, medical and catering technology.The power can be adjusted using a proprietary dimmer.Elstein IOT/75 and IOT/90 heaters are available in two power levels of 60 W and 100 W or rather 150 W and 250 W.Consideration : The power can be adjusted by using proprietary power controllers or dimmers, as a conventional light bulb.Porcelain sockets or metal sockets with porcelain inserts are to be used both for electrical and mechanical connection. The sockets must not contain any plastic components. The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations. Further information and safety instructions are mentioned in the mounting sheet, which is attached to each heater.

Specifications

Type // Weight g // Wattage W IOT/75 85 60 100 - -
IOT/90 140 - - 150 250
Surface rating kW/m² 8,6 14,4 15,0 25,0
Typical operating temperature °C 290 380 420 490
 Maximum permissible temperature °C 530 530 530 530

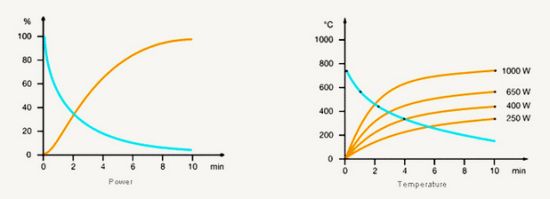

Graph


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
TRD Controller

TRD Controller
  • Number Of Flower Digital
  • Country of Origin 220 V
  • Packaging Type Grey
  • Shape Square
  • Power Source Electric
  • Warranty 1 Year
Two-point controller with PID performance.95V-263V, Dimension 96mm X 96mm
View Complete Details
Ask Latest Price & Details
electrical control panel

Electrical Control Panel
  • Size Standard
  • Number Of Flower Automatic
  • Country of Origin 440V
  • Material Mild Steel, PVC
  • Power 6-9kw
  • Power Source Electric
  • Phase Double Phase, Single Phase
1. We provide control panel for heating systems according to customer requirement from as low as 1kw upto 200kw . 2. To meet our customer needs of temperature control with accuracy of 1 degree centigrade. 3. The Short Wave IR / Medium Wave IR/ CERAMIC heaters installed in the module or ovens will be powered using our control panel . 4. CONTROL PANEL OF DIFFERENT TYPES : Compartment type Drawer type 2 door type 5. TYPES OF CONTROL PANEL : PID based power controller PANEL THYRISTOR based PANEL SSR based control PANEL Power controller based PANEL PLC and HMI Based Automation Control PANEL
View Complete Details
Ask Latest Price & Details
