Metal Testing Equipment

We offer a complete product range of Digital Torsion Testing Machine, Analogue Torsion Testing Machine, Mechanical Torsion Testing Machine, Motorized Torsion Testing Machine and Computerized Torsion Testing Machine

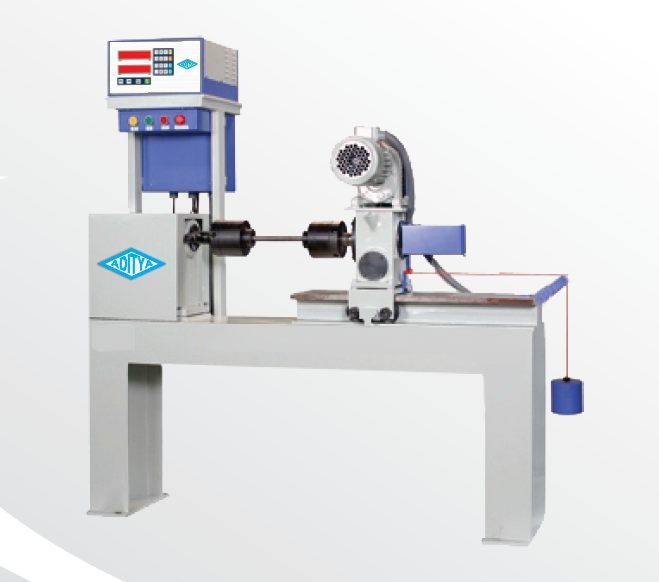

Digital Torsion Testing Machine

1.35 Lakh - 1.75 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Thickness 25-70 mm
  • Grips for Flat Bars 2-8 to 15-25
  • Application Industrial
  • Condition New
  • Country of Origin India
  • Max. torque capacity (Nm) 100-3000
  • Torque Resolution (Nm) 0.01-0.2
  • Angle of twist (Degree) 0.1
  • Torsion speed and direction 1.5 RPM Reverse
  • Distance between grips (mm) 0-400 to 0-1500
  • Grips for round barofdia(mm) | 4-8 to 45-55

Features :

  • Suitable for Torsion and twist tests on various metal rods and flats.
  • Torque measurement by torque cell.
  • One range with a high resolution throughout the range.
  • Geared motor to apply the torque to specimen through gear box
  • Measurement of Angle of Twist by Rotary Encoder.
  • Display of Torque and Angle of twist on LCD display provided on Data Acquisition System.
  • Facility for connecting the DAS Panel to PC
  • Accuracy of torque measurement ± 1% in the range from 4% to 100% of machine capacity

Details


Download Detail File : Click Here
View Complete Details

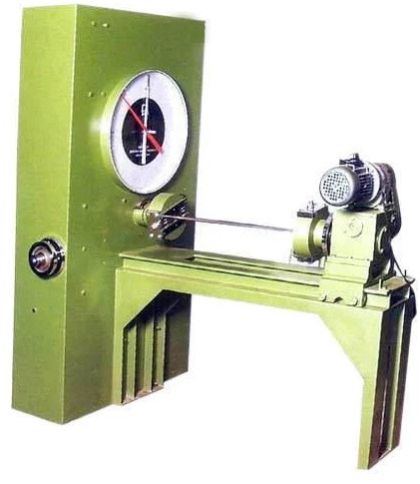

Analogue Torsion Testing Machine

1.15 Lakh - 1.35 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Brand Name Aditya Instruments
  • Country of Origin India
  • Capacity 500 Nm
  • Torque Ranges 50, 100, 250, 500 Nm
  • Divisions on Dial 500 Nos.
  • Test Speed 0.5 RPM
  • Clearance Between Grips 0-500mm
  • Grips For Fiat Specimen Dia 10-17, 17-24, 24-30mm
  • Grips For Flat Specimen Thick,Width 2-12, 40mm
  • Power Requirement 415 V. 50 hz. 3 Phase 1.0 KW.
View Complete Details

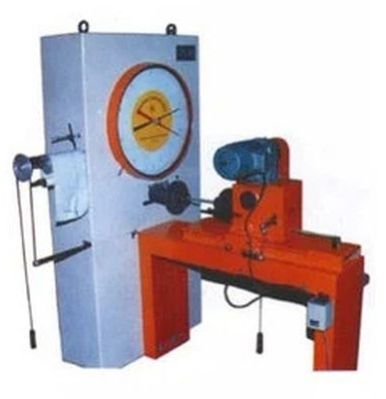

Mechanical Torsion Testing Machine

1.15 Lakh - 1.35 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Brand Name Aditya Instruments
  • Country of Origin India
  • Capacity 1000 Nm
  • Torque Ranges 100, 250, 500, 1000 Nm
  • Divisions on Dial 500 Nos.
  • Test Speed 0.5 RPM
  • Clearance Between Grips 0-500 mm
  • Grips for Fiat Specimen Dia 10-17, 17-24, 24-30mm
  • Grips For Flat Specimen Thick, Width 2-12, 40
  • Power Requirement 415 V. 50 hz. 3 Phase 1.0 KW
View Complete Details

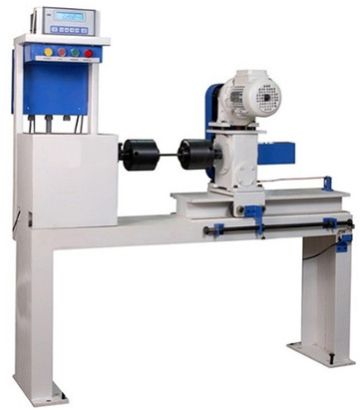

Motorized Torsion Testing Machine

1.35 Lakh - 1.75 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Brand Name Aditya Instruments
  • Country of Origin India
  • Capacity 200 Nm
  • Torque Ranges 50, 100, 200 Nm
  • Divisions on Dial 500 Nos.
  • Test Speed 0.5 RPM
  • Clearance Between Grips 0-450mm
  • Grips For Fiat Specimen Dia 7-10, 10-15, 15-20mm
  • Grips For Flat Specimen Thick,Width 2-8mm, 25mm
  • Power Requirement 415 V. 50 hz. 3 Phase 0.25 kW.
View Complete Details

Computerized Torsion Testing Machine

1.35 Lakh - 1.75 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Brand Name Aditya Instruments
  • Capacity 100 Nm
  • Torque Ranges 20, 50, 100 Nm
  • Divisions on Dial 500 Nos.
  • Test Speed 0.5 RPM
  • Clearance Between Grips 0-420 mm.
  • Giles For Fiat Specimen 4-8, 8-12 mm
  • Grips For Flat Thick 2-8 mm
  • Specimen Width 25mm
  • Power Requirement 415 V. 50 hz. 3 Phase 0.25 kW.
View Complete Details
