Our Products
We offer a complete product range of ACTUATOR ON/OFF 2P, PLUG GI, ACTUATOR THERMAL DANFOSS, ACTUATOR TQ SERIES ENERTORK and ACTUATOR MODULATING 24V AC 0-10V DANFOSS AME435QM
AME 435 QM actuator for modulating control is used with pressure independent balancing and control valve type AB-QM from DN 40 to DN 100.
The actuator has some special features:> it automatically adapts its stroke to the valve end positions which reduces commissioning time> valve flow adjustment feature; flow can be variably-adjusted from linear to logarithmic or opposite.> the advanced design incorporates load related switch-off to ensure that actuators and valves are not exposed to overload
Main data:Nominal voltage (AC or DC):24 V, 50 Hz/60 HzControl input signal:0(4)-20 mA0(2)-10 VForce: 400 NStroke: 20 mmSpeed (selectable):7.5 s/mm15 s/mmMax. medium temperature: 120 CSelf calibratingLED signallingExternal RESET buttonOutput signalManual operation
Normally closed, closing force 100 N, operating voltage 230 V , threaded connection M28 x 1.5, red adapter 1 7708 90 is included, max. stroke 5 mm
The HERZ-Actuator 230 V / 24 V is a thermoelectric valve drive for opening and closing valves on heating circuit distributors of concealed floor heating and cooling systems. The main field of application is the energy-efficient individual room temperature control in the range of building management systems and home automation. The HERZ-Actuator 230 V /24 V is controlled by a 230 V / 24 V room thermostat with two point output or pulse-width modulation.
The actuating drive is switched on via an electrical contact, e.g. from a room thermostat, and starts opening or closing the thermostatic valve. The actuating movement is accomplished by an electrically-heated expansion element. When the heating current is switched off, the valve closes or opens respectively. The HERZ actuating drive is maintenance-free and offers silent operation.

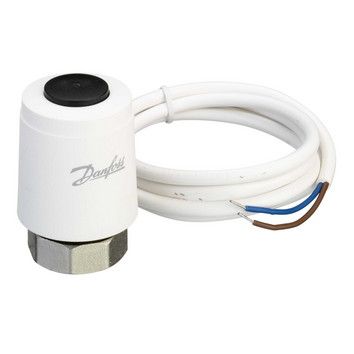

Danfoss thermal actuator TWA-Z is used with Danfoss automatically balanced combination valves type AB-QM. The actuator can be controlled with an on/off controller, pulse width modulation (PWM), or switch.
These provide a cost effective solution for the control of hot and /or chilled water for fan coil units, small reheaters and recoolers in temperature control systems.
Main features:
24 V AC/DC or 230 V AC supply
Position indicator
Normally opened (NO) or normally closed
(NC) version
Max. medium temperature 120 C
Cable included
TQ Series
Quarter-turn actuatorTQ-SERIES is for small quarter turn applications such as ball, butterfly, plug valves, dampers and similar usage.*Light, Compact and corrosion resistant Aluminum alloy enclosure.*Double sealed with V-shade ring and gasket to ensure IP68, 8 meters, 72 hours.*Explosion proof:Exd IIBT4-IEC-60079-0, 1.*profibus 2-wire communication protocols.*Modbus
