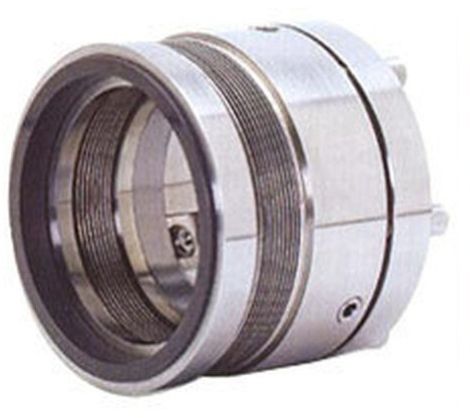

For high-temperature applications and demanding operating conditions. These seals are ideal for equipment with high start-up torque, thanks to a bellows unit design that operates independently of torque transmission.

To ensure outstanding thermal performance, Grafoil is used as the secondary sealing element, delivering reliable sealing in temperatures up to 400°C. The precision shrunk-fit seal face design effectively minimizes face distortion, helping to reduce leakage and wear rates to exceptionally low levels across a wide range of pressures and speeds.

With their robust construction and advanced materials, Type 1118 seals offer long-lasting, reliable sealing solutions for high-temperature industrial applications.

SEAL CHARACTERISTICS :-

• Single Seal
• Balanced
• Metal Bellows
• Independent of directions of rotation

APPLICATION :-

• High temperature applications
• Petrochemicals
• Refineries

Mechanical seal with a helical coil spring design that operates reliably regardless of the shaft’s rotation direction. Its specially engineered drive ring notch prevents overstressing the elastomer bellows, extending the seal’s service life. The design eliminates slippage, protecting both the shaft and sleeve surfaces from wear and fretting.

Easy to maintain and cost-effective, the Type 1121 seal can be quickly repaired on-site using minimal spare parts, helping reduce downtime and improve overall operational efficiency

SEAL CHARACTERISTICS :-

• Single Seal
• Unbalanced
• Conical spring
• Independent of direction of rotation

APPLICATION :-

• Water pumps, Oil pumps
• Blowers
• Compressors
• Slurry pumps

Afixcel Engineering Type 1122 is a single coil spring mechanical seal with a durable rubber bellow, specifically  designed for wastewater treatment plants and sewage applications. The rubber bellow serves a dual purpose: it effectively shields the shaft or sleeve from fretting while also preventing any torsional stress on the bellows themselves.

Torque is reliably transmitted through the spring and the spring holder, ensuring consistent performance even under demanding conditions. Thanks to its self-aligning design, the seal easily compensates for abnormal shaft runout and wear on the primary sealing surface.

The single coil spring construction also helps prevent clogging by keeping effluent particles away from the seal components. This makes the Type VBMG-1 an ideal choice for efficient, trouble-free operation in wastewater and sewage handling equipment

SEAL CHARACTERISTICS :-

• Single Seal
• Unbalanced
• Helical Coil spring
• Independent of direction of rotation
• Elastomer Bellows

APPLICATION :-

• Water pumps
• Submersible pump
• Sewage pump

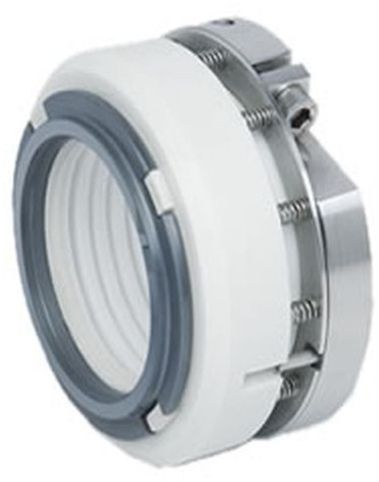

Externally mounted mechanical seals engineered specifically for extremely corrosive applications, including acids, salts, organic compounds, and reducing agents. All wetted parts are manufactured from chemically inert materials to ensure superior resistance to aggressive media. The metallic components are completely isolated from the process liquid to prevent contamination and corrosion.

In the Type 1119 seal, the seal faces are non-replaceable. It features a glass-filled PTFE face that is composite-moulded with a flexible PTFE bellow, delivering reliable sealing performance in challenging environments.

Afixcel Engineering  Type 1120 seal offers the added benefit of replaceable seal faces and can be supplied with hard face materials that are ideal for abrasive services.

These seals provide a dependable sealing solution for critical chemical processes where durability, chemical resistance, and ease of maintenance are essential.

SEAL CHARACTERISTICS :-

• Single Seal
• Outside Mounted
• Independent of direction of rotation



APPLICATION :-

• Extremely Corrosive application
