Elevator Control Boards

Elevator Control Boards made by AFP Elevator Co include Main Boards, Controller Boards, Inverter Boards and Switching Boards.

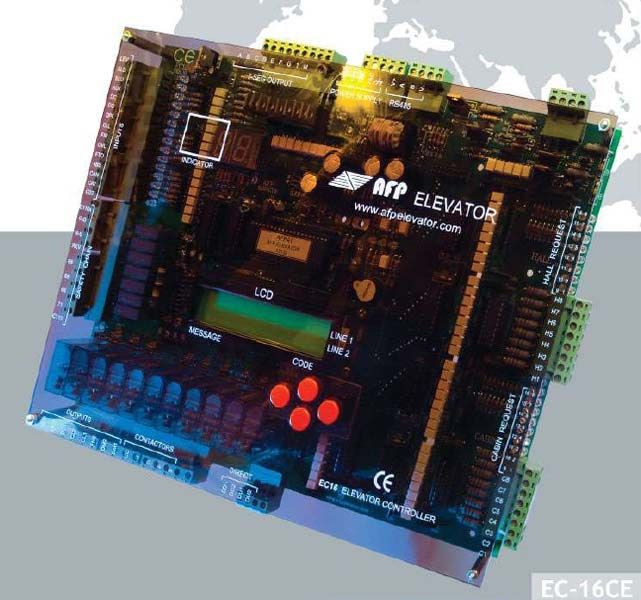

Elevator Controller Main Board

We are offering ec-16 board which operates successfully under wide range of conditions and it is installed in more than 20000 elevators. Microprocessor ec-16 system designed for hydraulic & traction elevators.Powerful software and full programmable on floor numbers, door systems, indicators, timings and etc.Maneuvers : simplex-duplexcompatible with any vvvfup to 16 stops full down push collective (32 stops with carcodec)up to 8 stops collectiveselectivers485 serial communicationcompatible with en-81 standardlcd display for guiding & error announcementmemorizing errors & start numbers with time and date.Led display for inputs & outputs status.With direct safety circuits(24v 110v 220v)short circuit protection for indicator and request keys1 year guarantee & serviceslow cost & fast deliveryuser friendly and simple usage

View Complete Details

Ask Latest Price & Details

Elevator Controller Main Board

We are offering omega64 controller main board which has been designed as the main board of control panel to commanding the elevator system. ability to service up to 32 stops both in serial and parallel modes, simplex & duplex controlpowerful software and full programmable to control different lifts & pc monitoring capabilityvirtual movement control in normal mode & programmable to work without car codec board at the initial install mode(inspection mode)produced with smd technology.Compatible with en-81 standardability to record and display 100 error messages along with exact time of error occurrenceequipped with short-circuit protection for the indicator one single standard elevator cable.Adapted to work with different kind of lcds with language selection manuallycapable to show the status of door locks and door contacts in case of using of spanel3 serial interfaces: rs232, rs485, mod busequipped with clock ic and backup batteries to calculate time and date

View Complete Details

Ask Latest Price & Details

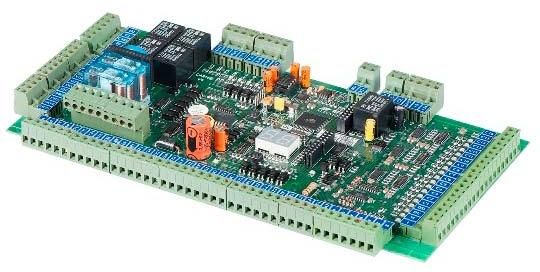

Car Codec System

We offer car codec system, car-16b: this system is designed to diminish the number of traveling cables in the hoist way. Thus making data transfer from the car to controllers more feasible. compatible with en-81 standardwith two models: 11 and 22 wiresreducing travel cablepowerful software for functioning in noisy environmentsreducing the installation costs in high risesdata transfer through rs485 system between car & controllerdesigned by smd technologydisplaying the inputs, outputs and floor position

View Complete Details

Ask Latest Price & Details

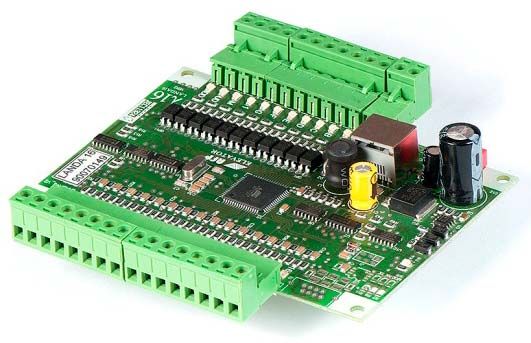

Elevator Land Board

We are offering elevator land board made by afp elevator co.It has mod bus to parallel system serial convertor & vice versa up to 16 floors

View Complete Details

Ask Latest Price & Details

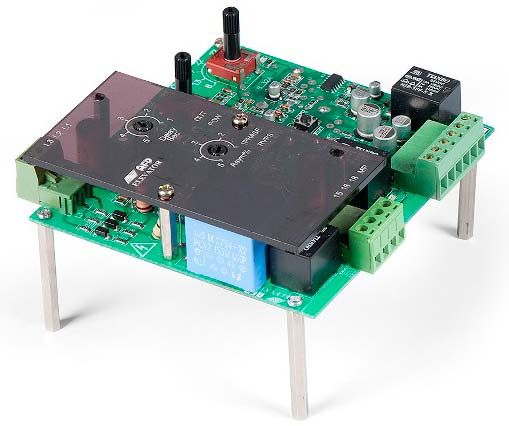

Motor Protection System (Mpr)

We are offering motor protection system: with digital phase controltwo analogue load control load control for fast or slow speedswith protection relay.

View Complete Details

Ask Latest Price & Details

3phase Inverter Board

We are offering 3phase inverter board.3 phase inverter board is designed for converting dc voltages. When elevator's main power is down it provides the required 3 phase power for main motor's emergency movement. Dc to 3-phase voltage convertormax output power of 11kw with adjustable torqueinput voltage range: 45 to 100 v dcshort circuit & over-voltage protectioncontrolling the cabin door, motor brake, commands & safety chainswith intelligent software and lcd indicator for displaying error messages and setting parameters like frequency, time ect.

View Complete Details

Ask Latest Price & Details

Inverter Board

Inverter+ is an isolated inverter designed for converting 60v dc 220v ac 50hz. When main elevator electricity is disconnected this inverter provides the required electricity for motor's magnet brake, door magnet, cabin's motor drive supply and cabin's light. This board contains switching charger for charging its batteries while electricity is connected and main power is down if command switch is connected, 220v simulated sine wave is created as output. dc to mono-phase voltage , 220v50hz converterinput voltage range: 45 to 100 v dcoutput power 1000w & short-circuit protectionequipped with battery charger

View Complete Details

Ask Latest Price & Details
