Tiller

Our product range comtains a wide range of Rotary Tiller, Medium Duty Spring Loaded Tiller, Medium Duty Rigid Tiller, Heavy Duty Rigid Tiller and Heavy Duty Spring Loaded Tiller

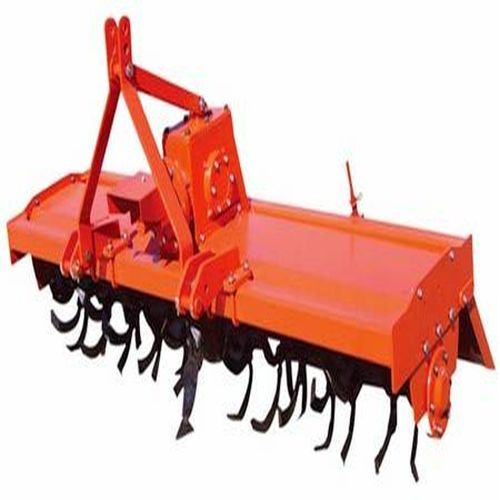

Rotary Tiller

  • Type Rotary Tiller
  • Certification CE Certified
  • Application Agriculture Use
  • Weight 200-400kg
  • Color Available in Many Colors
  • Warranty 1 Year
  • Engine Power 0-20BHp

We manufacture and export quality and durable Rotary Tiller . These rotary tillers are manufactured using quality tested materials sourced from the most reliable suppliers. All our products are joined mostly through jigs, fixtures & dies, which ensure joining accuracy as well as interchangeability. Offered at industry leading prices, these are highly demanded by our clients spread worldwide. Features :- Manufactured using best quality materials Joined mostly through jigs, fixtures & dies Affordable prices Durability

  • Dhartiputra Rotary Tiller Technical Specifications :-
    Model/ RPM Width (in cm.) Working Width (in cm.) Minimum & Maximum H.P. of Tractor Approx. Weight (in Kgs.) No. of L-Type Blades Working Depth (in cm.)
    Chain Drive Gear Drive
    DRT-3/540 DRT-3/1000 119 094 18 - 25 280 290 300 310 24 5" to 7"
    DRT-4/540 DRT-4/1000 141 116 25 - 35 305 320 325 340 30 5" to 7"
    DRT-5/540 DRT-5/1000 175 mm 150 35 - 50 350 370 370 380 36 5" to 7"
    DRT-6/540 DRT-6/1000 201 176 50 - > 380 420 420 440 42 5" to 7"
View Complete Details

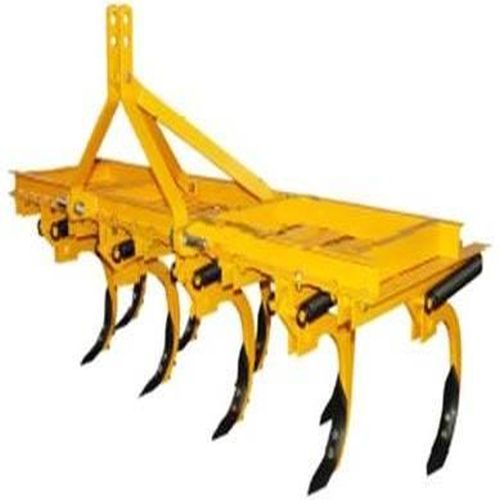

Medium Duty Spring Loaded Tiller

  • Type Spring Loaded Tiller
  • Application Agriculture Use
  • Weight 200-400kg
  • Color Available in Many Colors
  • Automatic Grade Manual
  • Warranty 1 Year
  • Engine Power 0-20BHp

We offer world class Medium Duty Spring Loaded Tiller that is designed for overseas markets like USA/Australia and is easy to operate / maintain. As the springs are positioned parallel to the main frame, the trash collection in the springs are negligible. It is suitable for light & medium soils. Praised For :- Easy Availability Competitive Prices Unique Design Robust construction

  • Following are the Specifications of Medium-Duty-Spring-Loaded-Tiller :-
    9 TYNE 11 TYNE
    FRAME 65x100mm (Heavy Duty Angle) with Projection Flat 50x6 mm 65x100mm (Heavy Duty Angle) with Projection Flat 50x6 mm
    TYNES Profile cut single piece 20/25mm Profile cut single piece 20/25mm
    ANGLE BRACKET 65X10 mm 65X10 mm
    SIDE SUPPORT 75X10 mm Angle 75X10 mm Angle
    SHOVELS En-45, 8mm En-45, 8mm
    FRAME BOLT 12X35 mm 12X35 mm
    THREE POINT LINKAGE 65X16 Front 50X16 Rear 65X16 Front 50X16 Rear
    HEIGHT 21" 21"
    LENGTH 78" 96"
    WIDTH 22" 22"
    WEIGHT 210 Kgs. (Approx.) 252 Kgs. (Approx.)
View Complete Details

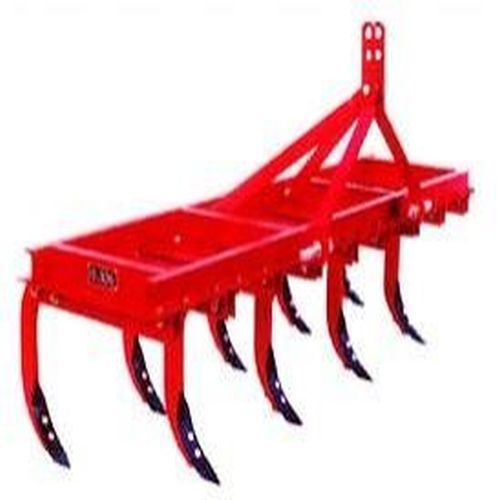

Medium Duty Rigid Tiller

  • Type Heavy Duty Rigid Tiller
  • Application Agriculture Use
  • Weight 200-400kg
  • Color Available in Many Colors
  • Warranty 1 Year
  • Engine Power 0-20BHp
  • Ground Clearance 400-450mm
  • Material Metal

AGROKING IMPLEMENTS INDUSTRIES, is a trusted name when it comes to world class Medium Duty Rigid Tillers that are made from quality wear resistant spares. Our Medium Duty Tillers are praised for.   Quality tested materials sourced from the most reliable suppliers Joined mostly through jigs, fixtures & dies Joining accuracy Interchangeability

  • Following are the Specifications of Medium Duty Rigid Tiller :-
    9 TYNE 11 TYNE
    FRAME 65x8mm (Angle) Box Frame 65x8mm (Angle) Box Frame
    TYNES 75X25mm Flat with Rakab ( U Clamp) 75X25mm Flat with Rakab ( U Clamp)
    SIDE SUPPORT 100X12 mm Flat 100X12 mm Flat
    SHOVELS En-45, 10mm En-45, 10mm
    FRAME BOLT 18X65 mm 18X65 mm
    THREE POINT LINKAGE 65X16 Front 50X16 Rear 65X16 Front 50X16 Rear
    HEIGHT 25.5 25.5"
    LENGTH 79" 97"
    WIDTH 30.5" 30.5"
    WEIGHT 242 Kgs. (Approx.) 295 Kgs. (Approx.)
View Complete Details

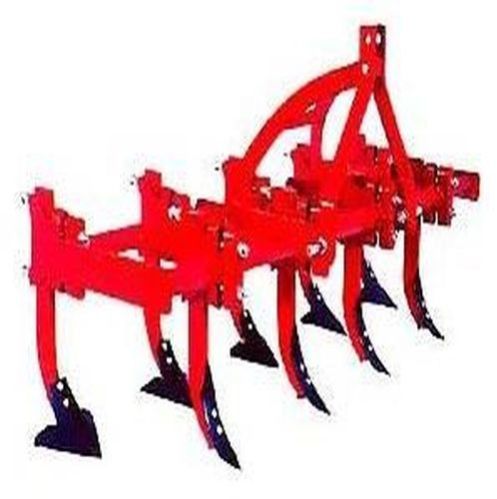

Heavy Duty Rigid Tiller

  • Type Rigid Tiller
  • Certification CE Certified
  • Application Agriculture Use
  • Weight 200-400kg
  • Color Available in Many Colors
  • Warranty 1 Year

We offer wide array of Rigid Heavy Duty Tiller is designed to work in toughest working conditions of hard black soil using profile cut single piece Tynes of 25, 22, 20mm thickness. Offered at industry leading prices, these rigid heavy duty tillers are highly demanded by our clients spread worldwide. This cultivator is available in 7 tynes, 9 tynes & 11 tynes. Praised For :- Main frame is also of heavy angles duty re-inforced with projected flats, it has got life long durability. Excellent penetration and above all is light on tractor and heavy on soils Additional features are heavy angle brackets and EN-45 long life shovels which never bends.

  • Following are the Table Specification of Heavy Duty Rigid Tiller :-
    9 TYNE 11 TYNE
    FRAME 65x8mm (Angle) Box Frame 65x8mm (Angle) Box Frame
    TYNES 75X25mm Flat with Rakab ( U Clamp) 75X25mm Flat with Rakab ( U Clamp)
    SIDE SUPPORT 100X12 mm Flat 100X12 mm Flat
    SHOVELS En-45, 10mm En-45, 10mm
    FRAME BOLT 18X65 mm 18X65 mm
    THREE POINT LINKAGE 65X16 Front
    50X16 Rear
    65X16 Front
    50X16 Rear
    HEIGHT 25.5" 25.5"
    LENGTH 79 97"
    WIDTH 30.5" 30.5"
    WEIGHT 242 Kgs. (Approx.) 295 Kgs. (Approx.)


View Complete Details

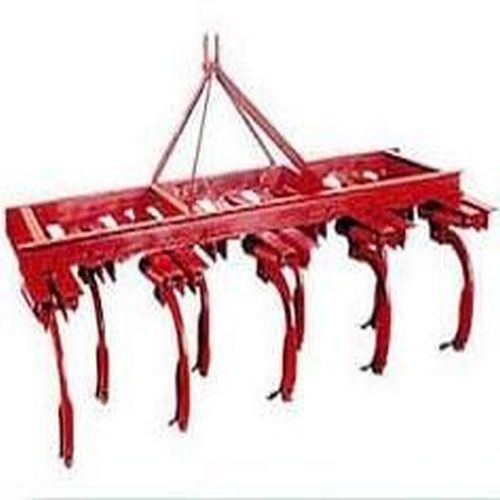

Heavy Duty Spring Loaded Tiller

  • Type Spring Loaded Tiller
  • Certification CE Certified
  • Application Agriculture Use
  • Weight 200-400kg
  • Color Available in Many Colors
  • Warranty 1 Year

We manufacture world class ' Heavy Duty' Type Spring Loaded Tiller which has a complex in design. Our 'Heavy Duty' Type Spring Loaded Tiller is distinguished by longer frame to facilitate wider spacing of tynes. Spring Loaded Tynes of this design have distinctive looks as the springs are anchored through twisted flats. Pipe supports on main frame are optional for reinforcing against bending strains. Features :- Complex in design Facilitate wider spacing of tynes Have distinctive looks Anchored through twisted flats Benefits :- Suitable for use in stone and root obstructed soil. Suitable for light and medium soil conditions. Used for loosening and aerating soil to a depth of nine inches Prepares seed beds quickly and economically.

  • Following are the Specifications of Heavy Duty Spring Loaded Tiller :-
    5 TYNE 7 TYNE 9 TYNE 11 TYNE
    FRAME 65 x 10 mm (Angle) 65 x 10 mm (Angle) 65 x 10 mm (Angle) 65 x 10 mm (Angle)
    SPRING 10 mm WD, 50 mm OD 26 Coils 10 mm WD, 50 mm OD 26 Coils 10 mm WD, 50 mm OD 26 Coils 10 mm WD, 50 mm OD 26 Coils
    TYNES 50 x 19 mm (Forged) 50 x 19 mm (Forged) 50 x 19 mm (Forged) 50 x 19 mm (Forged)
    PAIRS 50x50x 6 mm Angle (Main Steel) 50x50x 6 mm Angle (Main Steel) 50x50x 6 mm Angle (Main Steel) 50x50x 6 mm Angle (Main Steel)
    ANCHOR PIN 25 mm 25 mm 25 mm 25 mm
    NUTS High Tensile High Tensile High Tensile High Tensile
    FRAME BOLT M 12x35 mm (High Tensile) M 12x35 mm (High Tensile) M 12x35 mm (High Tensile) M 12x35 mm (High Tensile)
    TYNE BOLT M 16x 80 mm (High Tensile) M 16x 80 mm (High Tensile) M 16x 80 mm (High Tensile) M 16x 80 mm (High Tensile)
    LINKAGE 3 POINT 50 x 16 mm (Rear) 65 x 12 mm (Front) 50 x 16 mm (Rear) 65 x 12 mm (Front) 50 x 16 mm (Rear) 65 x 12 mm (Front) 50 x 16 mm (Rear) 65 x 12 mm (Front)
    SHOVEL 55 x 10 mm EN-45 55 x 10 mm EN-45 55 x 10 mm EN-45 55 x 10 mm EN-45
    LENGTH 1168 mm 1676 mm 2185 mm 2692 mm
    WIDTH 940 mm 940 mm 940 mm 940 mm
    HEIGHT 533 mm 533 mm 533 mm 533 mm
    WEIGHT 140Kg. 180 Kg. 225 Kg. 280 Kg.
  • Note :- The weight and working data contained in the present leaflet are supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

View Complete Details
