AICSYS Inc

New Taipei City, Taiwan

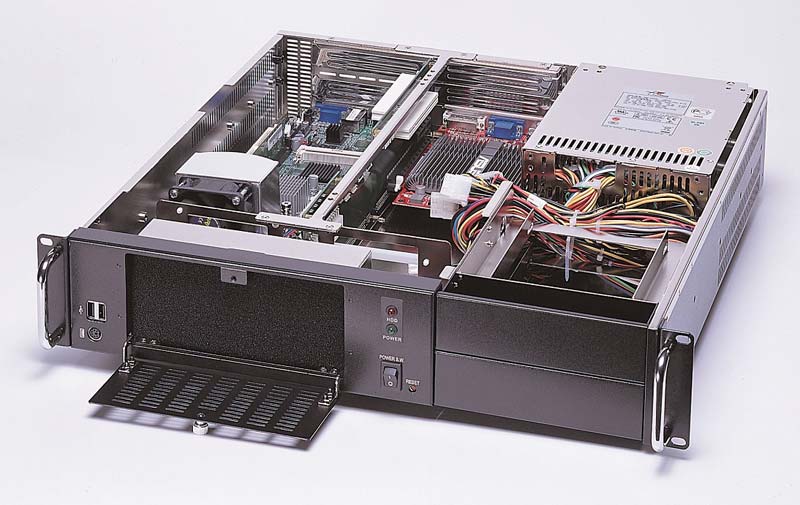

The RCK-202B boasts a depth of only 450mm (17"), thus it provides an ideal solution for those applications where depth can make or break a project. Designed to support a PICMG1.0 1.3 Backplane and Full-Size SBC, the RCK-202B proves to be a perfect choice for any DVR or storage application. The RCK-202B can support up to three drive bays, (2) 5.25" or (3) 3.5" internal drives. Additional IO expansion can be easily configured through the optional 2 or 4-PCI slots found on the PICMG backplane. Two 8cm ball bearing fans ensure excellent airflow when faced with a heat sensitive application. The RCK-202B provides a robust solution to any server application, while still remaining compact. Product Features:-EIA RS-310C 19" Rackmount Standard-Heavy Duty Steel with Ni Plating-Supports Full-Size SBC-Supports Full Length PCI cards-Supports PICMG1.01.3 Backplane with optional 2 or 4 PCI slots for expansion-Supports (2) 5.25" or (3) 3.5" drive bays-Optional (3) HDD mobile rack-Slide Rail applicable-Lockable front door and replaceable air filter-2 x 8cm Replaceable High-speed ball bearing fans for better ventilation-PS2 or Hot Swap Redundant Power Supply

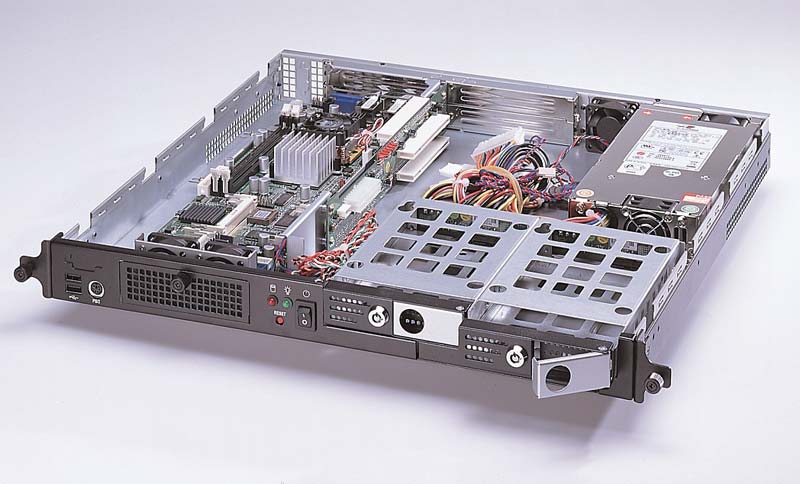

Aicsys, inc. Releases the best most dependable 1u rackmount chassis: rck-103br. For todays ipc rackmount applications, where space is very expensive, you need a very compact chassis yet reliable for your networking server with a capability for hot swapping the drives without interrupting the systems. Our 1u 19" rck-103br is a heavy duty steel constructed rackmount chassis with only 422 mm (16.6") depth, but it is able to support a full size sbc through a picmg 1.0 with 3 pci slots or a picmg 1.3 butterfly backplane with 1 pcie x 16 slot. It is equipped with one (1) slim odd, two (2) 3.5" sata hdd mobile racks, and one (1) internal space for 2.5 ssd or hdd. A set of two lockable drives for secure and easy hot swapping with usb and ps2 ports is placed at the front panel and a rs-232 at the rear panel. Two 4cm ball-bearing fans with replaceable air filters at the front and one at the rear ensure a perfect cooling system for the unit. In addition to the power onoff and hdd activity leds, onoff and reset switches at the front, this product is also supported by atx power supply up to 460w. Rck-103br supports picmg1.01.3 single board computer, features high bandwidth network ports to meet the more and more demanding variety of application requirements.Product features1u 19" rackmount heavy duty steel constructiononly 422mm (16.6") depthsupports full size sbc through picmg1.0 1.3 butterfly backplanedrive bays: (1) slim odd, (2) 3.5" sata hdd mobile racks ,

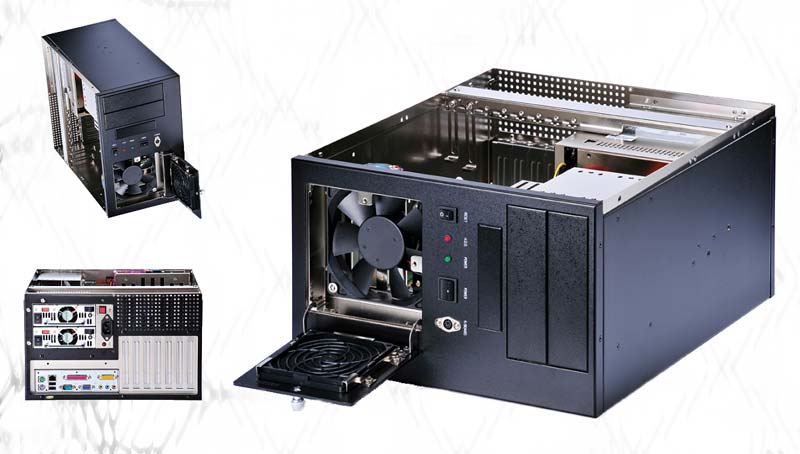

Aicsys, inc. Showcase product of wmc-704m is a standard 7 slot full-length wallmount chassis with 4 drive bays for shoebox mid-tower, it supports atx motherboard and ps2 power supply. It is suitable for many challenging environment and application which makes this chassis perfect workstation as it could be installed vertically as mid-tower or horizontally as shoebox chassis for administrators. Wmc-704m is a standard 7 slot full-length shoebox or mid-tower industrial wallmount chassis. It is designed for the integration of data center systems and to support atx motherboard especially in unpredictable public environment for industrial automation applications. Made with solid heavy-duty steel construction, it is equipped with two 5.25 and one 3.5 external drive bays, and one internal 3.5 drive bays with ps2 connector in the front for basic system requirement. A fixed hold-down bar with clamps to guarantee a secure and steady operation against any vibrations. In addition, a 12cm ball bearing fan with replaceable air filter ensure excellent and clean cooling system for high capacity applications. Hence, it allows the administrators with the abilities to increase the efficient and flexibilities to use a system while managing and maintaining a resourceful platform. Product featuresheavy-duty steel construction shoebox industrial chassis can be mounted vertically or horizontally(2) 5.25 and (2) 3.5 drive bays (one hidden)12cm ball-bearing fan with replaceable air-filtersupports ps2 or mini redundant power supply(2) usb 2.0 optional330 x 406 x 204.2mm 13 x 16 x 8inches (wxdxh)

June 09 , 2014 aicsys, inc. Is pleased to announce the release of the ultra-compact nds-203m chassis. Designed to fit a standard 19" rack, the nds-203m measures only 9.4 inches deep, 3.5 inches high, and 16.9 inches wide. The nds-203m supports (1) optical drive and (3) 3.5" sata hdd, with the option of a (4) sata hdd drive tray. The front panel of the nds-203m provides (2) usb 2.0 ports as well as (2) optional system fans. The nds-203m ships with a 300w psu, but supports up to a 350w pfc micro atx power supply allowing users to select their own power solution that will fit their projects needs. When designing the nds-203m, our engineers choose the mini-itx motherboard as the computing platform. For further expansion, the nds-203m supports (1) low-profile expansion slot. The nds-203m is an ideal solution for such applications as digital signage player, set-top box, entertainment server and more. Aicsys has made a name for itself in the industrial pc marketplace by providing customers with quality solutions and impeccable customer support. Contact us today to see what a difference an aicsys solution will make to your next project. Product featuresheavy duty steelsupports mini-itx motherboardsupports up to (4) hdd with mobile rack(2) 2.0 usb ports on front paneloptional (2) system fansup to 350w pfc power supply

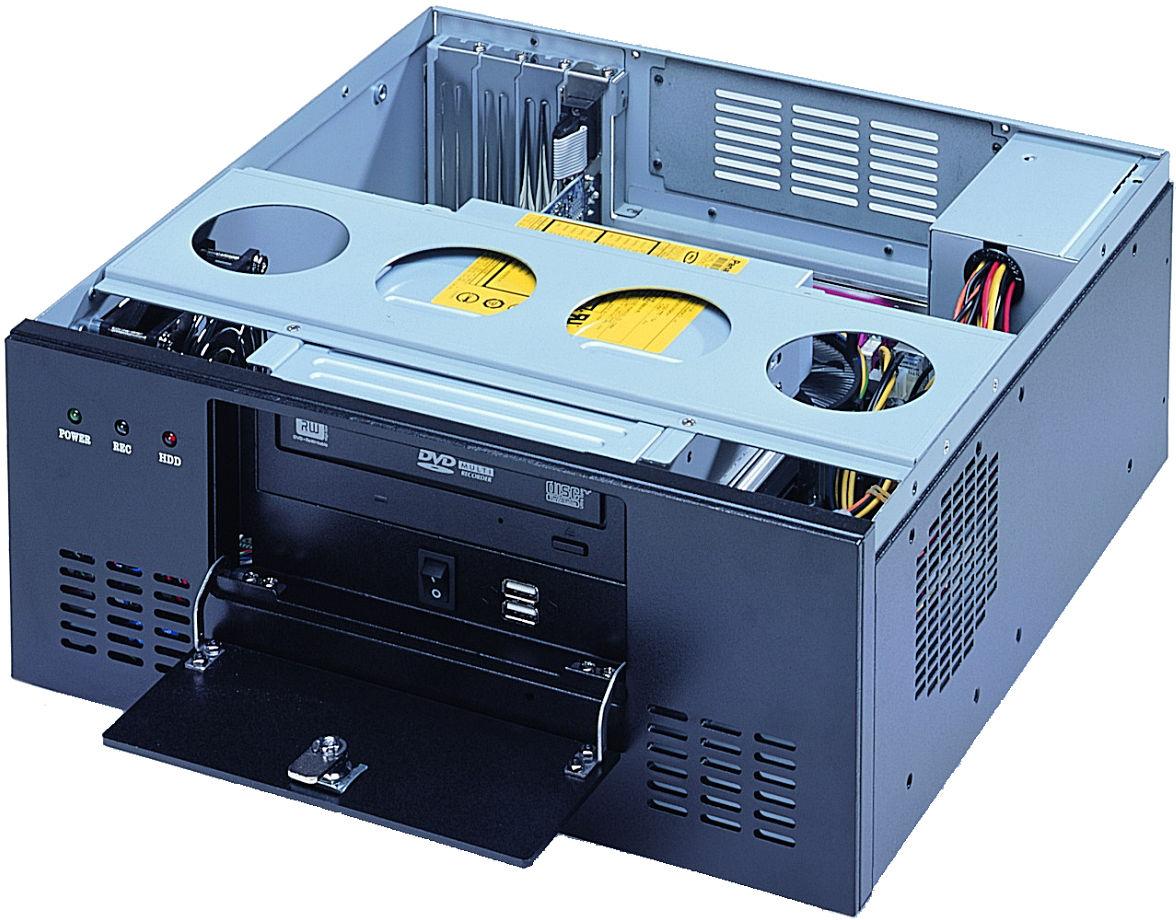

Aicsys wmc-402m - hawkeye dvr chassis provides just that type of platform. A typical dvr application such as video surveillance for a maternity ward in a hospital provides the perfect environment for thewmc-402m. The hospital needs to monitor each patients room, the nursery, and the access point to the floor. Depending on how the wmc-402m is configured, each system can process up to (4) separate inputs (cameras), because of its unique the design the wmc-402m can be easily mounted and concealed in the most unique places.wmc-402m is constructed by heavy-duty steel, it supports standard microatx motherboard, one external 5.25 drive bay for odd drive, one internal 3.5 drive bay, and space for additional one 3.5 drive, sufficient for small digital signage and video recording system management. One super low-noise 8 cm fan ensures excellent airflow for superior system cooling while maintaining the silence and tranquility in the data storage space. The system is powered by sfx power supply up to 400w which is sufficient to support the fully-loaded system. Wmc-402m is definitely the perfect choice for dvr surveillance system in commercial and industrial areas.product featuresheavy duty steel constructedindustrial shoebox chassis can be mounted vertically or horizontallylockable front door(1) 5.25" drive bay for odd(1) 3.5" drive bay for hddspace for additional one 3.5" drive bay(1) 8cm low-noise ball-bearing fan with space for one additional fanup to 400w sfx power

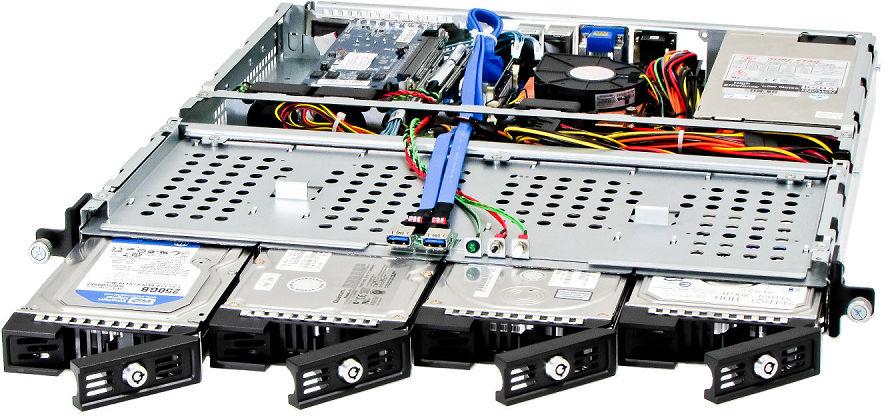

The RCK-104M is a convenient design for 1U Rackmount Chassis to enables the integration of Firewall Server, Proxy Server, VPN Gateway system and etc. RCK-104M ingenious mechanical design for the slim depth of 455mm which gives consideration to short dimension, superior heat dissipation up to six fan(4cm). It is a compact slim chassis can accommodate FOUR HDD Mobile Racks for 3.5" or 2.5" SATA HDD and ONE 2.5 internal space for SSD or HDD to expand your storage capacity. Equipped to support Mini-ITX motherboard for core i3i5i7 processor. The RCK-104M proves to be a perfect choice for sub-racks and short rack cabinets. Product Features:-Heavy duty steel construction with only 455 mm in depth-Supports Mini-ITX motherboard-(4) 3.5" or 2.5 SATA HDD mobile racks-Support motherboard with onboard SAS port (with optional SAS cable)-(1) 2.5" space for SSD or HDD-(2) Front USB 3.0 ports-(2) 4cm ball bearing cooling fans and optional four more fans-PCIe x16 riser card-Supports 1U up to 520W ATX power supply
