AKS Engineering Solutions - Filter Cartridges

Spun Bond-M series is made of 100% melting polypropylene fiber, the new grain fineness extends the contact surface much larger than the ordinary melt-blown cartridge. The dual-layer fiber structure that is dense inside and sparse outside with gradually different pore sizes, allowing the particles of different sizes blocked by different layers, blocking rate is up to 99%. It features high efficiency, high strength, high dirt-holding capacity, and low pressure drop.
Spun Bond-M is widely used in food and beverages, biopharmaceutical, petrochemicals, electronics and more.

PP pleated filter cartridges are a widely used type of filtration media, particularly in industrial and commercial applications. They are known for their efficiency in removing suspended solids and other contaminants from liquids.

Construction and Working Principle :

• Pleated Design: The filter media is pleated, which significantly increases the surface area available for filtration. This allows for higher flow rates and greater dirt-holding capacity.
• Material : The cartridges are made of polypropylene, a durable and chemically resistant thermoplastic. This makes them suitable for a wide range of applications, including those involving aggressive chemicals.Filtration
• Process : As the liquid passes through the pleated media, the suspended particles are trapped within the fibers, while the clean liquid flows through.

Spun Bond S-series is made of pure polypropylene fiber. The duallayer fiber structure, which is dense inside and sparse outside with gradually different pore sizes, allowing the particles of different sizes blocked by different layers. It features high strength, high dirt resistance, and low pressure drop, etc. Spun Bond-S is widely used in pure water pre-filtration, desalination, food and more.

Spun Bond H-series is made of 100% polypropylene melt-blown fiber with unique grid structure to enhance the flow area and strength. It features high pressure resistance, high flux, good filtering performance, etc. It is especially applicable to high viscosity liquid filtration.
Spun Bond H is widely used in food and beverages, biological pharmaceutical, petrochemical engineering, microelectronics and more.

Lenticular filter cartridges are a type of depth filter characterized by a unique pleated structure that resembles a series of stacked lenses. This design provides a high surface area for filtration, allowing for efficient removal of particles from liquids. Lenticular cartridges are typically made of materials like polypropylene or cellulose fibers. They are commonly used in applications where high flow rates and efficient particle removal are critical, such as in the pharmaceutical, food and beverage, and chemical industries.

Featues :

• High Flow Rates
• Efficient Particle Removal
• High Dirt Holding Capacity
• Low Pressure Drop

Carbon lenticular filter cartridges incorporate activated carbon into their lenticular structure. This combination provides both mechanical filtration, where particles are trapped within the filter matrix, and adsorption, where activated carbon removes contaminants like organic compounds, chlorine, and other impurities from the fluid. These cartridges are particularly useful in applications requiring high purity levels, such as in the pharmaceutical, food and beverage, and high-tech industries. They can effectively improve taste and odor, remove dissolved organics, and reduce the levels of certain.

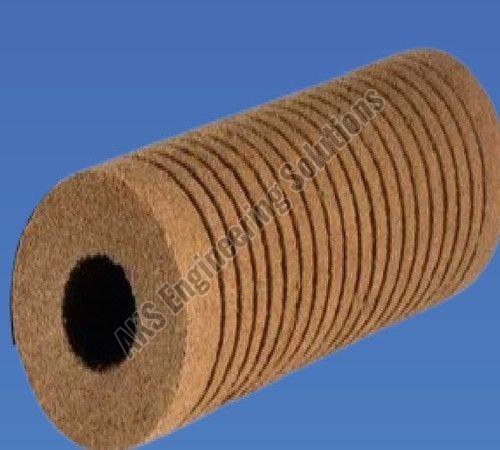

Experience superior filtration with Resin Bond Filter. Our Resin Bonded Filter Cartridges are engineered for peak performance and longevity, adhering to the strictest industry standards. Ideal for a wide range of industrial applications, they ensure consistently clean and pure fluids.
