Allis Communications Co.,Ltd.

Taiwan

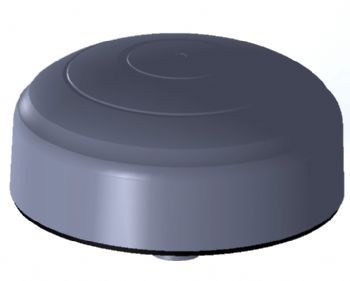

We are offering multiple input multiple output antenna. Our company is a professional manufacturer of gps products, specializing in providing odm gps, gps active antenna, gps patch, dual antenna and passive antenna with superior quality. We not only provide good quality of product, but also provide with good price. the am460 is an omni-directional, ip67 waterproof antenna for use in transportation and remote monitoring applications. This unique antenna delivers powerful mimo antenna technology and stainless bottom for gpsiridium2g3g4gwifi. The functions of wi-fi include 802.11abgn and emerging 802.11ac. The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance. This antenna is particularly suitable for trains, buses and commercial transport applications. feature :delivers high performance for gps 2g3ggps gsm dcs pcs gprs edge82496017102170mhzresistant to harsh outdoor environmentconcealable, flat structureomni directional for cellular system

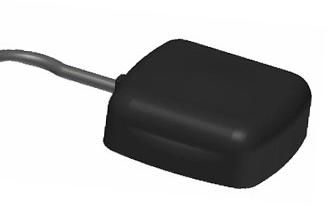

We are offering gps antenna. The x830b is a high performance and quality antenna for gps navigation. Allis communications x830b is a waterproof magnetic mount antenna. This antenna is the perfect antenna for external use with harsh outdoor environment. The rf connector and cable length can be customized as required. featurehigh performancepowerful magnetsconcealable, flat structurewaterproof ip67 specification1.electrical specifications item specificationfrequency 1575.42mhzvswr 1.5 max. bandwidth 20mhz min. At -10dbaxial ratio 3db max. At 1575mhzimpedance 50wpeak gain 4dbic min. At 0 (7cm x 7cm ground plane)gain coverage -4dbic at 90 q 90(over 75% volume)power handling 1 wattpolarization rhcpnoise figure 1.5db typ. gain 27dbic @ 2.7vdc, 36dbic @ 6vdcvswr 2.0 max. dc voltage 2.7 to 6 vdc current 9.54.5ma2.mechanical specification 2.1mechanical item specificationweight(without cable) 35 grams max. connector smarf cable rg174 5mlabel acc labelsize 36 x 36 x 13.9mmhousing color blackmounting magnetic basewaterproof ip67

As a leading manufacturer of Iridium Gps Antenna, we not only provide professional GPS Outdoor Antenna and GPS Dual Antenna, but also offer quality Switching Mode Rectifier with reasonable price. The CMIDM is a high performance and quality antenna for Iridium satellite phone communications. A low profile passive antenna guarantees continuous signal coverage for excellent operation. The type of antenna allows easy installation. There is a high demanding of the Iridium antennas for Crew on the steamer, Navy along coastline, Caravan in desert who requires reliable, high-performing antennas connected with Iridium Phone Set for a seamless communications. Feature :Delivers high efficiency for IridiumResistant to harsh outdoor environmentConcealable, Flat structureIP67, 1621MHz4dBi SpecificationElectrical DataIridium antennaCenter Frequency 1621 3 MHzBandwidth 20 MHz Min. At -10 dBAxial Ratio 3 dB Max. @ 0Efficiency 70% Min. (Without ground plane)Impedance 50Peak Gain 4 dBic Min @ 0Gain Coverage -4dBic at 90 90(over 75% volume)Power Handling 30 WattPolarization RHCPMechanicalSize 75mm Dia. * 15.8mmWeight (Without Cable) 75 grams Max. Connector (Option) SMA PlugRF Cable (Option) RG174RG316Length 3M StandardLabel (Option) ACC LabelMounting Magnetic baseHousing Color BlackDegrees of Protection IP67 (Dustproof and Waterproof)

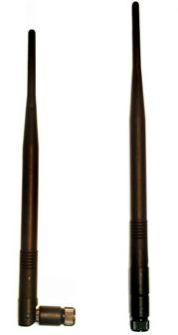

as a well-developed manufacturer of antenna products, we manufacture lte antenna with top quality. asides that, our company also offer professional gps system, such as gps navigation system and substation monitoring system, all with competitive price. featurehigh performance and high quality for 2g3g4g antenna high efficiency for ltewcdmalte, ampsgsm, dcspcs, wcdmaumtshsdpa680mhz to 800mhz, 824mhz to 960mhz, 1710mhz to 1880mhz, 1850mhz to 1990mhz, 1710mhz to 2170mhzstraight 90 elbow connectorsma malerohs compliant

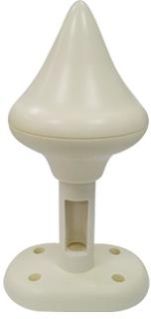

Allis communications co., ltd. Has rich experience in manufacturing glonass outdoor antenna, gps outdoor antenna, gsm antenna, gps antenna, gps system, dual satellite antenna and glonass antenna. Best quality of product and competitive price are guaranteed to our customer. allis communications w series antenna is a durable antenna for outdoor harsh environment. The w5ggr antenna feature gps and glonass functionality. The antenna complies with ip67 standard and will withstand salt water environment. The cone shaped body will also prevent bird interference. benefit :withstand harsh salt water environmentdurability feature :waterproof housing ip67 standardgps + glonass frequencyhigh performancefast signal acquisition
