Our Products
Cone Crusher
2 Products availableVibrating Screen
1 Products availableVibratory Feeders
1 Products availableKey Features :
Specifications
| MODEL NO | AGC-150 | AGC-200 | AGC-250 | AGC-300 |
|---|---|---|---|---|
| Feed Opening (mm) | 180 | 190 | 260 | 270 |
| CSS Range (Min/Max) |
20 - 25 | 22 - 34 | 22 - 38 | 25 - 40 |
| Max. Feed Size (mm) | 150 | 160 | 200 | 250 |
| Motor (HP/Kw) | 177HP / 132Kw | 214HP / 160Kw | 268HP / 200Kw | 295HP / 220Kw |
| Motor Speed (RPM) | 320 | 340 | 330 | 300 |
| Capacity (Avg TPH) | Up to 150 | Up to 200 | Up to 250 | Up to 300 |
Specifications

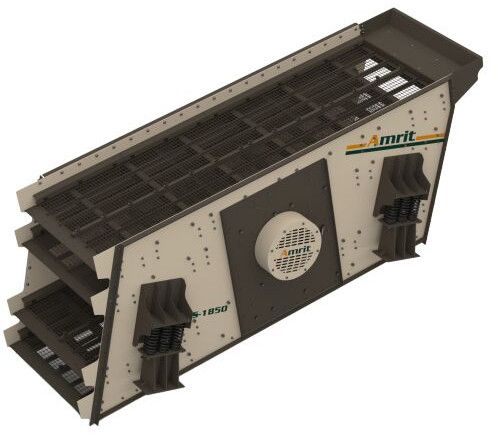

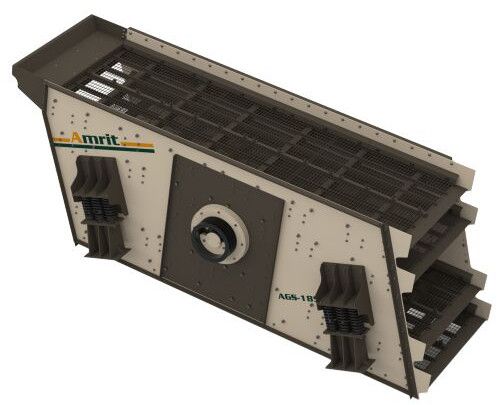

| MODEL NO | AGS-1550 | AGS-1850 | AGS-2160 | AGS-2460 |
|---|---|---|---|---|
| Screen Size (W x L) mm |
1500 x 5000 | 1800 x 5000 | 2100 x 6000 | 2400 x 6000 |
| Screening Area | 7.3 sq.mm | 8.7 sq.mm | 13 sq.mm | 14.5 sq.mm |
| Number of Decks | 02/03/04 | 02/03/04 | 02/03/04 | 02/03/04 |
| Type of Motion | Circular | Circular | Circular | Circular |
| Motor (Kw) | 15Kw / 18.5Kw / 22Kw | 18.5Kw / 22Kw / 30Kw | 22Kw / 30Kw / 37Kw | 30Kw / 37Kw / 37Kw |
| Capacity (Avg TPH) | 320 Tph | 450 Tph | 700 Tph | 800 Tph |
Key Features :
Specifications
| MODEL NO | AGG-150 | AGG-250 | AGG-300 |
|---|---|---|---|
| Feed Size (W x L) mm |
1100 x 4000 | 1250 x 4550 | 1350 x 5000 |
| Max. Feed size (in/mm) | 550 - 600 | 650 -800 | 800 - 1000 |
| Motor (HP/Kw) | 27HP / 20Kw | 34HP / 25Kw | 47HP / 35Kw |
| Capacity (TPH) | 100 -350 | 250 - 500 | 350 -800 |
Jaw crushers are foundational to crushing operations, particularly in the primary stage of material processing. The wheel- mounted jaw crushers are designed for easy transportation and quick setup on-site, ideal for quarries, mining sites, and construction projects that require rapid relocation. Equipped with robust crushing capabilities, these crushers are built to handle the toughest rocks and provide consistent material output, ensuring efficient and cost-effective operations.
