Drill & Boring Equipments

Our offered Product range includes 25mm Pillar Drill Machine, 20mm Pillar Drill Machine, 32mm Pillar Drill Machine, 40mm Pillar Drill Machine and 25mm Radial Drilling Machine.

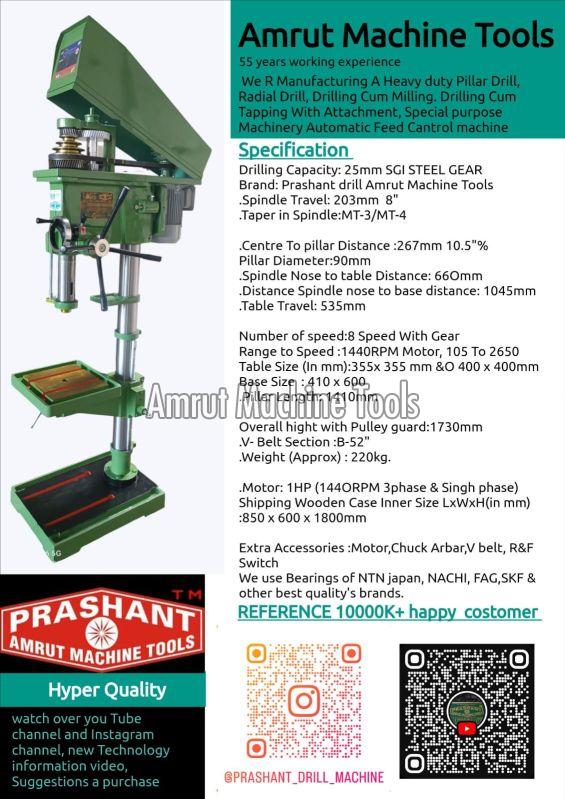

25mm Pillar Drill Machine

INR 15.50 k /Piece
Get Latest Price
  • Min. Order (MOQ) 1 Piece(s)
  • Brand Name Prashant
  • Drilling Capacity 25 mm
  • Spindle Travel 177 mm
  • Taper in Spindle MT-3 /MT - 4
  • Tilting Working Table Fixed
  • Pillar Diameter 90mm
  • Spindle nose to table distance 660 mm
  • Distance from spindle nose to base distance 1045 mm
  • Distance from spindle center to pillar surface 267 mm (max) 10.5"
  • Table Travel 535 mm
  • Range of Speed (RPM) 960/1440
  • Table Size (in mm) 342x342/ 385x385
  • Base size machining size 315x 575 mm
  • Overall Base Size (in mm) 405 x 580
  • Pillar Length 1410 mm
  • Overall height with pulley guard 1730 mm
  • V-Belt section B-51"
  • Weight (Approx.) 215 Kg
  • Motor 1 HP (1440 RPM 3 Phase 440 volts)
  • Shipping Wooden case inner size 850x500x1770 mm

View Complete Details

20mm Pillar Drill Machine

INR 25 k /Piece
Get Latest Price
  • Drilling Capacity 20 mm
  • Spindle Travel 130 mm
  • Taper in Spindle MT -3/MT-2
  • Main Motor Power 1 HP (1440 RPM 3 Phase 440 volts)
  • Tilting Working Table Upto 360 Degree
  • Pillar Diameter 74.20 mm
  • Spindle Nose to Table Distance 650 mm
  • Distance from spindle nose to base distance 900 mm
  • Distance from spindle center to pillar surface 200 mm ( MAX )
  • Table Travel 200 mm
  • Number of speed 8 Speed
  • Range of Speed (RPM) 80 to 3500
  • Table Size (in mm) 270 x 270
  • Base size (Machined Area mm) 470 x 320
  • Overall Base Size (in mm) 490 x 310
  • Pillar Length 1170 mm
  • Overall height with pulley guard 1420 mm
  • V-Belt section A - 44
  • Weight (Approx.) 110 kg.
  • Shipping Wooden Case Inner Size LxWxH (in mm) 660x380x1140 mm
  • Brand Prashant

  • Product Brochure
    Download Detail File : Click Here
View Complete Details

32mm Pillar Drill Machine

INR 36 k /Piece
Get Latest Price
  • Brand Name Prashant
  • Spindle Travel 8" 203mm
  • Motor 1.5 H.P. / 2 H.P.
  • Tilting Working Table Fixed
  • Pillar Diameter 90 mm
  • Drilling Capacity in Mild Steel 32 mm
  • Spinddle Centre to Column 10" 254 mm
  • Size of Table Square 19" x 482 mm
  • Size of Table Round 15(1/2)" 393 mm
  • Over All-Height of Machine 68" 1750 mm
  • Max distance Spindle to base 40" 1016 mm
  • Coloumn Diameter (4*2\8)" 108 mm
  • Machine Base 26" x 18" x4" 660 x 457 x 101 mm
  • Spindle Nose Bore MT-3/MT-4
  • Speed Range (8) 90 x 2265 R.P.M.
  • Motor Speed 1440 R.P.M.
  • V-Belt B - 53 / B-55
  • Weight of machine without motor 250 kg. (Approx)

View Complete Details

40mm Pillar Drill Machine

INR 41 k /Piece
Get Latest Price
  • Brand Name Prashant
  • Drilling Capacity 40 mm
  • Spindle Travel 247 mm
  • Taper in Spindle MT-4
  • Tilting Working Table Fixed
  • Pillar Diameter 120 mm
  • Spindle nose to table distance 595 mm
  • Distance from spindle nose to base distance 1050 mm
  • Distance from spindle center to pillar surface 317mm,12.50"(MAX)
  • Table Travel 700 mm
  • Number of Speed 8 Speed
  • Range of Speed (RPM) 70 to 2000
  • Table Size (in mm) 430 x 430, 580 x 580
  • Overall Base Size (in mm) 480 x 690
  • Pillar Length 1450 mm
  • Overall height with pulley guard 1860 mm
  • V-Belt Section B-60 ''
  • Weight (Approx.) 340 Kg
  • Motor 2 HP (1440 RPM 3 Phase 440 Volts)
  • Shipping Wooden Case Inner Size 860x460x1880 mm

View Complete Details

25mm Radial Drilling Machine

INR 46.50 k /Piece
Get Latest Price
  • Automatic Grade Automatic
  • Brand Name Prashant
  • Spindle Travel 230 mm
  • Drilling Capacity in MS 25mm
  • Machines Area of Base 600X715mm
  • Dia of Column 127mm
  • Max. Distance Spindle Nose To Base 880 mm
  • Max Spindle Centre To Column 665 mm
  • Vertical Adjustment of Arm 600mm
  • Size of Box Table 205x205x285 mm
  • Overall Height of Machine 1550 mm
  • Floor Space Occupied 700x1100 mm
  • No. of Spindle Speeds 8(4 Direct, 4 Geared) 120 to 2800
  • Spindle Feed by Fine Feed Star Lever And Worm
  • Drill Head Motor 1 HP 1440 RPM
  • Elevating Motor 0.5 HP 1440 RPM
  • Net Weight 485 Kg
  • Vee Belt B 40
  • Lifting Vee Belt A 20
  • Spindle Nose Bore M-T-3/M-T-4

View Complete Details

40mm Radial Drilling Machine

INR 95 k /Piece
Get Latest Price
  • Drilling Capacity 40 mm
  • Type of Drilling Machine Radial
  • Power Source Electric
  • Frequency 50 Hz
  • Automation Grade Automatic
  • Drill Head Motor Power 2HP, RPM 1440
  • Size Of Box Table 305x305x380 mm
  • Elevating Motor Power 0.5 HP, 1440 RPM

View Complete Details

20mm Tapping Cum Drilling Machine

INR 21.50 k /Piece
Get Latest Price
  • Brand Name Prashant
  • Functions Drilling, Tapping
  • Spindle Travel 130 mm
  • Automation Grade Automatic
  • Drilling Capacity 20 mm
  • Taper in Spindle MT -3/MT-2
  • Main Motor Power 1 HP (1440 RPM 3 Phase 440 volts)
  • Tilting Working Table Upto 360 Degree
  • Pillar Diameter 74.20 mm
  • Spindle Nose to Table Distance 650 mm
  • Distance from spindle nose to base distance 900 mm
  • Distance from spindle center to pillar surface 200 mm ( MAX )
  • Table Travel 200 mm
  • Number of speed 8 Speed
  • Range of Speed (RPM) 80 to 3500
  • Table Size (in mm) 270 x 270
  • Base size (Machined Area mm) 470 x 320
  • Overall Base Size (in mm) 490 x 310
  • Pillar Length 1170 mm
  • Overall height with pulley guard 1420 mm
  • V-Belt section A - 44"
  • Shipping Wooden Case Inner Size LxWxH (in mm) 660x380x1140 mm
  • Weight (Approx.) 110 kg.

View Complete Details

25mm Tapping Cum Drilling Machine

INR 35.40 k /Piece
Get Latest Price
  • Brand Name Prashant
  • Functions Drilling, Tapping
  • Spindle Travel 177 mm
  • Automatic Grade Automatic
  • Drilling Capacity 25mm
  • Taper in Spindle MT-3 /MT - 4
  • Tilting Working Table Fixed
  • Pillar Diameter 90mm
  • Spindle nose to table distance 660 mm
  • Distance from spindle nose to base distance 1045 mm
  • Distance from spindle center to pillar surface 267 mm (max) 10.5"
  • Table Travel 535 mm
  • Number of Speed 8 Speed
  • Range of Speed (RPM) 960/1440
  • Table Size (in mm) 342x342/ 385x385
  • Base size machining size 315x 575 mm
  • Overall Base Size (in mm) 405 x 580
  • Pillar Length 1410 mm
  • Overall height with pulley guard 1730 mm
  • V-Belt section B-51"
  • Weight (Approx.) 215 Kg
  • Motor 1 HP (1440 RPM 3 Phase 440 volts)
  • Shipping Wooden case inner size 850x500x1770 mm

View Complete Details

40mm Tapping Cum Drilling Machine

INR 63 k /Piece
Get Latest Price
  • Brand Name Prashant
  • Functions Drilling, Tapping
  • Spindle Travel 247 mm
  • Automatic Grade Automatic
  • Layout Vertical
  • Drilling Capacity 40 mm
  • Taper in Spindle MT-4
  • Tilting Working Table Fixed
  • Pillar Diameter 120 mm
  • Distance from spindle nose to base distance 1050 mm
  • Spindle nose to table distance 595 mm
  • Table Travel 700 mm
  • Number of Speed 8 Speed
  • Range of Speed (RPM) 70 to 2000
  • Table Size (in mm) 430 x 430, 580 x 580
  • Overall Base Size (in mm) 480 x 690
  • Pillar Length 1450 mm
  • Overall height with pulley guard 1860 mm
  • V-Belt Section B-60 ''
  • Weight (Approx.) 340 Kg
  • Motor 2 HP (1440 RPM 3 Phase 440 Volts)
  • Shipping Wooden Case Inner Size 860x460x1880 mm

View Complete Details

40mm All Geared Radial Drilling Machine

  • Type Radial Drilling Machines
  • Weight 900Kg
  • Brand Name Prashant
  • Drilling Capacity 40 mm
  • Elevating Motor Power Elevating Motor Power
  • Automation Grade Automatic
  • Litting Vee Belt A 23
  • Drill Head Motor Power 2HP, RPM 1440
  • Size Of Box Table 305x305x380 mm

View Complete Details
