Our Products
We are leaders in the market for providing best range of Steel Sash Clamp, Flooring Clamp, Bar Clamp, F Clamp and Steel Bodied F-Clamp
The clamps are fitted with the ANANT improved working slide, the principle feature of which is the incorporation of large thrust surfaces ensuring long wear & providing a reliable coupling between slide & screw. Each clamp is fitted with a bar stop to prevent accidental loss of tail slide.
| Materials | |
| Bar | : Bright Steel with square edges. |
| Head & Slides | : S.G. Iron |
| Screw & Handle | : High Quality Steel |
| Finish | : Enamelled ANANT Blue. |
|
Length Of Bar |
To Take In |
Approx. Weight |
|||
|
Inches |
MM |
Inches |
MM |
Pounds |
Kg. |
|
24 |
610 |
18 |
458 |
4½ |
2.15 |
| 30 | 762 | 24 | 610 | 5 | 2.30 |
| 36 | 950 | 30 | 762 | 5½ | 2.50 |
| 42 | 1068 | 36 | 915 | 6 | 2.75 |
| 48 | 1220 | 42 | 1068 | 6½ | 3.00 |
ANANT Cramp, Though compact, light and easily portable, is extremely robust. The bevel gears ensure smoothness of operation and are totally enclosed thus being protected against damage and dirt. Spring loaded cams provide a rapid action and positive grip. Between operations the cramp may be quickly released from the joist.
Fitted with an improved working slide
| Materials | |
| Body | : SG Iron of Guarantied Quality |
| Shoe & Cams | : Malleable Iron |
| Handle, Screw & Bevel Gears | : High Quality Steel |
| Finish | : Enameled ANANT Blue. |
We are manufacturing a wide range of F- Clamp which is customized as per the specifications of our clients.
These are special clamping equipment and are demanded as Industrial 'step-over' clamps.
These are in compliance with various industrial standards and possess following specifications:
Final Machine Scale No. A136, 1 3/4", 3/4" (45mm x 19mm).

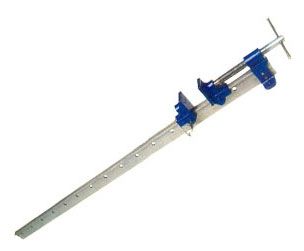

The bars of these clamps are made of special T-Bar section steel & will not bend in use. The T edges on which the slides operates are dimensionally accurate ensuring an easy sliding movement. Head and slides are robustly designed to match the strength of the bar. The ANANT improved working working slide, which incorporates large thrust surfaces ensure long wear and a reliable coupling between slides and screw.
| Materials | |
| Bar | : Cold Rolled Steel T-Bar Section |
| Head & Slides | : S.G. Iron |
| Screw & Handle | : High Quality Steel |
| Finish | : Enamelled ANANT Blue. |
|
Length Of Bar |
To Take In |
Approx. Weight |
|||
|
Inches |
MM |
Inches |
MM |
Pounds |
Kg. |
|
24 |
610 |
15 |
381 |
8¼ |
3.75 |
| 30 | 762 | 21 | 534 | 9-1/8 | 4.14 |
| 36 | 950 | 27 | 686 | 10 | 4.54 |
| 42 | 1068 | 33 | 839 | 10-7/8 | 4.94 |
| 48 | 1220 | 39 | 991 | 11¾ | 5.33 |
| 54 | 1372 | 45 | 1143 | 12-5/8 | 5.73 |
| 60 | 1524 | 51 | 1296 | 13½ | 6.13 |
| 66 | 1678 | 57 | 1448 | 14-3/8 | 6.52 |
| 72 | 1830 | 63 | 1601 | 15¼ | 6.92 |
| Length Of Bar | Approx. Weight | ||
| Inches | MM | Pounds | Kg. |
| 24 | 610 | 4¾ | 2.11 |
| 30 | 762 | 5½ | 2.51 |
| 36 | 950 | 6½ | 2.91 |
| 42 | 1068 | 7-1/4 | 3.30 |
| 48 | 1220 | 8-1/8 | 3.70 |
| 54 | 1372 | 9 | 4.10 |
| 60 | 1524 | 10 | 4.49 |
