A One Industries

Rohini, Delhi

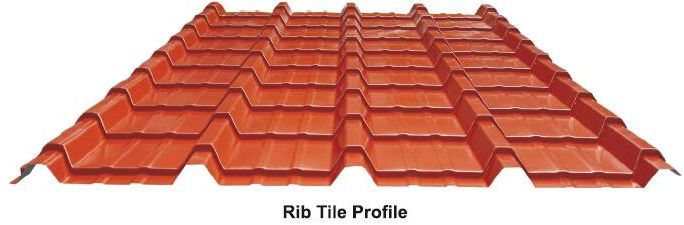

Material Specifications- Pre-painted Galvanized Steel Sheets (Gl- Base) Hot dipped galvanized pre-painted steel sheet Zinc Alum Steel Sheet (Galvalume) Non- colour (55 % Aluminium 43% Zinc 1.6% Silicon) Alu Zinc coating : AZ 150 (Option AZ100) Advantages- 1. Economical Roof Profile with Excellent design flexibility. 2. 250 mm pitch for easy water shredding. 3. Available in 0.47, 0.50, 0.55, 0.60mm thickness. 4.Cover width Rib in 1010 mm available upto 13 m in length. 5. Special side lap corrugation gives extra support at panel ovelap.

Material Specifications- Pre-painted Galvanized Steel Sheets (Gl- Base) Hot dipped galvanized pre-painted steel sheet Zinc Alum Steel Sheet (Galvalume) Non- colour (55 % Aluminium 43% Zinc 1.6% Silicon) Alu Zinc coating : AZ 150 (Option AZ100)Advantages- 1. Economical Roof Profile with Excellent design flexibility.2. 250 mm pitch for easy water shredding.3. Available in 0.47, 0.50, 0.55, 0.60mm thickness.4. Cover width Rib in 1010 mm available upto 13 m in length.5. Special side lap corrugation gives extra support at panel overlap.

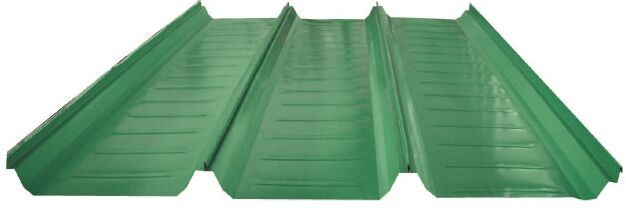

Gee Aar Seam Roof is new generation seam roof system designed in 485mm panel width/chest ht of 51 mm. Roof panel is sealed by an electric remote control seaming machine which ensure perfect weather tightness to the roof. The roof floats on a system of sliding clips that prevent damage from thermal expansion and contraction . This system is most reliable roof system for large span buildings.

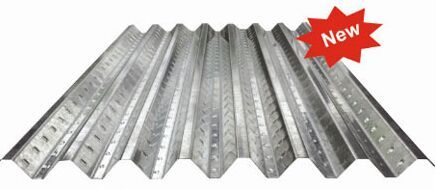

44/130 mm Decks are manufactured from test quality of CR Coils as per IS:513 apart from these material, 44/130mm sections can be rolled frorn galvanized sheets, Pre-colour coated and bare galvalume sheets. 44/130mm Sections are manufactured in thickness of 0.5mm, 0.6mm, 0.63mm, 0.8mm, 1.00mm, 1.25mm, 1.6mm. 2.00mm and are available in any standard lengths as per customers requirement subject to transport restrictions (upto maximum of 12mtrs length) Special Embossments rolled into the profile creating the highest bond between concrete and the steel floor Material : Steel Deck is produced from galvanized and colour coated products as per IS : 513, IS : 277, IS:14246 and AS:1397-G300-AZ-275

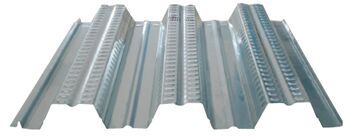

44/130 mm Decks are manufactured from test quality of CR Coils as per IS:513 apart from these material, 44/130mm sections can be rolled frorn galvanized sheets, Pre-colour coated and bare galvalume sheets. 44/130mm Sections are manufactured in thickness of 0.5mm, 0.6mm, 0.63mm, 0.8mm, 1.00mm, 1.25mm, 1.6mm. 2.00mm and are available in any standard lengths as per customers requirement subject to transport restrictions (upto maximum of 12mtrs length) Material : Steel Deck is produced from galvanized and colour coated products as per IS : 513, IS : 277, IS:14246 and AS:1397-G300-AZ-275

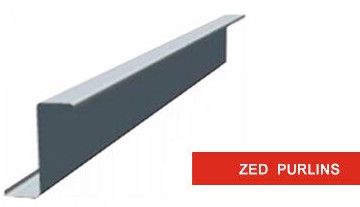

Zed Purlins are structural members designed and produced using the advanced technology, quality and customer oriented services, for use as secondary supports for economical roof sheeting and wall cladding systems in any type of building with following added advantages :- 1. Continuous splay or splicing for better structural strength. 2. 45 Lip for better sectional modulus and easy nesting. 3. Supplied in required length with pre-punched holes for quick bolting. 4. The system gives an excellent strength to weight ratio with flexibility for specific size requirement. 5. More than 40% saving in steel and more than 30% saving in overall consumption cost.

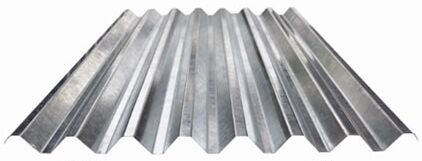

Special emboss marks rolled into the profile creating the highest bond between concrete and steel floor Material : 76 mm Decks are manufactured from test quality of CR Coils as per IS:513 apart from these material, 76mm sections can be rolled from galvanized steel, Pre colour coated and bare galvaume sheets. 76mm Sections are manufactured in thickness of 0.5mm, 0.6mm, 0.63mm, 0.8mm, 1.00mm, 1.25mm and are available in any standard lengths as per customers requirement subject to transport restrictions (upto maximum of 12mtrs length). Advantages of steel over concrete- Ease of installation Steel floor deck provides a stable working platform instantly Steel floor deck arrives on site in lightweight sheets, cut to length Easy to fix using studs, clips and screws When installed the deck acts as a diaphragm Thinner, lighter slabs

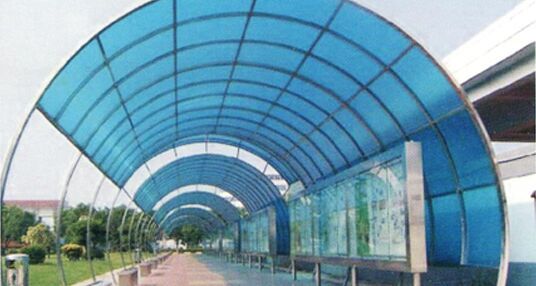

Polycarbonate Sheets are transparent roof glazing sheets available in required Matching Profiles, made out of finest Polycarbonate sheet from Sabic Innovative Plastics. Polycarbonate Embossed Sheet Polycarbonate Compact Clear Sheet

Cee Purlins are structural members designed and produced using the advanced technology, quality and customer oriented services, for use as secondary supports for economical roof sheeting and wall cladding systems in any type of building with following added advantages :- 1. Continuous splay or splicing for better structural strength. 2. 45 Lip for better sectional modulus and easy nesting. 3. Supplied in required length with pre-punched holes for quick bolting. 4. The system gives an excellent strength to weight ratio with flexibility for specific size requirement. 5. More than 40% saving in steel and more than 30% saving in overall consumption cost.
