Arsun Engineers

Vithalwadi, Bhavnagar, Gujarat

ARSUN UR Series of Portable Universal Radial Drills are most suitable for drilling operations on heavy and sizable components which require quick and efficient preparations in terms of capacity as well as accuracy. Its drill head rotates 360º and swivels 90º up & 90º down on two planes. These rotational and swiveling movements make possible drilling operation at any angular direction.

Features :

• Robust machine with easy operation.
• Easily moveable, easily transportable.
• Powerful : 30 mm drilling in steel at any angular direction.
• The drilling head rotates 360º and swivels 90º up & 90º down.
• Ideally suitable for large & stationary jobs, for drilling hard to reach places and on-site drilling.

Fixed Column Type :

• It is a small foot print machine having centrally fixed column on a bulky base. This robust base prevents imbalance during working at extreme position of arm. It is a double column type machine with manual sleeve locking mechanism. Its various motorized movements – i.e. arm up/down, arm traverse, head swiveling & head rotation – makes easier to fix drilling location.
• Its wide range of 8 speed and 5 feed rates are most suitable for drilling, tapping, reaming operations within full working range and various positions of arm and drill head.

Application : This machine finds applications for drilling, reaming and tapping operations on components of large machine tools and forming machines, bulky parts of valves, pumps, turbines, generators, compressors, different kind of steel constructions, boilers, containers, chemical equipment, furnaces of cement plants, ship building, etc.

Standard Equipment

• Set of Taper Sockets – 4/3, 3/2, 2/1
• Automatic Lubrication with Motorized
• Lube Pump
• Machine Lifting Arrangement at Sleeve Top
• Work Lamp
• Electrical suitable for 415V / 50Hz / 3Ph AC Supply
• Tool Kit
• Technical Documentation

Special Equipment : Coolant device Foundation bolts Spares for 2-5 years

ARSUN AR Series of Radial Drills offer rigidity, precision and easiness in operation and are suitable for drilling, reaming and thread cutting operations.   Features Robust, precision, easy to operate and reliable.

Powerful: Maximum dia. 40 mm drilling in steel. Auto feed disengages at present depth and at too high drilling pressure. Double column design for rigidity and effortless centering. Acceptance according to IS : 2199.

Application : The machine is suitable for one-off or for batch production. It finds application in tool-rooms, engineering & fabrication shops, manufacturing of dies, moulds & machineries, automobile & ship building industries, railways, defense and bridge construction.

Standard Equipment : Box Table/Cube type Table, Reduction Socket, Coolant Device, Work Lamp, Electric Supply – 415V / 50Hz / 3Phase AC, Operator Manual

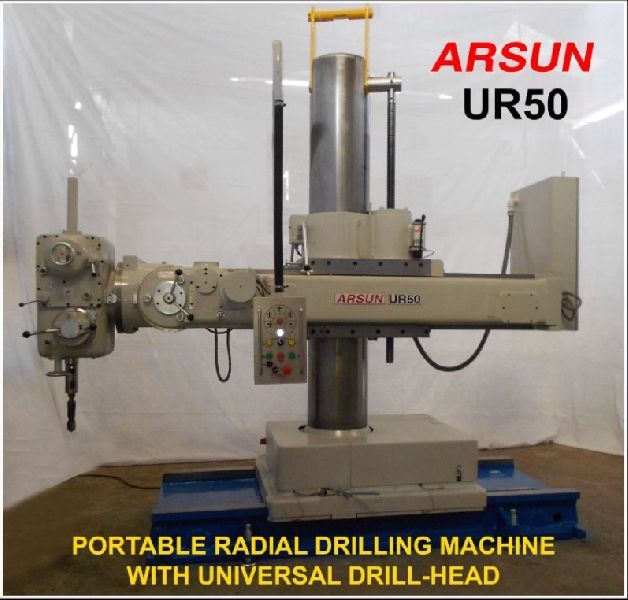

ARSUN UR Series of Portable Universal Radial Drills are most suitable for drilling operations on heavy and sizable components which require quick and efficient preparations in terms of capacity as well as accuracy. Its drill head rotates 360º and swivels 90º up & 90º down on two planes. These rotational and swiveling movements make possible drilling operation at any angular direction.

Features :

• Robust machine with easy operation.
• Easily moveable, easily transportable.
• Powerful : 50 mm drilling in steel at any angular direction.
• The drilling head rotates 360º and swivels 90º up & 90º down.
• Ideally suitable for large & stationary jobs, for drilling hard to reach places and on-site drilling.
• All movement are motorized
• Its various movements – i.e. arm up/down, arm horizontal traverse, 360º head rotation, head swiveling (90º up/down), column traverse along bed, sleeve locking/unlocking – all these movements are motorized, which offers fatigue free easy location while drilling.
• It has wide range of 15-speeds and 6-feed rates makes the machine suitable for drilling, tapping and reaming operations within its full working range and various positions of arm and drill head.

Application : This machine finds applications for drilling, reaming and tapping operations on components of large machine tools and forming machines, bulky parts of valves, pumps, turbines, generators, compressors, different kind of steel constructions, boilers, containers, chemical equipment, furnaces of cement plants, ship building, etc.

Standard Equipment :

• Set of Taper Sockets – 5/4, 4/3, 3/2, 2/1
• Automatic Lubrication with Motorized Lube Pump
• Machine Lifting Arrangement at Sleeve Top
• Work Lamp
• Electrical suitable for 415V / 50Hz / 3Ph AC Supply
• Tool Kit
• Technical Documentation

Special Equipment :

• Coolant device
• Foundation bolts
• Spares for 2-5 years

ARSUN AR Series of Radial Drills offer rigidity, precision and easiness in operation and are suitable for drilling, reaming and thread cutting operations.

Features :

• Robust, precision, easy to operate and reliable.
• Powerful: Maximum dia. 50 mm drilling in steel.
• Auto feed disengages at present depth and at too high drilling pressure.
• Double column design for rigidity and effortless centering.
• Acceptance according to IS : 2199.

Applications : The machine is suitable for one-off or for batch production. It finds application in tool-rooms, engineering & fabrication shops, manufacturing of dies, moulds & machineries, automobile & ship building industries, railways, defense and bridge construction.

Standard Equipments :

• Box Table / Cube type Table
• Reduction Socket
• Coolant Device
• Work Lamp
• Electric Supply – 415V / 50Hz / 3Phase AC
• Operator Manual
