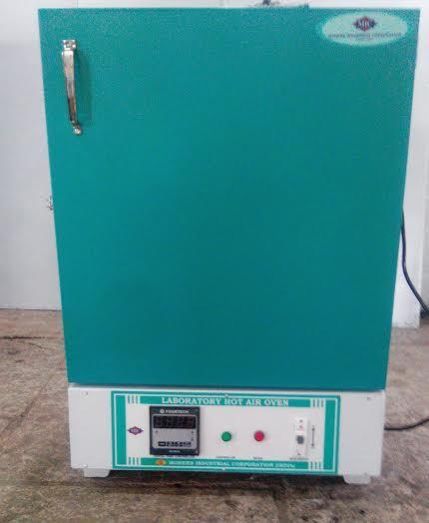

Details :

• Sturdy Triple walled Construction.
• nd Inner Chamber made of S.S. 304, 2 Chamber G.I. and outer made of mild steel Powder Coated.
• Gap between the walls is filled with glass wool insulation to avoid heat losses.
• Temp. range : 50 Deg. C to 250 Deg. C. Accuracy : +/-2 Deg. C.
• Temperature is controlled by Microprocessor based PID Controller cum Indicator.
• A forced Air Circulating System with fan arrangement is provided for better uniformity of temperature.
• Heating elements placed at the right & left side of the inner Chamber and is made of S.S. tubular air heater.
• Supplied with S.S. Wire mesh Shelves.
• Available in GMP model also.

Details :

• Double walled construction.
• Inner chamber and lid made of Stainless Steel. Outer chamber made of Mild steel with powder coating or complete SS Unit.
• Glass window is fixed on the front for both sides clear observations while immersion test.
• The gap between the chambers filled with high grade glass wool to minimize the heat loss.
• Temperature Range : 5 Deg. C above ambient to 100 Deg. C and temp. controlled by digital
• Temperature Indicator cum Controller with an Accuracy of +/- 0.5 Deg. C.
• A high speed stirrer with a motor of 1/20 HP is fitted to the unit for continuous stirring and this can maintain a uniform heating throughout the chamber.
• The heating mechanism comprises of set of heaters pertaining to fast heating to operated 230 volts AC only.
• Designed for immersion requirement and for external Circulation to maintain constant temp.
• To operate on 230 Volts AC only

Details :

• Designed Specially for Biological Oxygen Demand Determination and other applications like General incubation, Serum studies and enzyme assays tests.
• Double Walled Construction, Std & GMP Models.
• STD Model : Inner Chamber SS, Outer MS Powder Coated Body.
• GMP Model : Inner & Outer Chamber SS 304 Grade.
• Mounted on castor wheels for easy portability.
• Full length inner plexi glass /acrylic door for inspection of specimens without disturbing the temperature.
• Temperature controlled by Digital Temperature Controller cum indicator.
• Temperature range 5 Deg. C to 50 Deg. C with an accuracy of 0.5 Deg. C
• This unit is fitted with door operated illumination lamp inside the chamber.
• Equipped with hermatically sealed compressor.
• Air Circulation Fan for maintaining temperature uniformity through out the chamber.
• Flush fitting insulated double walled door has magnetic gasket.
• Provided with removable SS Shelves for complete flexibility in use.

We are the reliable Manufacturer, Exporter, Importer and Supplier of Orbital Shaking Incubator. MIC Orbital Shaking Incubators are elegantly designed for day to have combined advantage of closely controlled incubation and storage temperatures with orbital shaking motions. Orbital Shaking Incubator is used in many lab procedures for Incubation & ageing tests, tissue culture work, fermentation studies, ageing & growth studies. Technical Data

• Double Walled Construction
• Standard Model : Inside stainless steel 304 & outside powder Coated mild steel
• GMP Model : Inside stainless steel 316 & outside stainless Steel 304
• Temperature Range : 10 deg C to 60 deg C
• Accuracy : +/-1 deg C Controlled by electronic controller With Digital display or Microprocessor based PID controller
• Temperature Uniformity : +/- 2 deg C

Main Features

• Variable speed from 20 RPM to 250 RPM
• Digital Display of Speed with preset facility
• Shaking amplitude 25 mm
• Digital Display of Speed in RPM
• Universal Platform to accommodate interchangeable Clamps of assorted sizes
• Interior Illumination & castor wheels
• Works on 230 V AC 50 Hz

Additional Features (For microprocessor based models)

• User friendly microprocessor design
• Safety thermostat to prevent overheating
• High Voltage safety cut off

Optional Features

• Chamber illumination with fluorescent or ultra violet lamps
• Digital timer with audio visual alarm
• 0-24 Hrs Cyclic timer for illumination Control

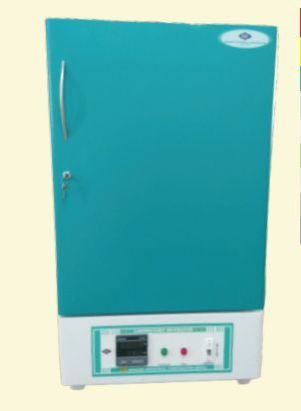

Details :

• Sturdy Unit with Double Walled Construction.
• Inner Chamber made of S.S. and Outer made of Mild Steel Powder Coated.
• Gap between the walls fitted with glass wool insulation to avoid heat loss.
• Heating elements are made of high grade chrome plated nichrome wire.
• Temperature is controlled by thermostat / Digital Temperature Controller.
• Temperature range : 5 Deg. C above ambient to 60 Deg. C. Accuracy : +/- 2 Deg. C.
• Air Ventilation is provided on the top of the unit to remove the hot gases / fumes.
• Heaters are placed at the bottom side of the unit.
• All the control switches & pilot lamps are fitted on the front panel.
• Supplied with G.I. wire mesh Trays.
• Available in GMP model also.

Details :

• Creating ideal conditions for Industrial component / product research and Bio technical specification test.
• Designed for tests that need high humidity at low or higher temperature.
• Most Accurate and reliable chamber for longer time high temperature and RH testing.
• Double Walled Construction . Inner chamber S.S. and outside of Mild Steel beautifully powder coated.
• The Chamber is provided with modular removable shelves made of S.S. for complete flexibility in use.
• Insulated Door with lock & key with perfectly sealed door gasket.
• Temperature range : 40 Deg. C to 60 Deg. C for Heating type, 10 Deg. C to 60 Deg. C for Cooling type with an Accuracy +/- 0.5 Deg. C. Relative humidity range 35% RH to 90% with an accuracy +/- 3% RH.
• A positive vertical air circulation system ensures temperature and RH uniformity.
• Digital Preset Temperature and Humidity controller with direct digital read out in temperature and percentage RH.
• Low pressure Boiler to generate steam for chamber humidification.
• Well balanced refrigeration system.
• Control panel mounted on the top of the Unit.
• It works on 230 volts A.C. only.
• Available in GMP model also.

Details :

• Double walled Construction. Compact Unit to hold 2/4 racks of small tubes, flasks.
• Inner chamber and top lid (pyramidal)made of S.S.
• Outer chamber made of M.S. with powder coating.
• Gap between the walls filled with glass wool insulation to avoid the heat loss.
• The inner chamber fitted with immersion type heating element is covered.
• Temperature Range 5 Deg. C above ambient to 60 Deg. C with Accuracy : +/- 2 Deg. C.
• Long lasting heating element. To operate on 230 Volts A.C. Only.
