CLEVELOC NUT

The Cleveloc nut is a low cost one-piece self-locking nut with superior locking and re-usability characteristics. The locking collar is an integral part of the nut and is formed into a geometrically developed ellipse. This provides two locking elements of consistently uniform shape and thread contour which permit the bolt threads to engage smoothly during assembly.

• Dependable Locking Properties :The closed stress path in the locking portion of the nut together with the advantageous distribution of locking pressure over comparatively large areas, provides a locking device with an extremely high fatigue life.
• High Re-Usability :The stress within the locking device when in service is distributed over the two locking elements which represent a comparatively large area. Consequently, local stresses are only a fraction of those of slotted type all-metal stiffnuts. Result : an infinitely long service life of many re-usals.
• Fast Trouble-Free Assembly :All the threads within the nut body are free running-there is no deformation of the hexagon form, and galling is totally eliminated by the elliptical design of the locking collar which prevents thread interruptions or pitch errors. Easily engaged, a spanner or power tool will tighten the Cleveloc nut and its smooth progressive locking action is effective at any required setting.
• Interchangeable :Cleveloc nuts are equally effective with high or low limit bolt threads, and can be safely changed from high to low limit bolts during maintenance or overhaul.

Hydrabom is specially designed Heavy Duty, vibration resistant and mechanically locked blind fasteners which are used in various structural applications. These type of fasteners have single-side access & provides fast and efficient fastening of joints with the help of our Installation tool with minimum effort and inspection.

High strength bolt type fastener. Eliminates problems associated with loose nuts, lock nuts, bolt, and solid rivets. Vibration & is tamper-resistant. Consistent pre-tension values. High-speed installation, low noise level. High tensile, grade 8.8 variety of head forms and lengths. Large Diameter hydraloc is a heavy duty, two-piece fastener designed to provide vibration free high strength joints. Easy and simple to place and yet long lasting. It is an ideal solution where welding is not possible or solid riveting or threaded fastener provides strength of over 300 KN.

• High Strength and Tamper Proof

Large Diameter Hydraloc Are Used Where High Strength Performance Is Required. They Can Be Placed In All Types Of Load Bearing, Structural Applications And Offer Tamper-Proof Joints.

• Easy Installation And Consistent Performance

Large Diameter Hydraloc Are Placed With The Help Of Speciality Designed Tools, Which Eliminate Installation Errors And Inconsistent Placing Of Fastener Which Are Usually Association With Conventional Fastening Methods. Once Placed A Visual Inception Is Sufficient To Check That Fasteners Have Been Installed Correctly.

• Excellent Vibration Resistance

Large Diameter Lockbolt Joints Are Permanent And Provide Clamp Loads Of Over 200 K.N. Large Diameter Hydraloc Joints Resist Loosening Caused By Vibration When All Other Methods Of Fastening Fail.

Hybolt IL rivet is a multi-grip structural breakstem fastener with excellent hole fill to give a fully sealed joint. The Hybolt IL rivet can close large gaps and prevent sheet movement and give high shear and tensile strength enable the use of fewer Interlock rivets per assembly.

• Multi-grip capability
• High shear and tensile strength
• Good sheet take-up performance
• Excellent hole fill via radially expanded body
• Stem mechanically locked into body
• One fastener can be used to replace several standard grip fasteners
• Reduced fastener inventory and simpler stock control
• Compensates for irregular, oversized, slotted or misaligned holes
• Can stop sheet movement in non-standard holes
• Large gap closing capability
• Provides very strong, vibration resistant joints
• No damage, electrical problems or rattling due to loose stems

The Hybolt MB multi-grip structural rivet is a high strength structural blind rivet with a locked stem and a positive hole fill for use in heavy duty applications. Hybolt MB blind rivets are designed and developed for demanding applications where safety and performance is paramount to the customer demands.

• Multi-grip capability
• High shear and tensile strength
• Good sheet take-up performance
• Excellent hole fill via rapidly expanded body
• Stem mechanically locked into body
• One fastener can be used to replace several standard grip fasteners
• Reduced fastener inventory and simpler stock control
• Compensates for irregular, oversized, slotted or misaligned holes
• Can stop sheet movement in non-standard holes
• Large gap closing capability
• Provides very strong, vibration resistant joints
• No damage, electrical problems or rattling due to loose stems

Hydrabulb is a steel rivet that offers high-strength fastening and ideal for thin sheet metals. The steel breakstem provides excellent bulbing tail formation and high shear and tensile strength.

• Ideal for use in thin sheet materials
• Compensates for irregular, oversized, slotted or misaligned holes
• Good hole fill
• Can stop movement in non-standard holes
• Provides strong, vibration resistant joints
• High shear and tensile strength
• Provides a large blind side bearing area against the rear sheet
• Retained stem
• Ideal for applications requiring elevated temperatures
• Spreads the tail bearing load/clamp load on the rear sheet
• No damage, electrical problems or rattling due to loose stems

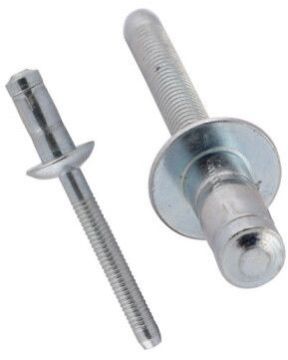

Hydrahem fastener is a structural breakstem fastener with exceptional shear and tensile strength. The Hydrahem rivet features an interference lock ensuring the strongest vibration resistant joints. Creates a large blind side bearing area spreads the load and prevents creep.

• Exceptional shear and tensile strength
• Large blind side bearing area against the rear sheet
• Interference lock formed by a splined stem
• Spreads the tail bearing/clamp load on the rear sheet
• Ideal for thin sheet materials
• Provides strong, vibration resistant joints
• No damage, electrical problems or rattling due to loose stems

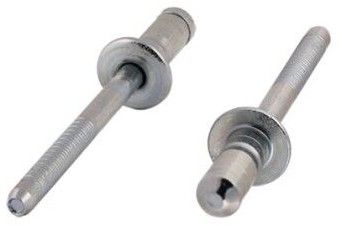

Hydranox is a stainless steel rivet that offers high-strength fastening and ideal for thin sheet metals. The stainless steel breakstem provides excellent bulbing tail formation and high shear and tensile strength. This industrial fasteners stainless steel construction provides good corrosion resistance in applications subject to elevated temperatures.

• Provides strong, vibration-resistant joints
• Ideal for use in thin sheet materials
• Compensates for irregular, oversized, slotted or misaligned holes
• Good hole fill
• Can stop movement in non-standard holes
• Provides strong, vibration-resistant joints
• High corrosion resistance
• High shear and tensile strength
• Provides a large blind side bearing area against the rear sheet
• Retained stem
• Ideal for applications requiring elevated temperatures
• Spreads the tail bearing load/clamp load on the rear sheet
• No damage, electrical problems or rattling due to loose stems

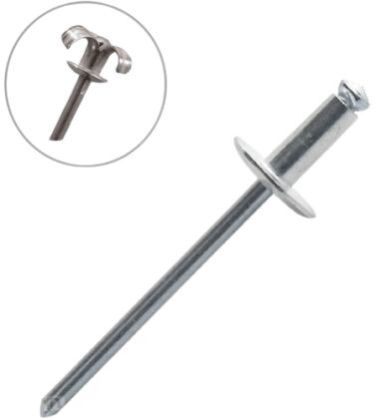

Hydrapeel is Cost-effective and efficient method of attaching metal to wood or other soft material without through holes.

• Peel-type tail formation makes it ideal for joining metal to wood, board or low density plastic.
• Large bearing surface expands into blind hole providing superior pull-out force.
• Ideal replacement for wood screws or self-tapping screws.
• Multi-grip capability accommodates wide variations in material thickness.

Hydrapop rivet is uni-grip breakstem blind fasteners available in various lengths for wide grip thicknesses. Fastening cost is low, Due to high speed and ease of application. Strong, reliable, vibration proof assemblies can be made without operator skills and rivet can be installed without marking the surface of the work piece.

• Hydrapop is a Uni-grip rivet and comes in wide range of diameters and lengths
• Allows versatility in various applications.
• Countersunk head available which gives flush finish to work surface.
• Large flange head available enables to use in softer materials.
• Good Hole fill ensures high strength joints even in oversize and misaligned holes.
• Ideal for use in thin sheet materials.
• Require one side access for installation.
• High speed installation
• Available in various material combinations

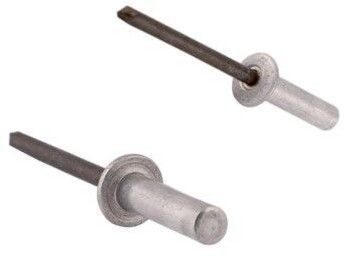

Hydraseal breakstem fastener is one piece sealed fastener having high strength and used in applications where water and air resistant joints are essential.

• Resistant to pressure and water ensures leak resistant assembly.
• Restrains corrosion. Improves life of the Joint/ Component.
• Complete hole fill capability.
• Ensures high strength and vibration resistant assembly.
• Eliminates possibility of loose stems and prevents damage to component.
• Can be used with different installation equipments.
• Variety of lengths and diameters available

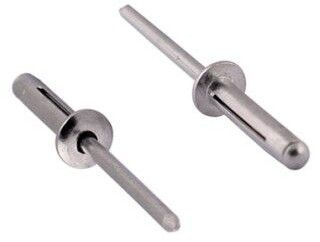

Hydrasoft breakstem fastener is designed with a split tail formation, providing a much larger blind side bearing area against the rear sheet. This also allows for a wide variation in material thickness. The Hydrasoft blind breakstem fastener is ideal for use with plastic and low strength material.

• Specifically designed for plastics and other brittle or soft material
• Joining soft, breakable, or brittle material
• Aluminum/Aluminium material combination provides corrosion-resistant join
• Wide grip range
• Accommodates oversized holes.
• Split tail formation provides a very large blind side bearing area against the rear sheet

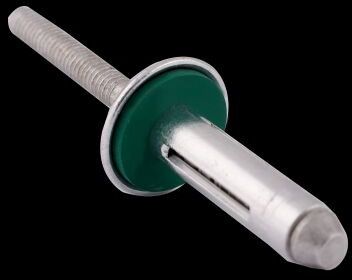

Hydratite is an aluminium rivet that has a large blind-sides bearing area making it an ideal rivet for use in thin sheet or low strength materials. The structural Hydratite rivet contains a visible mechanical lock to give extra strength to the joint.

• Split tail formation spreads the tail bearing load/clamp load on the rear sheet
• Ideal for use in thin sheet materials offering high resistance to pull-out loads
• Multi-grip capability accommodates wide variations in material thickness
• Ideal for use in very soft or brittle materials
• Stem is mechanically locked into body providing very strong, vibration resistant joints
• Visible lock for quick and easy inspection
• Optional under head washer provides a weather-proof seal

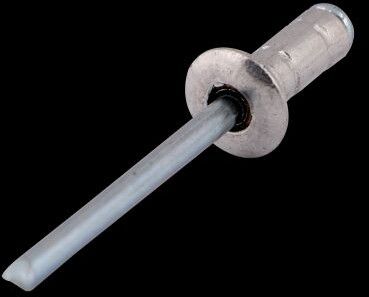

The Hydravex Rivetisa multi-grip, high-strength breakstem fastener.Produced in either Aluminium Steel or stainless steel to meet your requirements, this blind rivetcan replace several grip fasteners.With good hole fill and a large bulbing tail, this rivet is ideal for use onthin sheet materials.

• Multi-grip capability
• Superior hole fill
• High shear and tensile strength
• Provides a large blind side bearing area against the rear sheet
• Retained stem
• Stainless steel option provides high corrosion resistance and is ideal for applications requiring elevated temperatures
• Wide choice of installation tools
• One fastener can be used to replace several standard grip fasteners
• Accommodates wide variations in material thickness
• Reduced fastener inventory and simpler stock control
• Compensates for irregular, oversized, slotted or misaligned holes
• Can stop sheet movement in non-standard holes
• Provides strong, vibration resistant joints
• No damage, electrical problems or rattling due to loose stem

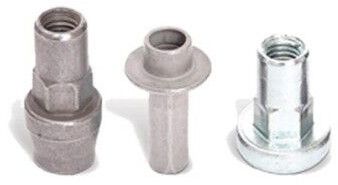

Customer requirements of blind rivet nuts are just as varied and the customers themselves. HONSEL has been manufacturing blind rivet nuts in all feasible variants for decades. On the basis of this vast experience and the countless successful customer projects that it has implemented, HONSEL can justifiably claim to be the leading specialist for blind rivet nuts, both in Germany and other countries. The production facilitys location in Frndenberg, between the Ruhr region and Sauerland, is another advantage for customers because of its proximity to them, which means guaranteed fast deliveries. Our in-house development team is familiar with our customers and their requirements. We also have a special-purpose mechanical engineering department that can supply reliable automation solutions with the products when required. In other words, HONSEL manufactures a fully comprehensive portfolio of Made in Germany-quality products and solutions.The Design Of The Head Forms Going Far Beyond The Known Standard Is Practically Unlimited. With The Vast Experience Of Thousands Of Applications, We Are Constantly Developing New And Customised Geometries That Can Be Given Additional Functions, Such As The Centering Of Components Or Use As Spacers.

Customer requirements of blind rivet nuts are just as varied and the customers themselves. HONSEL has been manufacturing blind rivet nuts in all feasible variants for decades. On the basis of this vast experience and the countless successful customer projects that it has implemented, HONSEL can justifiably claim to be the leading specialist for blind rivet nuts, both in Germany and other countries. The production facilitys location in Frndenberg, between the Ruhr region and Sauerland, is another advantage for customers because of its proximity to them, which means guaranteed fast deliveries. Our in-house development team is familiar with our customers and their requirements. We also have a special-purpose mechanical engineering department that can supply reliable automation solutions with the products when required. In other words, HONSEL manufactures a fully comprehensive portfolio of Made in Germany-quality products and solutions.The Classic Head Form, Universal In Application, With High Availability And In A Broad Spectrum Of Materials And Versions.

• Large bearing area
• Hole reinforcement for soft workpieces

The HONSEL RIVET NUT "headless" can be used in existing and new applications. The blind rivet nut can be flush mounted in smooth bores without countersinking. The omission of the "countersink" process of the hole realizes enormous potential for savings. Due to the 0 mm protrusion, components can be mounted without interfering edges or slide over one another without obstruction.

Customer requirements of blind rivet nuts are just as varied and the customers themselves. HONSEL has been manufacturing blind rivet nuts in all feasible variants for decades. On the basis of this vast experience and the countless successful customer projects that it has implemented, HONSEL can justifiably claim to be the leading specialist for blind rivet nuts, both in Germany and other countries. The production facilitys location in Frndenberg, between the Ruhr region and Sauerland, is another advantage for customers because of its proximity to them, which means guaranteed fast deliveries. Our in-house development team is familiar with our customers and their requirements. We also have a special-purpose mechanical engineering department that can supply reliable automation solutions with the products when required. In other words, HONSEL manufactures a fully comprehensive portfolio of Made in Germany-quality products and solutions.During The Processing Of Blind Rivet Nuts With Small Countersunk Head, Separate Countersinking Of The Bore Before Riveting Is Generally Not Necessary. An Almost Flush Contact Surface Is Produced. Completely Flush Riveting Is Possible In Soft Materials.

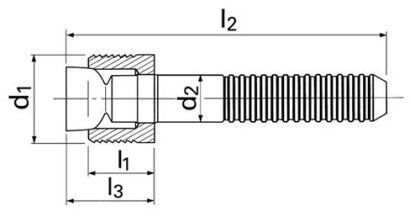

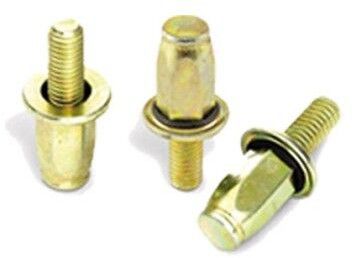

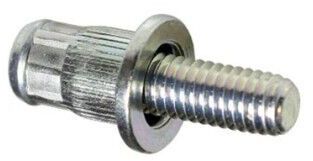

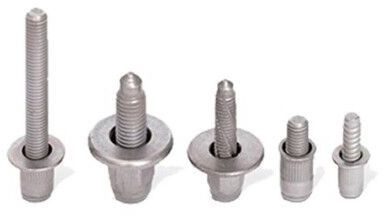

A blind rivet stud consists of a sleeve (blind rivet nut without internal thread) and a stud that are joined to one another. As HONSEL has been manufacturing both components in-house for decades, the know-how from the manufacture of blind rivet nuts can be put to very good use also for the production of blind rivet studs so that every possible variation can be quickly and flexibly combined and supplied in order to meet individual customers demands with a very wide range of variants.All-Round Laser Welding Ensures A 100% Tight Bond Between The Body And Screw That Withstands Even The Toughest Of Requirements. There Are Only A Very Few Suppliers Who Offer These Highly Specialised And High Quality Connections, And HONSELs Range Is Practically Unlimited.

A blind rivet stud consists of a sleeve (blind rivet nut without internal thread) and a stud that are joined to one another. As HONSEL has been manufacturing both components in-house for decades, the know-how from the manufacture of blind rivet nuts can be put to very good use also for the production of blind rivet studs so that every possible variation can be quickly and flexibly combined and supplied in order to meet individual customers demands with a very wide range of variants.Corrosion Protection Can Be Effectively Achieved By Connecting The Body And Screw Mechanically By Crimping. This Method Makes It Possible To Separately Coat The Two Individual Components Galvanically Before They Are Connected They Can Even Be Corrosion Protected Using Two Different Methods If Required. Only After Surface Coating Are The Body And Screw Firmly Connected Into A Blind Rivet Stud.

A blind rivet stud consists of a sleeve (blind rivet nut without internal thread) and a stud that are joined to one another. As HONSEL has been manufacturing both components in-house for decades, the know-how from the manufacture of blind rivet nuts can be put to very good use also for the production of blind rivet studs so that every possible variation can be quickly and flexibly combined and supplied in order to meet individual customers demands with a very wide range of variants.Every Thread Is Naturally Also Available At Short Notice In All Lengths And Forms (Fine Thread, Coarse Thread, Etc.) On Customer Demand.

A blind rivet stud consists of a sleeve (blind rivet nut without internal thread) and a stud that are joined to one another. As HONSEL has been manufacturing both components in-house for decades, the know-how from the manufacture of blind rivet nuts can be put to very good use also for the production of blind rivet studs so that every possible variation can be quickly and flexibly combined and supplied in order to meet individual customers demands with a very wide range of variants.The HONSEL-Group Is One Of The Leading Developers Of Blind Rivet Studs. RIFBOLT Blind Rivet Bolts Are Working With The Same Principle Of Operation As Blind Rivet Nuts. Hight-Strength And Splash Water-Protected Types And Laser-Welded Versions Are Only Two Of Many Innovative Design Ideas. RIFBOLT Blind Rivet Studs Consist Of A Sleeve And A Screw, Which Are Joined Together By Welding Or Crimping. As Special Production Components, We Can Use Different Lengths And Types Of Screws As Well As Almost Every Rivet Nut Sleeve.

A blind rivet stud consists of a sleeve (blind rivet nut without internal thread) and a stud that are joined to one another. As HONSEL has been manufacturing both components in-house for decades, the know-how from the manufacture of blind rivet nuts can be put to very good use also for the production of blind rivet studs so that every possible variation can be quickly and flexibly combined and supplied in order to meet individual customers demands with a very wide range of variants.By Analogy With The Process For The Sealing Of Blind Rivet Nuts, Various Solutions For Reliable Gas-Tight And Water-Tight Joints Are Also Possible With Blind Rivet Studs Either In The Form Of Loose Or Machine-Assembled Neoprene Rings Or Certified Sealants Injection Moulded Directly Onto The Underside Of The Head.

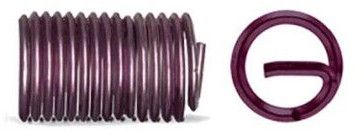

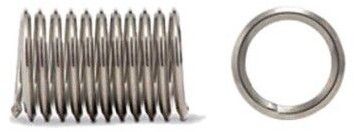

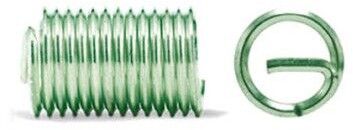

Coils (threaded inserts) create high-strength joints in low-strength metallic materials and have been proven in practice for decades. HONSEL coils threaded inserts are available in a range of variants and are characterised by high wear resistance, low thread friction in close tolerances, high surface quality and outstanding corrosion and heat resistance.

Coils (threaded inserts) create high-strength joints in low-strength metallic materials and have been proven in practice for decades. HONSEL coils threaded inserts are available in a range of variants and are characterised by high wear resistance, low thread friction in close tolerances, high surface quality and outstanding corrosion and heat resistance.

Coils (threaded inserts) create high-strength joints in low-strength metallic materials and have been proven in practice for decades. HONSEL coils threaded inserts are available in a range of variants and are characterised by high wear resistance, low thread friction in close tolerances, high surface quality and outstanding corrosion and heat resistance.

Todays modules are delivered to the assembly line in complete subassemblies. HONSEL capFIX facilitates this trend. The specially designed composite ring is mounted onto the screw and guarantees a perfect and secure fit of metric screws from M5 to M10 in module made from metal.

Today's hybrid and electric vehicles require secure connection solutions for the battery system. HONSEL hvFIX was specially developed for this purpose. The bright orange and safely over-molded insulating cap alert the user to electrical hazards while providing reliable access for driving the fastener.Today's Hybrid And Electric Vehicles Require Secure Connection Solutions For The Battery System. HONSEL HvFIX Was Specially Developed For This Purpose

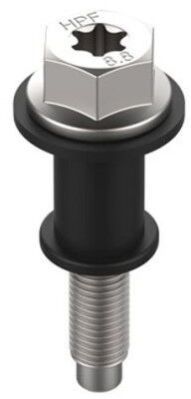

Specially developed for use in plastic modules, HONSEL plastFIX offers the advantage of a secure connection due to the limited axial force application to the plastic in addition to the pre-assembly option of the sleeve-screw system. At the same time, the concept guarantees a hard screw joint with stretching of the screw for maximum security against loosening.

• Strain hardening of the sleeves guarantees high strength
• Large radial play compensation between screw and sleeve
• Maximum retraction of the screw in the sleeve for a safe joining process
• The screw and sleeve are permanently connected to each other
• Large contact surfaces require low surface pressure
• High cleanliness
• Limitation of the preload force on plastic
• Strain hardening of the sleeves guarantees high strength
• Large radial play compensation between screw and sleeve
• Maximum retraction of the screw in the sleeve for a safe joining process
• The screw and sleeve are permanently connected to each other
• Large contact surfaces require low surface pressure
• High cleanliness requirements can be met

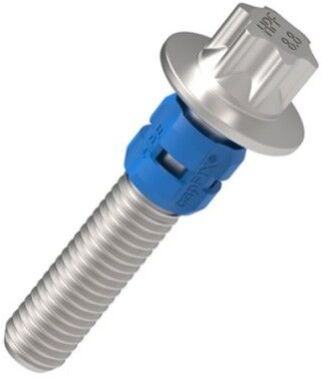

Plastic or metal modules that conceptually react with NVH (Noise, Vibration, Harshness) due to vibrations of an adjacent component can be effectively decoupled with HONSEL soundFIX. Thanks to the captively mounted elastomer ring, the component to be decoupled is decoupled from the adjacent component in conjunction with a seal or an additional elastomer.

• Controlled compression of elastomer and seal
• No torsional moment on the elastomer
• Hard screw case
• Pre-assembled
• The screw can be telescoped to prevent damage
• Reduction of NVH
• Controlled compression of elastomer and seal
• No torsional moment on the elastomer
• Hard screw case
• Pre-assebled
• The screw can be telescoped to prevent damage

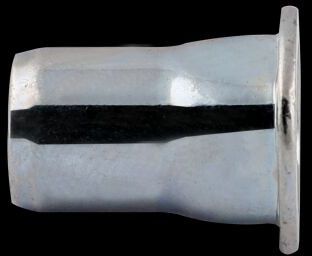

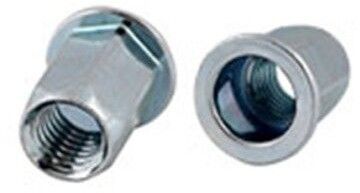

Hydranut FHX is a blind threaded nut insertwith a hexagonal profile on the full body designed to provide high torque-to-turnandpull-out performance, particularly in soft metals.

• Hexagonal section and bore improves torque-to-turn by up to 200% in sheet metal compared to round body inserts
• Superior pull-out performance
• Can be used for very thin sheet materials from 0.50mm (0.02")
• Double diameter body and lead-in chamfer provide easy insertion into hole
• Access needed from only one side of the application, for high speed assembly.
• Provide a female thread in application
• Can be installed in pre-coated or post painted applications without damaging the surface Various plating available to increase corrosion resistance
• Large flange head provides a load bearing surface and reinforces the hole to prevent push-out, that can be used as a spacer and can be supplied with an under head seal.
• Can be used with hand tools, pneumatic tools and fully automated machines to suit a wide range of assembly methods.

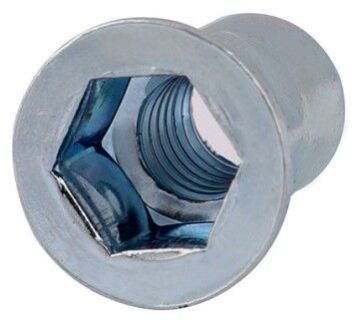

Hydranut HHX is a blind threaded nut insertwith a hexagonal profile on the half body designed to provide high torque-to-turnandpull-out performance, particularly in soft metals.

• Hexagonal section and bore improves torque-to-turn by up to 200% in sheet metal compared to round body inserts
• Superior pull-out performance
• Can be used for very thin sheet materials from 0.50mm (0.02")
• Double diameter body and lead-in chamfer provide easy insertion into hole
• Access needed from only one side of the application, for high speed assembly.
• Provide a female thread in application
• Can be installed in pre-coated or post painted applications without damaging the surface Various plating available to increase corrosion resistance
• Large flange head provides a load bearing surface and reinforces the hole to prevent push-out, that can be used as a spacer and can be supplied with an under head seal.
• Can be used with hand tools, pneumatic tools and fully automated machines to suit a wide range of assembly methods.

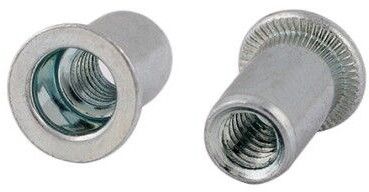

Hydranut Round is a blind threaded nut insertwith a round profile designed to provide load-bearing threads in thin sheet materials. Thelarge flangeversion gives theThin Sheet Nutsertrivet nut a greater load-bearing surface whilst aclosed-endprevents the access of dirt and fluids into the thread and electrical circuits.

• Can be used in very thin sheet materials from 0.50mm (0.02")
• Access needed from only one side of the application, for high speed assembly
• Provides a female thread in application
• Can be installed in pre-coated or post painted applications without damaging the surface
• Various platings available to increase the corrosion resistance
• Low profile head allows near flush fit to application and clamps two or more sheets of material together, Within the grip range
• Large flange head provides a load bearing surface and reinforces the hole to prevent push-out.
• Can be used as a spacer and can be supplied with an under-head seal
• Closed end prevents the ingress of dirt and fluids into thread and electrical circuits
• Can be used with hand tools, pneumatic tools and fully automated machines to suit a wide range of assembly

Hydranut SLD is a blind threaded nut insert with a round profiledesigned to provide load-bearing threads in thin sheet materials. Thelarge flangeversion gives theThin Sheet Nutsertrivet nut a greater load-bearing surface and closed-endprevents the access of dirt and fluids into the thread and electrical circuits.

• Can be used in very thin sheet materials from 0.50mm (0.02")
• Access needed from only one side of the application, for high speed assembly
• Provides a female thread in application
• Can be installed in pre-coated or post painted applications without damaging the surface
• Various platings available to increase the corrosion resistance
• Low profile head allows near flush fit to application and clamps two or more sheets of material together, within the grip range
• Large flange head provides a load bearing surface and reinforces the hole to prevent push-out.
• Can be used as a spacer and can be supplied with an under-head seal
• Closed end prevents the ingress of dirt and fluids into thread and electrical circuits
• Can be used with hand tools, pneumatic tools and fully automated machines to suit a wide range of assembly methods

Hydranut SPL is a blind threaded nut insertwith a round & splined body thus offering higher torque to turn ratio. They are available in Steel and Aluminium and provide load-bearing threads in thin sheet materials.

• Can be used in very thin sheet materials from 0.50mm (.020").
• Wide grip range provides a placing capability in material thickness ranging from 0.5 mm (.020") up to 7.9 mm (.312")
• Splined body provides increased torque-to-turn resistance over conventional non-splined inserts
• Low profile head allows near flush seating without special hole preparation
• Large flange version provides a large bearing surface which increases push-out performance
• Reduced tail end diameter offers ease of hole entry

Hydranut SQR is a blind threaded nut insert with a Square bodydesigned to provide very high torque-to-turn and pull-out performance in all materials. The Hydranut SQR rivet has alarge flangeto increase the load-bearing surface allowing the Hydranut SQR to be used in thin sheet materials.

• Square section and bore improves torque-to-turn by up to 350% in sheet metal compared to round body inserts
• Increases punch life compared to hexagonal geometries
• Superior pull-out performance
• Can be used for very thin sheet materials from 0.50mm (0.02")
• Access needed from only one side of the application, for high speed assembly
• Provide a female thread in application
• Can be installed in pre-coated or post painted applications without damaging the surface
• Clamp two or more sheets
• Various platings available to increase corrosion resistance
• Large flange head provides a load bearing surface and reinforces the hole to prevent push-out
• Can be used as a spacer and can be supplied with an under head seal
• Can be used with hand tools, pneumatic tools and fully automated machines to suit a wide range of assembly

Hydranut Jack is a blind threaded nut insert with a hexagonal profile on half body designed to provide high torque-to turn and pull-out performance, particularly in soft metals.

• Hexagonal section and bore improves torque-to-turn by up to 200% in sheet metal compared to round body inserts
• Superior pull-out performance
• Can be used for very thin sheet materials from 0.50mm (0.02")
• Double diameter body and lead-in chamfer provide easy insertion into hole
• Access needed from only one side of the application, for high speed assembly.
• Provide a female thread in application
• Can be installed in pre-coated or post painted applications without damaging the surface Various plating available to increase corrosion resistance
• Large flange head provides a load bearing surface and reinforces the hole to prevent push-out, that can be used as a spacer and can be supplied with an under head seal.
• Can be used with hand tools, pneumatic tools and fully automated machines to suit a wide range of assembly methods.

Hydraspeed-B is a blind Speed FasteningSystemhaving a bulbed tail providing consistent high clamp and shear, making it ideal for assembling many materials including metal, plastic and aluminum alloy. With easy installation and lower in-place costs than welding or nail rivet, this speed riveting system is extensively used for light fabrication needs.

• Bulbed tail and foreshortening of the fastener during installation ensures high clamp
• Bulbed tail and large head form provide a large bearing area for soft materials
• Tapered tail for ease of hole entry
• Expands radially during installation to ensure maximum hole fill
• Lower in-place costs than welding or nail rivets
• Hot tin dipped brass option for ease of soldering and good electrical continuity
• Stainless Steel option for applications subject to high temperatures or corrosion
• Placed using a unique repetition mandrel system for high speed assembly
• Can be bowl fed for larger volume applications using automated equipment

Hyspeed-C is a blind Speed FasteningSystem thatprovidesconsistent controlled clamp, ideal forsoftorbrittle materials.The light clamp of the Hydraspeed-C rivet makes it ideal for use as apivot pinorhose tail.

• Expands radially during installation to ensure maximum hole fill
• Lower in-place costs than welding or nail rivets
• Ideal pivot pin or hose tail
• Hot tin dipped brass option for ease of soldering and good electrical continuity
• Placed using a unique repetition mandrel system for high speed assembly
• Can be bowl fed for larger volume applications using automated equipment
• Internally tapered bore ensures consistent light clamp to reduce potential damage to Soft or brittle materials

Hyspeed-R is a blind Speed FasteningSystemhaving athreaded, removable speed fastenerthat combines thespeedof rivet placement with the benefits of being able toremoveandre-fasten. Using a Hydraspeed-R rivet removes the need for costly tapping or thread forming operation whilst creating a highervibration resistantthread lock compared to standard screws.

Circular expansion during installation to form a thread in host material

• Removable for servicing with a hex key and reusable
• Can be used to fasten most materials up to Vickers hardness 105 Hv5
• Eliminates the need for costly tapping or thread-forming operations
• Bright tin plated steel option for ease of soldering and increase electrical conductivity
• Placed using a unique repetition mandrel system for high speed assembly
• Can be bowl fed for larger volume applications using automated equipment
• Various lengths available providing high clamp loads
• Placed using a hexagon mandrel which expands the threaded diameter radially, Adjacent to its six corners.
• Providing a higher vibration resistant "thread lock" in the parent material Compared to standard screws

Avlock India's hydraulic Power Tool is a robust, rugged, high production tool, designed for rapid and secure installation of Lockbolts. The tool is designed to work in extreme conditions. The availability of a wide range of Hand held units, nose equipment and Hoses in different lengths make it possible to place the entire range of Lock bolts.

Our Hydraulic Powerpacks comply with the safety, health, and environmental protection standards set by theUKandEuropean Union (EU), and are certified by bothCEandUKCA.

features:

• Robust Steel Frame and reservoir
• Mounted On castors
• Includes oil filter/breather and level indicator
• Automatically switches to 'sleep' mode after apre-selected time period
• Available in Voltage220/1 Ph and 415/3 Ph, Dieseloption is also available
• Delivery Pressure (M Pa)-PuII-55.2 M Pa (8000psi)Return -20.7 M Pa(3000 psi)
• Enables rugged use and long working life in extreme condition
• Improves manoeuvrability and portability
• Easy to maintain and monitor
• Saves Power cost and avoids over heating
• Provides flexibility
• Provides Secure and High strengthplacements Of the lockbolts

RIVDOM eVNG 2 - Battery Riveting Tool for Blind Rivet Nuts and Blind Rivet Studs

THE WORLD'S MOST INNOVATIVE CORDLESS RIVETING TOOL FOR BLIND RIVET NUTS AND STUDS M3 - M12

• The new HONSEL battery riveter now offers the ultimate solution for cordless settings of blind rivets nuts and studs. Oriented to the demands of industrial series production, Rivdom eVNG 2 offers a wide range of use features and options. Innovative. Sturdy and reliable.
• features:
• Force and stroke controlled:Depending on the fastener to be processed and the application, Rivdom eVNG 2 can be operated either force- or stroke-controlled via the menu of the control display. For blind rivet nuts and studs with right- and left-hand threads
• INNOVATIVE MOTOR TECHNOLOGY:Rivdom eVNG 2 has a patented gearbox with two independently operated BLDC motors. As a result, the setting process can be significantly accelerated, since the return stroke and spindle removal run in parallel.
• Activation via Madrel or Trigger:Screwing on is performed by pushing the blind rivet nut onto the threaded mandrel or by pressing the trigger with which speed can also be variably controlled
• Perfected Battery Management:The powerful Honsel Li-ion batteries are fully charged in less than 30 minutes - 90% charge is reached after only approx. 20 minutes - So that charge cycle is always shorter than the battery - consuming working time.

Rivdom eBZ 1 - 20V battery rivet tool for blind rivets

• Small and light.With a weight of only 1.6 kg incl. battery, very compact dimensions and excellent ergonomics, the tool is perfectly equipped for daily use and every installation situation.
• Strong10.000 N setting force in combination with the new brushless motor makes it possible to reliably process any blind rivet up to 5.0 mm.
• FastWith a pure setting process of less than one second, 30 blind rivets can be processed in 60 seconds. This means that the Rivdom eBZ 1 is twice as fast as comparable tools and saves more than 45 minutes working time per day!
• features:
• All In One:For quick & easy changing between the diameters 2.4 mm, 3.0/3.2 mm, 4.0 mm and 4.8/5.0 mm completely without special accessory!
• Ergonomic Design:Rubberish universal handle sizes. Perfect housing geometry.
• Safety:IIntegrated stud holder
• Practical details:Alternatively rivet application plate
• Perfected Battery Management:The powerful Honsel batteries are fully charged in less than 30 minutes, so that charging cycle is always shorter than battery-consuming working time.

Rivdom eBZ 3 - 20V battery rivet tool for blind rivets

Maximum power with cordless riveting. 24.000 N!

The HONSEL Rivdom eBZ 3 battery riveter was developed specially for the demands of the setting of high-strength blind rivets with 6.4 and 7.8 mm diameter with grooved rivet stud!

The clamping jaws specially designed for this geometry and a modified clamping mechanism guarantee reliable and positive settings of FERO BULB high-strength blind rivets (or comparable products) with a stud diameter from 3.8 to 6.15 mm. This also helps to minimise wear on the clamping jaws.

features:

• Brushless and Wear-Free Motor Technology:Practically all HONSEL battery riveters have modern brushless DC (BLDC) motors developed in-house. They guarantee a practically wear-free, very long life cycle. Low current consumption and reduced heat development increase the battery life and efficiency.
• Individual return mode setting : RivSmart eBZ 3 offer an automatic return mode. Here the trigger merely has to be pressed slightly to start the automatic setting process. Immediately after the drop in the measured force with the shearing of the rivet mandrel, the tool moves back automatically to the starting position to keep the riveting cycle as short as possible.
• Automatic mandrel removal : Retainer nosepieces available as options ensure that the rivet cannot fall out of the tool so that one hand remains free

The power pack. For blind rivets up to 6.4 mm. The setting force of 20, 000 N and the very large stroke of 30 mm enables not only standard blind rivets but also high-strength versions such as HONSEL FERO Bulb and FERO Bolt (or comparable products) and folding blind rivets up to 6.4 mm diameter to be quickly and reliably set in one step. Uncompromisingly powerful.

feaures:

• Individual return mode setting :Rivdom eBZ 2 offer an automatic return mode. Here the trigger merely has to be pressed slightly to start the automatic setting process. Immediately after the drop in the measured force with the shearing of the rivet mandrel, the tool moves back automatically to the starting position to keep the riveting cycle as short as possible.
• Brushless and wear-free Motor Technology:Practically all HONSEL battery riveters have modern brushless DC (BLDC) motors developed in-house. They guarantee a practically wear-free, very long life cycle. Low current consumption and reduced heat development increase the battery life and efficiency.
• Automatic Mandrel Removal: Retainer nosepieces ensure that the rivet cannot fall out of the tool.

Very small, very light and in touch with the world. With RivSmart you can now take the first step towards blind rivet processing of tomorrow on the basis of decades of experience in the development of high-quality riveting tools and customised riveting automation technology. RivSmart can be easily integrated into our production processes, and with its documentation capabilities helps to optimize and monitor production.

Documented Process Monitoring

RivSmart Is Equipped With The DMSD-Lite Process Monitoring System Even In The Standard Version. Serious Errors Can Already Be Detected Here And The Number Of Set Fasteners Counted. Documentation Takes The Form Of A Process Stamp Containing Information Such As Tool Number, Time Stamp, Number, Error Codes, And Various Stroke And Force Measurements In Text Format In Separate Process Windows. Integration Of The Latest DMSD 2G Process Monitoring System With PLC Interface Directly Into Your Corporate Network Is Also Possible As An Option.

Adventages :

In Addition To Its Outstanding Riveting Properties, The RivSmart EBZ ZERO S Is Prepared For Integration Into An Increasingly Networked Production Environment

• Mobile control via Android or IOS app
• Service functions: Information on clamping jaw change, service intervals, emptying of mandrel collector, job counter, live statistics
• Many basic functions: Countdown, various counters, statistics, signal tones

RIVDOM eBZ ZERO - Battery-powered setting tool for blind rivets

Optimized and specially designed for the worlds most widely used blind rivet sizes up to 4.0 mm diameter.

In focus. Maximum weight reduction and compact dimensions thanks to the familiar RivSmart housing.The outstanding ergonomics and unrivalled light weight of only 1.3 kg guarantee the highest level of comfort!

The popular basic model. Inexpensive. Reliable. Proven.RivdomONE continues to impress. Indispensable for the work of many users today, the RivdomONE is equipped with many of the features of the HONSEL eBZ family, such as high-quality Li ion rechargeable batteries with RivdomPLUS charging technology, the flexible L-Boxx system and a powerful motor. The outstanding ergonomics and an extremely short trigger stroke allow quick and comfortable working.

The BZ 2 - a high quality, modern hand tool for the processing of blind rivets up to 5.0 mm (aluminum). Theplier has an excellent transmission and is characterized by a very good ergonomics.

Our "classic" among the hand tools. A hand tool with opening spring in a modern blister packaging. Robust and reliable for everyday use.

The lazy tong rivet tool BZ58 can process blind rivets with a diameter up to 6.4 mm (aluminum) reliably and powerfully. Nose pieces for chancing are inserted directly inthe tool and are so always accessible. The tool has a comfortable handle with which the force can be optimally implemented. A typical application is the processing of large amounts of blind rivets into floors.

The shear blind riveting tool BZ 58 can process blind rivets with a diameter up to 6.4 mm (aluminum) reliably and powerfully. Nose pieces for chancing are inserted directly inthe tool and are so always accessible.

The tool has a comfortable handle with which the force can be optimally implemented. A typical application is the processing of large amounts of blind rivets into floors.

In the processing of blind rivets, thelever tools BZ 70 and BZ 72 cover the rangefrom 3.0 upto 8.0 mm (BZ 70 3.0 - 6.0 aluminum / BZ 72 4.0- 8.0 aluminum). The main focusof this type of tool is on an especially durable and robust construction for daily use in workshops or on construction sites. Supplied in an impact-resistant plastic case. The replacement nosepieces arestoredin a locked box integrated in the mandrel container.

In the processing of blind rivets, the lever tool BZ 70 covers the range from 3.0 up to 6.0 mm (aluminum). The main focus of this type of tool is on an especially durable and robust construction for daily use in workshops or on construction sites. Supplied in an impact-resistant plastic case. The replacement nosepieces are stored in a locked box integrated in the mandrel container.

In the processing of blind rivets, thelever tools BZ 70 and BZ 72 cover the rangefrom 3.0 upto 8.0 mm (BZ 70 3.0 - 6.0 aluminum / BZ 72 4.0- 8.0 aluminum). The main focusof this type of tool is on an especially durable and robust construction for daily use in workshops or on construction sites. Supplied in an impact-resistant plastic case. The replacement nosepieces arestoredin a locked box integrated in the mandrel container.

In the processing of blind rivets, the lever tool BZ 72 covers the range from 4.0 up to 8.0 mm (aluminum). The main focus of this type of tool is on an especially durable and robust construction for daily use in workshops or on construction sites. Supplied in an impact-resistant plastic case. The replacement nosepieces are stored in a locked box integrated in the mandrel container.

With its extremely compact dimensions and its powerful integrated hydraulic, the high performance VNG 152 isthe perfect helper in tight mounting situations. Blind rivet nuts from M3 to M8 (aluminumandsteel) can be set quickly and easily.As usual for the VVG, the tool will be supplied completely with all necessary modification parts.

With its extremely compact dimensions and its powerful integrated hydraulic, the high performance VNG 152 isthe perfect helper in tight mounting situations. Blind rivet nuts from M3 to M8 (aluminumandsteel) can be set quickly and easily.As usual for theHONSEL, the tool will be supplied completely with all necessary modification parts.

A real bestseller - sold ten thousand times! A first-class hand tool for blind rivet nuts and blind rivet bolts with a 360rotating head for hard-to-reach processing positions. Included in a sturdy plastic case:an assortment of 150 blind rivet nuts and blind rivet bolts.

A real bestseller - sold ten thousand times! A first-class hand tool for blind rivet nuts and blind rivet studs with a 360rotating head for hard-to-reach processing positions. Included in a sturdy plastic case:an assortment of 150 blind rivet nuts and blind rivet studs!

Durable, robust, and reliable: the hand tool VNG 371 for the processingof blind rivet nuts(M5 to M10) and blind rivet bolts(M5 to M8). Tne VNG 371 is supplied in an impact-resistant plastic case and equipped with a comfortable drill rod for the easy lowering of the set connector and a quick-change system for the mandrels.

Very compact. Very powerful. Despite the very small dimensions, the conception as a ratchet tool allows the processing of blind rivets nuts up to M12 (aluminumand steel)!! The perfect tool for repair tasks is supplied in a high quality case in aluminum look.

The MULTI riveting tools are true all-rounders. They are the only tools which are capable of processing all three types of blind rivets (blind rivets, blind rivet nuts and blind rivet bolts). The high-quality hand tool MULTI 1 has a 360 rotating head that allows you to work even in positions which are difficult to access.

The MULTI riveting tools are true all-rounders. They are the only tools which are capable of processing all three types of blind rivets (blind rivets, blind rivet nuts and blind rivet bolts). The lever tool MULTI 5 with its folding arms combines a compact transport size with the perfect effect of long lever arms in use.

features.

• Rivet tool Multi 5
• each with 1 nose piece for blind rivets 3, 0/3, 2mm; 4, 0mm; 4, 8/5, 0mm; 6, 0mm; 6, 4mm
• each with 1 piece conversation kit for blind rivet nuts M4-M10
• each with 1 piece threaded sleeve for blind rivet studs M4-M8

The pull tool A1000-02000 has been designed to operate with a compressed air supply of between 70 lbf / in2 (5BAR) and 100 lbf / in 2 (7Kg/mm2).

A2000-02000 - Hydro - Pneumatic Riveting Tool

A3000-02000 - Hydro - Pneumatic Riveting Tool

A4000-02000 - Hydro - Pneumatic Riveting Tool

A5000-02000 Hydro - Pneumatic Riveting Tool

The HONSEL BZ 103A has been one of the most popular standard tools for reliable blind riveting up to 5 mm rivet diameter for years. Users particularly appreciate the very fast setting process and the outstanding ergonomics, as well as the low air consumption and reduced noise level.

This is the current version of the thousand fold proven standard tool for reliable blind rivet working.

A real classic. Low-noise, with outstanding ergonomics, extensive package including and necessary conversion parts in a high-quality packaging. Individually adjustable suction of the mandrel.

The really powerful tool for blind rivets up to 8.0 mm diameter! With a very long stroke of 25 mm it is also eminently suitable for the setting of high-strength FERO BOLT blind rivets.

The powerful specialist for high-strength blind rivets up to 8 mm diameter! High-strength FERO-BULB blind rivets are being set very comfortable and reliably through the combination of normal stroke, very high setting force (24.000 N) and clamping jaws that are optimized for the mandrels grooving. Our field service team presents generally all pneumatic-hydraulic tools on side.

BZ 143 A. The powerful specialist for high-strength blind rivets up to 7, 8 mm diameter! High-strength FERO-BULB blind rivets are being set very comfortable and reliably through the combination of normal stroke, very high setting force (24.000 N) and clamping jaws that are optimized for the mandrels grooving.

S2000-02000 Hydro - Pneumatic Hyspeed Riveting Tool

T1000-02000 Hydro - Pneumatic Threaded Insert Tool

T2000-02000 Pneumatic Threaded Insert Tool

The force-controlled tool for fast handling of large numbers in serial manufacture. The regulation through adjusting the necessary setting force guarantees that the blind rivet nut is always set in an optimal and material-preserving way. At the same time the VNG 703 features an user-friendly conception and easy-to-use handling. The switch from forward to backrun is extremely quick. Through light pressing on the mandrel the blind rivet nut is screwed on and after working screwed off automatically.

The special tool for SFM-PL folding blind rivet nuts. Through the very large stroke of up to 15 mm and accordingly extended mandrels these can be handled perfectly and easy.Convince yourself from the capability of our pneumatic-hydraulic setting tools. Our technical application consultants will present it to you directly at the location of use.
