Insulators

Leading Manufacturer, Supplier & Retailer of 33 Kv Composite Disc Insulator (t & C Type), 33 / 36 KV Silicon Polymeric Composite Disc Insulator (T & C Type), 33 Kv Composite Disc Insulator (b & S Type), 33 / 36 KV Silicon Polymeric Composite Disc Insulator (B & S Type) and 33 KV Composite Pin Insulator.

33 Kv Composite Disc Insulator (t & C Type)

We are offering 33 kv composite disc insulator (t & c type). advantage : light weight high mechanical strength easy to install vandal proof resist tracking resulting in lower line losses reduced leakage current excellent in salt, fog and severely contaminated environment no ultra violet, corona ozone degrading excellent hydrophobic high pollution flash over voltage wide range of service temperature -35 to +80° c better aesthetics

  • Specifications
    Product CodeSystem VoltageSpecified Mechanical Load in KDry Arc in mmCreepage Distance in mmDry Power Frequency Voltage with stand in KVWet Power Frequency Voltage with stand in KVLightning Impulse with stand in KVVisible Discharge Test
    BI-33/36-45/T&C33 KV45 KN370±586013711124827
    BI-33/36-70/T&C33 KV70 KN370±586013711124827
    BI-33/36-45/T&C.H.C33 KV5 KN375±5117515413524827
View Complete Details

33 / 36 KV Silicon Polymeric Composite Disc Insulator (T & C Type)

ADVANTAGE : Light Weight High Mechanical Strength Easy to Install Vandal Proof Resist tracking resulting in lower line losses Reduced leakage current Excellent in salt, fog and severely contaminated environment No ultra violet, corona ozone degrading Excellent hydrophobic High pollution flash over voltage Wide range of service temperature -35 to +80° C Better Aesthetics Specifications Product Code System Voltage Specified Mechanical Load in KN Dry Arc in mm Creepage Distance in mm Dry Power Frequency Voltage with stand in KV Wet Power Frequency Voltage with stand in KV Lightning Impulse with stand in KV Visible Discharge Test BI-33/36-45/T&C 33 KV 45 KN 370±5 900 137 111 248 27 BI-33/36-70/T&C 33 KV 70 KN 370±5 900 137 111 248 27 BI-33/36/T&C/H.C 33 KV 70/90 KN 375±5 1175 154 135 248 27

View Complete Details

33 Kv Composite Disc Insulator (b & S Type)

We are offering 33 kv composite disc insulator (b & s type). advantage : light weight high mechanical strength easy to install vandal proof resist tracking resulting in lower line losses reduced leakage current excellent in salt, fog and severely contaminated environment no ultra violet, corona ozone degrading excellent hydrophobic high pollution flash over voltage wide range of service temperature -35 to +80° c better aesthetics

  • Specifications
    Product CodeSystem VoltageSpecified Mechanical Load in KDry Arc in mmCreepage Distance in mmDry Power Frequency Voltage with stand in KVWet Power Frequency Voltage with stand in KVLightning Impulse with stand in KVVisible Discharge Test
    BI-33/36/B&S33 KV45 KN370±586013711124827
    BI-33/36/B&S33 KV70 KN370±586013711124827
    BI-33/36/B&S/H.C33 KV5 KN375±5117515413524827
View Complete Details

33 / 36 KV Silicon Polymeric Composite Disc Insulator (B & S Type)

ADVANTAGE : Light Weight High Mechanical Strength Easy to Install Vandal Proof Resist tracking resulting in lower line losses Reduced leakage current Excellent in salt, fog and severely contaminated environment No ultra violet, corona ozone degrading Excellent hydrophobic High pollution flash over voltage Wide range of service temperature -35 to +80° C Better Aesthetics Specifications Product Code System Voltage Specified Mechanical Load in KN Dry Arc in mm Creepage Distance in mm Dry Power Frequency Voltage with stand in KV Wet Power Frequency Voltage with stand in KV Lightning Impulse with stand in KV Visible Discharge Test BI-33/36/45/B&S 33 KV 45 KN 370±5 900 137 111 248 27 BI-33/36/70/B&S 33 KV 70 KN 370±5 900 137 111 248 27 BI-33/36/B&S/H.C 33 KV 70/90 KN 375±5 1175 154 135 248 27

View Complete Details

33 KV Composite Pin Insulator

  • Type Composite Pin Insulator
  • Shape Disc, Round
  • Certification CE Certified
  • Application Control Panels, Industrial Use
  • Color Available in Many Colors
  • Tensile Strength 0-25Mpa, 100-125Mpa
  • Feature Easy To Install, Electrical Porcelain
  • Warranty 1year
  • Temperature High Temperature, Low Temperature, Medium Temperature

ADVANTAGE : Light Weight High Mechanical Strength Easy to Install Vandal Proof Resist tracking resulting in lower line losses Reduced leakage current Excellent in salt, fog and severely contaminated environment No ultra violet, corona ozone degrading Excellent hydrophobic High pollution flash over voltage Wide range of service temperature -35 to +80° C Better Aesthetics

  • Specifications
    Product Code System Voltage Specified Mechanical Load in KN Dry Arc in mm Creepage Distance in mm Dry Power Frequency Voltage with stand in KV Wet Power Frequency Voltage with stand in KV Lightning Impulse with stand in KV Visible Discharge Test
    BI-33/36/PIN 33 KV 5 KN 370±5 860 137 111 248 27
    BI-33/36/PIN/H.C 33 KV 5/10 KN 375±5 1175 154 135 248 27
View Complete Details

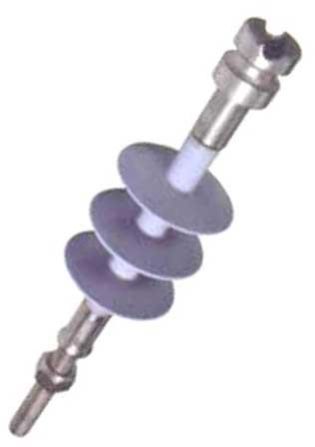

11 KV Composite Pin Insulator

  • Type Composite Pin Insulator
  • Material Composite
  • Shape Disc
  • Application Control Panels, Industrial Use
  • Color Grey
  • Tensile Strength 0-25Mpa, 100-125Mpa
  • Feature Easy To Install, Electrical Porcelain
  • Warranty 1year

ADVANTAGE : Light Weight High Mechanical Strength Easy to Install Vandal Proof Resist tracking resulting in lower line losses Reduced leakage current Excellent in salt, fog and severely contaminated environment No ultra violet, corona ozone degrading Excellent hydrophobic High pollution flash over voltage Wide range of service temperature -35 to +80° C Better Aesthetics

  • Specifications
    Product Code System Voltage Specified Mechanical Load in KN Dry Arc in mm Creepage Distance in mm Dry Power Frequency Voltage with stand in KV Wet Power Frequency Voltage with stand in KV Lightning Impulse with stand in KV Visible Discharge Test
    BI-11-PIN 11 KV 5 KN 160 320 70 50 129 9
    BI-11-PIN/H.C 11 KV 5 KN 140 340 78 60 135 9
    BI-24-PIN 24 KV 5 KN 215±5 675 90 78 200 18
View Complete Details

11 Kv Composite Disc Insulator (t & C Type)

We are offering 11 kv composite disc insulator (t & c type). advantage : light weight high mechanical strength easy to install vandal proof resist tracking resulting in lower line losses reduced leakage current excellent in salt, fog and severely contaminated environment no ultra violet, corona ozone degrading excellent hydrophobic high pollution flash over voltage wide range of service temperature -35 to +80° c better aesthetics

  • Specifications
    Product CodeSystem VoltageSpecified Mechanical Load in KDry ArcCreepage Distance in (mm)Dry Power freauency Voltage with stand in KVWet Powder Frequency Voltage with stand in KVLightning Impluse with stand in KVVisible Discharge Test
    BI-11 - 45/T&C11 KV45 KN16032070501299
    BI-11 - 75/T&C11 KV70 KN16032070501299
    BI-11 - 45/T&C/H.C11 KV45 KN14034078601359
    BI-11 - 75/T&C/H.C11 KV70 KN14034078601359
View Complete Details

11 KV Silicon Polymeric Composite Disc Insulator (T & C Type)

ADVANTAGE : Light Weight High Mechanical Strength Easy to Install Vandal Proof Resist tracking resulting in lower line losses Reduced leakage current Excellent in salt, fog and severely contaminated environment No ultra violet, corona ozone degrading Excellent hydrophobic High pollution flash over voltage Wide range of service temperature -35 to +80° C Better Aesthetics Specifications Product Code System Voltage Specified Mechanical Load in KN Dry Arc Creepage Distance in mm Dry Power Frequency Voltage with stand in KV Wet Power Frequency Voltage with stand in KV Lightning Impulse with stand in KV Visible Discharge Test BI-11-45/T&C 11 KV 45 KN 160 320 70 50 135 9 BI-11-70/T&C 11 KV 70 KN 160 320 70 50 135 9 BI-11-45/T&C/H.C 11 KV 45 KN 140 340 78 60 135 9 BI-11-70/T&C/H.C 11 KV 70 KN 140 340 78 60 135 9

View Complete Details

11 Kv Composite Disc Insulator (b & S Type)

We are offering 11 kv composite disc insulator (b & s type). advantage : light weight high mechanical strength easy to install vandal proof resist tracking resulting in lower line losses reduced leakage current excellent in salt, fog and severely contaminated environment no ultra violet, corona ozone degrading excellent hydrophobic high pollution flash over voltage wide range of service temperature -35 to +80° c better aesthetics .

  • Specifications
    Product CodeSystem VoltageSpecified Mechanical Load in KDry ArcCreepage Distance in mmDry Power Frequency Voltage with stand in KVWet Power Frequency Voltage with stand in KVLightning Impulse with stand in KVVisible Discharge Test
    BI-11-45/T&C11 KV45 KN16032070501299
    BI-11-75/T&C11 KV70 KN16032070501299
    BI-11-45/T&C/H.C11 KV45 KN14034078601359
    BI-11-70/T&C/H.C11 KV70 KN14034078601359
View Complete Details

11 KV Silicon Polymeric Composite Disc Insulator (B & S Type)

  • Type Composite Insulator
  • Material Composite
  • Shape Disc, Round
  • Certification CE Certified
  • Application Control Panels, Industrial Use, Power Grade
  • Color Grey
  • Tensile Strength 0-25Mpa, 100-125Mpa

ADVANTAGE :     Light Weight     High Mechanical Strength     Easy to Install     Vandal Proof     Resist tracking resulting in lower line losses     Reduced leakage current     Excellent in salt, fog and severely contaminated environment     No ultra violet, corona ozone degrading     Excellent hydrophobic     High pollution flash over voltage     Wide range of service temperature -35 to +80° C     Better Aesthetics

  • Details
    Product Code System Voltage Specified Mechanical Load in KN Dry Arc in mm Creepage Distance in mm Dry Power Frequency Voltage with stand in KV Wet Power Frequency Voltage with stand in KV Lightning Impulse with stand in KV Visible Discharge Test
    BI-11-45/B&S 11 KV 45 KN 160 320 70 50 135 9
    BI-11-70/B&S 11 KV 70 KN 160 320 70 50 135 9
View Complete Details

33 KV Silicon Polymeric Composite Disc Insulator

ADVANTAGE : Light Weight High Mechanical Strength Easy to Install Vandal Proof Resist tracking resulting in lower line losses Reduced leakage current Excellent in salt, fog and severely contaminated environment No ultra violet, corona ozone degrading Excellent hydrophobic High pollution flash over voltage Wide range of service temperature -35 to +80° C Better Aesthetics Specifications Product CodeSystem VoltageSpecified Mechanical Load in KNDry Arc in mmCreepage Distance in mmDry Power Frequency Voltage with stand in KVWet Power Frequency Voltage with stand in KVLightning Impulse with stand in KVVisible Discharge TestBI-3336-45T&C33 KV45 KN370±590013711124827BI-3336-70T&C33 KV70 KN370±590013711124827BI-3336T&CH.C33 KV7090 KN375±5117515413524827

View Complete Details
