Bio Techno Lab

Marine Lines, Mumbai, Maharashtra

We bring forth the cutting-edge range of Vacuum Oven with double walled construction. The Vacuum Oven has inner chamber of thick stainless steel 304 quality. The outer chamber of Round & Rectangular Vacuum Oven is made up of mild steel sheet pre-greased and pretreated for rust proofing and is also powder coated. The Vacuum Oven has high-grade glass wool insulation between the chambers to avoid heat loss.

Details :

• Uniform drying under Vacuum
• Temperature ranges from 50°C to 200°C with ± 2°C accuracy
• Precise Vacuum control to 30Hg displayed on Analog guage
• Temperature Controlled by digital Temperature Indicator cum controller
• Vacuum chamber is wrapped with set of high quality heaters for quick and uniform heating
• Door has a thick tempered toughned glass window
• Perfectly sealed with silicon rubber gasket for observation without disturbing thermal condition
• Proper door alignment to ensure excellent Vacuum performance and operators’ safety
• Positive screw to tighten the lid to obtain perfect seal
• Fitted with diaphragm valves and vacuum gauge
• Control panel with Temperature Controller, Switches and indicating lamps provided on the front panel.
• Working chamber 30 x 22.5 Cm
• Suitable for 230V, AC, 50Hz
• Available in rectangular chamber also
• Vacuum control and relief valves located on front of unit for convenient monitoring

We are offering Water Still to the clients. Our Water Still is made up of complete S.S. designed to provide pyrogen free distilled water of very high degree of purity. Water Still, offered by us, is fitted with immersion type heating element, and has heating elements which are easy to replace. Available in several sizes, this Water Still has iron bracket to be fixed on wall.

Features :

• Easy wall mounting
• Condenser cave be opened easily for periodic cleaning
• The still is fitted with immersion type heating element
• Provided with iron bracket to be fixed on the wall
• Easy replaceable heating elements
• The lid perfectly rest and get inside the collar on head of the tank which avoids loss of steam and jumping of lid
• Various sizes available

Known for its light weight and fast heating, our Muffle Furnace is widely used in laboratories. This Muffle Furnace is useful for ashing, fasions, igniting and heat treating of small parts in chemical, industrial fields, and colleges. Outer body of Muffle Furnace is made up of heavy gauge M.S. / G.I duly powder coated. Further, it has digital temperature controller cum indicator to control the temperature.

Highlights :

• Inner muffle with high temperature
• Insulating material
• Maximum Temperatures 1000^oC / 1200^oC
• Working temperature 930^oC/1130^oC
• Temperature Controlled by digital temperature controller cum indicator
• Heating elements made of kenthal wire would extremely on the muffle.
• Control panel fitted on top of the units with indicating lamps & switches
• A uniform heat distribution through all 4 sides with kental wire
• A special solid state silver fuse for protection to elements in case of over-heating

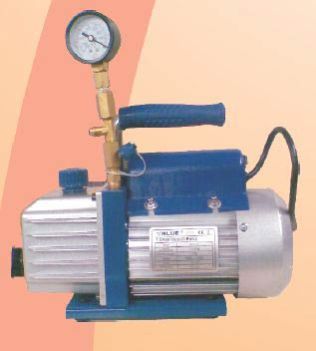

We have specialized in the manufacturing and supplying of Vacuum Pump in all over the country. The Vacuum Pump is majorly used for filtration purpose and also for vacuum oven. The Vacuum Pump has ¼ HP motor and it is supplied with vacuum gauge. The Vacuum Pump has excellent performance coupled with longer service life.

The Vacuum Filter Holder is used for sterility test to hold membrane completely. The Vacuum Filter Holder, which we offer, is made up of Stainless Steel of 316 quality. We are known as one of the leading Vacuum Filter Holder Manufacturers and Suppliers in India. The Vacuum Filter Holder comes in different sizes like 47 mm, 142 mm and 293 mm.

Specifications

• For Sterility Test
• Vacuum filter holder for sterility test to hold membrane
• completely made up of Stainless Steel 316 quality.

Size

• 47 mm S.S
• 142 mm S.S.
• 293 mm S.S.

A Laminar Air Flow is designed to provide working space comprising as standard features. The Laminar Air Flow is a HEPA filter having efficiency of 99.97% down to 0.3% microns, prefilter 90% down to 5 microns, suitable motor blowing assemblies, working table top side. The Laminar Air Flow also has an acrylic panel, fluorescent tube light & pressure differential manometer inside shelf that is made of stainless steel.

Details :

• A Laminar Flow is designed to provide working spacecomprising as standard features.
• HEPA filter having efficiency of 99.97% down to 0.3% microns, prefilter 90% down to 5 microns, suitable motor blowing assemblies, working table top side.
• Acrylic panel, fluorescent tube light & pressure differentialManometer Inside shelf made of Stainless Steel.

We are the main supplier of this product.

The Laboratory Flocculator, offered by us, is used to estimate the dosing of alums and such other coagulants for treatment of water & effluent. With the use of our Laboratory Flocculator, the samples are easily viewed by diffused base illumination with fluorescent tube placed below plastic plate & black background. The Laboratory Flocculator is fitted with D.C. motor of 1/20 HP with variable speed up to 50-100 RPM controlled by speed regulator.

Other Details : Provided with stainless steel paddles with adjustable spacers to adjust the depth of paddles

• Estimate the dosing of alums & such other coagulants for treatment of water & effluent.
• Samples are easily viewed by diffused base illumination with fluorescent tube placed below plastic plate & black background.
• Fitted with D.C. motor of 1/20 HP with variable speed upto 50-100 RPM controlled by speed regulator.
• Provided with stainless steel paddles with adjustable spacers to adjust the depth of paddles.

No. of Stirrers

• Two Stirrers
• Four Stirrers
• Six Stirrers

Antibiotic Zone Reader is most suitable to measure the diameter of the inhibited zone in microbiology, botany, zoology, bacteriology & pathology labs. Our Antibiotic Zone Reader is unique in design & suitable for measuring the diameter of inhibited zone within the range of 0 to 35 mm with accuracy 0.2 mm. Our Antibiotic Zone Reader determines the strength of antibiotic materials rapidly and results obtained are reliable.
Highlights :

• Reliable
• Unique design
• Provides rapid result
• Accurate

We are offering superior quality Automatic Karl Fischer. Our Automatic Karl Fischer apparatus has 25ml burette, 250ml titration beaker with Teflon dish cover, 2-electrode & solenoid valve, and 2 pieces apparatus. Stirring portion is provided separately in our Automatic Karl Fischer to prevent spillage of corrosive regent on main electronic circuit box & for easy maintenance. Our Automatic Karl Fischer has a minimum detect ability of moisture 0.25mg with an accuracy of ±0.125 mg.

Components :

• 25 ml burette
• 50 ml titration beaker with Teflon dish cover
• 2-electrode & solenoid valve
• 2 pieces apparatus

We are one of the most reliable Manufacturers and Suppliers of Leak Test Apparatus. Working chamber of the Leak Test Apparatus is made up of Poly Carbonate Desiccators and outer chamber is manufactured from high grade stainless steel. This Leak Test Apparatus is widely used in biotechnology laboratories for testing any kind of leakage that may disturb the accuracy of experiment.

Highlights :

• Digital Timer : 99 min
• Vacuum Pump : Oil less Vacuum pump provided with DIAL type vacuum gauge & vacuum release valve
• Provides highly précised results

Friability Test Apparatus (digital), offered by us, is used to determine the durability of tablets from the time of production till the time of use. Friability Test Apparatus, offered by us, has a transparent plastic perspex drum with a cover. Friability Test Apparatus also features shaped radial fixed blades to which carry the tablet up. Complete with rotating drum made of acrylic sheet with blade, which carries the tablet up to pre-determined height while the drum is rotating at prescribed speed and up to pre-determined height while the drum is rotating at prescribed speed & rotation period determined by timer.
Friability single drum digital timer : 99.9 minute

Friability double drum digital timer : 99.9 minute

Housing of Digital Colony Counter is constructed with heavy gauge mild steel, is finished with powder coated epoxy paint. Counting plate with illuminated standard wolfhugel ruling is fitted with magnifying glass on front slope of Digital Colony Counter. Each touch of marking pencil in the colony count by 1 & the flowing LED Digital depicts the total colony count. Maximum colony count possible in our Digital Colony Counter is up to 9999 (4 digit display).

Features :

• A fluorescent light
• Manual reset of digital display
• On off switch
• Counting plate
• 100 mm diameter lens
• Cord & plug
• Works on 220 v ac
