Level Switches

Electrical Level Switches are the best choice to automate industrial processes. A magnetic sensor is activated by the Float Ball's Magnetic Field, opening or closing a circuit. It can be used inside a tank to control the level of the fluid inside. For example: A hydraulic pump can be turned on when the fluid's level gets too low and this pump can More..

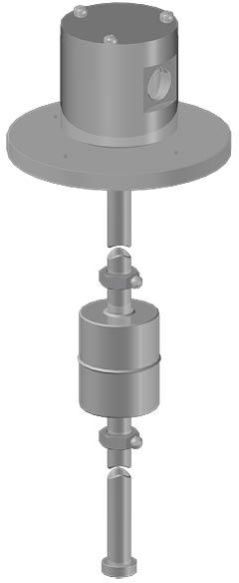

Level Switch (1 Electrical Contact)

Min. Order (MOQ) 1 Piece(s)
Brand Name Kit Nivel
Head (Terminal Box) Aluminium
Process Connection Flange (Ø120mm) - Steel
Stem Ø1/2 inch - Stainless Steel 316L
Magnetic Float Ball Ø45mm - Stainless Steel 316L
Max. Temperature 105°C (Recommended)
Warranty 5 years

KNBM-5201 is an electrical level switch which can be used in different kinds of tanks for gauging the level of a particular fluid (water, oil, etc.) or to automatize an industrial process. This model has 1 magnetic sensor which is activated by the float ball's magnetic field. When the fluid level inside the tank rises, the float arrives at the level where the sensor is activated, opening or closing the contact (according customer's need). When the fluid level in the tank falls, the float exits the sensor's activation zone and the contact is opened (or closed). The stem lenght and the contact point position are defined by the customer.

Additional Information:

Payment Terms : T/T, Western Union,

Packaging Details : Includes the Technical Drawing and Installation Manual in the customer's language.

Delivery Time : 3 ~ 5 days to dispatch

View Complete Details

Ask Latest Price & Details

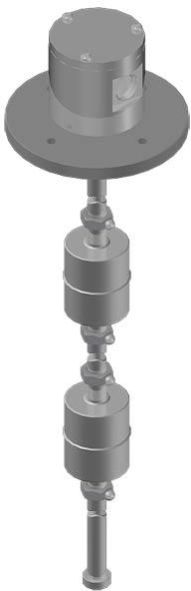

Level Switch

Min. Order (MOQ) 1 Piece
Brand Name Kit Nivel
Head (Terminal Box) Aluminium
Process Connection Flange (Ø120mm) - Steel
Stem Ø1/2 inch - Stainless Steel 316L
Magnetic Float Ball Ø45mm - Stainless Steel 316L
Max. Temperature 105°C (Recommended)
Warranty 5 years

Knbm-5202 is an electrical level switch which can be used in different kinds of tanks for gauging the level of a particular fluid (water, oil, etc.) or to automatize an industrial process. This model has 2 magnetic sensors which are activated by the float balls's magnetic field. When the fluid level inside the tank rises, the float arrives at the level where the sensor is activated, opening or closing the contact (according customer's need). When the fluid level in the tank falls, the float exits the sensor's activation zone and the contact is opened (or closed). The stem lenght and the contact points positions are defined by the customer.

Additional Information:

Payment Terms : T/T, Western Union,

Packaging Details : Includes the Technical Drawing and Installation Manual in the customer's language.

Delivery Time : 3 ~ 5 days to dispatch

View Complete Details

Ask Latest Price & Details

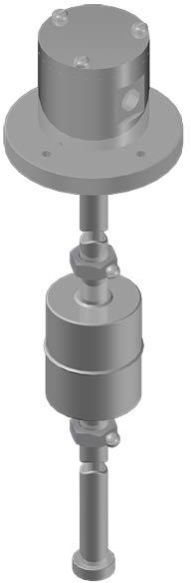

Level Switch

Min. Order (MOQ) 1 Piece(s)
Brand Name Kit Nivel
Head (Terminal Box) Aluminium
Process Connection Flange (Ø80mm) - Steel
Stem Ø1/2 inch - Stainless Steel 316L
Magnetic Float Ball Ø45mm - Stainless Steel 316L
Max. Temperature 105°C (Recommended)
Warranty 5 years

We are offering level switch. Knbm-5001 is an electrical level switch which can be used in different kinds of tanks for gauging the level of a particular fluid (water, oil, etc.) or to automatize an industrial process. This model has 1 magnetic sensor which is activated by the float ball's magnetic field. When the fluid level inside the tank rises, the float arrives at the level where the sensor is activated, opening or closing the contact (according customer's need). When the fluid level in the tank falls, the float exits the sensor's activation zone and the contact is opened (or closed). The stem lenght and the contact point position are defined by the customer.

Additional Information:

Payment Terms : T/T, Western Union,

Packaging Details : Includes the Technical Drawing and Installation Manual in the customer's language.

Delivery Time : 3 ~ 5 days to dispatch

View Complete Details

Ask Latest Price & Details

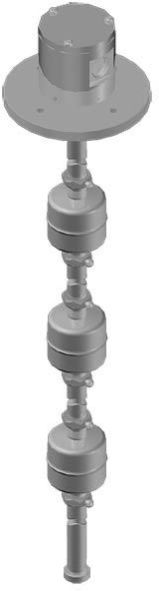

Level Switch

Min. Order (MOQ) 1 Piece
Brand Name Kit Nivel
Head (Terminal Box) Aluminium
Process Connection Flange (Ø120mm) - Steel
Stem Ø5/8 inch - Stainless Steel 316L
Magnetic Float Ball Ø50mm - Stainless Steel 316L
Max. Temperature 105°C (Recommended)
Warranty 5 years

Knbm-5203 is an electrical level switch which can be used in different kinds of tanks for gauging the level of a particular fluid (water, oil, etc.) or to automatize an industrial process. This model has 3 magnetic sensors which are activated by the float balls's magnetic field. When the fluid level inside the tank rises, the float arrives at the level where the sensor is activated, opening or closing the contact (according customer's need). When the fluid level in the tank falls, the float exits the sensor's activation zone and the contact is opened (or closed). The stem lenght and the contact points positions are defined by the customer.

Additional Information:

Packaging Details : Includes the Technical Drawing and Installation Manual in the customer's language.

Delivery Time : 3 ~ 5 days to dispatch

View Complete Details

Ask Latest Price & Details

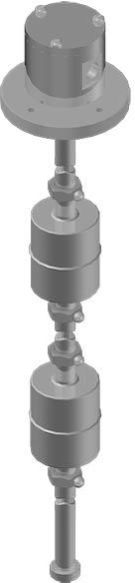

Level Switch (2 Electrical Contacts)

Min. Order (MOQ) 1 Piece(s)
Brand Name Kit Nivel
Head (Terminal Box) Aluminium
Process Connection Flange (Ø80mm) - Steel
Stem Ø1/2 inch - Stainless Steel 316L
Magnetic Float Ball Ø45mm - Stainless Steel 316L
Max. Temperature 105°C (Recommended)
Warranty 5 years

KNBM-5002 is an electrical level switch which can be used in different kinds of tanks for gauging the level of a particular fluid (water, oil, etc.) or to automatize an industrial process.This model has 2 magnetic sensors which are activated by the float balls's magnetic field.When the fluid level inside the tank rises, the float arrives at the level where the sensor is activated, opening or closing the contact (according customer's need).When the fluid level in the tank falls, the float exits the sensor's activation zone and the contact is opened (or closed).The stem lenght and the contact points positions are defined by the customer.

Additional Information:

Payment Terms : T/T, Western Union,

Packaging Details : Includes the Technical Drawing and Installation Manual in the customer's language.

Delivery Time : 3 ~ 5 days to dispatch

View Complete Details

Ask Latest Price & Details

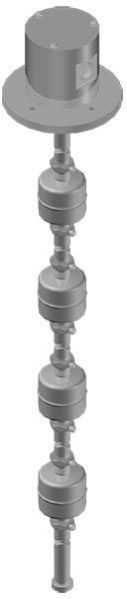

Level Switch

Min. Order (MOQ) 1 Piece
Brand Name Kit Nivel
Head (Terminal Box) Aluminium
Process Connection Flange (Ø120mm) - Steel
Stem Ø5/8 inch - Stainless Steel 316L
Magnetic Float Ball Ø50mm - Stainless Steel 316L
Max. Temperature 105°C (Recommended)
Warranty 5 years

Knbm-5204 is an electrical level switch which can be used in different kinds of tanks for gauging the level of a particular fluid (water, oil, etc.) or to automatize an industrial process. This model has 4 magnetic sensors which are activated by the float balls's magnetic field. When the fluid level inside the tank rises, the float arrives at the level where the sensor is activated, opening or closing the contact (according customer's need). When the fluid level in the tank falls, the float exits the sensor's activation zone and the contact is opened (or closed). The stem lenght and the contact points positions are defined by the customer.

Additional Information:

Payment Terms : T/T, Western Union,

Packaging Details : Includes the Technical Drawing and Installation Manual in the customer's language.

Delivery Time : 3 ~ 5 days to dispatch

View Complete Details

Ask Latest Price & Details
