Brass nuts and inserts india
location Udyog Nagar, Jamnagar, Gujarat

Write a Review
Call Now Call Now

Our Products

  1. Nuts Bolts And Fasteners 7 Products available
  2. Nut Fastener 3 Products available
  3. Bolts 1 Products available
  4. Ppr Pipe Fittings 1 Products available
  5. Bushings 1 Products available

Nuts Bolts And Fasteners

We are leaders in the market for providing best range of Thermoset Brass Inserts, Rubber Brass Molding Inserts, Brass Threaded Inserts, Brass Plastic Moulding Inserts and Brass Injection Moulding Inserts

Thermoset Brass Inserts

Thermoset Brass Inserts

Threads of Brass Nuts and Brass inserts: Metric , NPT , BSP, BSPT, NPTF, UNEF, UNS, UNF , BSF, UNC, NPS, NPSM, BSW

Sizes of Brass Nuts and Brass inserts: 3mm 4mm 5mm 6mm 8mm 10mm 12mm 16mm 18mm 20mm 24mm 25mm 26mm 28mm 30mm 32mm 33mm 40mm 50mm M3 M4 M5 M6 M8 m10 m12 m16 M18 M20 M24 M25 M26 M28 M30 M32 M40 M50 1/8 5/32 3/16 1/4 5/16 3/8 1/2 7/8 3/4 1 11/4 11/2 2 2/12
Related Words :
brass inserts plastic, thread inserts for metal, injection mold manufacturers, rotational casting machine, injection mold equipment, roto molding machine, ijection moulding,
View Complete Details
Ask Latest Price & Details

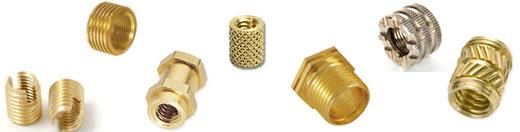

Rubber Brass Molding Inserts

Rubber Brass Molding Inserts
We offer inserts made from Brass for rubber moulding. Further the round knurled inserts, hexagonal inserts and square inserts are also available. The inserts are available with diamond, straight or unidirectional Knurling.
Material
BS 2874 CZ 121 Pb3 UNS C36000 CDA 360 BS 2874 - CZ 131 CW 614 N EN 12164 : 1998 Brass to DIN EN 12164 CW614N CW617N CW608N High Tensile Brass Rods BS - 218 Modified Forging Brass CZ-112 CZ-113 CZ-108Lead free Riveting Brass Rods CZ-109 CDA 360 Brass CZ 121 Free machining brass
Free Cutting Brass as per BS 249 type (i) or
High Grade Free Cutting Brass or
Any special Brass Material Composition as per customers requirement
Threads
ISO Metric (MM Threads).
BA
BSW
BSP & BSPT
NPT
UNC
UNF
UNEF
Salinet feature
Within tolerance of 0.05mm.
Thread Size Starts from M1.6 to M50. BA, BSW, BSPT, BSF & American Threads like UNC, UNF, UNEF, and NPT are also available as per custom requirements. Table Section
Straight, Diamond, opposite diagonal etc. are the knurling options available to give solid gripping to Moluding applications.
Inserts available as per Class 2B ANSI/ASME B1.1 & Confirms to ISO metric 6H Thread Standards.
Inserts with collar series provides Options to use Flange to make Electric Contact Ultrasonic series with Opposing Diagonal Knurls provide excellent Torque Resistance.
Vertical Undercuts in Tri Series Provides Superior Tensile Strength
Blind thread or closed bottom Inserts prevents plastic from entering the bottom of the insert.
Finish of Brass Rubber Moulding inserts
Natural
Nickle Plated
Tin Plated or
Any type of Coating As Per Customer Specification
We are the leading manufacturer of Brass threaded inserts for plastics Industries , Communication equipments , Automotive Industries, Electrical & Wiring Device Cases etc. We offer a full line of brass inserts for all methods of installation , including: ultrasonic , heat, therm Any kind of special Brass Insert can be developed and supplied exactly as per customer Drawings, Specification, Design, Samples & Requirement. Brass Inserts Brass Round Knurled Inserts Brass Hexagonal Inserts Brass Square Inserts Brass Molding Inserts Molding Inserts Brass Teflon Rubber Molding Inserts Brass Straight Knurled Molding Inserts Brass Press Lock Type Inserts Self Tapping Brass Inserts Knurling Inserts CPVC Molding Inserts UPVC Molding Inserts Brass Plastic Threaded Inserts Wood Inserts Helical Knurled Inserts Brass Cross Knurled Inserts.

Threads of Brass Rubber Moulding inserts: Metric , NPT , BSP, BSPT, NPTF, UNEF, UNS, UNF , BSF, UNC, NPS, NPSM, BSW

Sizes of Brass Rubber Moulding inserts: 3mm 4mm 5mm 6mm m10 m12 m16 M18 M20 M24 M25 M26 M28 M30 M32 M40 M50 1/8 5/32 3/16 1/4 5/16 3/8 1/2 7/8 3/4 1 11/4 11/2 2 2/12 8mm 10mm 12mm 16mm 18mm 20mm 24mm 25mm 26mm 28mm 30mm 32mm 33mm 40mm 50mm M3 M4 M5 M6 M8
We produce:
rubber moulding, plastic molding, plastic injection molding, plastic molding companies, brass threaded inserts, threaded brass inserts, threaded inserts for plastic, plastic molding manufacturers, threaded inserts, plastic mold manufacturers, plastic prototype molding, threaded inserts plastic
View Complete Details
Ask Latest Price & Details

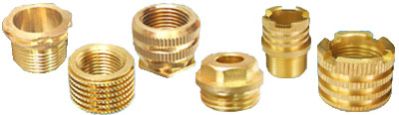

Brass Threaded Inserts

Brass Threaded Inserts
We offer threaded inserts made from brass. Our range of Brass threaded inserts is accepted worldwide. We also manufacture plastic inserts and wood inserts. Further the round knurled inserts, hexagonal inserts and square inserts are also available. The inserts are available with diamond, straight or unidirectional knurling.
Brass Inserts, Brass Molding Inserts
Brass molding sinerts Threaded Inserts Brass inserts Knurled Inserts Brass Inserts for Plastics
Brass Inserts for Wood and Clipboard Ultrasonic range of Brass Inserts Heatbit range of Brass Inserts
Press-in Inserts with and without collars Moulded-in Inserts
Also Available :
Brass Round Knurled Inserts
Brass Hexagonal Inserts
Brass Square Inserts
Threads as per International Go & Not Go Standards.
  • Deep Groove for maximum Pull Out Resistance.
  • Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the brass inserts.
  • Knurling Available :- Diamond- Straight- Unidirectional
  • Both blind and through brass inserts are available with no minimum Qty.
Material :
  • BS 2874 CZ 121 Pb3 UNS C36000 CDA 360 BS 2874 - CZ 131 CW 614 N EN 12164 : 1998 Brass to DIN EN 12164 CW614N CW617N CW608N High Tensile Brass Rods BS - 218 Modified Forging Brass CZ-112 CZ-113 CZ-108Lead free Riveting Brass Rods CZ-109 CDA 360 Brass CZ 121 Free machining brass
  • High Grade Free Cutting Brass or
  • Any special Brass Material Composition as per customers requirement
  • ISO Metric (MM Threads) UN
Finish And Coating :
  • Natural, Nickle Plated, Tin Plated or any coating as per customer specification.

Threads of Brass Nuts and Brass threaded inserts: Metric , NPT , BSP, BSPT, NPTF, UNEF, UNS, UNF , BSF, UNC, NPS, NPSM, BSW

Sizes of Brass threaded inserts : 3mm 4mm10 m12 m16 M18 M20 M24 M25 M26 M28 M30 M32 M40 M50 1/8 5/32 3/16 1/4 5/16 3/8 1/2 7/8 3/4 1 11/4 11/2 2 2/12 5mm 6mm 8mm 10mm 12mm 16mm 18mm 20mm 24mm 25mm 26mm 28mm 30mm 32mm 33mm 40mm 50mm M3 M4 M5 M6 M8 m
We offer from our factory in jamnagar: Brass threaded inserts, threaded brass inserts, thread inserts for metal, threaded inserts, threaded inserts for wood, threaded inserts for wood, threaded inserts wood, threaded inserts for metal,

We can also produce brass bolts, thread inserts for wood, plastic threaded inserts, metal threaded inserts, threaded wood inserts, steel threaded inserts, stainless steel threaded inserts, metric threaded inserts, fireplace inserts, threaded inserts plastic, threaded inserts for aluminum etc

Brass Nuts and Inserts India - manufacturers and exporters o Brass threaded inserts from Jamnagar -India
View Complete Details
Ask Latest Price & Details
Brass Plastic Moulding Inserts

Brass Plastic Moulding Inserts
  • Hexagonal Inserts Brass Straight Knurled Inserts
  • Brass M/F Inserts for CPVC Fittings Brass Self Tapping Inserts
  • Brass Inserts For Soft Tubing Wood Fit Brass Inserts
We offer plastic moulding inserts threaded inserts for plastics are brass screw machine products designed to provide strong metal threads in plastic components. Our range of Brass plastic moulding insertsis available in various knurl and undercut patterns to suit almost any threaded assembly application in plastics. Our range of Brass of Brass plastic moulding inserts is accepted worldwide. Brass plastic moulding inserts are designed to provide the high performance strength values of molded-in inserts while still retaining all of the economical advantages of insert installation after molding.
Ultrasert I Brass Inserts are fluted inserts designed for ultrasonic moulding.
Ultrasert II
Ultrasert II Inserts are the most widely accepted and used type of brass insert in the plastics industry today
Are tapered brass inserts designed for ultrasonic or heat installation into thermoplastics and structural foam materials
Features parallel diagonal knurls for optimum torque resistance and undercuts for superior tensile strength
Flange provides positive pressure to the molten plastic, assuring complete filling of the knurls and undercuts for high assembly strength
Tapered design allows for rapid and accurate positioning of the Ultrasert II Insert prior to installation
Available in two standard lengths for each thread size for design flexibility
Excellent design for automated systems
View Complete Details
Ask Latest Price & Details
Brass Injection Moulding Inserts

Brass Injection Moulding Inserts

Injection Moulding Inserts Features

Available Brass injection moulding inserts Brass inserts in metric UNC UNF BSW BA BSP ISO metric DIN threaded Brass molding inserts for injection and roto molding . Moulding inserts molding turned parts are also available as per customer design and samples plastic moulding PVC injection moulding rubber molding. We are largest manufacturer exporters suppliers of Brass moulding insert from INDIA
/8" , 5/32", 3/16", 1/4" , 5/16" , 3/8" , 1/2" , 3/4 3mm 4mm 5mm 6mm 8mm 10mm BSW UNC UNF BSP NPT NPS Threads

Brass Inserts PRODUCTS >> Brass Inserts, Brass Moulding Inserts, Brass Plastic Moulding Inserts, Brass Injection Moulding Inserts, Brass Proto Moulding Inserts, Plastic Moulding Inserts, Thermoplastic Moulding Inserts, Injection Moulding Inserts, Cold Moulding Inserts, Moulded Plastic Inserts, Brass Threaded Inserts, Brass Knurled Inserts We offer a wide range of Brass Inserts, Brass Moulding Inserts, Injection Moulding Inserts, Brass Proto Moulding Inserts, Thermoplastic Moulding Inserts with lot of different sizes, designs, knurling, thread and coating for Plastic Industry.
You can get High Performance Threaded Inserts, Brass Knurled Inserts with reasonable price and great service. We manufacture Plastic Moulding Inserts, Cold Moulding Inserts as per international standards and tolerances.
MATERIAL :
Free Cutting Brass IS 319 Type (I) Free Cutting Brass as per BS 249 Type (I) High Grade Free Cutting BrassRoHS Compliant Brass Any Special Brass Material Composition as per customers requirement
DESIGNS : Round Knurled, Hexagonal & Square
KNURLING AVAILABLE : Diamond
Straight Unidirectional
THREADS :
ISO Metric (MM Threads) BA Threads BSW Threads (Inches) Any threads as per custom design.
LENGTH / SIZE : Begins from M2 or equivalent threads and up to any size as per custom design or requirement.
FINISH & COATING :
Natural Finish, Nickle Plated, Tin Plated.
brass moulding, prototype injection moldin, plastic molding companies, injection mold manufacturers, plastic molding companies, threaded brass inserts, rotational casting machine, rapid prototype injection molding, rubber injection molding companies, injection mold equipment, rapid prototype plastic, rapid prototype plastic,

Threads of Brass Nuts and Brass inserts: Metric , NPT , BSP, BSPT, NPTF, UNEF, UNS, UNF , BSF, UNC, NPS, NPSM, BSW

Sizes of Brass Nuts and Brass inserts: 3mm 4mm 5mm 6mm 8mm 10mm 12mm 16mm 18mm 20mm 24mm 25mm 26mm 28mm 30mm 32mm 33mm 40mm 50mm M3 M4 M5 M6 M8 m10 m12 m16 M18 M20 M24 M25 M26 M28 M30 M32 M40 M50 1/8 5/32 3/16 1/4 5/16 3/8 1/2 7/8 3/4 1 11/4 11/2 2 2/12
View Complete Details
Ask Latest Price & Details
Brass Roto Rotational Moulding Inserts

Brass Roto Rotational Moulding Inserts
We offer a wide array of Brass inserts for rotational plastic molding and for water tanks.The Brass roto moulding inserts rotational moulding inserts range of inserts is specifically for the rotomoulding industry, and is available in a variety of versions. The square style, with associated deep grooves, provides an extremely large surface are to adhere to, resulting in high torque and pull-out performance.

P/NO THREAD A B C D E F GROOVES
002224 M4 8.5 6.0 5.4 1.5 2.0 1.5 2
002225 M5 10.0 7.0 6.4 1.7 2.5 1.6 2
002226 M6 10.0 8.0 7.5 1.7 2.5 1.6 2
002227 M6 15.0 8.0 7.5 1.7 2.5 2.4 3
002228 M8 16.0 10.0 9.4 1.7 2.5 3.4 3
002229 M8 19.0 10.0 9.4 1.7 2.5 2.2; 4
022210 M10 16.0 12.0 11.4 1.7 2.5 3.4 3
022211 M10 19.0 12.0 11.4 1.7 2.5 2.2 4
022212 M12 19.0 14.0 13.5 1.7 2.5 2.2 4
022213 M14 19.0 16.0; 15.5 1.7 2.5 2.2 4
022213 M16 19.0 18.0 17.5 1.7 2.5 2.2 4
View Complete Details
Ask Latest Price & Details
Brass Expansion Type Inserts

Brass Expansion Type Inserts
  • Flanged Press in Brass Inserts Brass Press In Inserts
  • Brass Press Lock Type Inserts Griplock Brass Expansion Inserts
  • Multibarb Brass Heat and Ultrasonic Inserts
  • Brass expansion Anchors Brass Anchor fasteners Brass Expansion fasteners
  • Brass Anchor Bolts Brass Anchors Brass Drop In ancho
Grip lock brass expansion inserts
Press-in expansion inserts for thermosetting plastics
  • Headed and reverse headed versions manufactured
  • Different head sizes and body lengths produced
  • Easy press-in insertion
  • Self-locking action makes it suitable when vibration is unavoidable
Materials Brass Expansion Type Inserts:
  • Brass to BS EN 12164 CW 614N, RoHS compliant

Dimensions
Internal thread sizes (ISO Metric) Length Length* Head thickness Head dia. External dia. Rec. hole size -0.00 +0.10 Min. wall thickness
  mm mm mm mm mm mm mm
M3 4.7 3.5 0.51 5.5 4.2 4.0 3.2
M4 7.9 5.0 0.82 5.0 5.9 5.6 4.0
M5 9.4 6.0 0.99 7.9 6.6 6.4 4.8
M6 12.6 9.5 12.6 9.5 8.3 8.0 6.0
M8 12.6 9.5 12.6 11.1 9.9 9.6 7.0

* Other lengths possible on quotation
Imperial threads are available. Samples are available on request.

View Complete Details
Ask Latest Price & Details
