CBN MACHINARY

Uttam Nagar, Delhi

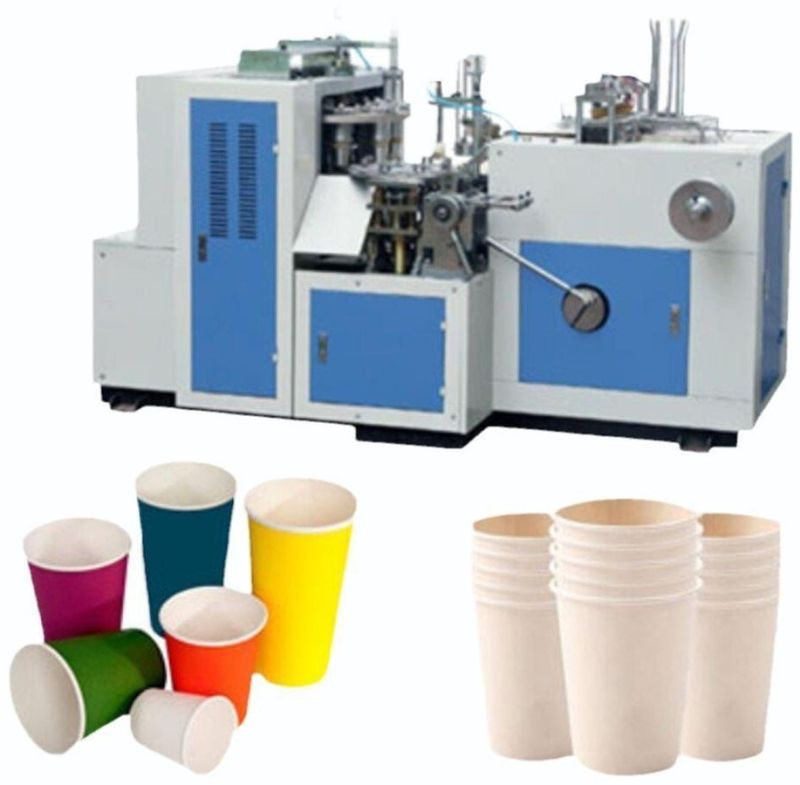

We are offering disposable glass making machine. Details : extrusion sheet line (cs-90mm op : 110 kg hrs( hips ) (new)- rs.26, 50, 000.00 screwcompressor 15hp. With 500 lit tank(new)rs.4, 35, 000.00. chillers for thermoforming machine 2tr.(new)rs.100, 000.00 cooling tower 30 t for extrusion sheet line.(new)rs.100, 000.00 grinder 18 10hp and mixer (10 hp) -new rs.3, 70, 000.00 dia.72 mm 14 cavity forming mould with 2 insert set - rs. 4, 85, 000.00 dia.52 mm 21 cavity forming mould with 2 insert set rs 5, 95, 000.00 total amt of investment ( with new machines n molds) - rs 5600000

We are offering aluminum foil container making machine, auto lubricated feeder : max. Material roll dia. : 650m max. Material roll width : 500mm feeding speed : 10-30mmin feeding length : 30-900mm feeding tolerance : +-0.3mm capacity : 1kw voltage : 380v220v weight : 0.6tons pneumatic punch : pressure : 450kn hole size of worktable : 300*300mm production output : 40-70timesmin board thickness of worktable : 50mm adjusted height of die setting : 60 mm size of screw hole of mould : φ50*60mm size of worktable : 660*1000 mm*50 mm dimension : 1500*1125*2315mm (l*w*h) motor capacity : 5.5kw weight : 4tons voltage : 3-380v 50hz

We are offering carton box making machine.Special : this robust machine is easy to operate, heavy in construction and can withstand heavy strain in continuous operationall shafts are from en-89 steel pins are groundedall bearings are of skf nbc nachi onlyall bushes are from phosphorous bronze metalmachine is equipped with electro-magnetic clutch & break system, dwell timing device, electric impression counterthe machine is fitted with best quality helical gears on both sides of machine rhythmically even at high speedmain electric panel (operation and control) are equipped with international standard components i.e. Siemens l&t etclubrication is provided to every revolving partall moving parts are protected by safety guards for operators safety, circuit locking & circuit breaker for safety of panelall operations with push buttonquick and simple adjustment of impression can be made through two worm gear and eccentric bushesmain flywheel is locked with check-nut systemthe machine is having quite smooth running and outlook is excellent with best quality paint and powder coated fittingthe machine is equipped with 3 breaks, u break on leg, backlite on hand, on & off switch on control panelwe provide double set of helical gears inside the body optional features : automatic centralized lubrication systemhardened cutting platen plateauto rewinding-hot foil printing attachment with hot plate worm gear-movable foot break

We are a unique manufacturer, exporter and supplier of fully automatic paper plate making machine . The paper plate made has a size ranging from 4 inches to 14 inches and the width of 120gsm to 250gsm. The power consumed during its operation is 1kw and the production capacity is 24000 to 36000 pieces in 10 hours. The sealing type is 6 x heater types, sealing with 2 die molds.
