Our Product / Services
We offer the best product range of Pneumatic Manipulator, Wall Mounted Jib Cranes, EOT Crane, Single Girder EOT Cranes and Floor Mounted Jib Cranes.

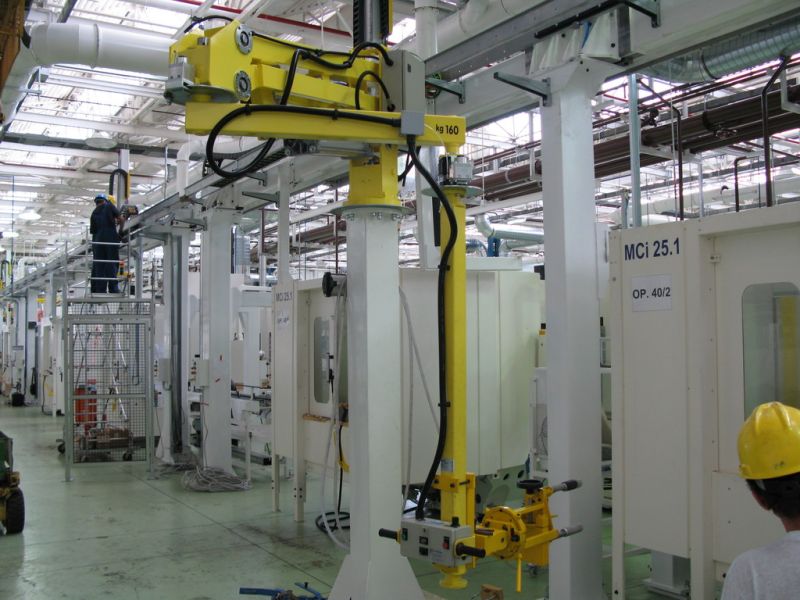

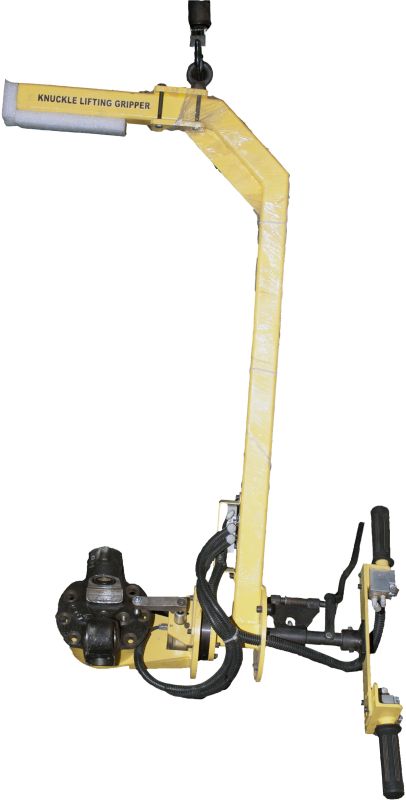

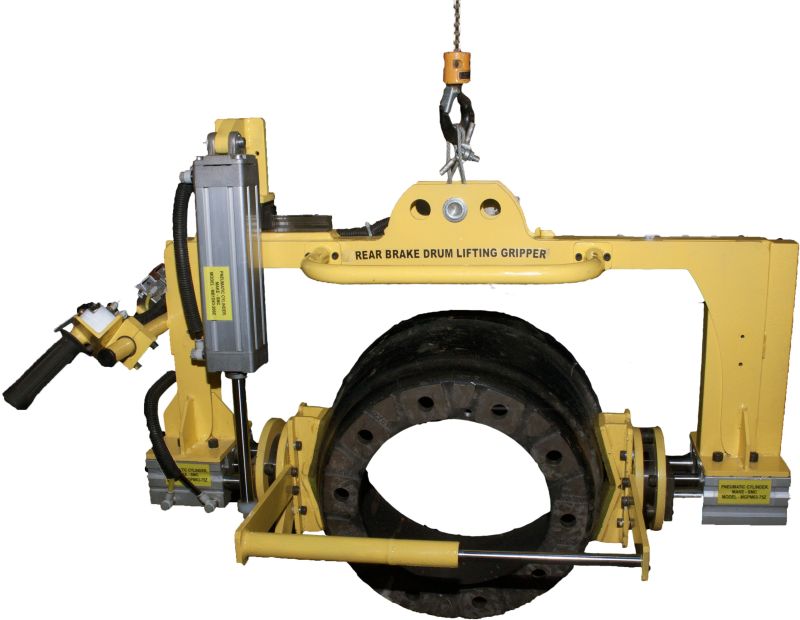

Pneumatic Manipulator
We are a prominent jib cranes 02 manufacturer recognized as an exporter and supplier in india and around the world. designing and production of the jib cranes is done to give different types as per the capacity. made using heavy-duty components, the jib cranes are made to have a long functional life and offer reliable performance in handling material safely for a long time. construction : mast :carbon steel pipe of various sectionsthickness : as per loading conditions, boom length, height etc.arm :section or as per specificationsalso made from zero friction rail to suit ergonomic handling systemsvertical arm :standard sections or built up sectionsas per capacity and sizes of craneelement :made up of robust bearing assemblyless maintenance requiredguide ring :360 rotation type jib cranevertical arm rotates over thisrequires regular cleaning and greasingguide wheel assembly :connected to the vertical arm that rotates on guide ringneeds regular cleaning and greasingspan :the arm length of cranehook height :when it is in iod position, it stands for maximum height of hook hoistoverall height :maximum crane height over which no crane part is extendedbase :m.s. plate, with size as per crane size and capacityfoundation bolts or chemical anchoring can be providedmechanical stoppers :to restrict arm rotation to operating area installation (plumbing mast) : usually installation is done using chemical anchors bolts and by foundation bolts in heavy-duty cranesdrop plumb line from top of mast, using fixture or equivalentat point 50 mm below the top mast plate, set plumb line a distance of 100 mm from the surface of the mast pipeat point "y", 1500 mm below point "x" (approximately where rollers will contact mast pipe), the distance between plumb line and the surface of the mast pipe should also be 100 mmwhen mast is plumb and grout (fs300l) has cured; fully tighten the anchor bolt hardwareverify mast is plumb or notto prevents doom drifting mast should be plumb salient features : standard variable frequency drive (vfd)vfd ideal for single or multiple speed requirementsexcellent load control is offered by vfdpositioning from slowest to maximum speed is easily possibleup to 25 times smoother than ballast resistor controlsproduces very less heataccurate starting and stoppingeasily adjustable speed controlcontrol panel with simple keypad for adjustingacceleration ratedeceleration raterotation speedlow cost of maintenanceno need for magnetic reversing contractorsreduces wearable componentspanel wiring dig and vfd manual is provided with crane maintenance instructions : periodicity greasing of main elements in between 6 to 12 months as per operational frequencychecking of foundation bolt fittings should be done at fixed intervals to avoid arm rotation imbalancegreasing of guide ring should be done on a monthly basis or earlierloosening of gear meter bolts must be checked to see gear and pinion alignment is proper or not demanded by : steel plantsconstruction industrychemical industryrefineriesdefense sectormining industrynuclear power plants

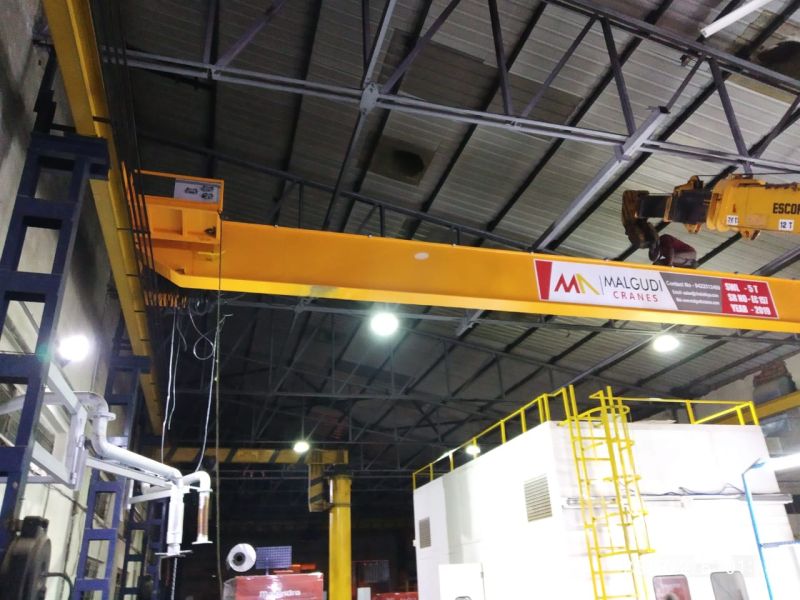

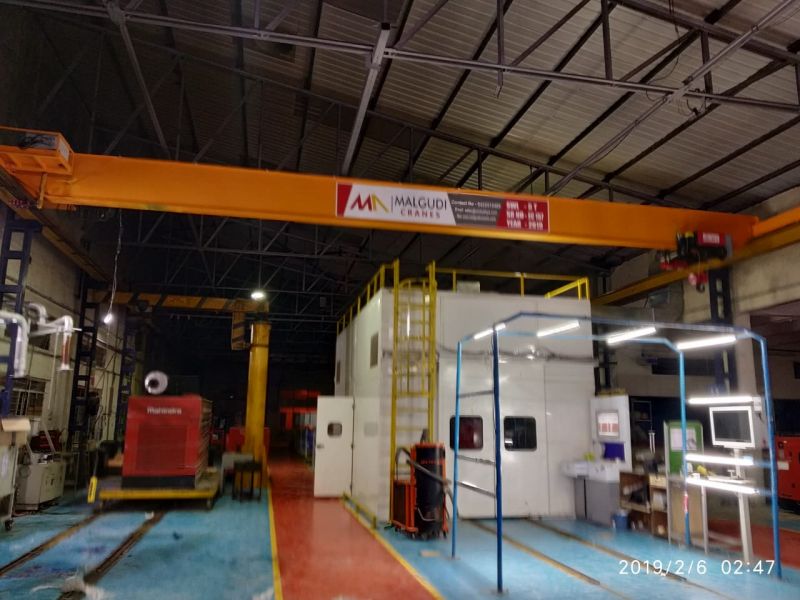

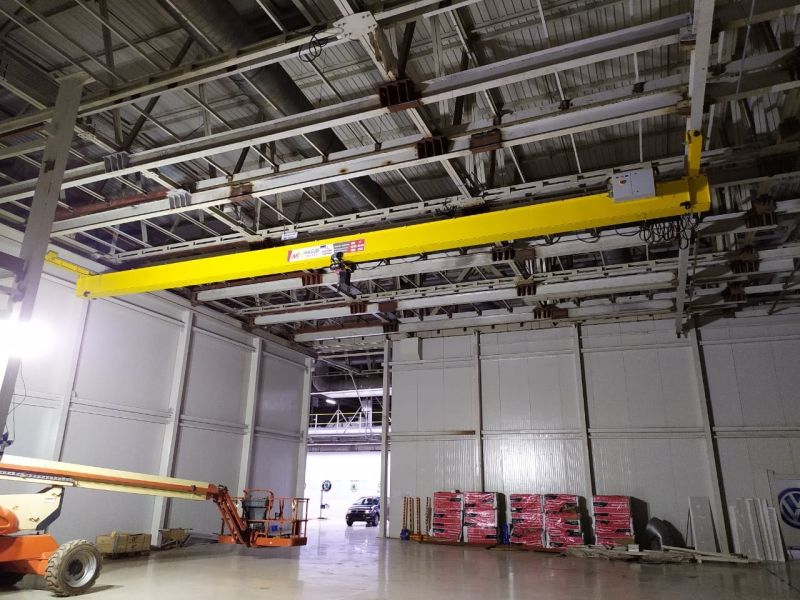

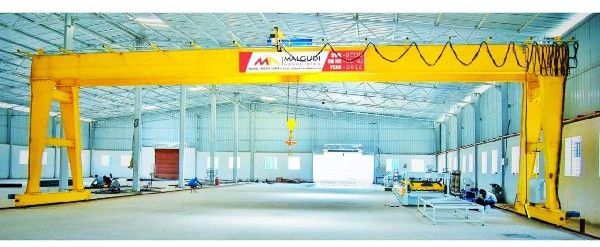

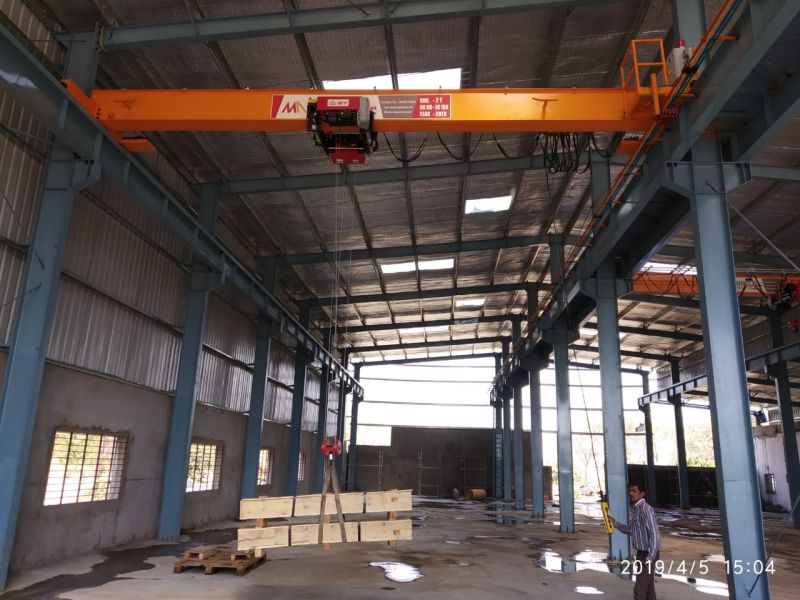

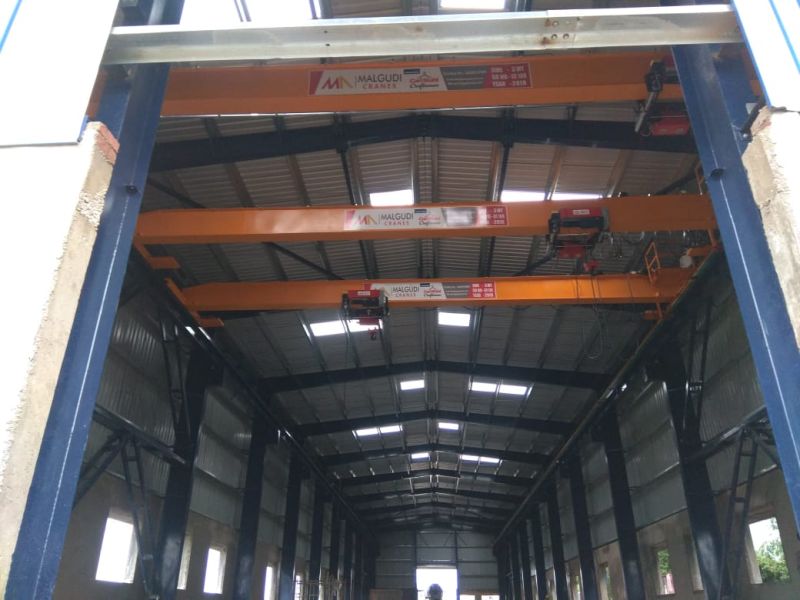

We are a leading Manufacturer of Single Girder and Double Girder EOT Cranes and Gantry Cranes. Our cranes are with twin drive for LT motions and can be available with center drive arrangement on demand. We follow BIS standards, to manufacture the above cranes. Girders are made with both beams and Plate fabricated structure as per the design requirements provided with the required camber so that the Girder deflection in full load condition will remain well within its allowable limit. It is easy to carry out maintenance of the crane as our cranes are of modular construction with imported good quality gear boxes and motors.
Product Features :
Product Specifications :
I would also like to briefly introduce our company, Malgudi Cranes and Components, Pune.
We are leading manufacturers of manipulators and material handling solutions, specializing in products like
EOT cranes, Jib cranes, Pneumatic Manipulator and customized handling equipment.
Our focus is on delivering reliable, efficient, and safe solutions to meet various industrial needs.
We look forward to exploring opportunities to work together.

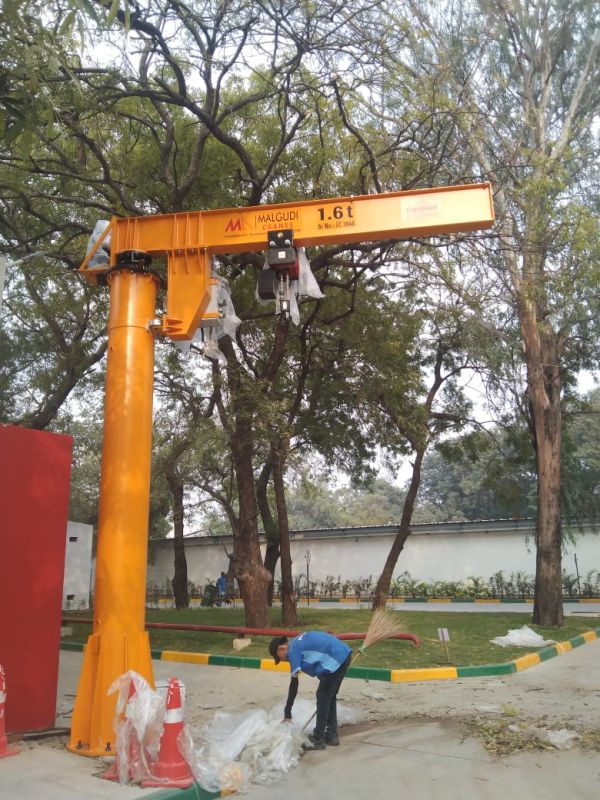

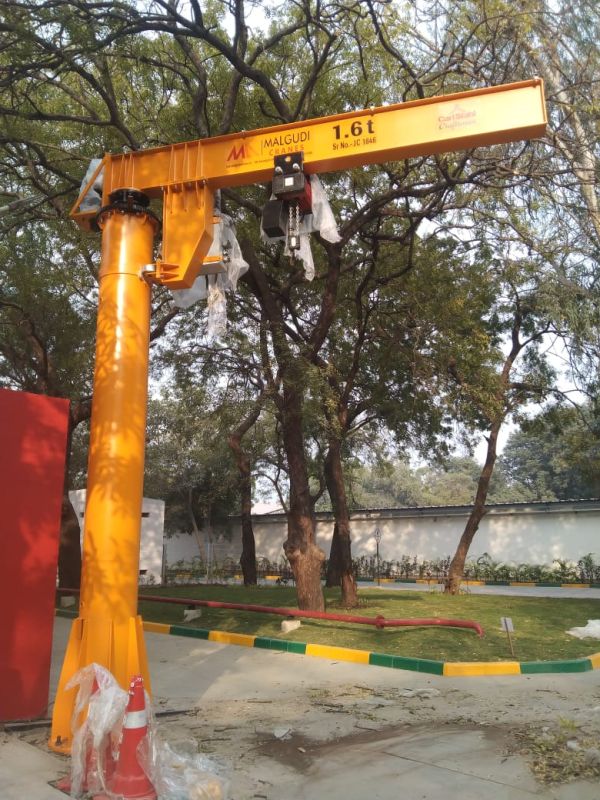

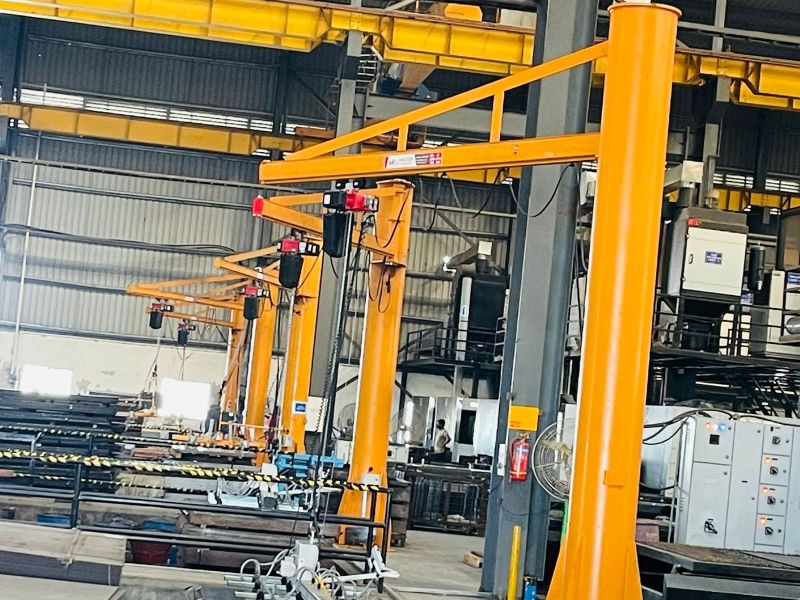

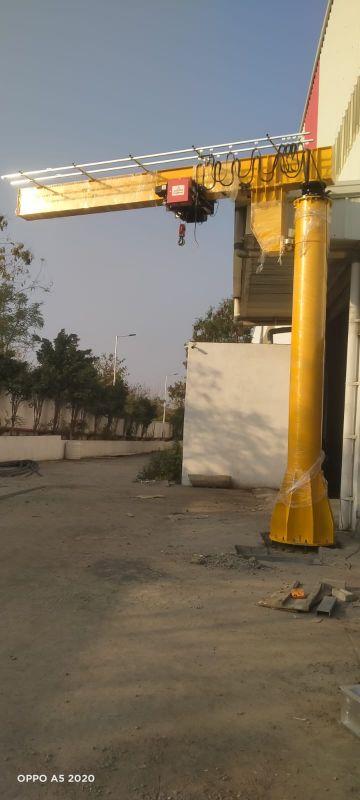

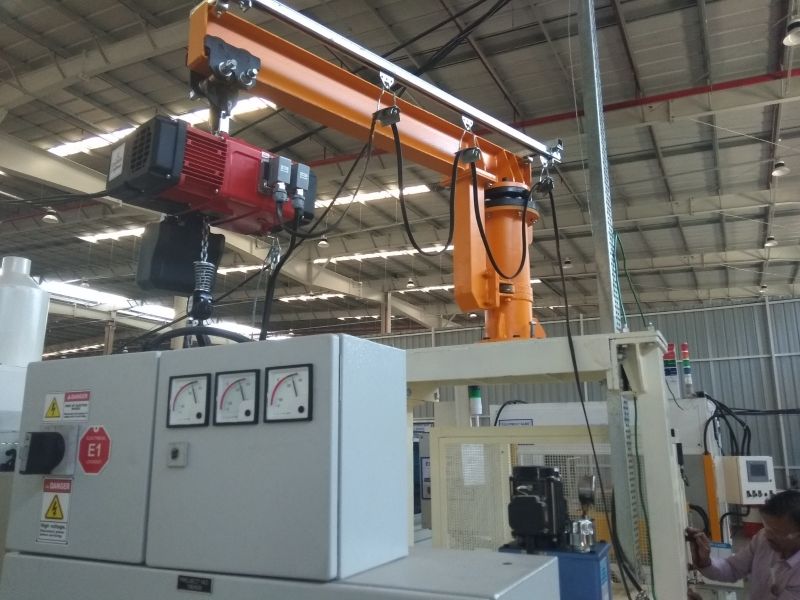

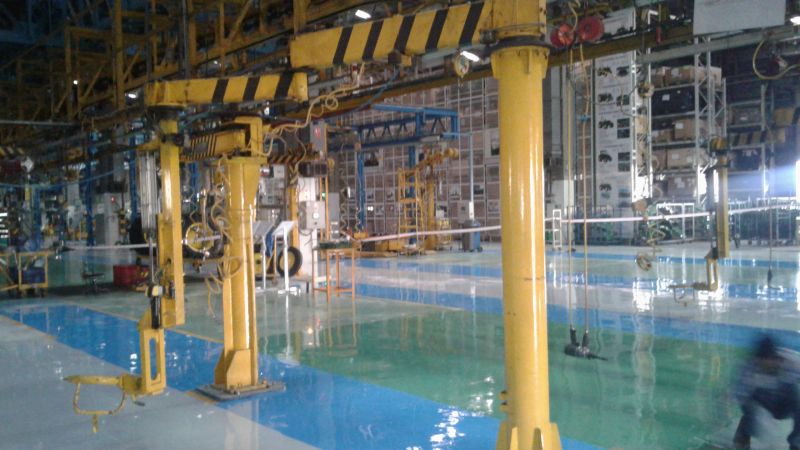

Jib cranes usually called as work station cranes, we are a leading manufacturer of jib cranes having around more than 1350 installations all over India and outside India. We engaged in manufacturing and supplying precisely-designed Jib Crane of various capacities and can be mounted on foundation, floor, pillar, column or wall, this crane is used for handling heavy loads. Jib crane provided by us is manufactured from the best in class raw material, components and the latest technology under the fruitful guidance of our experts. Our valued clients can avail this flawless jib crane from us at most affordable prices.
Product Features :
We have been in the material handling industry for over 20 years.
1. We are one of the leading companies in India for material handling solutions.
2. Our products include EOT Cranes, Jib Cranes, Goliath Cranes, Electric Chain Hoists, Wire Rope Hoists, Transfer Trolleys, KBK Systems, Underslung Cranes, and Pneumatic Manipulators.
3. We are authorized channel partners of M/s CarlStahl Craftsman Enterprises (CarlStahl, Germany).
4. We supply Chain Hoists, Wire Rope Hoists (under-slung & crab type), KBK/Light Crane Systems, and Crane Kits.
5. We also design custom material handling systems using electrical, pneumatic, hydraulic, and PLC controls.
6. We manufacture "C" Rail Festooning Systems for cranes and tool rails.
We would be happy to give a detailed presentation of our offerings.Looking forward to your positive response and valuable enquiries.
A Light Crane System (also known as KBK system in CarlStahl/Demag terminology) is a modular overhead material-handling system designed for light to medium loads (up to 2, 000 kg). It uses steel/aluminium hollow profiles with running trolleys, allowing smooth manual or motorized movement.
We are a prominent Jib Cranes Manufacturer recognized as an Exporter and Supplier in India and around the world. Designing and production of the Jib Cranes is done to give different types as per the capacity. Made using heavy-duty components, the Jib Cranes are made to have a long functional life and offer reliable performance in handling material safely for a long time. Construction

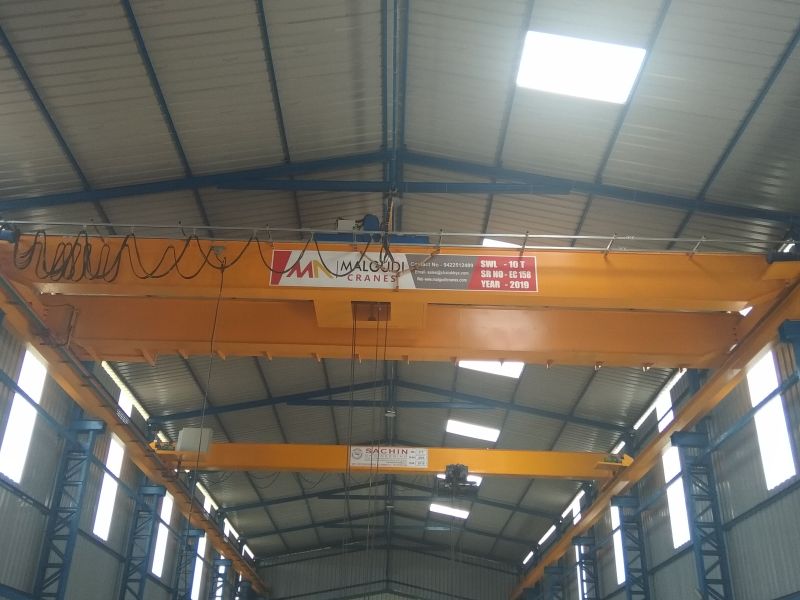

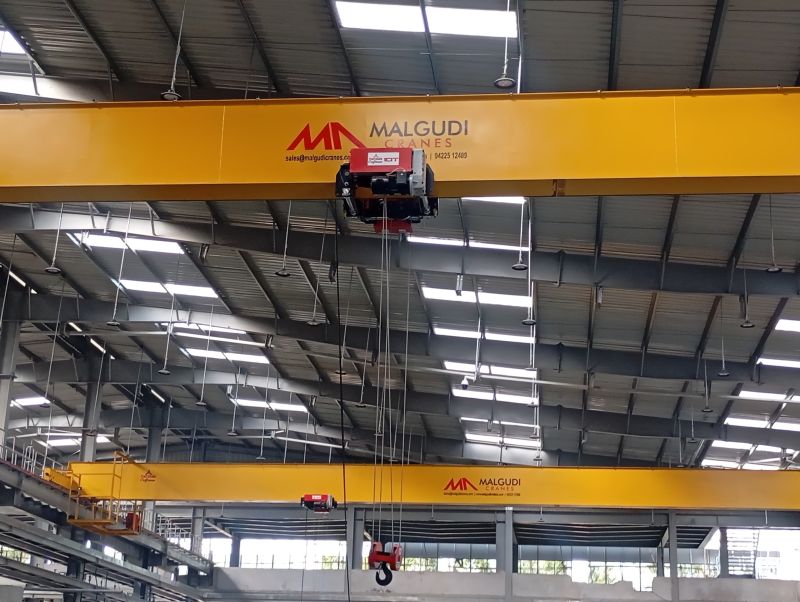

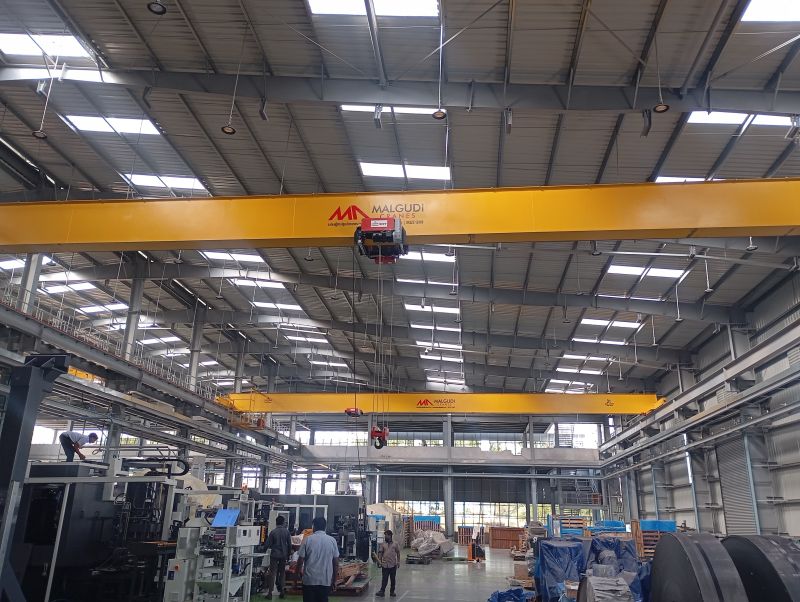

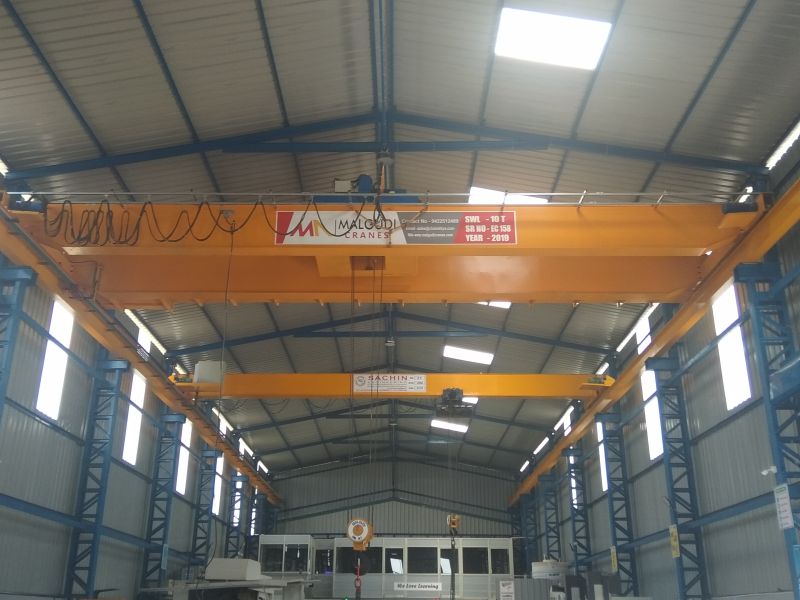

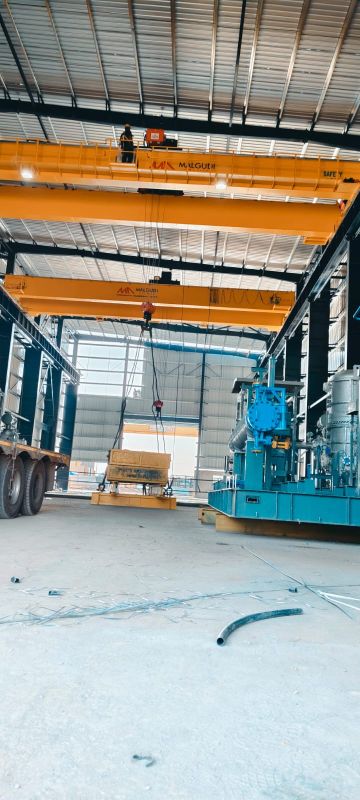

We are a leading Manufacturer of Single Girder and Double Girder EOT Cranes and Gantry Cranes. Our cranes are with twin drive for LT motions and can be available with center drive arrangement on demand. We follow BIS standards, to manufacture the above cranes. Girders are made with both beams and Plate fabricated structure as per the design requirements provided with the required camber so that the Girder deflection in full load condition will remain well within its allowable limit. It is easy to carry out maintenance of the crane as our cranes are of modular construction with imported good quality gear boxes and motors
Product Specifications :
Product Features :
We are offering standerd jib crane with powerized boom rotation. most flexible handling system for the given work station.designed for handling medium & heavy loads.boom is usually of std. I beam construction, rotates for 3500, & can be restricted to any degree of rotation with mechanical stoppers.all movements are hosed in single pendent, boom ratation in with positive gear drive arrangement with vfd control package for variable boom ratation speed .used with electric chain hoist & manual chain pulleys.a capacity varies from 1500 kg to 5000 kg.moduler built for easy installation & placement.available with various boom length & various hook height.most of the jib cranes installed with chemical anchoring even up to 2000 kg.capacity. In dependance of boom length & the floor concrete quality othewise on the pre-installed foundation bolts.availble in yellow colour & can be painted any colour on demand.
For heavyduty lifting where loads are large (tens of tonnes).
Long spans &/or higher hook heights (since double girder allows better hook approach & height vs single girder in many cases).
Industrial settings: steel plants, fabrication shops, warehouses, foundries, large machine shops.
When more robust structure is needed (lower deflection under load, more durable) and greater stiffness/usefulness under heavy/continuous duty.
Mallesh B. Kariyappanavar (CHALUKKYA ENGINEERS)
Plot No.- 238, Sector No.- 7, PCNTDA, Bhosari, Pune, Maharashtra - 411026, India
