Filters #5861147

FEATURES

• No moving parts.
• Leak proof body flange joint.
• Designed for easy basket removal without tools.
• Various basket options.
• Out to In flow' or 'In to Out' flow.
• In-line filter, just fix between flanges.
• Completely closed system.
• Housing as per pressure vessel design codes.
• Inverted baskets self falling debris type.

ADVANTAGES

• No need to disconnect piping for basket maintenance.
• Complete process and operator safety
• Simple design for easy basket cleaning.
• Simple installation, In-line filter
• Zero emission to environment

• OPTIONS

• Jacketed type, with spray washing facility, with backwashing facility etc.

FEATURES

• No moving parts.
• Leak proof tongue & groove body flange joint.
• Designed for easy cartridge fixing.
• Both 'Absolute & nominal' rated cartridges.
• Various cartridge options.
• Out to In flow.
• Completely closed system.
• Housing as per pressure vessel design codes.

ADVANTAGES

• Fine filtration, less than ONE micron.
• Complete process and operator safety.
• Simple design for easy cartridge replacement.
• Flexible filtration rating in the same equipment.
• Higher cake holding capacity, high flow rate.
• Zero emission to environment.

FEATURES

• No moving parts.
• Easy to seal body flange joint.
• Designed for blow back / back washing.
• Permanent candles with replaceable filter medium.
• UniqueSTAGGERED SLOTTEDcandles for efficient backwashing.
• 'Bottoms-to-top' flow for uniform cake formation.
• Completely closed system.

ADVANTAGES

• Safe and hygienic operation.
• Complete process and operator safety.
• Quick turnaround time.
• Flexible filtration rating in the same equipment.
• Higher cake holding capacity.
• Least pressure drop, longer run time.
• Zero emission to environment.

APPLICATION

• Recovery of noble catalysts, like Nickel, Platinum, Palladium etc.
• Removal of activated carbon, charcoal in pharma plants
• Bleaching earth removal in Vegetable oil plants
• Resin filtration
• All types of polishing applications
• Filtration of hazardous liquids and many more.

Forprecoat filtrationsystem and complete catalyst recovery system using 'Clearsep' Candle Filter mail us today with your application details.

OPTIONS AVAILABLE

• Jacketed Candle Filters
• Skid mounted Candle Filters
• Fully automated Candle Filtration system
• Zero heel volume Candle Filters

FEATURES

• Motor driven, low RPM.
• Power save' mode operation.
• Operation monitored by PLC based panel.
• Welded wedge wire filtering element.
• Filtering surface cleaned by rotating brush & or scraper.
• Completely closed system.

ADVANTAGES

• Safe and hygienic operation.
• Complete process and operator safety.
• Continuous unattended operation.
• Small foot print, least space occupation.
• Minimum maintenance.
• Zero emission to environment.

Note. :Conditions apply, consult us for more details, all trade marks acknowledged.

APPLICATION

Cooling water filtration, Side stream filtration, Condensate water filtration, Effluent water thickening, Mixed juice purification in cane sugar plants, Column bottoms purification, Clarification of all low solids/high flow applications.

For your application, mail us with detailsinfo@clearsep.com

OPTIONS AVAILABLE

• Jacketed SCF
• SCF with flame proof drives
• Skid mounted SCF

FEATURES

• Simple surface filtration equipment.
• Inline installation.
• Inside to outside flow.
• Bags supported by perforated basket.
• Static sealing between unfiltered & filtered liquid.

ADVANTAGES

• Bags replacement without the help of any tools.
• Quick opening type body flange joints.
• Bag replacement without disturbing the pipelines.
• Solids retained in the bag, easy for disposal.
• Minimum maintenance.

FEATURES

• No moving parts.
• Cleanable Filter elements.
• Smooth filtering surface.
• Out to in flow.
• Backwashable wedge wire FOTI tubes.
• Zero Heel volume.
• 10 Microns and above.

ADVANTAGES

• Safe and hygienic operation.
• Stand alone equipment.
• Complete operator & process safety.
• Various back wash options.
• Sterilizable candles.
• Permanent candles, No Disposal issues.
• No emission to environment.

APPLICATION

Filtration of pharma liquids, crop protection chemicals, etc. or for any liquid filtration at higher temperatures, higher viscosities, higher flow rates etc.

For your application, mail us with detailsinfo@clearsep.com

FEATURES

• Pneumatically operated cleaning wiper.
• Operation monitored by PLC based panel.
• Welded wedge wire filtering element.
• Filtering surface cleaned by spring loaded wiper.
• Completely closed system.

ADVANTAGES

• Safe and hygienic operation.
• Complete process and operator safety.
• Continuous unattended operation.
• Small foot print, least space occupation.
• Minimum maintenance.
• Neat removal of solids without damaging them.
• Zero emission to environment.

Note. :Conditions apply, consult us for more details, all trade marks acknowledged.

APPLICATION

Filtration of Paints, emulsions, inks, resins, adhesives, pigments and similar viscous liquids besides free flowing liquids.

For your application, mail us with detailsinfo@clearsep.com

OPTIONS AVAILABLE

• Skid mounted units complete with pump, piping etc.

FEATURES

• Simple surface filtration equipment.
• Three way valve for quick-change over.
• Inside to outside flow / Outside to inside flow.
• Quick opening type body joining.
• Static sealing between unfiltered & filtered liquid.

ADVANTAGES

• Bags replacement without the help of any tools.
• Quick filter element replacement.
• Wide choice of filter element for the same housing.
• Solids retained in the bag, easy for disposal.
• Minimum maintenance.

• APPLICATION

  Pump suctions, Feeding systems, Process water, All incoming liquid raw material lines, Liquid filling lines, Fine polishing, In all low solids/high flow applications.

  For your application, mail us with detailsinfo@clearsep.com

  OPTIONS AVAILABLE

• Jacketed Single & Duplex Filters.
• Single & Duplex Filters with Wedge Wire elements (for 10 microns & above only).
• Single & Duplex Filters with outside to inside flow.

FEATURES

• No moving parts, static equipment.
• Static and completely reliable sealing, no room for bypassing.
• Cleaning by self-backflushing or external backwash liquid.
• Permanent metallic candles.
• Completely closed system.
• Fully automation facility.

ADVANTAGES

• Safe and hygienic operation
• Complete process and operator safety
• Hardly any maintenance
• Small foot print, least space occupation
• Zero emission to environment.

FEATURES

• No moving parts, static equipment.
• Static and completely reliable sealing, no room for bypassing.
• Cleaning by self-backflushing or external backwash liquid.
• Modular design / expandable for higher flow.
• Permanent metallic candles.
• Completely closed system.
• Fully automatic with PLC based controller.

ADVANTAGES

• Safe and hygienic operation.
• Complete process and operator safety.
• Provision for expansion of filtration area.
• Hardly any maintenance.
• Small foot print, least space occupation.
• Zero emission to environment.

Note. :Conditions apply, consult us for more details.

APPLICATION

Filtration of any free flowing liquids with less percentage of solids in industries like, Petrochemical, Pulp and Paper industries, Effluent treatment plants, Power plants, Steel plants etc.

For your application, mail us with detailsinfo@clearsep.com

OPTIONS AVAILABLE

• Jacketed Units
• Manual operated units instead of PLC operation Filters
• Units with Provision for expansion
• Variety of choice of filter elements

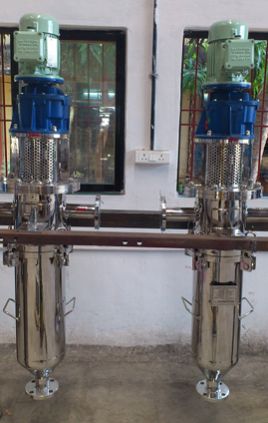

FEATURES

• Simple inline installation.
• All metallic Wedge wire filter element.
• Quick opening type body flange joints.
• Easy to clean and maintain modular 'scraper-element' assembly.
• Continuous cleaning of filtering surface.
• Sanitary type construction.
• Combo cleaning by brush and scraper.

ADVANTAGES

• Safe and hygienic operation.
• Complete process and operator safety.
• Aids mixing along with filtration.
• Minimum maintenance.
• Small foot print, least space occupation.
• Zero emission to environment.

Note. :Conditions apply, consult us for more details.

APPLICATION

Filtration of viscous fluids like, tooth paste, dental cream, shaving cream, jelly, balms, cold creams, gums & adhesives and application like filtration of greases, lubricants, pigments, paints etc.

For your application, mail us with detailsinfo@clearsep.com

OPTIONS AVAILABLE

• Jacketed Turbo Edge Filters
• Trolley mounted Turbo Edge Filters
• Fully automated Turbo Edge Filters
• Manually operated units
