Acme Globla Co.,Limited

• Brand NameACME

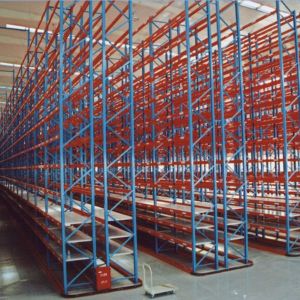

We are offering very narrow aisle rack. Detailed product description-: 1500-3900mm length, q235b steel narrow aisle racking, 2-12 levels and 500-5000kg level description about pallet racking pallet racking is a material handling storage aid system that provides efficient use of storage space for palletised loads and is the most common pallet racking system in use today. Pallet racking allows for the storage of materials in horizontal rows with multiple levels. Acme carries a wide range of pallet racking components and can design a selective racking system to tailor to your specific space and budgetary requirements. Our selective racking systems are compatible with all types and sizes of pallets and may be used with any type of handling system. Acme recommends selective pallet racking for clients looking to implement an inexpensive storage system with a high throughput rate and fifo inventory management for many skus and low pallet quantities. Material q235b use warehouse store depth 800-1800mm length 1500-3900mm height 1800-12000mm thickness 1.0-2.5mm level 2-12 levels loading capacity 500-5000kglevel description very narrow providing high density storage, served by three-dimensional stacker, saves space. 1. Features: •pallets can be located, accessed and moved individually. •rapid handling of almost all types of palletised goods. •infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. •maximizes space use in any warehouse configuration while retaining optimum product accessibility. •strength and rigidity prevents compression damage to goods. •bottom level of pallets can be stored on the floor, lowering structure costs. 2. Load capacity & dimension: •loading capacity: 500-5, 000 kgs udlbeam level. •height: 1, 000-11, 000mm •depth: 400-1, 500mm •length: 1, 500-3, 300mm •special sizes also available to specific storage needs. 3. Main parts specs: •upright section: 86*66*1.5, 86*66*2.0, 100*80*2.0, 120*80*2.0-2.5mm, etc. •box beams section: 88*40*1.5, 108*40*1.5, 110*50*1.5, 125*45*1.5-2.0, 145*45*1.5-2.0, 165*45*1.5-2.0, 180*50*2.0mm, etc., •horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. 4. Material: •q235b steel 5. Finish: •high-quality powder coating finish. 6. Quick delivery. •within 15 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.

• Brand NameACME

We are offering drive in rack. Detailed product description-: industrial save storage space drive-in pallet racking heavy duty rack system quick details 1.weight capacity:heavy duty 2.use: warehouse rack 3.material:steel 4.color:any color drive in racking: 1.operates on the basis of first-in last-out (filo) 2.60% net pallet area usage of overall warehouse area drive in pallet racking descriptions: loads are supported by rails attached to the upright beams lift trucks are driven between the uprights beamsperformance: use of floor space 80% use of height 70% speed of access and throughput 50% access to individual pallets 40% occupancy rates 60% stock rotation 60% ease of management and control 60% system adjustability 100%

• Brand NameACME

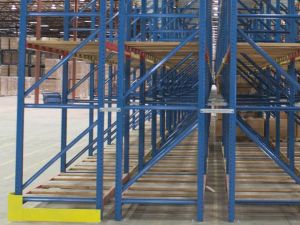

We are offering double deep rack. Detailed product description-: selective industrial, adjustable and slippage double deep racking, 500-5000kg level material q235b use warehouse store depth 800-1800mm length 1500-3900mm height 1800-12000mm thickness 1.0-2.5mm level 2-12 levels loading capacity 500-5000kglevel description double deep racking stores two pallets deep in a double entry rack. Access goods by the special forklift which can be adjustable and slippage. General description: designed to increase storage capacity, double-deep racking system is capable to store two pallets deep in a single-entry rack or four pallets deep in a double entry rack. This system is particularly beneficial when the throughout is low while fast movement of pallets is not critical. A special reaching truck with double-pantograph or extendable fork is used in this racking system. double entry racks reduce the aisle to rack ratio but also reduces pallet selectivity, increasing storage density. 50% immediate pallet access provides reasonable stock rotation on a filo (first in last out) basis and makes good use of all available locations. This system is best used when each stock keeping unit (sku) has several pallets. The system requires the use of a special reach truck with either dual pantograph or slide fork attachments. upper levels can be fitted with pallet safety bars to assist forklift drivers in locating pallets, they also help reduce fork truck operator error and accidental impact damage. Advantages of double deep pallet racking: modified reach trucks with the ability to stack two pallets deep operating in almost conventional reach truck aisles store pallets in single entry racks. Back to back racks are four pallets deep. This reduces the aisle to rack ratio but also reduces selectivity, (filo). Truck lift heights limited by load, to about 9 meters. Usually the upper levels have front to back rail guides to assist the driver locating the rear pallet at height. storage density increased as rack aisle ratio changes from selective racking 50% immediate accessibility with reasonable stock rotation good use of all available locations, typically above 90% safe and secure handling with the bottom pallet usually off ground ability to use double deep handling equipment for other tasks best used when each sku has several pallets double deep] features material: high grade stainless steel shelving structure: upright, beam, horizontal branching, diagonal bracing, foot plate and other accessory uprights: there are 3 models for upright; they respectively are 90*60*1.5(or 2.0) mm, 100*75*2.0(or 2.5) mm, 120*90*2.0(or 2.5) mm. We will choose one according to your storage situation. Beam: there are 2 types for beam, one is square tube beam with 80*40*1.5mm, 100*50*1.5(or 2.0) mm and 120*60*(or 2.0) mm. Another is double c shape beam, with size 85*30*1.2(or 1.5) mm, 85*40*1.5mm, 105*40*1.5mm, 125*40*1.5mm, 125*45*1.5mm, 145*45*1.5(or 2.0) mm. We will choose one according to your storage situation. Connection between upright and beam: the frame is assembled by uprights and bracings and beams are fixed to uprights by hooks. There are safety locks to fix beams and uprights tightly, protecting beams from dropping when loading goods with forklifts height of each layer: it can be adjusted by pitch 75 mm freely aisle width: aisle width can be fixed within 2400 - 3200mm depending on the forklift truck levels: it is optional, according to your actual need capacity: load capacity is 500 to 1000kg per pallet surface treatment: static powder coating, which protects the rack from rusting and gives an attractive finish. Color: ral color system process: all the accessories of the rack are processed by polishing, acid cleaning, phosphating, automatic static sprayed, baking and so on. Installation &disassembling: modular design makes assembling and disassembling easy packing: neutral paper box or in plastic film or upon clients requirements please inform us the listed information in your inquiry for a quick quotation: 1) autocad drawings (if not available, we can provide). We can design your racking system for free according to your requirements. 2) size of your warehouse. 3) width, depth of shelving. 4) height of shelving system. 5) how many starter bays and adder bays you want. 6) how many levels you want. 7) loading capacity of each level. 8) ral color you want.

• MOQ 10 Piece
• Brand NameACME

We are offering medium duty rack. Detailed product description-: 1500l 600d 1800h 4 levels customized medium duty racks long span shelving quick details 1.loading capcity:150-800kglevel 2.upright specification:55*45*1.8mm 3.levels:4 levels 4.loading capacity layer:500kglevel description: long span shelving is a durable, versatile and economibal shelving systems. Long span shelving is a durable, versatile and economibal shelving systems. It has fully adjustable shelf heights and lengths. It looks good and minimizes lost space from uprights making it ideal for a wide variety of applications from archives to automotive, factories, warehouse, retail, wholesale and commercial.

• MOQ 10 Piece
• Brand NameACME

We are offering Multi Tier Racking System. Detailed Product Description-: Multi-Tier Industrial Industrial Pallet Racking 88*66*2.0 mm Uprights Quick details 1.Upright specification:88*66*2.0 mm 2.Payment: TT, LC at sight 3.Beam Specification:80*40*1.5mm 4.Use: Warehouse Rack 1.Rack is completely knockdown format, boltless beam structure. 2.Rack can be easily and quickly assembled. 3.Heavy objects can be easily stored, being in good order and saves space. 4.Each tier of rack can load 800-3000kg 5.The layer can be steel plate or wood plate 6.Height of rack can be freely adjusted. 7.Units can be connected to limitless lengths according to site space 8.Custom sizes to fit any need Description 1. All racking shall be fixed onto the ground by means of Expansion bolts 2. Each beam is secured by 2 safety pins 3. Protector is recommended to mount in the junction of over two directions 4.Apperance is the Electro Static Dusting Spray 5.The layer can be steel plate , wood plate or steel pallet Features 1.Easy assemble and disassemble; 2.75mm can be freely adjusted for beam 3.Can highly improve storage space 4.Units can be connected to limitless lengths according to site space. Loading Capacity layer Usually from 800kg to 4000kg Also can design according your requirement Specification of rack Length From 1800mm to 3900mm Depth From 800mm to 1500mm Height From 1800mm to 12000mm Note: Also can design and produce according to your special requirements Upright specification 88*66*1.5mm 88*66*1.8mm 88*66*2.0mm 100*80*2.0mm 100*80*2.5mm 120*80*2.0mm 120*80*2.5mm 140*80*2.0mm 140*80*2.5mm Beam Specification 80*40*1.5mm 108*40*1.5mm 125*45*1.5mm 145*50*1.5mm 165*50*1.5mm 165*50*2.0mm Other useful information: Accessories: we provide necessary component, such as horizontal , diagonal beam and screw. Packing: bubble pack, or according to customer's requirements Payment: TT, LC at sight, western union Warranty: 3 years guarantee from the delivery date MOQ: 10 Sets Production capacity: 2000 tonsmonth Port of Loading: Shenzhen Shekou Port, China.

• MOQ 10 Piece
• Brand NameACME

We are offering heavy duty rack. Detailed product description-: custom heavy duty racking system with steel plate decking 2 levels, 2400h * 1000d * 2300l heavy duty racking heavy duty racking with steel plate decking (2400h * 1000d * 2300l, 2levels) 1.features: 1.)used widely in all kinds of industrial. Can store all kinds of different products. 2.)easy assembly and disassembly. 3.)usually loading capacity from 500kg-4000kglevel. 4.)size can be produce according your special needs. 2. Decking: can choose from stamping steel plate. Steel plate, plywood plate, wire mesh. reference price: 1)about usd 150.00-250.00set without decking 2) about usd 250.00-350.00set with decking
