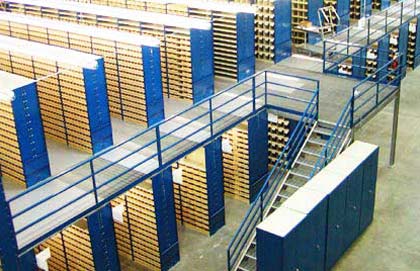

Multi Tier Racking System

We are offering Multi Tier Racking System. Detailed Product Description-:
Multi-Tier Industrial Industrial Pallet Racking 88*66*2.0 mm Uprights
Quick details
1.Upright specification:88*66*2.0 mm
2.Payment: TT, LC at sight
3.Beam Specification:80*40*1.5mm
4.Use: Warehouse Rack
1.Rack is completely knockdown format, boltless beam structure.
2.Rack can be easily and quickly assembled.
3.Heavy objects can be easily stored, being in good order and saves space.
4.Each tier of rack can load 800-3000kg
5.The layer can be steel plate or wood plate
6.Height of rack can be freely adjusted.
7.Units can be connected to limitless lengths according to site space
8.Custom sizes to fit any need
Description
1. All racking shall be fixed onto the ground by means of Expansion bolts
2. Each beam is secured by 2 safety pins
3. Protector is recommended to mount in the junction of over two directions
4.Apperance is the Electro Static Dusting Spray
5.The layer can be steel plate , wood plate or steel pallet
Features
1.Easy assemble and disassemble;
2.75mm can be freely adjusted for beam
3.Can highly improve storage space
4.Units can be connected to limitless lengths according to site space.
Loading Capacity layer
Usually from 800kg to 4000kg
Also can design according your requirement
Specification of rack
Length
From 1800mm to 3900mm
Depth
From 800mm to 1500mm
Height
From 1800mm to 12000mm
Note: Also can design and produce according to your special requirements
Upright specification
88*66*1.5mm
88*66*1.8mm
88*66*2.0mm
100*80*2.0mm
100*80*2.5mm
120*80*2.0mm
120*80*2.5mm
140*80*2.0mm
140*80*2.5mm
Beam Specification
80*40*1.5mm
108*40*1.5mm
125*45*1.5mm
145*50*1.5mm
165*50*1.5mm
165*50*2.0mm
Other useful information:
Accessories: we provide necessary component, such as horizontal , diagonal beam and screw.
Packing: bubble pack, or according to customer's requirements
Payment: TT, LC at sight, western union
Warranty: 3 years guarantee from the delivery date
MOQ: 10 Sets
Production capacity: 2000 tonsmonth
Port of Loading: Shenzhen Shekou Port, China.
