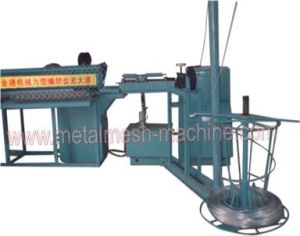

Semi-automatic Diamond Wire Mesh (Chain Link Fence) Machine Semi-automatic chain link fence machine is easy for operation and control. The surface of the chain link fence is flat after being arranged. This machine has reliable property, less troubles and easy maintenance. It is suitable for small enterprises. Main technical data: 1. Outside dimensions: Length: 2400mm, width: 4400mm, hight: 2500mm 2, Maximum working platform: 8000mm, maximum weaving width: 8000mm 3, Maximum weaving aperture: 52x52mm 4, Maximum wire diameter: 4.0mm, minimum wire diameter: 1.0mm 5, Power: 3KW/ set, 0.12KW/set 6, Productivity: 15-20 m2 /hour 7, Total weight: 1.5T.

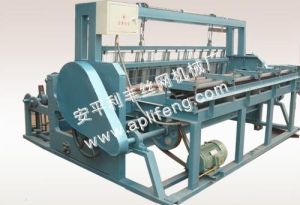

Fully Automatic Crimped Wire Mesh Machine The series of automatic crimped wire mesh machine can finish the work from making the wire crimp to formation of the net automatically. Breadth of the net is 0.9-2.5m and the diameter of the wire is 0.4-2.2mm. The size of the mesh is 1×1-20×20mm2. The weaving speed can reach 53times shuttle /minute.The properties of fast, easy to operate and good performance of the machine are fond by the users.

The series of Semi-automatic crimped wire mesh machine weave crimped wire net of steel, iron, lead and stainless steel wire with big diameter. The net is weaved by the machine after the thick wire is formed to crimp by the rolling machine. Breadth of the net is 0.9-2.5m and the diameter of the wire is 2.0-8.0mm. The size of the mesh is 2Ã?2mm-80Ã?80mm. The structure of the machine is compactness and rational. It performs satisfactorily and runs smoothly. Breadth of the net produced by each gauge of the machine can be adjusted in a certain extent.

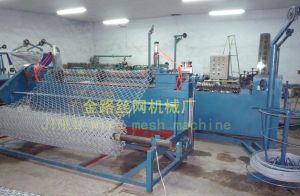

Fully Automatic Diamond Wire Mesh (Chain Link Fence) Machine Spider brand fully automatic chain link fence machine we produce is made with adaptation of Germany technology. This machine offers high productive efficiency and reliable quality chain link fence products with reasonable design, using computer control, mechanical and electrical integration, automatic control of wire feeding, cutting, rolling and edge treatment. Import advanced technology and domestic machinery prices make this machine an ideal choice for chain link fence producers. Main Technical Data: 1. Capacity: (square meter/hour) 25-60 2, Steel wire diameter: (mm) Φ2.0â??Φ4.0. Wire feeding number: double wires. Note: The steel wire meets the standard: GB3081-82 YB544-65 Steel Wire Material: B 1 F-B 3F 3, Chain link fence roll width: (mm) 600-2000, at any length 4, Power: electric motor: 3.0KW one set, 4.0KW one set, 0.12 KW one set.
