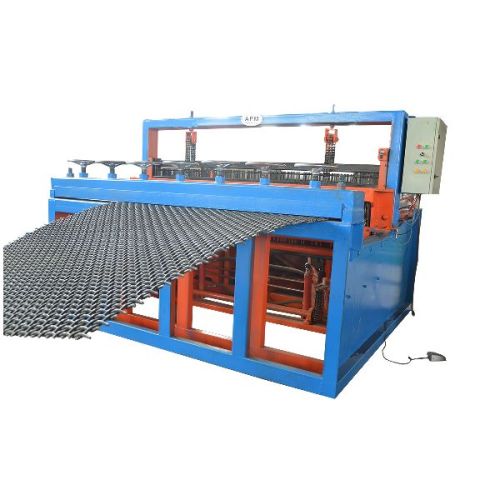

hydraulic crimped mesh machine
type | apm-cm-h101 | the mesh made by this machine is normally used as mine sieving mesh. the mine sieving mesh is widely used in the coal and quarrying industry. |
wire diameter | 6.0-14.0mm | |
open size | ＞9mm | |
speed | 15-20times/min | |
width | 2000m | |
outside | 2200x2500x1800 | |
weight | 3500kgs | |
motor power | 5.5kw | |
voltage | 50hz 380v/220v 3phase | |
mark | this machine is hydraulic crimped, warp and weft wire are introduced by hand. |
type | apm-cm-hc101 | this type machine is automatic warp wire. The weft wire is introduced by hand. Use the crimped wire machine to crimp wire in advance,variable speed gear boxes. |
wire diameter | 6.0-14.0mm | |
speed | control by cars | |
outside | 1.2*0.95*1.0m | |
weight | 1000kgs | |
motor power | 5.0kwa 3.0kwa | |
voltage | 50hz 380v/220v 3phase | |
mark | this machine use to bending the wire, cnc control
|
spare part list by free | 1). crimping wheel : 1set 2). Heddles: 50 pcs 3). Reed pin: 20pcs 4). Sensor: 3pcs each place 5). Winding reel (afforded weight 300kgs): 1pcs |
