Baoding Easy Imp and Exp Co.,Ltd.

China

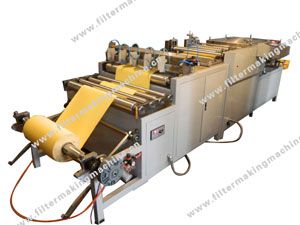

We are offering rotary pleating machinery, general description:rotary type pleating machine is designed for high speed production of pleated filter paper of filters. They are capable of producing pleats of ranges of width and depth by changing the different rollers. its equipped with automatic loading filter paper, pre-slitting, preheating, pleating, post heating system, automatic counter, plc control, it is more easy to understanding for customer. This machine can be made as customers requirements. specification:1. Max. Pleating width: 750mm2. Pleating height: 20 - 72mm3. Pleating speed: 5 - 40mmin4. Power: 1.5kw 380v 50hz6. Heater temperature available: 0c - 200c7. All speed adjustable motor8. Machine weight: 1200kg9. Machine dimension: 3450mm x 1800mm x 1200mm10.each pleat height need each roller, this according to require of customer.

We are offering Knife Pleating Machine, Consists1). Auto paper de-coiler 2). Pre-slitting conveyor 3). Marker 4). Automatic counter 5). Filter paper pleating machine Technical data1.Pre-slitting conveyor(1) Speed: 0.5mmin12mmin (adjustable) (2) Adjustable width of the filter paper: 32-1100mm (3) Supply power: 220V50Hz (4) Motor Power: 0.75Kw (5) Working air pressure: 0.6MPa (6) Machine weight: 350kg (7) Machine dimension (L*W*H): 1500mm*1300mm*1100mm 2.Marker (1) Max marking width: 1050mm (2) Adjustable range of marking distance: 8-55mm (3) Power supply: 220V50Hz (4) Motor power: 1.5Kw (5) Machine weight:300kg (6) Machine dimension(L*W*H): 1550mm*520mm*1100mm 3.Pleating machine(1) Max product width: 1050mm (2) Adjustable pleating height range: 855mm (3) Pleating speed: 0-200 foldmin (stepless speed adjustable) (4) Supply voltage: 380V50Hz (5) Motor power: 1.1Kw (6) Preheating power: 4Kw (7) Temperature control range: Normal temperature 0200 degree (8) Working air pressure: 0.6Mpa (9) Machine weight: 650kg (10) Machine dimension(L*W*H): 1670mm*1720mm*1240mm Application The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc. Furthermore, we can customize the paper-pleating production line of different specifications(machine wider and pleat higher.This pleating machine can pleat Mtype as well.

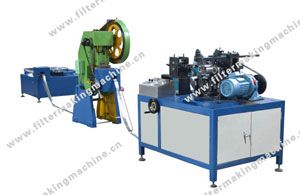

We are offering stainless steel spiral tube forming machine. 1. specification1) plate speed: 2-7 metermin2) diametr of the tube: 30-75 length of center tube to be processed: any length required3) stainless steel: 0.25 mm thick, 45mm wide. 4) motor power: 3kw (spiral core machine) , 1.5kw (punching machine)5) power supply:380v 50hz6) working air pressure:0.6mpa7) machine weight:1500kg8) size of the main machine: 1600x800x1240mm (lxwxh)9) size of the decoiler:1200x800x760mm(lxwxh)10) size of the punching machine 700x700x1800mm (lxwxh)11) the machine includeone decoiler, one spiral core machine, each diameter need one mould, the machine include three mould. one auto cutter2. features1) the machine can easily change the diameter of screw tube in a short time. 2) cut the needed length according to customers require. 3) mechnical drive, which has strong power and good stable. 3. applicationsthe machine is technically used in manufacturing stainless steel core to make filter cartridges for edible oil and water treatment etc. Applications

We are offering spiral filter center tube forming machine. 1. specification1) product capability: 20-35pcsmin2) diametr of the center tube:30-75mm length of center tube to be processed: any length required3) steel plate thickness:0.25-0.32mm4) motor power: 3kw5) power supply:380v 50hz6) working air pressure:0.6mpa7) machine weight:800kg8) size of the main machine: 1600x800x1240mm (lxwxh)9) size of the paper decoiler:1200x800x760mm(lxwxh)2. features1) the machine can easily change the diameter of screw tube in a short time. 2) cut the needed length according to customers require. 3) can adjust the clutch according to the different thickness of the steel strip. 4) the computer control machine can save production costs and working procedures with it high efficiency, steady quality and economical materials. 5) adopts hydraulic pressure drive, which has stron power and good stable. 3. applicationsthe machine is technically used in manufacturing the tube of filters

We are offering rotary pleating machine. feature:1. auto paper decoiler with pneumatic shaft2. tension system adopts magnetic powder constant tension controller3. paper pre-slitting parts use pneumatic knife4. preheating and water steam heating and softing system to make filter paper to easy be pleated and good shape and avoid breaking5. auto counter6. touch screen plc control system t7. filter paper post heating and convey systemspecification:1. pleat speed: 0-40 metermin2. max. Width: 750 mm (the roller width is 780mm, but the filter paper maximum is 750mm)3. min width:30mm4. max.pleat height: 70mm5. min. Pleat height:20mm6. max. Temperature of pre-heating and post-heating: 200 centigrage7. power: 14kw 380v 50hz8. machine weight: 1000kg9. machine dimension: 3450mm x 1800mm x 1200mm10. each pleat height need one set of roller, it will be made according to customers required pleat height.
