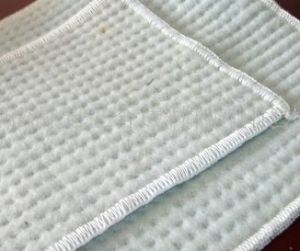

Sodium bentonite geosynthetic clay liner gcl gcl waterproof material geosynthetic clay liner concrete protection mat (gcl) geosynthetic clay liners , lake mat , gcl waterproof material geosynthetic clay liners (gcls) are high performance needle punched environmental reinforced composites which combine two durable geotextile outer layers with a uniform core of natural sodium bentonite clay to form a hydraulic barrier. Unit weight: ≥ 4000gsqm width: 4-6m typical physical properties: 1. Improved leakage performance 2. Permanent waterproof performance 3. Simple construction and short time limit for a project. 4. Not influenced by air temperature. 5. A kind of green material and good to environmental protection. 6. More versatile than compacted clay 7. Increased airspace and liner efficiency application: it is used to prevent water leakages in areas of artificial lakes, waste disposal fields, underground garage, top building gardens, reservoirs, oil warehouses, and chemicals accumulating fields.

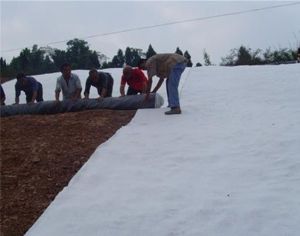

Polyester Filament Spunbonded Needle-Punched Geotextile Product Description Specification 100GM2 ---800g m2 Properties It has aging, acid, wear resistance, good flexibility, and easy construction properties. Application It can be widely used for the filtration, isolation, reinforcement and drainage of roads, railway, dams, hydraulic construction, tunnel projects, etc. Size of Package Width 4-6m, Length 50-100m (or at request) Items 100 200 300 400 500 600 800 Weight Variation% -6 -6 -5 -5 -4 -4 -4 Thickness mm≥ 0.8 1.6 2.2 2.8 3.4 4.2 5.5 Breaking Strength KNm≥ 4.5 10.0 15.0 20.5 25.0 30.0 40.0 Elongation at Break% 40-80 Sieve Size O90 mm 0.07-0.2 Vertical Permeability Coefficient cms K x (10-1~10-3) K=1.0-9.9 CBR Mullen Burst Strength KN≥ 0.8 1.8 2.6 3.5 4.7 5.5 7.0 Tear Strength KN≥ 0.14 0.28 0.42 0.56 0.70 0.82 1.10

Polyester nonwoven geotextile polypropylene nonwoven geotextile short fiber needle punched nonwoven geotextile introduction: short fiber needle punched geotextile is made of pp polypropylene or pet polyester short fiber, by needle punched nonwoven manufacturing process. Product description short fiber needle punched polyester nonwoven geotextile short fiber needle punched non-woven geotextile (material: pp, pet, high strength pp) weight: 100gm2 to 1200gm2 packing: width 1-8m, length at request property: good flexibility, permeability, filtration, separation and easy for construction. Usage: used in the area of highway, railway, dam, reclamation for filtration separation drainage and protection.

Hdpe geomembrane â�¢ material: hdpe â�¢ thickness: 0.2mm-4.0mm â�¢ width: 1-8m â�¢ weave type: smooth geomembrane, textured geomembrane. Â�¢ colour: black or white â�¢ length: 1-100m â�¢ package: pp bags or according to customer's needs supply ability: 200000 square meterweek â�¢ payment terms: lc, tt specifications hdpe geomembrane are produced from prime hdpe resins result in a high quality premium grade, flexible geomembrane. Detailed introduction to hdpe geomembrane: description (middle) density polyethylene geomembrane is made from hdpe resin and additives such as antioxidant, light-stabilize and carbon black, etc. It is extensively used for landfills, sewages, mining, environmental protections and irrigation projects. Overall features & benifits 1. Low permeability - hdpe lining systems are secure because leachate does not penetrate them; methane gas will not escape from the hdpe cover system; and rainwater will not infiltrate an hdpe cap. 2. Chemical resistance - hdpe, resistant to a wide range of chemicals, is not threatened by typical solid or hazardous waste leachates. It is also suitable for sludge and secondary containment around chemical storage facilities. 3. Ultraviolet resistance - hdpe's resistance to uv exposure is further enhanced by the addition of carbon black. Additionally, with the absence of plasticizers, volatilization is not a problem. 4. Reflective factor - geotec offers its hdpe geomembrane in white as well as black. A white surface helps mitigate liner temperature extremes and aids visual inspection. Application flood control, irrigation waterproofing dams waste management: landfill municipal solid waste wastewater containment anaerobic lagoon cover systems lagoon liner systems tunnel

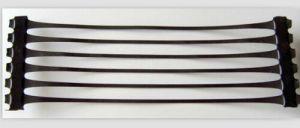

Geogrid uniaxialux geogrid uniaxial tensile plastic geogrid uniaxial plastic geogridux plastic geogrid uniaxial tensile strength geogridux tensile strength geogrid pppolypropylene uniaxial tensile geogrid pepolyethylene uniaxial tensile geogrid width: 1m 2m 2.5m description 1. Material: high polymer, pp or hdpe 2. Superiority: elongation: 2%_5%, tensile strength: 150mpa the high tensile strength and tensile modulus exceed international level. 3. Properties: high stengh, goood fiexibility, anti-aging, resisiting acid and alkaline, easy and fast in construction. 4. Usage: make reinforcement for various kinds of soft soil foundation, enhance and improve bearing ability of the roadbed and make reinforcement for retaining wall, steep slope, dam and bridge abutment under stress status for long term thus to improve quality and prolong service life of the project.

Product description compound geomembrane: composite geomembrane pp pet geotextile composite compound hdpe ldpe geomembrane specification 1. One layer of geotextile and one layer of membrane; weight of base geotextile: 100-1000gm2, thickness of genomembrane: 0.1-1.5mm. 2. Two layers of geotexiles and one layer of membrane; weight of base geotextile: 80-600gm2, thickness of geomembrane: 0.2-1.5mm. 3. One layer of geotextile and two layers of membranes. Weight of base geotextile: 100-1000gm2, thickness of geomembrane: 0.1-0.8mm 4. Multi-layers: weight of base geotextile: 100-1000gm2, thickness of geomembrane: 0.1-0.8mm properties flexibility is good, except of a geotextile's isolation, drainage, reinforcement, protective functions, it is also impermeable. usage widely used in dam, traffic tunnel, road, airport, drainage, housing, environmental protection and many other fields for waterproof protection, reinforcement etc size of pckage 1-8m width, length 50-100m(or at request)
