PP/PE Filament Spunbonded Needle Punched Geotextile

Polyester Filament Spunbonded Needle-Punched Geotextile
Product Description
Specification
100GM2 ---800g m2
Properties
It has aging, acid, wear resistance, good flexibility, and easy construction properties.
Application

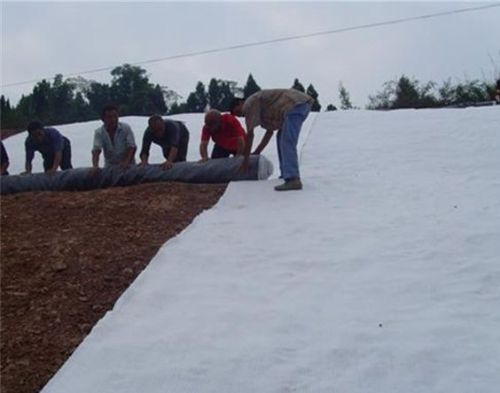

It can be widely used for the filtration, isolation, reinforcement and drainage of roads, railway, dams, hydraulic construction, tunnel projects, etc.
Size of Package
Width 4-6m, Length 50-100m (or at request)
Items 100 200 300 400 500 600 800
Weight Variation% -6 -6 -5 -5 -4 -4 -4
Thickness mm≥ 0.8 1.6 2.2 2.8 3.4 4.2 5.5
Breaking Strength KNm≥ 4.5 10.0 15.0 20.5 25.0 30.0 40.0
Elongation at Break% 40-80
Sieve Size O90 mm 0.07-0.2
Vertical Permeability Coefficient cms K x (10-1~10-3) K=1.0-9.9
CBR Mullen Burst Strength KN≥ 0.8 1.8 2.6 3.5 4.7 5.5 7.0
Tear Strength KN≥ 0.14 0.28 0.42 0.56 0.70 0.82 1.10
