Dalian Metern Measurement and Control System Co., Ltd

dalian, Liaoning, China

• MOQ 1 Piece(s)
• Brand NameMetern

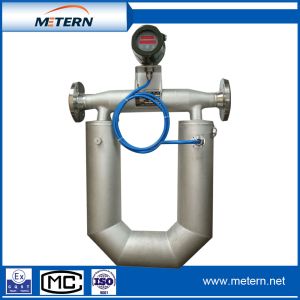

Metern MTCMF Coriolis mass flowmeters are the leading precision flow and density measurement solution offering the most accurate and repeatable mass measurement for liquids, or slurries. MTCMF meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop. Nominal Size: DN10~DN200 Accuracy: ±0.1~0.5% Repeatability: ±0.1~0.25% Density measurement range: 0.5~2gcm3, Accuracy: ±0.002 gcm3 Operating temperature: -50~+200℃ Ambient temperature: -40~+60℃ or -20~+55℃ The measuring tube material: SS316L; The housing material: SS304 Nominal pressure: 4.0MPa Ex-proof: Exd (ia)ⅡC T6Gb LCD local display Display variable: mass flow, volume flow, density, temperature Ambient temperature: -20~+55℃ Output signal: Pulse+4~20mA+RS485 Communication: Modbus Power supply: 18~36VDC power≥7W; 85~265VAC power: 10W Protection level: IP65

• MOQ 1 Piece(s)
• Brand NameMetern

Features - All welded, non-clog design provides maximum performance, reliability and enhanced safety by eliminating ports and gaskets. No seals, just steel. - Available with optional output. Internal temperature compensation provides cost-effective saturated steam mass flow measurement. - Adaptive Digital Signal Processing provides vibration immunity and flow range optimization. - Vortex extends the measurable flow range, reduces installation costs, and minimizes project risk. - Available in wafer, flanged, and high pressure designs. Specifications Medium: Liquid, Gas, Steam Nominal Diameter: DN15~DN300(waferflange type); DN200~DN2500(insertion type) Medium Temperature: -50~+500℃ Nominal Pressure: 1.6Mpa, 2.5Mpa, 4.0Mpa, Higher pressure can be customized. Accuracy: Liquid: ±1.0% reading; Gas, Steam: ±1.5% reading Repeatability: ≤13 accuracy Power Supply: 24VDC Output Signal: Pulse output 4-20mA.DC RS485 Ex-proof: Flame proof: ExdIIBT5; Intrinsic safety: ExiaIICT5 Protection level: IP65, IP68

• MOQ 1 Piece(s)
• Brand NameMetern

We are offering mtld series electromagnetic flow meter is produced according to jbt9248-1999 standard. The operation of electromagnetic flow meter is based on faraday’s law. It is used for measuring the volume flow of electrically conductive liquid in the pipeline, such as water, seawater, sewage, slurry, pulp, acid, alkali, salt liquid food slurry etc. Mtld series are widely applied in petro, chemical, thermoelectricity, mining and metallurgy, coal industry, food industry, sewage treatment and other industries. Our electromagnetic flow meter has two types: integrated type electromagnetic flow meter and split type electromagnetic flow meter. Technical parameter 1.accuracy: pipeline type, 0.5, 0.1 2.measured medium temperature: ordinary rubber lining: -20-60 ° c high-temperature rubber lining: -20-90 ℃ ptfe lining: -30 -100 ° c high temperature ptfe lining: -30 - 160 ° c 3.rated working pressure: pipeline: dn6 ~dn80: ≤ 2.5mpa, dn100-dn150: ≤ 1.6mpa, dn200-dn1000: ≤ 1.0mpa, dn1100~dn2200: ≤0.6mpa, high pressure can be customized 4.flow measurement range: flow measurement range corresponds to the range of flow rate: 0.1 ~ 15m s, measuring range: 1:150 5.conductivity range: the measured fluid conductivity: ≥ 5μscm (integrated type) the electromagnetic flow meter can be selected to measure for the medium containing water as a main component and the conductivity of which is in the range of 200 - 800μscm. 6.signal output:4 - 20madc, rl≤ 500ω 7.power supply: 24vdc 220vac 8.straight pipe length: pipeline: upstream ≥ 5d , downstream ≥ 3d 9.connection form: adopting flange connection between flow meter and piping the flange connection size should comply with the provisions of gb11988. 10.explosion-proof : ex dllbt4, ex dllct6 11.ambient temperature: -25 ℃ - 60 ℃ 12.relative humidity: 5% - 95% 13.the total power consumption:

• MOQ 1 Piece(s)
• Brand NameMetern

Mtuhz-58 series float level transmitter is mainly used for water treatment in petroleum, chemical, electric, papermaking, food manufacturing and other industries. This transmitter is also applied in any type of liquid level measurement in open vessel or sealed container. The wetted part is made of 1cr18ni9ti stainless steel with strong corrosion resistance. Reed switch—the key component of float level transmitter—uses importing original parts and has the characteristics of reliable performance and long life. Mtuz-58 series float level transmitter is able to overcome false-level phenomenon which is affected by liquid foam. Technical parameter medium: viscosity≤0.07pa.s, density＞0.68g/cm3 measurement range: 100-3000mm, above 3000mm design on request output signal: 4-20madc load resistance: ≤500ω power supply: 24vdc±10% working pressure:0-1.6mpa medium temperature: -20-100℃ ambient temperature: -20-70℃ accuracy: ≤±10mm cable interface: m20×1.5(internal thread) installation: flange installation wetted material: 304 stainless steel; pp; ptfe explosion-proof grade: ex dllct6, ex iallct4-6

• MOQ 1 Piece(s)
• BrandMetern

Mtuhz-53c magnetic float level gauge is the product manufactured by adopting, developing and improving the technology of foreign similar products. The level gauge can be available for level detection of medium contained inside towers, tanks, chutes, spherical container, boilers and steam turbine etc. Products have the characteristics of high-sealed and anti-leak. As the liquid medium is isolated from indicator completely, liquid level detection is very safe, reliable and durable. The whole process of measurement has no blind spots, with clear display, intuitive readings, and wide measurement range. It is equipped with mtuhz-58 type liquid level transmitter which can convert liquid level signal into two-wire system of 4-20madc standard signal, to realize long-range detection, display, records and control. technical parameter measurement range: 200-6000mm (manufactured in segment if it’s longer than 6m) accuracy: ≤±10mm medium density: 0.5-2.0g/cm3 difference of medium density : ≥0.15g/cm3(measurement border) working temperature: -80-400℃ working pressure: 0.1-32.0mpa medium viscosity: ≤0.4pa.s process connection: flange diameter dn20-dn50 flange standard: please note when ordered by users. Transmitting output signal: 4-20madc(two-wire system) loaded resistance:≤500ω power supply:24v dc±10% explosion-proof :ex dllct6, ex iallct4-6

We are offering thermal mass flowmeter. Features - a true mass flow meter which could measure the gas flow conveniently and accurately without compensation for temperature or pressure. - great range ratio; it could measure the flow rate from 100nms maximum to 0.5nms minimum. - good anti-vibration performance and long service life; - simple and convenient installation and maintenance; - digitalization design; specifications measuring media: various gases (except for acetylene gas) range of pipe diameter: dn80-6000(insertion type), dn15-2000(flange type) velocity range: 0.5-100 nms accuracy: ±1.0% working temperature: sensor: normal temperature type -10℃ to +200℃, high temperature type -10℃ to +350℃; converter:-20℃ to +45℃ for special environment, please specify working pressure: ≤2.5mpa power supply: dc24v or ac220v response speed: 1s output signal: 4-20ma, rs485 pipeline material: carbon steel, stainless steel and plastic, etc. Display: 8-bit field + 24 prompts protection: ip67 explosive-proof: exdⅱct4 sensor material: stainless steels
