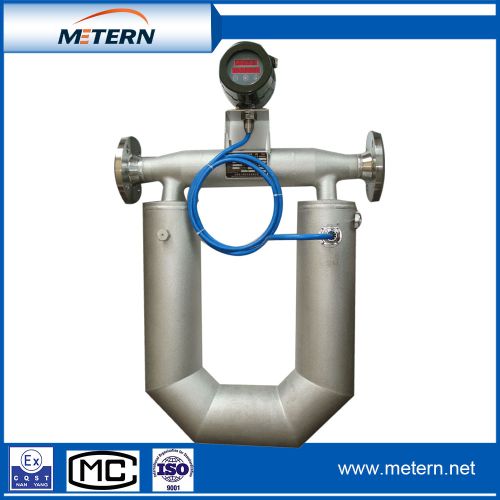

Coriolis Mass Flow Meter, Brand Name : Metern

Metern MTCMF Coriolis mass flowmeters are the leading precision flow and density measurement solution offering the most accurate and repeatable mass measurement for liquids, or slurries. MTCMF meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop.
Nominal Size: DN10~DN200
Accuracy: ±0.1~0.5%
Repeatability: ±0.1~0.25%
Density measurement range: 0.5~2gcm3, Accuracy: ±0.002 gcm3
Operating temperature: -50~+200℃
Ambient temperature: -40~+60℃ or -20~+55℃
The measuring tube material: SS316L; The housing material: SS304
Nominal pressure: 4.0MPa
Ex-proof: Exd (ia)ⅡC T6Gb
LCD local display
Display variable: mass flow, volume flow, density, temperature
Ambient temperature: -20~+55℃
Output signal: Pulse+4~20mA+RS485
Communication: Modbus
Power supply: 18~36VDC power≥7W; 85~265VAC power: 10W
Protection level: IP65
